Explore Our Wide Selection Of John Deere Compact Track Loaders
Click on products below to learn more.
317G Compact Track Loader
Available models: 317G
Details:
317G
Compact Track Loader
- Rated Operating Capacity: 965 kg (2,125 lb.)
- Gross Horsepower: 48.5 kW (65 hp)
- Net Horsepower: 45.6 kW (61 hp)
- Operating Weight: 3,721 kg (8,195 lb.)
Features:
- Vertical Lift Boom
- Engine
- Stability
- Cab & Controls
- Uptime
- Track Width Options
Specifications:
- DRIVELINE
- Engine ManufacturerYanmar
- Engine Model4TNV86CHT
- Emission RatingTier 4
- AspirationTurbo
- Displacement, ltr (Inches�)2.1 (128)
- Rated Speed, rpm2600
- Engine Output - Net, kW (hp)45.6 (61)
- Engine Output - Gross, kW (hp)48.5 (65)
- Torque, Nm (lbf / ft)207 (153)
- Track Shoe Width, mm (inches)320 (12.6)
- DIMENSIONS
- Length - No Bucket, mm (inches)2630 (103)
- Length - With Bucket, mm (inches)3240 (127.6)
- Width - No Bucket, mm (inches)1650 (65.1)
- Height - Top Of Cab, mm (inches)1990 (78.5)
- Ground Clearance, mm (inches)210 (8.3)
- Rear Departure Angle, �32.3
- Track Gauge, mm (inches)1330 (52.5)
- Height to Hinge Pin, mm (inches)3070 (121)
- Dump Angle, �42
- Dump Height - Maximum, mm (inches)2430 (95.6)
- Rollback - Ground Level, �30
- PERFORMANCE
- Rated Operating Capacity, kg (lbs)965 (2125)
- Tipping Load, kg (lbs)2756 (6070)
- Ground Bearing Pressure, kPa (PSI)38 (5.5)
- Speed - Maximum, kph (mph)11.3 (7)
- Breakout - Lift, kN (lbf)22.2 (5000)
- Breakout - Bucket, kN (lbf)26.6 (6000)
- Hydraulic Power, kW (hp)23.159 (31)
- Pump Flow, lt/min (gallons (US) / min)59 (16)
- System Pressure, bar (PSI)237.87 (3450)
Back to Top

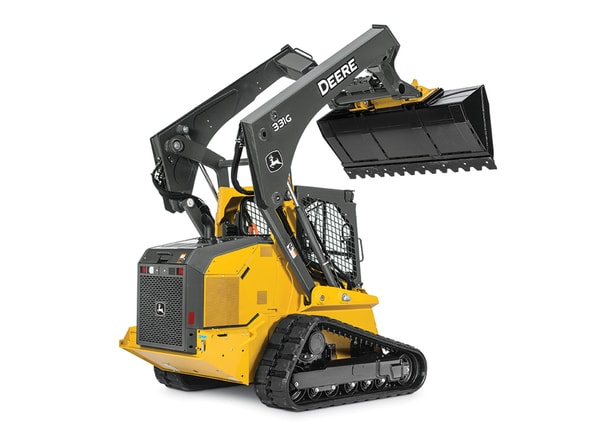

331G Compact Track Loader
Available models: 331G
Details:
331G
Compact Track Loader
- Rated Operating Capacity: 1,407 kg (3,100 lb.)
- Gross Horsepower: 68.0 kW (91.2 hp)
- Net Horsepower: 66.0 kW (88.5 hp)
- Operating Weight: 5,403 kg (11,900 lb.)
Features:
- Vertical Lift Boom
- Engine
- EH Boom Performance Package
- Onboard Grade Indication Option
- Stability
- Cab & Controls
- Uptime
- Serviceability
Specifications:
- DRIVELINE
- Engine ManufacturerYanmar
- Engine Model4TNV94FHT
- Emission RatingTier 4
- AspirationTurbo. intercooled
- Displacement, ltr (Inches�)3.1 (186.3)
- Rated Speed, rpm2500
- Engine Output - Net, kW (hp)66 (88.5)
- Engine Output - Gross, kW (hp)68 (91.2)
- Torque, Nm (lbf / ft)382 (281.8)
- Track Shoe Width, mm (inches)400 (15.8)
- DIMENSIONS
- Length - No Bucket, mm (inches)3100 (122)
- Length - With Bucket, mm (inches)3710 (146)
- Width - No Bucket, mm (inches)2000 (78.9)
- Height - Top Of Cab, mm (inches)2200 (86.7)
- Ground Clearance, mm (inches)240 (9.4)
- Rear Departure Angle, �31
- Track Gauge, mm (inches)1600 (63.1)
- Height to Hinge Pin, mm (inches)3350 (132)
- Dump Angle, �48
- Dump Height - Maximum, mm (inches)2690 (106.1)
- Rollback - Ground Level, �35
- PERFORMANCE
- Rated Operating Capacity, kg (lbs)1407 (3100)
- Tipping Load, kg (lbs)4021 (8857)
- Ground Bearing Pressure, kPa (PSI)38.1 (5.5)
- Speed - Maximum, kph (mph)12.6 (7.8)
- Breakout - Lift, kN (lbf)31.1 (7000)
- Breakout - Bucket, kN (lbf)41.5 (9350)
- Hydraulic Power, kW (hp)31.402 (42.1)
- Hydraulic Power - Option, kW (hp)54.168 (72.6)
- Pump Flow, lt/min (gallons (US) / min)80 (23.5)
- Pump Flow - Option, lt/min (gallons (US) / min)138 (36.5)
- System Pressure, bar (PSI)237.87 (3450)
Back to Top
333G Compact Track Loader
Available models: 333G
Details:
333G
Compact Track Loader
- Rated Operating Capacity: 1,680 kg (3,700 lb.)
- Gross Horsepower: 74.6 kW (100 hp)
- Net Horsepower: 72.0 kW (96.6 hp)
- Operating Weight: 5,493 kg (12,100 lb.)
Features:
- Vertical Lift Boom
- Engine
- EH Boom Performance Package
- Onboard Grade Indication Option
- Stability
- Cab & Controls
- Uptime
- Serviceability
- Productivity
Specifications:
- DRIVELINE
- Engine ManufacturerYanmar
- Engine Model4TNV94FHT
- Emission RatingTier 4
- AspirationTurbo. intercooled
- Displacement, ltr (Inches�)3.1 (186.3)
- Rated Speed, rpm2500
- Engine Output - Net, kW (hp)72 (96.6)
- Engine Output - Gross, kW (hp)74.6 (100)
- Torque, Nm (lbf / ft)395 (291.3)
- Track Shoe Width, mm (inches)450 (17.7)
- DIMENSIONS
- Length - No Bucket, mm (inches)3100 (122)
- Length - With Bucket, mm (inches)3710 (146)
- Width - No Bucket, mm (inches)2050 (80.7)
- Height - Top Of Cab, mm (inches)2200 (86.7)
- Ground Clearance, mm (inches)240 (9.4)
- Rear Departure Angle, �31
- Track Gauge, mm (inches)1600 (63.1)
- Height to Hinge Pin, mm (inches)3350 (132)
- Dump Angle, �48
- Dump Height - Maximum, mm (inches)2690 (106.1)
- Rollback - Ground Level, �35
- PERFORMANCE
- Rated Operating Capacity, kg (lbs)1680 (3700)
- Tipping Load, kg (lbs)4799 (10570)
- Ground Bearing Pressure, kPa (PSI)34.1 (5)
- Speed - Maximum, kph (mph)12.6 (7.8)
- Breakout - Lift, kN (lbf)37.8 (8520)
- Breakout - Bucket, kN (lbf)61.8 (13904)
- Hydraulic Power, kW (hp)37.29 (50)
- Hydraulic Power - Option, kW (hp)61.234 (82.1)
- Pump Flow, lt/min (gallons (US) / min)95 (25)
- Pump Flow - Option, lt/min (gallons (US) / min)156 (41.1)
- System Pressure, bar (PSI)237.87 (3450)
Back to Top
325G Compact Track Loader
Available models: 325G
Details:
325G
Compact Track Loader
- Rated Operating Capacity: 1176 kg (2,590 lb.)
- Gross Horsepower: 54.8 kW (74 hp)
- Net Horsepower: 52.5 kW (70 net hp)
- Operating Weight: 4313 kg (9,500 lb.)
Features:
- Engine
- Cab & Controls
- Productivity
- Uptime
Specifications:
- DRIVELINE
- Engine ManufacturerYanmar
- Engine Model4TNV98CT
- Emission RatingTier 4
- AspirationTurbo
- Displacement, ltr (Inches³)3.3 (203)
- Rated Speed, rpm2500
- Engine Output - Net, kW (hp)52.5 (70)
- Engine Output - Gross, kW (hp)54.8 (74)
- Torque, Nm (lbf / ft)280 (207)
- Track Shoe Width, mm (inches)320 (12.6)
- DIMENSIONS
- Length - No Bucket, mm (inches)2850 (112.3)
- Length - Foundry Bucket, mm (inches)3460 (136.3)
- Width - No Bucket, mm (inches)1820 (71.5)
- Height - Top Of Cab, mm (inches)2060 (81.1)
- Ground Clearance, mm (inches)240 (9.3)
- Rear Departure Angle, Degrees30.5
- Height to Hinge Pin, mm (inches)3200 (126.1)
- Dump Angle, Degrees41
- Dump Height - Maximum Foundry, mm (inches)2590 (102.1)
- Rollback - Ground Level, Degrees34
- PERFORMANCE
- Rated Operating Capacity - Foundry, kg (lbs)1176 (2590)
- Tipping Load - Foundry, kg (lbs)3360 (7400)
- Ground Bearing Pressure - Foundry, kPa (PSI)39.3 (5.7)
- Speed - Maximum, kph (mph)9.3 (5.8)
- Speed - Maximum Option, kph (mph)13.2 (8.2)
- Breakout - Lift Foundry, kN (lbf)23.3 (5250)
- Breakout - Bucket Foundry, kN (lbf)38.9 (8750)
- Hydraulic Power, kW (hp)27.477 (36.8)
- Hydraulic Power - Option, kW (hp)39.645 (53.1)
- Pump Flow, lt/min (gallons (US) / min)70.01 (19)
- Pump Flow - Option, lt/min (gallons (US) / min)101 (27)
- System Pressure, bar (PSI)237.87 (3450)
Back to Top
Visit Little’s To Explore Your Compact Track Loader Options
Stop by one of our five locations for a close look at your John Deere compact track loader options. Then take one out for a demonstration. Your Little’s sales guide is ready to help you find the right compact track loader for your needs, and will also provide information on your financing and leasing options.
