John Deere Attachments

Get More Done With Easy-To-Use Attachments

If you’re looking for more productivity from your John Deere equipment, look no further than these attachments. With more than 100 models available, you’re sure to find the right tool for the job.

At Little’s, we’re glad to help you choose the attachments you need to optimize performance and productivity. Plus, you can be confident that John Deere Worksite Pro attachments are:

Compatible with a number of Deere machines
Built to deliver maximum uptime and long life
Backed by Deere parts, service and warranty coverage

Ag Attachments

Augers & Trenchers

Blades & Scrapers

Ag Forks

Model	Number of Tines	Weight	Width
AF60 Ag Fork	6	370 lb. (168 kg)	59 in. (1500 mm)
AF66 Ag Fork	7	395 lb. (179 kg)	65 in. (1652 mm)
AF72 Ag Fork	7	435 lb. (197 kg)	71 in. (1804 mm)
AF78 Ag Fork	8	445 lb. (202 kg)	77 in. (1956 mm)

Bale Hugger

Model	MAX OPENING	LIFT CAPACITY	WEIGHT
AH80 Bale Hugger	279.40 cm (110 in.)	1088.62 kg (2,400 lb.)	217.72 kg (480 lb.)

Bale Spears

Model	Weight	NUMBER OF MAIN TINES	TINE CAPACITY
AB21 Bale Spears	66 kg (145 lb.)	1 main tine	907 kg (2,000 lb.)
AB31 Bale Spears	91 kg (200 lb.)	1 main tine	1361 kg (3,000 lb.)
AB32 Bale Spears	70 kg (155 lb.)	2 main tines	1361 kg (3,000 lb.)
AB42 Bale Spears	109 kg (240 lb.)	2 main tines	1814 kg (4,000 lb.)
AB43 Bale Spears	102 kg (225 lb.)	3 main tines	1814 kg (4,000 lb.)
Square	171 kg (375 lb.)	--	--

Nursery Forks

Model	Width	Maximum Root Ball	Fork Opening (Parallel)
NF44 Nursery Fork	1194 mm (47 in.)	1118 mm (44 in.)	457 mm (18 in.)

Silage Defacers

MODEL	WIDTH	REACH	HYDRAULIC FLOW	WEIGHT
AD7 Silage Defacer	2460.6 mm (96.9 in.)	2.13 m (7 ft.)	60.6-94.6 L/min. (16-25 gpm)	413 kg (910 lb.)
AD11 Silage Defacer	2460.6 mm (96.9 in.)	3.35 m (11 ft.)	60.6-94.6 L/min. (16-25 gpm)	470 kg (1,037 lb.)

Side Discharge Buckets

Model	Type	Capacity	Weight	Width
SA60 Side Discharge Bucket	Aggregate	0.50 cu. yd.	805 lb. (365 kg)	60 in. (1524 mm)
SA72 Side Discharge Bucket	Aggregate	0.67 cu. yd.	915 lb. (415 kg)	72 in. (1829 mm)
SD72 Side Discharge Bucket	Dust / Mulch	1.33 cu. yd.	1120 lb. (508 kg)	72 in. (1829 mm)
SD84 Side Discharge Bucket	Dust / Mulch	1.67 cu. yd.	1300 lb. (590 kg)	84 in. (2134 mm)

Scrapers

Model	Weight	Width
MS60 Scraper	458 lb. (208 kg)	60 in. (1524 mm)
MS72 Scraper	516 lb. (234 kg)	72 in. (1829 mm)
MS84 Scraper	589 lb. (267 kg)	84 in. (2134 mm)
MS96 Scraper	656 lb. (298 kg)	96 in. (2438 mm)

Rollout Buckets

Model	Width	Weight	Heaped Capacity
RB72 Rollout Bucket	1850 mm (73 in.)	532 kg (1,170 lb.)	0.91 m3 (1.19 cu. yd.)
RB84 Rollout Bucket	2150 mm (84.75 in.)	580 kg (1,275 lb.)	1.10 m3 (1.44 cu.yd.)
RB96 Rollout Bucket	2480 mm (97.5 in.)	618 kg (1,360 lb.)	1.28 m3 (1.68 cu. yd.)

Utility Grapples

Model	Width	Standard Number of Tines	Operating Weight
GU60 Utility Grapple	1502 mm (59 in.)	10	225 kg (496 lb.)
GU66 Utility Grapple	1652 mm (65 in.)	11	235 kg (517 lb.)
GU72 Utility Grapple	1804 mm (71 in.)	12	247 kg (543 lb.)
GU78 Utility Grapple	1956 mm (77 in.)	13	258 kg (568 lb.)

Planetary Drive Augers

Model	Max Auger Bit Diameter	Min Hydraulic Flow	Max Hydraulic Flow
PA15B Planetary Drive Auger	24 in. (610 mm)	6 gpm (23 L/min.)	17 gpm (64 L/min.)
PA30B Planetary Drive Auger	36 in. (914 mm)	14 gpm (53 L/min.)	30 gpm (114 L/min.)
PA40 Planetary Drive Auger	36 in. (914 mm)	28 gpm (106 L/min.)	42 gpm (159 L/min.)

Trenchers

Model	Boom Size	Hydraulic Oil Flow	Overall Length	Weight
TC36 Trencher	915 mm (36 in.)	53–83 L/min. (14–22 gpm)	1855 mm (73 in.)	510 kg (1,130 lb.)
TC48 Trencher	1220 mm (48 in.)	53–83 L/min. (14–22 gpm)	2185 mm (86 in.)	540 kg (1,180 lb.)
TR36B Trencher	915 mm (36 in.)	61-167 L/min. (16-44 gpm)	1855 mm (73 in.)	510 kg (1,130 lb.)
TR48B Trencher	1220 mm (48 in.)	61-167 L/min. (16-44 gpm)	2185 mm (86 in.)	540 kg (1,180 lb.)
TR60B Trencher	1525 mm (60 in.)	102-167 L/min. (27-44 gpm)	2390 mm (94 in.)	610 kg (1,335 lb.)

Box Blades

Model	Weight	Width
PD-72 Box Blade	1,885 lb. (855 kg)	75.2 in. (1910 mm)
PD-84 Box Blade	1,935 lb. (878 kg)	87.2 in. (2220 mm)
PD-96 Box Blade	1,985 lb. (900 kg)	99.2 in. (2520 mm)

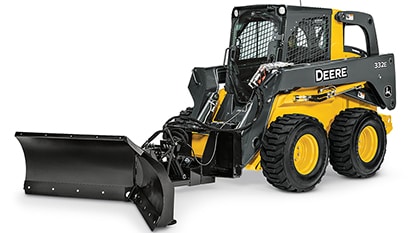

Snow/Utility V-Blades

Model	Weight	Width (Straight)	Width (V-Configuration)
BV6 Snow/Utility V-Blade	441 kg (972 lb.)	1880 mm (74 in.)	1638 mm (64.5 in.)
BV8 Snow/Utility V-Blade	480 kg (1,058 lb.)	2489 mm (98 in.)	2172 mm (85.5 in.)
BV9 Snow/Utility V-Blade	500 kg (1,102 lb.)	2794 mm (110 in.)	2438 mm (96 in.)

Snow/Utility Blades

Model	Weight	Angled Width	Width
BL6B Snow/Utility Blade	432 kg (954 lb.)	1575 mm (62 in.)	1829 mm (72 in.)
BL7B Snow/Utility Blade	461 kg (1016 lb.)	1829 mm (72 in.)	2134 mm (84 in.)
BL8B Snow/Utility Blade	489 kg (1078 lb.)	2108 mm (83 in.)	2438 mm (96 in.)
BL9B Snow/Utility Blade	512 kg (1128 lb.)	2362 mm (93 in.)	2743 mm (108 in.)
BL10B Snow/Utility Blade	540 kg (1190 lb.)	2591 mm (102 in.)	3048 mm (120 in.)

Dozer Blades

Model	Weight	Overall Width
DB84 Dozer Blade	1,550 lb. (703 kg)	84.0 in. (2133 mm)
DB96 Dozer Blade	1,625 lb. (737 kg)	96.0 in. (2438 mm)

Scrapers

Model	Weight	Width
MS60 Scraper	458 lb. (208 kg)	60 in. (1524 mm)
MS72 Scraper	516 lb. (234 kg)	72 in. (1829 mm)
MS84 Scraper	589 lb. (267 kg)	84 in. (2134 mm)
MS96 Scraper	656 lb. (298 kg)	96 in. (2438 mm)

Brooms

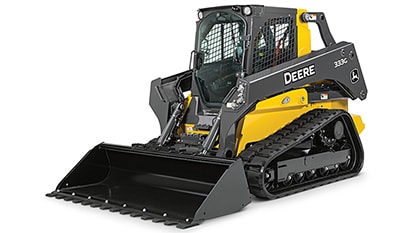

Buckets

Cutters, Shredders & Mulchers

Pick-Up Brooms

Model	Sweeping Width	Operating Weight	Number of Wafers
BP72C Pick-Up Broom	1,830 mm (72 in.)	580 kg (1,275 lb.)	41
BP84C Pick-Up Broom	2,130 mm (84 in.)	640 kg (1,400 lb.)	49
BR60C Pick-Up Broom	1,520 mm (60 in.)	400 kg (880 lb.)	33
BR72C Pick-Up Broom	1,830 mm (72 in.)	440 kg (970 lb.)	41
BR84C Pick-Up Broom	2,130 mm (84 in.)	500 kg (1,090 lb.)	49

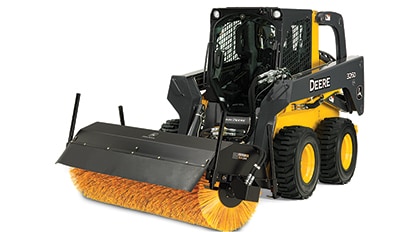

Angle Brooms

Model	Sweeping Width (Straight)	Sweeping Width (Fully Angled)	Operating Weight	Number of Wafers
BA72C Angle Broom	1,830 mm (72 in.)	1,580 mm (62 in.)	410 kg (910 lb.)	35
BA84C Angle Broom	2,130 mm (84 in.)	1,850 mm (73 in.)	440 kg (960 lb.)	41
BA96C Angle Broom	2,440 mm (96 in.)	2,110 mm (83 in.)	460 kg (1,010 lb.)	47

Multi-Purpose Buckets

Model	Overall Width	Heaped Bucket Capacity	Empty Weight
MP66B Multi-Purpose Bucket	1701 mm (67.0 in.)	0.5 m3 (15.8 cu. ft.)	281 kg (620 lb.)
MP72B Multi-Purpose Bucket	1854 mm (73.0 in.)	0.6 m3 (20.0 cu. ft.)	408 kg (900 lb.)
MP78B Multi-Purpose Bucket	2000 mm (78.8 in.)	0.6 m3 (21.7 cu. ft.)	424 kg (935 lb.)
MP84B Multi-Purpose Bucket	2153 mm (84.8 in.)	0.7 m3 (23.4 cu. ft.)	442 kg (975 lb.)

Rock Buckets

Model	Width	Weight
R66 Rock Bucket	1727 mm (68 in.)	272 kg (600 lb.)
R75 Rock Bucket	1900 mm (74.8 in.)	295 kg (650 lb.)
R84 Rock Bucket	2093 mm (82.4 in.)	340 kg (750 lb.)

Side Discharge Buckets

Model	Type	Capacity	Weight	Width
SA60 Side Discharge Bucket	Aggregate	0.50 cu. yd.	805 lb. (365 kg)	60 in. (1524 mm)
SA72 Side Discharge Bucket	Aggregate	0.67 cu. yd.	915 lb. (415 kg)	72 in. (1829 mm)
SD72 Side Discharge Bucket	Dust / Mulch	1.33 cu. yd.	1120 lb. (508 kg)	72 in. (1829 mm)
SD84 Side Discharge Bucket	Dust / Mulch	1.67 cu. yd.	1300 lb. (590 kg)	84 in. (2134 mm)

Rollout Buckets

Model	Width	Weight	Heaped Capacity
RB72 Rollout Bucket	1850 mm (73 in.)	532 kg (1,170 lb.)	0.91 m3 (1.19 cu. yd.)
RB84 Rollout Bucket	2150 mm (84.75 in.)	580 kg (1,275 lb.)	1.10 m3 (1.44 cu.yd.)
RB96 Rollout Bucket	2480 mm (97.5 in.)	618 kg (1,360 lb.)	1.28 m3 (1.68 cu. yd.)

Stump Shredders

MODEL	WIDTH	LENGTH	WEIGHT	HYDRAULIC FLOW
SS30 High-Torque Stump Shredder	1,160 mm (46 in.)	1,670 mm (66 in.)	590 kg (1,300 lb.)	76–170 L/min. (20–45 gpm)

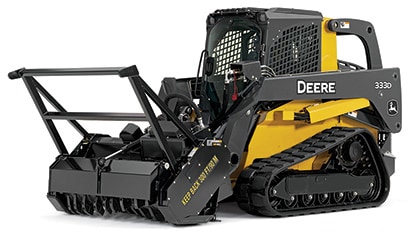

Mulching Heads

Model	Cutting Width	Overall Width	Weight	Flow
MH60D Mulching Head	1520 mm (60 in.)	1880 mm (74 in.)	1240 kg (2,730 lb.)	High

Rotary Cutters

Model	Cutting Width	Overall Length	Weight	Cutting Capacity
RC60B Rotary Cutter	1524 mm (60 in.)	1930 mm (76 in.)	508 kg (1,120 lb.)	102 mm (4 in.)
RC72B Rotary Cutter	1829 mm (72 in.)	2235 mm (88 in.)	581 kg (1,280 lb.)	102 mm (4 in.)
RS72 Extreme Duty Rotary Cutter	1830 mm (72 in.)	2175 mm (85.6 in.)	910 kg (2,010 lb.)	254 mm (10 in.)
RX72 Rotary Cutter	1830 mm (72 in.)	2175 mm (85.6 in.)	810 kg (1,780 lb.)	254 mm (10 in.)
RC78B Rotary Cutter	1981 mm (78 in.)	2388 mm (94 in.)	617 kg (1,360 lb.)	102 mm (4 in.)
RX84 Rotary Cutter	2135 mm (84 in.)	2475 mm (97.5 in.)	1025 kg (2,260 lb.)	254 mm (10 in.)

Forks & Spears

Grapples

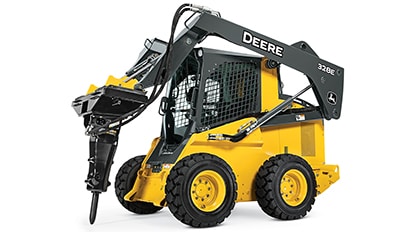

Hammers

Bale Spears

Model	Weight	NUMBER OF MAIN TINES	TINE CAPACITY
AB21 Bale Spears	66 kg (145 lb.)	1 main tine	907 kg (2,000 lb.)
AB31 Bale Spears	91 kg (200 lb.)	1 main tine	1361 kg (3,000 lb.)
AB32 Bale Spears	70 kg (155 lb.)	2 main tines	1361 kg (3,000 lb.)
AB42 Bale Spears	109 kg (240 lb.)	2 main tines	1814 kg (4,000 lb.)
AB43 Bale Spears	102 kg (225 lb.)	3 main tines	1814 kg (4,000 lb.)
Square	171 kg (375 lb.)	--	--

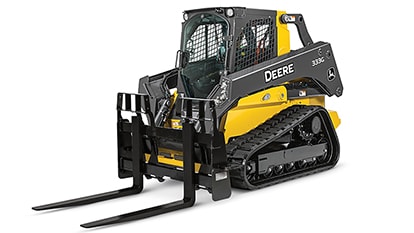

Pallet Forks

Model	Frame Width (with steps)	Fork Thickness	Pallet Fork Rating (pair of tines)
Rail	1353 mm (53.3 in.)	35 mm (1.4 in.)	1700 kg (3,750 lb.)
Heavy Duty	1723 mm (67.8 in.)	45 mm (1.78 in.)	2270 kg (5,000 lb.)
Severe Duty for CWLs	N/A	50 mm (2 in.)	4000 kg (8,800 lb.)
Severe Duty PF45	1380 mm (54 in.)	50 mm (2 in.)	4000 kg (8,800 lb.)
Severe Duty PF60	1730 mm (68 in.)	50 mm (2 in.)	4000 kg (8,800 lb.)

Nursery Forks

Model	Width	Maximum Root Ball	Fork Opening (Parallel)
NF44 Nursery Fork	1194 mm (47 in.)	1118 mm (44 in.)	457 mm (18 in.)

Ag Forks

Model	Number of Tines	Weight	Width
AF60 Ag Fork	6	370 lb. (168 kg)	59 in. (1500 mm)
AF66 Ag Fork	7	395 lb. (179 kg)	65 in. (1652 mm)
AF72 Ag Fork	7	435 lb. (197 kg)	71 in. (1804 mm)
AF78 Ag Fork	8	445 lb. (202 kg)	77 in. (1956 mm)

Scrap Grapples

Model	Width	Operating Weight
GS66B Scrap Grapple	1675 mm (66 in.)	485 kg (1,070 lb.)
GS72B Scrap Grapple	1830 mm (72 in.)	505 kg (1,110 lb.)
GS78B Scrap Grapple	1980 mm (78 in.)	520 kg (1,150lb.)
GS84B Scrap Grapple	2135 mm (84 in.)	540 kg (1,185 lb.)

Rock Grapples

Model	Width	Operating Weight
GR72B Rock Grapple	1830 mm (72 in.)	530 kg (1,165 lb.)
GR84B Rock Grapple	2135 mm (84 in.)	570 kg (1,255 lb.)

Utility Grapples

Model	Width	Standard Number of Tines	Operating Weight
GU60 Utility Grapple	1502 mm (59 in.)	10	225 kg (496 lb.)
GU66 Utility Grapple	1652 mm (65 in.)	11	235 kg (517 lb.)
GU72 Utility Grapple	1804 mm (71 in.)	12	247 kg (543 lb.)
GU78 Utility Grapple	1956 mm (77 in.)	13	258 kg (568 lb.)

Cold Planers

Plate Compactors

Rakes, Tillers, & Planers

Cold Planers

Model	Planing Width	Hydraulic Flow	Operating Weight
CP12D Cold Planer	305 mm (12 in.)	56-83 L/min. (15-22 gpm)	680 kg (1,500 lb.)
CP18E Cold Planer	455 mm (18 in.)	109-155 L/min. (29-41 gpm)	1000 kg (2,200 lb.)
CP24E Cold Planer	610 mm (24 in.)	109-155 L/min. (29-41 gpm)	1090 kg (2,400 lb.)
CP30E Cold Planer	760 mm (30 in.)	109-155 L/min. (29-41 gpm)	1180 kg (2,600 lb.)

Rotary Tillers

Model	Tilling Width	Number of Tines	Operating Weight
RT52 Tiller	52 in. (1.3 m)	24	750 lb. (340 kg)
RT66 Tiller	66 in. (1.7 m)	32	1,000 lb. (454 kg)

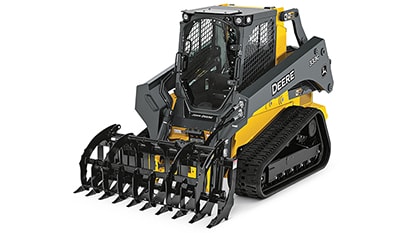

Root Rakes

Model	Overall Width	Time Spacing	Weight
RR72 Root Rake	72 in. (1830 mm)	9.5 in. (240 mm)	1,095 lb. (497 kg)
RR78 Root Rake	78 in. (1980 mm)	10 in. (255 mm)	1,150 lb. (522 kg)
RR84 Root Rake	84 in. (2135 mm)	8.5 in. (215 mm)	1,220 lb. (553 kg)

Power Rakes

Model	Raking Width	Length	Weight	Min. Hydraulic Flow
PR60 Power Rake	62 in. (1575 mm)	59 in. (1499 mm)	938 lb. (425 kg)	49 L/min. (13 gpm)
PR72B Power Rake	938 lb. (425 kg)	64 in. (1625 mm)	925 lb. (419 kg)	49 L/min. (13 gpm)
PR84B Power Rake	84 in. (2134 mm)	64 in. (1625 mm)	1,050 lb. (476 kg)	60 L/min. (16 gpm)
PR96B Power Rake	90 in. (2438 mm)	76 in. (1930 mm)	1,320 lb. (598 kg)	60 L/min. (16 gpm)

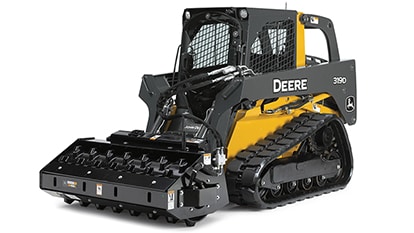

Rollers

Snow Attachments

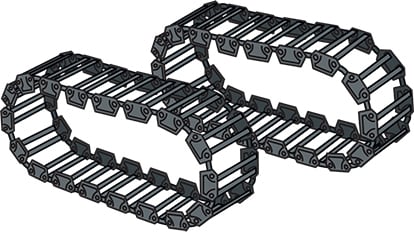

Steel Tracks

Roller Levels

Model	Weight	Overall Width	Box Width
RL66 Roller Level	557 kg (1,229 lb.)	1886 mm (74.3 in.)	1676 mm (66 in.)
RL84 Roller Level	734 kg (1,620 lb.)	2367 mm (93.3 in.)	2133 mm (84 in.)

Vibratory Rollers

Model	Drum Width	Dynamic Force	Operating Weight (Smooth Drum)
VR66C Vibratory Roller	1.7 m (66 in.)	3538 kg (7,800 lbf)	975 kg (2,150 lb.)
VR73C Vibratory Roller	1.8 m (73 in.)	3878 kg (8,550 lbf)	1043 kg (2,300 lb.)
VR84C Vibratory Roller	2.1 m (84 in.)	4250 kg (9,370 lbf)	1148 kg (2,530 lb.)

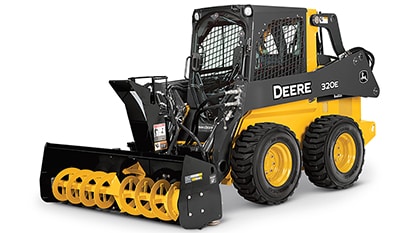

Snow Blowers

Model	Flow Type	Cutting Width	Approximate Weight
SB60B Snow Blower	Standard	1524 mm (60 in.)	295 kg (650 lb.)
SB72B Snow Blower	Standard	1829 mm (72 in.)	311 kg (685 lb.)
SB72H Snow Blower	High	1829 mm (72 in.)	526 kg (1,160 lb.)
SB78B Snow Blower	Standard	1981 mm (78 in.)	319 kg (703 lb.)
SB78H Snow Blower	High	1981 mm (78 in.)	544 kg (1,200 lb.)
SB84B Snow Blower	Standard	2134 mm (84 in.)	327 kg (720 lb.)
SB84H Snow Blower	High	2134 mm (84 in.)	562 kg (1,240 lb.)

Snow Pushers

Model	Path Width	Overall Width	Weight
SP8C Snow Pusher	2438 mm (96 in.)	2591 mm (102 in.)	270 kg (595 lb.)
SP10C Snow Pusher	3048 mm (120 in.)	3200 mm (126 in.)	311 kg (685 lb.)

Snow/Utility Blades

Model	Weight	Angled Width	Width
BL6B Snow/Utility Blade	432 kg (954 lb.)	1575 mm (62 in.)	1829 mm (72 in.)
BL7B Snow/Utility Blade	461 kg (1016 lb.)	1829 mm (72 in.)	2134 mm (84 in.)
BL8B Snow/Utility Blade	489 kg (1078 lb.)	2108 mm (83 in.)	2438 mm (96 in.)
BL9B Snow/Utility Blade	512 kg (1128 lb.)	2362 mm (93 in.)	2743 mm (108 in.)
BL10B Snow/Utility Blade	540 kg (1190 lb.)	2591 mm (102 in.)	3048 mm (120 in.)

Snow/Utility V-Blades

Model	Weight	Width (Straight)	Width (V-Configuration)
BV6 Snow/Utility V-Blade	441 kg (972 lb.)	1880 mm (74 in.)	1638 mm (64.5 in.)
BV8 Snow/Utility V-Blade	480 kg (1,058 lb.)	2489 mm (98 in.)	2172 mm (85.5 in.)
BV9 Snow/Utility V-Blade	500 kg (1,102 lb.)	2794 mm (110 in.)	2438 mm (96 in.)

Model	Total Number of Pads	Track Weight	Flotation Area With Tracks
10-Inch Steel Track	36	731 lb. (332 kg)	832 sq. in. (5367.7 cm2)
12-Inch Steel Track	40	920 lb. (418 kg)	1,102 sq. in. (7109.6 cm2)
14-Inch Steel Track	42	1,066 lb. (484 kg)	1,280 sq. in. (8258 cm2)
