Open Station & ComfortCab Mowers
Available models: 15501570157515801585
Details:

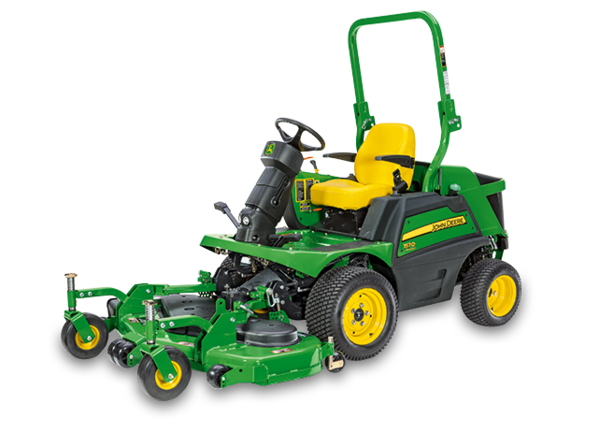

1550
TerrainCut™ Front Mower
- 7-Iron™ PRO Side Discharge or Fastback™ Rear Discharge Deck
- Diesel Engine
- Biodiesel Conversion Kit available
- Compatible with select front blade, snow blower and broom attachments
Features:
- Diesel engine has high-quality features to minimize operating cost
- Mower decks for TerrainCut™ Front Mowers match a wide variety of needs
- Easy-to-operate controls maximize productivity
- Front mower seat has standard arm rests for added comfort and productivity
- Serviceability is designed-in to reduce maintenance cost and increase uptime
- Welded frame structure is made of high-strength steel
- Hydrostatic transmission and transaxle are heavy-duty to maximize uptime
- Two-function mechanical rear-wheel drive for optimum use of the four-wheel drive feature
- Dual drive tires are available to optimize performance in challenging conditions (1550 and 1570 only)
- Tail-follows-the-trail design helps avoid obstacles in turns
- Front mower ballast requirements
- Roll-Gard™ rollover protective structures protects operators of open-station mowers
Specifications:
Key Specs
-
Engine Manufacturer/model
3TNV80F
-
Engine Power
Gross PS: 25 hp
18.4 kW -
Fuel tank capacity
16 U.S. gal.
60.6 L -
Mower deck Size
60 or 72 in.
152 or 183 cm -
Blade tip speed
18,000 fpm
5,486 m/min -
Transmission
Hydrostatic 2WD, optional full time or on demand 4WD
-
Speed range
0-12 mph
0-19.3 km/h -
Drive wheels
23x10.5-12
Optional: 23x8.5-12 -
Caster wheels
Flat free, 11x4-5
-
Warranty
24 monhts
Engine
-
Manufacturer/model
3TNV80F
-
Power
Gross
PS: 25 hp
18.4 kW -
Rated engine rpm
3,000 rpm
-
Cylinders
Three
-
Displacement
77 cu in.
1.26 L -
Maximum torque
At 1,900 rpm: 47.2 lb-ft
64 Nm -
Injection
Indirect
-
Fuel type
Diesel (optional kit permits B20 compatibility)
-
Fuel tank capacity
16 U.S. gal.
60.6 L -
Cooling
Liquid
-
Cooling capacity
7.5 U.S. qt
7.1 L -
Air cleaner
Dual element dry type
-
Air restriction indicator
Standard
-
Charging system
Automotive type
-
Alternator, amp
75 amp
-
Battery
12 V
Drivetrain
-
Transmission
Hydrostatic 2WD, optional full time or on demand 4WD
-
Speed and direction control
Two-pedal foot
-
Cruise control
Optional
-
Hi/Lo range
No, single speed transmission
Travel speed
-
Hi forward
0-12 mph
0-19.3 km/h -
Hi reverse
0-5 mph
0-8 km/h
Hydraulics
-
Type
Open center
-
Pump capacity
5.1 U.S. gpm
19.3 L/min -
Spool valve
Front lift, standard
-
Lift cylinders
Two
Steering
-
Type
Hydraulic cylinder
-
Turns lock-to-lock
2 maximum, 1.5 minimum
Brakes
-
Type
Internal wet disk
-
Individual turn brakes
Standard
-
Master brake
Standard, locking
Buyer's notes
-
Warranty
24 months
Tires
-
Drive wheels
23x10.5-12
Optional: 23x8.5-12 -
Steering
2WD: 18x8.5-8
4WD: 18x8.5-10
Weight transfer
-
Type
Optional hydraulic
Dimensions
-
Wheelbase
49.2 in.
125 cm -
Ground clearance
6.5 in.
16.5 cm -
Length
Less mower deck: 86.7 in.
220.2 cm -
Overall width
With 23x10.5 tires: 51.7 in.
131.3 cm -
ROPS
Standard (folding)
-
ROPS certification
Two-post: OSHA 1928; Canadian Std.: CSA-352
Four-post: SAE J2194; EU Standard: 86/298/EEC; ISO 21299:2009 -
Overall height with ROPS
82.7 in.
210 cm -
Overall height with ROPS folded
58 in.
147 cm -
Shipping weight
Net weight, 2WD without mower or fuel: 1,675 lb
760 kg
Net weight, 4WD without mower or fuel: 1,835 lb
832 kg
Mower decks
-
Construction
One-piece stamped: 7-Iron PRO
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Size
60 or 72 in.
152 or 183 cm -
Deck offset
Yes
-
Cutting height
1-6 in.
2.54-15.24 cm -
Belt tensioning
Spring loaded
-
Blade tip speed
18,000 fpm
5,486 m/min -
Caster wheels
Type
Flat free
Size
11x4-5 -
Front anti-Scalp rollers
Yes, gauge wheels
-
Rear anti-scalp rollers
Yes, gauge wheels
Mower deck (rear discharge)
-
Cutting width
62, 72 in.
157, 183 cm -
Cutting height
1-6 in.
2.5-15.2 cm -
Caster wheels
Type
Flat free
Size
11x4-5
Back to Top
Details:
1570
TerrainCut™ Front Mower
- 7-Iron™ PRO Side Discharge or Fastback™ Rear Discharge Deck
- Diesel Engine
- Compatible with select front blade, snow blower and broom attachments
Features:
- Diesel engine has high-quality features to minimize operating cost
- Mower decks for TerrainCut™ Front Mowers match a wide variety of needs
- Easy-to-operate controls maximize productivity
- Front mower seat has standard arm rests for added comfort and productivity
- Serviceability is designed-in to reduce maintenance cost and increase uptime
- Welded frame structure is made of high-strength steel
- Hydrostatic transmission and transaxle are heavy-duty to maximize uptime
- Two-function mechanical rear-wheel drive for optimum use of the four-wheel drive feature
- Dual drive tires are available to optimize performance in challenging conditions (1550 and 1570 only)
- Tail-follows-the-trail design helps avoid obstacles in turns
- Front mower ballast requirements
- Roll-Gard™ rollover protective structures protects operators of open-station mowers
Specifications:
Key Specs
-
Engine Manufacturer/model
3TNV88C
-
Engine Power
Gross PS: 37.4 hp
27.5 kW -
Fuel tank capacity
16 U.S. gal.
60.6 L -
Mower deck Size
60 or 72 in.
152 or 183 cm -
Blade tip speed
18,000 fpm
5,486 m/min -
Transmission
Hydrostatic 2WD, optional full time or on demand 4WD
-
Speed range
0-12 mph
0-19.3 km/h -
Drive wheels
23x10.5-12
Optional 23x8.5-12 -
Caster wheels
Flat free, 11x4-5
-
Warranty
24 months
Engine
-
Manufacturer/model
3TNV88C
-
Power
Gross
PS, 37.4 hp
27.5 kW -
Rated engine rpm
3,000 rpm
-
Cylinders
Three
-
Displacement
100.2 cu in.
1.64 L -
Maximum torque
At 1,950 rpm: 80.4 lb-ft
109 Nm -
Injection
Direct
-
Fuel type
Diesel (B20 compatible)
-
Fuel tank capacity
16 U.S. gal.
60.6 L -
Cooling
Liquid
-
Cooling capacity
8 U.S. qt
7.6 L -
Air cleaner
Dual element dry type
-
Air restriction indicator
Standard
-
Charging system
Automotive type
-
Alternator, amp
75 amp
-
Battery
12 V
Drivetrain
-
Transmission
Hydrostatic 2WD, optional full time or on demand 4WD
-
Speed and direction control
Two-pedal foot
-
Cruise control
Optional
-
Hi/Lo range
No, single speed transmission
Travel speed
-
Hi forward
0-12 mph
0-19.3 km/h
Hydraulics
-
Type
Open center
-
Pump capacity
5.1 U.S. gpm
19.3 L/min -
Spool valve
Front lift, standard
-
Lift cylinders
Two
Steering
-
Type
Hydraulic cylinder
-
Turns lock-to-lock
2 maximum, 1.5 minimum
Brakes
-
Type
Internal wet disk
-
Individual turn brakes
Standard
-
Master brake
Standard, locking
Buyer's notes
-
Warranty
24 months
Tires
-
Drive wheels
23x10.5-12
Optional 23x8.5-12 -
Steering
2WD: 18x8.5-8
4WD: 18x8.5-10
Weight transfer
-
Type
Optional hydraulic
Dimensions
-
Wheelbase
49.2 in.
125 cm -
Ground clearance
6.5 in.
16.5 cm -
Length
Less mower deck: 86.7 in.
220.2 cm -
Overall width
With 23x10.5 tires: 51.7 in.
131.3 cm -
ROPS
Standard (folding)
-
ROPS certification
Two-post: OSHA 1928; Canadian Std.: CSA-352
Four-post: SAE J2194; EU Standard: 86/298/EEC; ISO 21299:2009 -
Overall height with ROPS
82.7 in.
210 cm -
Overall height with ROPS folded
58 in.
147 cm -
Shipping weight
Net weight, 2WD without mower or fuel: 1,800 lb
816 kg
Net weight, 4WD without mower or fuel: 1,960 lb
889 kg
Mower decks
-
Construction
One-piece stamped steel; 7-Iron PRO
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Size
60 or 72 in.
152 or 183 cm -
Deck offset
Yes
-
Cutting height
1-6 in.
2.54-15.24 cm -
Belt tensioning
Spring loaded
-
Blade tip speed
18,000 fpm
5,486 m/min -
Caster wheels
Type
Flat free
Size
11x4-5 -
Front anti-Scalp rollers
Yes, gauge wheels
-
Rear anti-scalp rollers
Yes, gauge wheels
Mower deck (rear discharge)
-
Cutting width
62, 72 in.
157, 183 cm -
Cutting height
1-6 in.
2.54-15.2 cm -
Caster wheels
Type
Flat free
Size
11x4-5
Back to Top
Details:

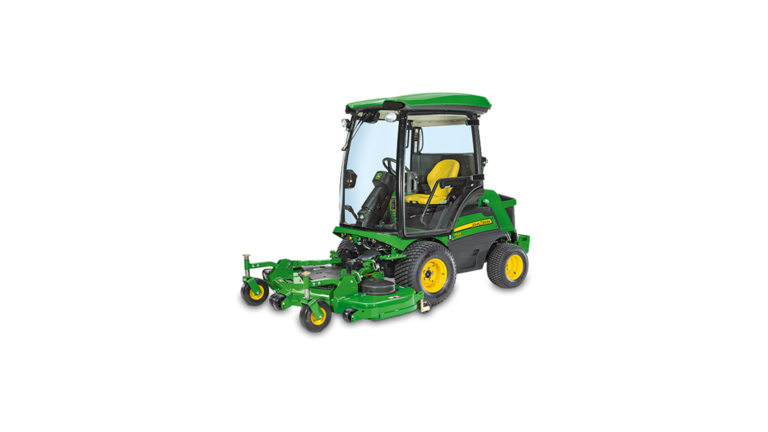

1575
TerrainCut™ Front Mower
- 7-Iron™ PRO Side Discharge or Fastback™ Rear Discharge Deck
- Diesel Engine
- Integrated ComfortCab
- Compatible with select front blade, snow blower and broom attachments
Features:
- Diesel engine has high-quality features to minimize operating cost
- Mower decks for TerrainCut™ Front Mowers match a wide variety of needs
- Standard premium ComfortCab provides superior comfort and performance
- Easy-to-operate controls maximize productivity
- Serviceability is designed-in to reduce maintenance cost and increase uptime
- Welded frame structure is made of high-strength steel
- Hydrostatic transmission and transaxle are heavy-duty to maximize uptime
- Two-function mechanical rear-wheel drive for optimum use of the four-wheel drive feature
- Tail-follows-the-trail design helps avoid obstacles in turns
- Front mower ballast requirements
Specifications:
Key Specs
-
Engine Manufacturer/model
3TNV88C
-
Engine Power
Gross PS: 37.4 hp
27.5 kW -
Fuel tank capacity
16 U.S. gal.
60.6 L -
Mower deck Size
60 or 72 in.
152, 183 cm -
Blade tip speed
18,000 fpm
5,486 m/min -
Transmission
Hydrostatic full time 4WD, on-demand
-
Speed range
0-12 mph
0-19.3 km/h -
Drive wheels
23x10.5-12
-
Caster wheels
Flat free, 11x4-5
-
Warranty
24 months
Engine
-
Manufacturer/model
3TNV88C
-
Power
Gross
PS, 37.4 hp
27.5 kW -
Rated engine rpm
3,000 rpm
-
Cylinders
Three
-
Displacement
100.2 cu in.
1.64 L -
Maximum torque
At 1,950 rpm: 80.4 lb-ft
109 Nm -
Injection
Direct
-
Fuel type
Diesel (B20 compatible)
-
Fuel tank capacity
16 U.S. gal.
60.6 L -
Cooling
Liquid
-
Cooling capacity
10 U.S. qt
9.5 L -
Air cleaner
Dual element dry type
-
Air restriction indicator
Standard
-
Charging system
Automotive type
-
Alternator, amp
95 amp
-
Battery
12 V
Drivetrain
-
Transmission
Hydrostatic full time 4WD, on-demand
-
Speed and direction control
Two-pedal foot
-
Cruise control
Optional
-
Hi/Lo range
No, single speed transmission
Travel speed
-
Hi forward
0-8 mph
0-12 km/h
Hydraulics
-
Type
Open center
-
Pump capacity
5.1 U.S. gpm
19.3 L/min -
Spool valve
Front lift, standard
-
Lift cylinders
Two
Steering
-
Type
Hydraulic cylinder
-
Turns lock-to-lock
2 maximum, 1.5 minimum
Brakes
-
Type
Internal wet disk
-
Individual turn brakes
Standard
-
Master brake
Standard, locking
Buyer's notes
-
Warranty
24 months
Tires
-
Drive wheels
23x10.5-12
-
Steering
18x8.5-10
Weight transfer
-
Type
Optional hydraulic
Dimensions
-
Wheelbase
49.2 in.
125 cm -
Ground clearance
6.5 in.
16.5 cm -
Length
Less mower deck: 86.7 in.
220.2 cm -
Overall width
With 26x12 wide-stance tires: 58 in.
147.3 cm -
ROPS
Factory installed ComfortCab
-
ROPS certification
Two-post: OSHA 1928; Canadian Std.: CSA-352
Four-post: SAE J2194; EU Standard: 86/298/EEC; ISO 21299:2009 -
Overall height with ROPS
With cab: 83.9 in.
213 cm -
Shipping weight
Net weight without mower or fuel: 2,436 lb
1,105 kg
Mower decks
-
Construction
One-piece stamped steel; 7-Iron PRO
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Size
60 or 72 in.
152 or 183 cm -
Deck offset
Yes
-
Cutting height
1-6 in.
2.54-15.24 cm -
Belt tensioning
Spring loaded
-
Blade tip speed
18,000 fpm
5,486 m/min -
Caster wheels
Type
Flat free
Size
11x4-5 -
Front anti-Scalp rollers
Yes, gauge wheels
-
Rear anti-scalp rollers
Yes, gauge wheels
Mower deck (rear discharge)
-
Cutting width
62, 72 in.
157, 183 cm -
Cutting height
1-6 in.
2.54-15.24 cm -
Caster wheels
Type
Flat free
Size
11x4-5
Back to Top
Details:
1580
TerrainCut™ Front Mower
- 7-Iron™ PRO Side Discharge or Fastback™ Rear Discharge Deck
- Diesel Engine
- Compatible with select front blade, snow blower and broom attachments
Features:
- Diesel engine has high-quality features to minimize operating cost
- Mower decks for TerrainCut™ Front Mowers match a wide variety of needs
- Easy-to-operate controls maximize productivity
- Front mower seat has standard arm rests for added comfort and productivity
- Serviceability is designed-in to reduce maintenance cost and increase uptime
- Welded frame structure is made of high-strength steel
- Hydrostatic transmission and transaxle are heavy-duty to maximize uptime
- Two-function mechanical rear-wheel drive for optimum use of the four-wheel drive feature
- Tail-follows-the-trail design helps avoid obstacles in turns
- Front mower ballast requirements
- Roll-Gard™ rollover protective structures protects operators of open-station mowers
Specifications:
Key Specs
-
Engine Manufacturer/model
3TNV88C
-
Engine Power
Gross PS: 37.4 hp
27.5 kW -
Fuel tank capacity
16 U.S. gal.
60.6 L -
Mower deck Size
60 or 72 in.
152 or 183 cm -
Blade tip speed
18,000 fpm
5,486 m/min -
Transmission
Hydrostatic full time 4WD, on-demand
-
Speed range
0-15 mph
0-24 km/h -
Drive wheels
26x12-12
-
Caster wheels
Flat free, 11x4-5
-
Warranty
24 months
Engine
-
Manufacturer/model
3TNV88C
-
Power
Gross
PS, 37.4 hp
27.5 kW -
Rated engine rpm
3,000 rpm
-
Cylinders
Three
-
Displacement
100.2 cu in.
1.64 L -
Maximum torque
At 1,950 rpm: 80.4 lb-ft
109 Nm -
Injection
Direct
-
Fuel type
Diesel (B20 compatible)
-
Fuel tank capacity
16 U.S. gal.
60.6 L -
Cooling
Liquid
-
Cooling capacity
8 U.S. qt
7.6 L -
Air cleaner
Dual element dry type
-
Air restriction indicator
Standard
-
Charging system
Automotive type
-
Alternator, amp
75 amp
-
Battery
12 V
Drivetrain
-
Transmission
Hydrostatic full time 4WD, on-demand
-
Speed and direction control
Two-pedal foot
-
Cruise control
Optional
-
Hi/Lo range
Yes, dual speed transmission
Travel speed
-
Hi forward
0-15 mph
0-24 km/h
Hydraulics
-
Type
Open center
-
Pump capacity
6.3 U.S. gpm
23.8 L/min -
Spool valve
Front lift, standard
-
Lift cylinders
Two
Steering
-
Type
Hydraulic cylinder
-
Turns lock-to-lock
2 maximum, 1.5 minimum
Brakes
-
Type
Internal wet disk
-
Individual turn brakes
Standard
-
Master brake
Standard, locking
Buyer's notes
-
Warranty
24 months
Tires
-
Drive wheels
26x12-12
-
Steering
20x10-10
Weight transfer
-
Type
Optional hydraulic
Dimensions
-
Wheelbase
49.2 in.
125 cm -
Ground clearance
7 in.
17.8 cm -
Length
Less mower deck: 86.7 in.
220.2 cm -
Overall width
55.5 in.
141 cm -
ROPS
Standard (folded)
-
ROPS certification
Two-post: OSHA 1928; Canadian Std.: CSA-352
Four-post: SAE J2194; EU Standard: 86/298/EEC; ISO 21299:2009 -
Overall height with ROPS
83.7 in.
213 cm -
Overall height with ROPS folded
59 in.
150 cm -
Shipping weight
Net weight without mower or fuel: 2,120 lb
962 kg
Mower decks
-
Construction
One-piece stamped steel; 7-Iron PRO
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Size
60 or 72 in.
152 or 183 cm -
Deck offset
Yes
-
Cutting height
1-6 in.
2.54-15.24 cm -
Belt tensioning
Spring loaded
-
Blade tip speed
18,000 fpm
5,486 m/min -
Caster wheels
Type
Flat free
Size
11x4-5 -
Front anti-Scalp rollers
Yes, gauge wheels
-
Rear anti-scalp rollers
Yes, gauge wheels
Mower deck (rear discharge)
-
Cutting width
62, 72 in.
157, 183 cm -
Cutting height
1-6 in.
2.54-15.24 cm -
Caster wheels
Type
Flat free
Size
11x4-5
Back to Top
Details:
1585
TerrainCut™ Front Mower
- 7-Iron™ PRO Side Discharge or Fastback™ Rear Discharge Deck
- Integrated ComfortCab
- Diesel Engine
- Compatible with select front blade, snow blower and broom attachments
Features:
- Diesel engine has high-quality features to minimize operating cost
- Mower decks for TerrainCut™ Front Mowers match a wide variety of needs
- Standard premium ComfortCab provides superior comfort and performance
- Easy-to-operate controls maximize productivity
- Serviceability is designed-in to reduce maintenance cost and increase uptime
- Welded frame structure is made of high-strength steel
- Hydrostatic transmission and transaxle are heavy-duty to maximize uptime
- Two-function mechanical rear-wheel drive for optimum use of the four-wheel drive feature
- Tail-follows-the-trail design helps avoid obstacles in turns
- Front mower ballast requirements
Specifications:
Key Specs
-
Engine Manufacturer/model
3TNV88C
-
Engine Power
Gross PS: 37.4 hp
27.5 kW -
Fuel tank capacity
16 U.S. gal.
60.6 L -
Mower deck Size
60, 72 in.
152, 183 cm -
Blade tip speed
18,000 fpm
5,486 m/min -
Transmission
Hydrostatic full time 4WD, on-demand
-
Speed range
0-15 mph
0-24 km/h -
Drive wheels
26x12-12
-
Caster wheels
Flat free, 11x4-5
-
Warranty
24 months
Engine
-
Manufacturer/model
3TNV88C
-
Power
Gross
PS, 37.4 hp
27.5 kW -
Rated engine rpm
3,000 rpm
-
Cylinders
Three
-
Displacement
100.2 cu in.
1.64 L -
Maximum torque
At 1,950 rpm, 80.4 lb-ft
109 Nm -
Injection
Direct
-
Fuel type
Diesel (B20 compatible)
-
Fuel tank capacity
16 U.S. gal.
60.6 L -
Cooling
Liquid
-
Cooling capacity
10 U.S. qt
9.5 L -
Air cleaner
Dual element dry type
-
Air restriction indicator
Standard
-
Charging system
Automotive type
-
Alternator, amp
95 amp
-
Battery
12 V
Drivetrain
-
Transmission
Hydrostatic full time 4WD, on-demand
-
Speed and direction control
Two-pedal foot
-
Cruise control
Optional
-
Hi/Lo range
Yes, Dual speed transmission
Travel speed
-
Hi forward
0-15 mph
0-24 km/h
Hydraulics
-
Type
Open center
-
Pump capacity
6.3 U.S. gpm
23.8 L/min -
Spool valve
Front lift, standard
-
Lift cylinders
Two
Steering
-
Type
Hydraulic cylinder
-
Turns lock-to-lock
2 maximum, 1.5 minimum
Brakes
-
Type
Internal wet disk
-
Individual turn brakes
Standard
-
Master brake
Standard, locking
Buyer's notes
-
Warranty
24 months
Tires
-
Drive wheels
26x12-12
-
Steering
20x10-10
Weight transfer
-
Type
Optional hydraulic
Dimensions
-
Wheelbase
49.2 in.
125 cm -
Ground clearance
7 in.
17.8 cm -
Length
Less mower deck, 86.7 in.
220.2 cm -
Overall width
With 26x12 tires, wide stance, 58 in.
147 cm -
ROPS
Factory installed ComfortCab™
-
ROPS certification
2-POST: OSHA 1928; Canadian Std.: CSA-352; 4-POST: SAE J2194; EU Standard: 86/298/EEC; ISO 21299:2009
-
Overall height with ROPS
With cab, 85.2 in.
216 cm -
Shipping weight
Net weight, without mower or fuel, 2,593 lb
1,176 kg
Mower decks
-
Construction
One-piece stamped steel; 7-Iron PRO
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Size
60, 72 in.
152, 183 cm -
Deck offset
Yes
-
Cutting height
1-6 in.
2.54-15.24 cm -
Belt tensioning
Spring loaded
-
Blade tip speed
18,000 fpm
5,486 m/min -
Caster wheels
Type
Flat free
Size
11x4-5 -
Front anti-Scalp rollers
Yes, gauge wheels
-
Rear anti-scalp rollers
Yes, gauge wheels
Mower deck (rear discharge)
-
Cutting width
62, 72 in.
157, 183 cm -
Cutting height
1-6 in.
2.54-15.24 cm -
Caster wheels
Type
Flat free
Size
11x4-5
Back to Top
Wide Area Mowers
Available models: 1600 Turbo TerrainCut™
Details:
1600 Turbo TerrainCut™
Wide-Area Mower
- Turbocharged diesel engine
- B20 compatible
- Rear-discharge decks
- FT4 engine compliant
Features:
- Powerful turbocharged diesel engine for superior performance
- Exclusive air-intake system draws clean air from the top of the machine for consistent cooling
- Mower decks have many performance and convenience features
- Standard high-back, air-ride seat provided for operator comfort
- Controls and instrumentation are convenient and easy to find
- Maximum productivity with hydrostatic transmission and transaxle
- Features are provided for convenient transport
- Serviceability is designed-in to reduce maintenance cost and increase uptime
- Excellent performance from high-traction tires and low-maintenance caster tires
- Two-post folding Roll-Gard™ rollover protective structure (ROPS)
- Factory-installed, four-post rollover protective structure (ROPS) order option
Specifications:
Key Specs
-
Engine Manufacturer/model
4TNV86CT-DJWM (T4)
-
Engine Power
Gross power SAE J1995 at 3,000 rpm, PS 60 hp
44 kW -
Fuel tank capacity
22 U.S. gal./hr
83.3 L -
Mower deck Size
62, 94, 128 in.
157, 239, 325 cm -
Blade tip speed
13,000 fpm
3,962 m/min -
Transmission
Hydrostatic
-
Speed range
0-15 mph
0-24 km/h -
Drive tires
26x12-12
-
Caster wheels
Four, 11x4-5, flat-free
Two, 11x4-5, flat-free -
Warranty
24 monhs
Engine
-
Model
4TNV86CT-DJWM (T4)
-
Displacement
127.6 cu in.
2.091 L
2,091 cc -
Bore and stroke
3.4x3.5 in.
86x90 mm -
Injection
Direct
-
Starting aid
Engine glow plug
-
Cylinders
Four
-
Cycle
Four
-
Power
Gross power SAE J1995 at 3,000 rpm, PS 60 hp
44 kW -
Rated engine speed
3,000 rpm
-
Operating range
With isochronous governor 1,400-3,030 rpm
-
Lubrication
Pressurized by lobe-style pump
-
Oil filter
Spin-on
-
Cooling
Liquid-cooled water centrifugal
-
Cooling system capacity
2.5 U.S. gal.
7.5 L -
Crankcase capacity
6.1 U.S. qt
5.8 L -
Compression ratio
19:01
-
Operating torque (net continuous @ 3000 rpm)
103 lb-ft
140 Nm -
Max Torque per SAE J1349 (net continuous)
117.3 lb-ft
159 Nm -
Air cleaner
Dual element, dry type
-
Air restriction indicator
Standard, progressive type
-
Engine shutoff
Key
-
Radiator location
Rear mounted
-
Radiator fins per inch
10 fins per inch
Fuel system
-
Fuel type
Diesel
-
Fuel transfer pump
Electric
-
Fuel filter
Replaceable, spin-on type
-
Water separator
Replaceable, 100-mesh element
-
Cold start device
Increased timing for better cold starting
-
Fuel tank capacity
22 U.S. gal.
83.3 L -
Fuel pump type
Mechanical
-
Fuel neck opening
3 in.
7.6 cm -
Fuel tank location
Left side of the machine
-
Self bleeding
System is self-bleeding because of the electric fuel transfer pump
Fuel consumption
-
Full load
3.33 U.S. gal./hr
12.7 L/hr -
One-half load
1.93 U.S. gal./hr
7.31 L/hr
Implement lift
-
Type
Hydraulic, open center
-
Lift cylinders
Bore 2 in.
50.8 mm -
Pump
Gear
Electrical
-
Charging system
Automotive type
-
Alternator
75 amp
-
Battery voltage
12 V
-
Battery cold crank amps
675 CCA
-
Starter size
1.9 hp
1.4 kW
Hydraulic system
-
Traction drive pump
Displacement, axial piston pump, 3 cu in.
49 cc -
Motor
Displacement, axial piston pump, 2 cu in.
33 cc -
Type
Closed loop, hydrostatic
-
Steering relief
1,087 psi
-
Implement relief
1,600 psi
-
Hydraulic reservoir capacity
14 U.S. gal.
53 L
Drivetrain
-
Transmission
Hydrostatic
-
Transaxle type
Dual range
-
Transaxle
Tuff Torque (Kanzaki)
-
4 wheel drive
On demand or full time
-
4 wheel drive type
Mechanical rear-wheel drive
-
Differential lock
Mechanical, foot activated
-
Final drive
Planetary
Brakes
-
Type
Internal, wet disc
-
Steering brakes
Standard
-
Parking brakes
Hand brake
Travel speed
-
Speed range
0-15 mph
0-24 km/h -
Low forward speed
0-9 mph
0-14.5 km/h -
High forward speed
0-15 mph
0-24 km/h -
Low reverse speed
0-4.5 mph
0-7.2 km/h -
High reverse speed
0-7.5 mph
0-12 km/h
Sound level (without cab)
-
With deck
94 dBA
-
Without deck
89 dBA
Frame
-
Frame type
Welded, tubular steel
-
Thickness
11 gauge
0.12 in.
3 mm
Steering
-
Type
Power, hydrostatic
-
Tilt steering wheel
Standard
-
Turns lock-to-lock
2.5
-
Turning radius
39 in.
99 cm
Operator station
-
Seat
Adjustment positions
Multi
Armrests
Yes, adjustable
Air-ride suspension seat, adjustable, deluxe, high-backed, back angle adjustment, lumbar adjustment, standard armrests -
Safety
Safety interlock and operator presence system
Tires
-
Drive tires
Pressure
30 psi , 206.8 kPa (front)
28 psi, 193.1 kPa (rear)
26x12-12 -
Steering tires (rear)
18x9.5-8
-
Tread
Multi-trac
-
Ply rating
6 PR (both)
Dimensions
-
Length (with deck)
132 in.
335 cm -
Wheel base
60 in.
152 cm -
Tread width
52 in.
131 cm -
Width with decks down
134 in.
340 cm -
Height with ROPS
ROPS up, 98 in.
249 cm
ROPS down, 74 in.
188 cm
With four-post canopy ROPS, 82 in.
208 cm -
Transport width
84 in.
213 cm -
Ground clearance
6.5 in.
16.5 cm -
Vehicle weight
4,173 lb
1,892.8 kg -
Machine weight without the deck
3,264 lb
1,474.2 kg
ROPS
-
Type
Standard two-post folding ROPS or four-post canopy ROPS meets ISO21299 standard
Controls
-
Throttle
Hand
-
Forward/reverse
Two-pedal
-
Mower lift
Three two-function switches
-
Park brake
Foot pedal/disk
-
Indicator lights
Engine air heater, oil pressure light, engine temperature light, fuel gauge, hydraulic oil temperature light
-
PTO engagement
Type
Hydraulic, independent
Electric solenoid switch -
PTO engagement/disengagement
Electric solenoid
-
Deck drive pump
Displacement, axial piston pump, 2.48 cu in.
40.6 cc -
Deck motor
Type
Hydraulic, open center, closed loop
Displacement, gear motor, 2.5 cu in.
41 cc -
Circuit
Series
Mower decks
-
Deck drive type
Hydraulic, closed loop
-
Spindles
Heat treated, diameter, 1 in.
2.54 cm -
Spindle bearings greaseable
Yes
-
Energy-absorbing wing decks
Yes
-
Deck circuit
Series
-
Blade drive
C-section, V-belt
-
Size
62, 94, 128 in.
157, 239, 325 cm -
Center deck cutting width
62 in.
157 cm -
Wing deck cutting width
42 in.
107 cm -
Transport lock
Standard
-
Discharge
Rear
-
Deck construction
Fabricated steel
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Height-of-cut range
1-5.5 in.
2.5-13.9 cm -
Wing deck float
Up (while maintaining PTO engagement)
45 degrees
Down (while maintaining PTO engagement)
20 degrees
Mowing rate
-
80% field efficiency
85% field efficiency at 10 mph
16 km/h
11 acres/hr
Anti-scalp rollers
-
Type
Flat-free
-
Wing deck caster wheels
Four, 11x4-5, flat-free
-
Front deck caster wheels
Two, 11x4-5, flat-free
Blades
-
Total mower blades
Seven, three center and two each side
-
Blade length
22 in.
55.88 cm -
Blade width
2.5 in.
6.35 cm -
Blade thickness
0.312 in.
0.79 cm -
Blade tip speed
13,000 fpm
3,962 m/min -
Interchangeable mower blades between all decks
Yes
Buyer's notes
-
Warranty
24 months
-
Certification
ANSI B71.4
Back to Top
