Compact Machines That Get The Job Done

These John Deere compact tractors may be small, but they can handle just about any job you need them to do. With a wide variety of features, these powerful vehicles are built to last and save you time.

At Little’s, we carry an extensive selection of these compact tractors and support you with:

  • John Deere Financial Financing and Leasing Options
  • Cash Discounts
  • GreenFleet Loyalty Rewards

Plus, you’re eligible to sign up for Little’s Green Carpet Maintenance Plan, where our expertly trained service technicians come to you to perform maintenance and repairs.

Explore Our Wide Selection Of John Deere Commercial Tractors

Click on products below to learn more.

1 Series Sub Compact Tractors

1 Series Sub Compact Tractors

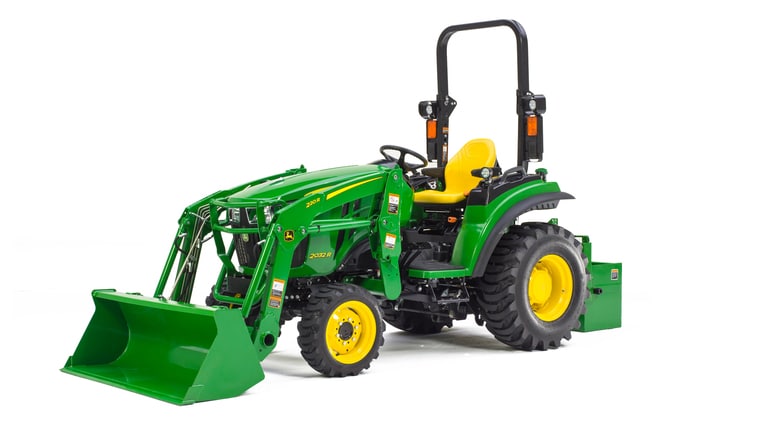

2R Series Compact Tractors

2R Series Compact Tractors

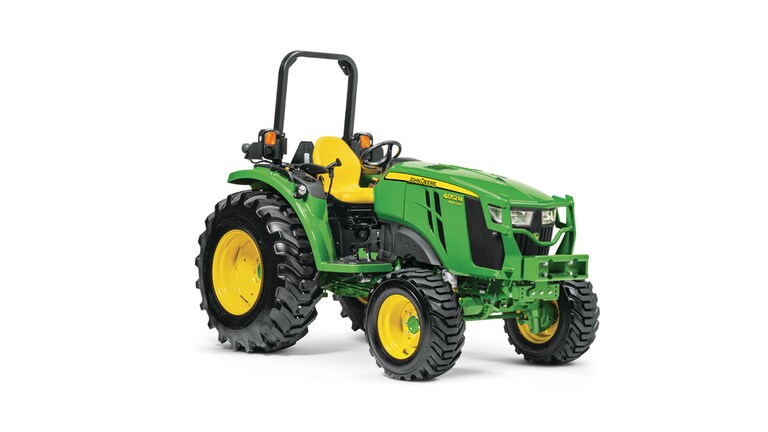

3D Series

3D Series

Available models: 1023E1025R

DetailsFeaturesSpecifications

Details:

1023E

Sub-Compact Tractor

  • Powerful Final Tier 4-compliant diesel engine
  • AutoConnect™ mid-mower deck can be installed or removed in less than 5 minutes
  • $109 monthly payment option†

Features:

  • Spend more time working and less time switching equipment with easy implement swaps
  • Quickly and easily change speed and directions with Twin Touch foot controls and Hydrostatic transmission (HST)
  • Excellent maneuverability and easy operation with standard four-wheel drive (4WD) and power steering
  • Comfortable and convenient open operator’s station
  • Flexibility in operation with multiple mid-mower lift system options

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 16 kW
    21.5 hp
    21.8 PS at 3200 rpm

  • Power take-off (PTO) power

    11.1 kW
    14.9 hp

  • Steering hydraulics

    13.2 L/min
    3.5 gpm

  • Implement hydraulics

    13.2 L/min
    3.5 gpm

  • Hitch type

    Limited Category 1

  • Lift capacity, 24-in. behind link arms

    344 kg
    758 lb

  • Standard transmission; forward/reverse

    Hydrostatic - two range

  • Cruise control

    No

  • Approximate shipping weight (open-station; cab)

    Open station: 656 kg
    1446 lb
    Cab: Not applicable

  • Wheelbase

    1450 mm
    57.1 in.
Engine

  • Manufacturer

    Yanmar®

  • Engine model

    3TNM74F-NCJT

  • Engine power (gross)

    SAE J1995 rated power: 16 kW
    21.5 hp
    21.8 PS at 3200 rpm

  • Power take-off (PTO) power

    11.1 kW
    14.9 hp

  • Rated engine speed

    3200 rpm

  • Type

    Diesel

  • Injection pump type

    Indirect injection

  • Aspiration

    Natural

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    Three cylinders: 0.993 L
    60.6 cu in.

  • Number of cylinders

    Three

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    74 x 77 mm
    2.91 x 3.03 in.

  • Compression ratio

    23.5:1

  • Lubrication

    Pressurized

  • Cooling system

    Water pump

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    47.7 Nm
    35.2 lb-ft

  • Fuel tank capacity

    24 L
    6.3 U.S. gal.
Electrical

  • Battery size

    500 CCA

  • Alternator (12-V)

    40 amp

  • Starter size

    1.2 kW
    1.6 hp
Fuel system

  • Type

    Indirect injection
Transmission

  • Standard transmission; forward/reverse

    Hydrostatic - two range

  • Left-hand reverser

    No

  • Final drive

    Spur gear

  • Brakes

    Wet disc (left-hand pedal)

  • Steering

    Power

  • Axle capacity

    Front
    612 kg
    1349 lb
    Rear
    715 kg
    1576 lb

  • Creeper

    No

  • Cruise control

    No

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    13.2 L/min
    3.5 gpm
    Implement
    13.2 L/min
    3.5 gpm
    24 L/min
    6.3 gpm

  • Pump type

    Single gear

  • Maximum operating pressure

    138 bar
    2000 psi

  • Draft control sensing

    Select control

  • Remote control valves available

    Three
3-point hitch

  • Type

    Limited Category 1

  • Lift capacity, 24-in. behind link arms

    344 kg
    758 lb
Power take-off (PTO)

  • Standard

    Rear: 540 rpm
    Mid: 2100 rpm

  • Control

    Independent

  • Clutch

    Wet disk

  • Brake (for mid and rear PTO)

    Wet disk
Fluid capacities

  • Crankcase with filter

    2.7 L
    2.9 qt

  • Transmission and hydraulic system

    12.3 L
    3.2 gal.
Final drive

  • Type

    Spur gear

  • Differential lock

    Yes
Operator station

  • Rollover protective structure

    Type
    Foldable
    Yes

  • Platform - flat/straddle

    One-piece semi flat

  • Gear shift location - console/floor

    Left-hand side
Cab
Dimensions

  • Wheelbase

    1450 mm
    57.1 in.

  • Front axle clearance

    195 mm
    7.7 in.

  • Turning radius without brakes

    Outside front tire: 2.51 m
    8.2 ft

  • Limited slip differential

    No

  • Approximate shipping weight (open-station; cab)

    Open station: 656 kg
    1446 lb
    Cab: Not applicable
Tires

  • Front

    R3 Turf: 18x8.50-10
    R4: 18x8.5-10

  • Rear

    R3 Turf: 26x12-12
    R4: 26x12-12

  • Front tread range

    931 mm
    36.7 in.

  • Rear tread spacing

    895 mm
    35.2 in.
Miscellaneous

  • Toolbox

    Yes
Back to Top
DetailsFeaturesSpecifications

Details:

1025R

Sub-Compact Tractor

  • Powerful Tier 4-compliant diesel engine
  • Premium Operator Station with ergonomic seat, armrests and fender lights
  • AutoConnect™ mid-mower deck can be installed or removed in less than 5 minutes

Features:

  • Spend more time working and less time switching equipment with easy implement swaps
  • Quickly and easily change speed and directions with Twin Touch foot controls and Hydrostatic transmission (HST)
  • Excellent maneuverability and easy operation with standard four-wheel drive (4WD) and power steering
  • Comfortable and convenient open operator’s station
  • Get year-round performance with the optional cab
  • Flexibility in operation with multiple mid-mower lift system options

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 17.8 kW
    23.9 hp
    24.2 PS at 3200 rpm

  • Power take-off (PTO) power

    12.8 kW
    17.2 hp

  • Steering hydraulics

    13.2 L/min
    3.5 gpm

  • Implement hydraulics

    13.2 L/min
    3.5 gpm

  • Hitch type

    Limited Category 1

  • Lift capacity, 24-in. behind link arms

    344 kg
    758 lb

  • Standard transmission; forward/reverse

    Hydrostatic - two range

  • Cruise control

    Standard

  • Approximate shipping weight (open-station; cab)

    Open station: 706 kg
    1556 lb
    Cab: 906 kg
    1996 lb

  • Wheelbase

    1450 mm
    57.1 in.
Engine

  • Manufacturer

    Yanmar®

  • Engine model

    3TNV80F-NCJT

  • Engine power (gross)

    SAE J1995 rated power: 17.8 kW
    23.9 hp
    24.2 PS at 3200 seconds

  • Power take-off (PTO) power

    12.8 kW
    17.2 hp

  • Rated engine speed

    3200 rpm

  • Type

    Diesel

  • Injection pump type

    Indirect injection

  • Aspiration

    Natural

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    Three cylinders: 1.267 L
    77.3 cu in.

  • Number of cylinders

    Three

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    80 x 84 mm
    3.15 x 3.31 in.

  • Compression ratio

    23.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Water pump

  • Air cleaner

    Dual element with mechanical restriction indicator

  • Engine torque at rated speed

    53.1 Nm
    39.2 lb-ft

  • Fuel tank capacity

    24 L
    6.3 U.S. gal.
Electrical

  • Battery size

    500 CCA

  • Alternator (12-V)

    40 amp

  • Starter size

    1.2 kW
    1.6 hp
Fuel system

  • Type

    Indirect injection
Transmission

  • Standard transmission; forward/reverse

    Hydrostatic - two range

  • Left-hand reverser

    No

  • Final drive

    Spur gear

  • Brakes

    Wet disc (left-hand pedal)

  • Steering

    Power

  • Axle capacity

    Front
    612 kg
    1349 lb
    Rear
    715 kg
    1576 lb

  • Creeper

    No

  • Cruise control

    Standard

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    13.2 L/min
    3.5 gpm
    Implement
    13.2 L/min
    3.5 gpm
    24 L/min
    6.3 gpm

  • Pump type

    Single gear

  • Maximum operating pressure

    138 bar
    2000 psi

  • Draft control sensing

    Position control

  • Remote control valves available

    Three
3-point hitch

  • Type

    Limited Category 1

  • Lift capacity, 24-in. behind link arms

    344 kg
    758 lb
Power take-off (PTO)

  • Standard

    Rear: 540 rpm
    Mid: 2100 rpm

  • Control

    Independent

  • Clutch

    Wet disk

  • Brake (for mid and rear PTO)

    Wet disk
Fluid capacities

  • Crankcase with filter

    2.7 L
    2.9 qt

  • Transmission and hydraulic system

    12.3 L
    3.2 gal.
Final drive

  • Type

    Spur gear

  • Differential lock

    Yes
Operator station

  • Rollover protective structure

    Type
    Foldable
    Yes

  • Platform - flat/straddle

    One-piece semi flat

  • Gear shift location - console/floor

    Left-hand side
Cab

  • Air conditioning, temperature differential

    Heat only

  • Doors

    Two

  • Seat equipment

    Premium seat
Dimensions

  • Wheelbase

    1450 mm
    57.1 in.

  • Front axle clearance

    195 mm
    7.7 in.

  • Turning radius without brakes

    Outside front tire: 2.51 m
    8.2 ft

  • Limited slip differential

    No

  • Approximate shipping weight (open-station; cab)

    Open station: 706 kg
    1556 lb
    Cab: 906 kg
    1996 lb
Tires

  • Front

    R3 Turf: 18x8.50-10
    R3 Turf Radial: 18x8.50-10
    R4: 18x8.5-10

  • Rear

    R3 Turf: 26x12-12
    R4: 26x12-12

  • Front tread range

    931 mm
    36.7 in.

  • Rear tread spacing

    895 mm
    35.2 in.
Miscellaneous

  • Toolbox

    Yes
Back to Top

Available models: 2025R2032R2038R

DetailsFeaturesSpecifications

Details:

2025R

Compact Tractor

  • Powerful and fuel-efficient Tier IV Yanmar engine
  • Hydro transmission with TwinTouch™ pedals for ease of use
  • AutoConnect™ 7-Iron Drive-over mower decks up to 60 inches

Features:

  • Durable, efficient, high-torque 3-cylinder diesel engine provides adequate power
  • Easy-to-use hydrostatic transmission (HST) increases efficiency
  • Fast and easy implement changeover offers versatility
  • Implement compounding improves efficiency
  • Superb serviceability improves productivity
  • Optional cab offers protection from elements

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 17.8 kW
    23.9 hp
    24.2 PS at 3200 rpm

  • Power take-off (PTO) power

    12.8 kW
    17.2 hp

  • Steering hydraulics

    13.4 L/min
    3.5 gpm

  • Implement hydraulics

    13.4 L/min
    3.5 gpm

  • Hitch type

    Limited Category 1

  • Lift capacity, 24-in. behind link arms

    415 kg
    915 lb

  • Standard transmission; forward/reverse

    Hydrostatic - two range

  • Cruise control

    Standard

  • Approximate shipping weight (open-station; cab)

    Open station: 849 kg
    1872 lb
    Cab: 1085 kg
    2392 lb

  • Wheelbase

    1600 mm
    63 in.
Engine

  • Manufacturer

    Yanmar®

  • Engine model

    3TNV80F-NCJT

  • Engine power (gross)

    SAE J1995 rated power: 17.8 kW
    23.9 hp
    24.2 PS at 3200 rpm

  • Power take-off (PTO) power

    12.8 kW
    17.2 hp

  • Rated engine speed

    3200 rpm

  • Type

    Diesel

  • Injection pump type

    Indirect injection

  • Aspiration

    Natural

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    Three cylinders: 1.267 L
    77 cu in.

  • Number of cylinders

    Three

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    80 x 84 mm
    3.2 x 3.3 in.

  • Compression ratio

    23.1:01

  • Lubrication

    Pressurized

  • Cooling system

    Water pump

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    53.1 Nm
    39.1 lb-ft

  • Fuel tank capacity

    20.4 L
    5.39 gal.
Electrical

  • Battery size

    500 CCA

  • Alternator (12-V)

    40 amp

  • Starter size

    1.2 kW
    1.6 hp
Fuel system

  • Type

    Indirect injection
Transmission

  • Standard transmission; forward/reverse

    Hydrostatic - two range

  • Left-hand reverser

    No

  • Final drive

    Spur gear

  • Brakes

    Wet disc

  • Steering

    Power steering

  • Axle capacity

    Front
    612 kg
    1349 lb
    Rear
    1100 kg
    2425 lb

  • Creeper

    No

  • Cruise control

    Standard

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    13.25 L/min
    3.5 gpm
    Implement
    13.25 L/min
    3.5 gpm
    26.5 L/min
    7 gpm

  • Pump type

    Gear

  • Maximum operating pressure

    137 bar
    1987 psi

  • Draft control sensing

    Position control

  • Remote control valves available

    Two
3-point hitch

  • Type

    Limited Category 1

  • Lift capacity, 24-in. behind link arms

    415 kg
    915 lb
Power take-off (PTO)

  • Standard

    Rear - 540 rpm
    Mid - 2100 rpm

  • Control

    Independent

  • Clutch

    Wet disk

  • Brake (for mid and rear PTO)

    Wet disk
Fluid capacities

  • Crankcase with filter

    2.7 L
    2.9 qt
Final drive

  • Type

    Spur gear

  • Differential lock

    Yes
Operator station

  • Rollover protective structure

    Type
    Foldable
    OSHA, SAE, ASAE

  • Platform - flat/straddle

    Three-piece semi flat

  • Gear shift location - console/floor

    Left-hand side
Cab
Dimensions

  • Wheelbase

    1600 mm
    63 in.

  • Turning radius without brakes

    Outside front tire: 2.51 m
    8.2 ft

  • Limited slip differential

    No

  • Approximate shipping weight (open-station; cab)

    Open station: 849 kg
    1872 lb
    Cab: 1085 kg
    2392 lb
Tires

  • Front

    R3 Turf: 23x8.50-12
    R3 Radial: 220/55-R12
    R4 Industrial: 23x8.50-12

  • Rear

    R3 Turf: 12-16.5
    R3 Radial: 280/70 R16
    R4 Industrial: 12-16.5
Miscellaneous

  • Toolbox

    Yes

  • Tilt steering wheel

    Yes

  • 12-V Outlet

    Yes
Back to Top
DetailsFeaturesSpecifications

Details:

2032R

Compact Tractor

  • Compatible with the 60D and 72D AutoConnect™ drive-over mower decks
  • Standard 4WD, cruise control, folding ROPS
  • iMatch™ compatible

Features:

  • Powerful, high-torque diesel engine delivers superb efficiency
  • Easy-to-use hydrostatic transmission (HST) increases productivity
  • Operator station is comfortable and convenient
  • Optional iMatch™ Quick-Hitch feature allows for easy implement hookup
  • CommandCut™ controls allows quick and accurate height of cut adjustments
  • Excellent serviceability and diagnostics reduce operational cost and improves productivity

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 22.9 kW
    30.7 hp
    31.2 PS at 2500 rpm

  • Power take-off (PTO) power

    18 kW
    24.2 hp

  • Steering hydraulics

    15 L/min
    4 gpm

  • Implement hydraulics

    20.2 L/min
    5.3 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    615 kg
    1356 lb

  • Standard transmission; forward/reverse

    Hydrostatic transmission (HST)

  • Cruise control

    Standard

  • Approximate shipping weight (open-station; cab)

    Open station: 1306 kg
    2879 lb
    Cab: Not applicable

  • Wheelbase

    1723 mm
    67.8 in.
Engine

  • Manufacturer

    Yanmar®

  • Engine model

    3TNV88C-NJT2

  • Engine power (gross)

    SAE J1995 rated power: 22.9 kW
    30.7 hp
    31.2 PS at 2500 rpm

  • Power take-off (PTO) power

    18 kW
    24.2 hp

  • Rated engine speed

    2500 rpm

  • Type

    Direct Injection

  • Injection pump type

    Direct Injection

  • Aspiration

    Natural

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    Three cylinders: 1.642 L
    100.2 cu in.

  • Number of cylinders

    Three

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    88x90 mm
    3.46x3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Water pump

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    87.5 Nm
    64.5 lb-ft

  • Fuel tank capacity

    32 L
    8.5 U.S. gal.
Electrical

  • Battery size

    500 CCA

  • Alternator (12-V)

    85 amp

  • Starter size

    1.4 kW
    1.9 hp
Fuel system

  • Type

    Direct Injection
Transmission

  • Standard transmission; forward/reverse

    Hydrostatic transmission (HST)

  • Final drive

    Spur gear

  • Brakes

    Wet disc

  • Steering

    Power steering

  • Axle capacity

    Front
    880 kg
    1940 lb
    Rear
    1800 kg
    3968 lb

  • Creeper

    No

  • Cruise control

    Standard

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    15 L/min
    4 gpm
    Implement
    20.2 L/min
    5.3 gpm
    35.2 L/min
    9.3 gpm

  • Pump type

    Dual gear

  • Maximum operating pressure

    172 bar
    2495 psi

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to three
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    615 kg
    1356 lb
Power take-off (PTO)

  • Standard

    Rear: 543 rpm
    Mid: 1998 rpm

  • Control

    Independent

  • Clutch

    Wet disc

  • Brake (for mid and rear PTO)

    Wet disc
Fluid capacities

  • Crankcase with filter

    4.5 L
    4.8 qt
Final drive

  • Type

    Spur Gear

  • Differential lock

    Yes
Operator station

  • Rollover protective structure

    Type
    Foldable
    ASABE S478

  • Platform - flat/straddle

    Semi-flat
Cab
Dimensions

  • Wheelbase

    1723 mm
    67.8 in.

  • Turning radius with brakes

    2.46 m
    8.07 ft

  • Approximate shipping weight (open-station; cab)

    Open station: 1306 kg
    2879 lb
    Cab: Not applicable
Tires

  • Front

    R1 Ag 7.00-12
    R3 Turf 23x8.50-14
    R4 Industrial 23x8.50-14
    R3 Turf Radial 200/60 R15

  • Rear

    R1 Ag 12.4-16
    R3 Turf 14-17.5
    R4 Industrial 14-17.5
    R3 Turf Radial 300/70 R20
Miscellaneous

  • Toolbox

    Yes

  • Tilt steering wheel

    Yes

  • 12-V Outlet

    Yes
Back to Top
DetailsFeaturesSpecifications

Details:

2038R

Compact Tractor

  • AutoConnect™ Drive-over Mower Decks up to 72 inches
  • Model is on larger, heavier frame for added stability
  • Standard cruise control, 12-V outlet and premium seating

Features:

  • Powerful, high-torque diesel engine delivers superb efficiency
  • Easy-to-use hydrostatic transmission (HST) increases productivity
  • Operator station is comfortable and convenient
  • Optional iMatch™ Quick-Hitch feature allows for easy implement hookup
  • CommandCut™ controls allows quick and accurate height of cut adjustments
  • Excellent serviceability and diagnostics reduce operational cost and improves productivity

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 27.4 kW
    36.7 hp
    37.2 PS at 2500 rpm

  • Power take-off (PTO) power

    22.7 kW
    30.4 hp

  • Steering hydraulics

    15 L/min
    4 gpm

  • Implement hydraulics

    20.2 L/min
    5.3 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    615 kg
    1356 lb

  • Standard transmission; forward/reverse

    Hydrostatic transmission (HST)

  • Cruise control

    Standard

  • Approximate shipping weight (open-station; cab)

    Open station: 1320 kg
    2910 lb
    Cab: Not applicable

  • Wheelbase

    1723 mm
    67.8 in.
Engine

  • Manufacturer

    Yanmar®

  • Engine model

    3TNV88C-NJT

  • Engine power (gross)

    SAE J1995 rated power: 27.4 kW
    36.7 hp
    37.2 PS at 2500 rpm

  • Power take-off (PTO) power

    22.7 kW
    30.4 hp

  • Rated engine speed

    2500 rpm

  • Type

    Direct Injection

  • Injection pump type

    Direct Injection

  • Aspiration

    Turbocharged

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    Three cylinders: 1.568 L
    95.8 cu in.

  • Number of cylinders

    Three

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    86x90 mm
    3.39x3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Water pump

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    104.7 Nm
    77.2 lb-ft

  • Fuel tank capacity

    32 L
    8.5 U.S. gal.
Electrical

  • Battery size

    500 CCA

  • Alternator (12-V)

    85 amp

  • Starter size

    1.4 kW
    1.9 hp
Fuel system

  • Type

    Direct Injection
Transmission

  • Standard transmission; forward/reverse

    Hydrostatic transmission (HST)

  • Final drive

    Spur gear

  • Brakes

    Wet disc

  • Steering

    Power steering

  • Axle capacity

    Front
    880 kg
    1940 lb
    Rear
    1800 kg
    3968 lb

  • Creeper

    No

  • Cruise control

    Standard

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    15 L/min
    4 gpm
    Implement
    20.2 L/min
    5.3 gpm
    35.2 L/min
    9.3 gpm

  • Pump type

    Dual gear

  • Maximum operating pressure

    172 bar
    2495 psi

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to three
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    615 kg
    1356 lb
Power take-off (PTO)

  • Standard

    Rear: 543 rpm
    Mid: 1998 rpm

  • Control

    Independent

  • Clutch

    Wet disc

  • Brake (for mid and rear PTO)

    Wet disc
Fluid capacities

  • Crankcase with filter

    4.5 L
    4.8 qt
Final drive

  • Type

    Spur Gear

  • Differential lock

    Yes
Operator station

  • Rollover protective structure

    Type
    Foldable
    ASABE S478

  • Platform - flat/straddle

    Semi-flat
Cab
Dimensions

  • Wheelbase

    1723 mm
    67.8 in.

  • Turning radius with brakes

    2.46 m
    8.07 ft

  • Approximate shipping weight (open-station; cab)

    Open station: 1320 kg
    2910 lb
    Cab: Not applicable
Tires

  • Front

    R1 Ag 7.00-12
    R3 Turf 23x8.50-14
    R4 Industrial 23x8.50-14
    R3 Turf Radial 200/60 R15

  • Rear

    R1 Ag 12.4-16
    R3 Turf 14-17.5
    R4 Industrial 14-17.5
    R3 Turf Radial 300/70 R20
Miscellaneous

  • Toolbox

    Yes

  • Tilt steering wheel

    Yes

  • 12-V Outlet

    Yes
Back to Top

Available models: 3025D3035D3043D

DetailsFeaturesSpecifications

Details:

3025D

Compact Tractor

  • Standard 4wd for Maximum Traction
  • Heavy duty drive train with a gear drive transmission 8F/8R
  • On-board diagnostics including Service Advisor

Features:

  • Reliable gear-driven transmission provides optimum tractor performance
  • Clean and simple operator station is comfortable and convenient
  • Optional two-spool rear selective control valve (SCV) for superior implement performance
  • Optional iMatch™ Quick-Hitch feature allows for easy implement hookup
  • Excellent serviceability reduces operational costs and improves productivity

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 18.2 kW
    24.4 hp
    24.7 PS at 2400 rpm

  • Power take-off (PTO) power

    15.4 kW
    20.7 hp

  • Steering hydraulics

    14.4 L/min
    3.8 gpm

  • Implement hydraulics

    19.2 L/min
    5.1 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    944 kg
    2081.2 lb

  • Standard transmission; forward/reverse

    8F/8R synchromesh shuttle shift gear transmission

  • Cruise control

    No

  • Approximate shipping weight (open-station; cab)

    Open operator station (OOS): 1260 kg
    2778 lb
    Cab: Not applicable

  • Wheelbase

    1574 mm
    62 in.
Engine

  • Manufacturer

    Yanmar®

  • Engine model

    3TNV88F-EPJPT

  • Engine power (gross)

    SAE J1995 rated power: 18.2 kW
    24.4 hp
    24.7 PS at 2400 rpm

  • Power take-off (PTO) power

    15.4 kW
    20.7 hp

  • Rated engine speed

    2400 rpm

  • Injection pump type

    Direct injection

  • Aspiration

    Natural

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    3 / 1.64 L
    3 / 100.2 cu in.

  • Number of cylinders

    Three

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    88 x 90 mm
    3.46 x 3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Liquid

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    72.4 Nm
    53.4 lb-ft

  • Fuel tank capacity

    36.7 L
    9.7 U.S. gal.
Electrical

  • Battery size

    600 CCA

  • Alternator (12-V)

    55 amp

  • Starter size

    1.4 kW
    1.9 hp
Fuel system

  • Type

    Direct injection
Transmission

  • Standard transmission; forward/reverse

    8F/8R synchromesh shuttle shift gear transmission

  • Left-hand reverser

    Yes

  • Transmission gear ranges

    Four gears and two ranges

  • Final drive

    Spur gear

  • Brakes

    Wet disk

  • Steering

    Power steering

  • Axle capacity

    Front
    880 kg
    1940 lb
    Rear
    1600 kg
    3527 lb

  • Creeper

    No

  • Cruise control

    No

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    14.4 L/min
    3.8 gpm
    Implement
    19.2 L/min
    5.1 gpm
    33.6 L/min
    8.9 gpm

  • Pump type

    Single gear

  • Maximum operating pressure

    172 bar
    2495 psi

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to two (optional)
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    944 kg
    2081.2 lb
Power take-off (PTO)

  • Standard

    At 2400 rpm: 540 rpm

  • Control

    Mechanical

  • Clutch

    Transmission

  • Brake (for mid and rear PTO)

    Wet disk
Fluid capacities

  • Crankcase with filter

    4.5 L
    4.8 qt

  • Transmission and hydraulic system

    33 L
    34.8 qt
Final drive

  • Type

    Spur gear
Operator station

  • Rollover protective structure

    Type
    Foldable
    ASABE S478

  • Platform - flat/straddle

    Straddle

  • Gear shift location - console/floor

    Right-hand side
Cab
Dimensions

  • Wheelbase

    1574 mm
    62 in.

  • Front axle clearance

    Minimum: 331 mm
    13 in.
    Maximum: 353 mm
    13.9 in.

  • Turning radius with brakes

    1.63 m
    5.3 ft

  • Approximate shipping weight (open-station; cab)

    OOS: 1260 kg
    2778 lb
    Cab: Not applicable
Tires

  • Front

    R1 Bar: 7-14
    R3 Turf: 27x8.5-15
    R4 Industrial: 25x8.5-14

  • Rear

    R1 Bar: 11.2-24
    R3 Turf: 41x14-20
    R4 Industrial: 15-19.5
Miscellaneous

  • Toolbox

    Yes

  • Tilt steering wheel

    No

  • 12-V Outlet

    No
Back to Top
DetailsFeaturesSpecifications

Details:

3035D

Compact Tractor

  • Standard 4wd for Maximum Traction
  • Heavy duty drive train with a gear drive transmission 8F/8R
  • On-board diagnostics including Service Advisor
  • See Ways To Save

Features:

  • Clean and simple operator station is comfortable and convenient
  • Optional two-spool rear selective control valve (SCV) for superior implement performance
  • Optional iMatch™ Quick-Hitch feature allows for easy implement hookup
  • Excellent serviceability reduces operational costs and improves productivity

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 25.5 kW
    34.2 hp
    34.7 PS at 2800 rpm

  • Power take-off (PTO) power

    22.7 kW
    30.4 hp

  • Steering hydraulics

    16.8 L/min
    4.4 gpm

  • Implement hydraulics

    22.4 L/min
    5.9 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    944 kg
    2081.2 lb

  • Standard transmission; forward/reverse

    8F/8R synchromesh shuttle shift gear transmission

  • Cruise control

    No

  • Approximate shipping weight (open-station; cab)

    Open operator station (OOS): 1275 kg
    2811 lb
    Cab: Not applicable

  • Wheelbase

    1574 mm
    62 in.
Engine

  • Manufacturer

    Yanmar®

  • Engine model

    3TNV88C-KJPT

  • Engine power (gross)

    SAE J1995 rated power: 25.5 kW
    34.2 hp
    34.7 PS at 2800 rpm

  • Power take-off (PTO) power

    22.7 kW
    30.4 hp

  • Rated engine speed

    2800 rpm

  • Injection pump type

    High pressure common rail direct injection

  • Aspiration

    Natural

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    3 / 1.64 L
    3 / 100.2 cu in.

  • Number of cylinders

    Three

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    88 x 90 mm
    3.46 x 3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Liquid

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    87 Nm
    64.2 lb-ft

  • Fuel tank capacity

    36.7 L
    9.7 U.S. gal.
Electrical

  • Battery size

    600 CCA

  • Alternator (12-V)

    55 amp

  • Starter size

    1.4 kW
    1.9 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    8F/8R synchromesh shuttle shift gear transmission

  • Left-hand reverser

    Yes

  • Transmission gear ranges

    Four gears and two ranges

  • Final drive

    Spur gear

  • Brakes

    Wet disk

  • Steering

    Power steering

  • Axle capacity

    Front
    880 kg
    1940 lb
    Rear
    1600 kg
    3527 lb

  • Creeper

    No

  • Cruise control

    No

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    16.8 L/min
    4.4 gpm
    Implement
    22.4 L/min
    5.9 gpm
    39.2 L/min
    10.3 gpm

  • Pump type

    Single gear

  • Maximum operating pressure

    172 bar
    2495 psi

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to two (optional)
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    944 kg
    2081.2 lb
Power take-off (PTO)

  • Standard

    At 2400 rpm: 540 rpm

  • Control

    Mechanical

  • Clutch

    Transmission

  • Brake (for mid and rear PTO)

    Wet disk
Fluid capacities

  • Crankcase with filter

    4.5 L
    4.8 qt

  • Transmission and hydraulic system

    33 L
    34.8 qt
Final drive

  • Type

    Spur gear
Operator station

  • Rollover protective structure

    Type
    Foldable
    ASABE S478

  • Platform - flat/straddle

    Straddle

  • Gear shift location - console/floor

    Right-hand side
Cab
Dimensions

  • Wheelbase

    1574 mm
    62 in.

  • Front axle clearance

    Minimum: 331 mm
    13 in.
    Maximum: 353 mm
    13.9 in.

  • Turning radius with brakes

    1.63 m
    5.3 ft

  • Approximate shipping weight (open-station; cab)

    OOS: 1275 kg
    2811 lb
    Cab: Not applicable
Tires

  • Front

    R1 Bar: 7-14
    R3 Turf: 27x8.5-15
    R4 Industrial: 25x8.5-14

  • Rear

    R1 Bar: 11.2-24
    R3 Turf: 41x14-20
    R4 Industrial: 15-19.5
Miscellaneous

  • Toolbox

    Yes

  • Tilt steering wheel

    No

  • 12-V Outlet

    No
Back to Top
DetailsFeaturesSpecifications

Details:

3043D

Compact Tractor

  • Standard 4wd for Maximum Traction
  • Heavy duty drive train with a gear drive transmission 8F/8R
  • On-board diagnostics including Service Advisor

Features:

  • Reliable gear-driven transmission provides optimum tractor performance
  • Clean and simple operator station is comfortable and convenient
  • Optional two-spool rear selective control valve (SCV) for superior implement performance
  • Optional iMatch™ Quick-Hitch feature allows for easy implement hookup
  • Excellent serviceability reduces operational costs and improves productivity

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 31 kW
    41.6 hp
    42.2 PS at 2800 rpm

  • Power take-off (PTO) power

    27.1 kW
    36.3 hp

  • Steering hydraulics

    16.8 L/min
    4.4 gpm

  • Implement hydraulics

    22.4 L/min
    5.9 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    944 kg
    2081.2 lb

  • Standard transmission; forward/reverse

    8F/8R synchromesh shuttle shift gear transmission

  • Cruise control

    No

  • Approximate shipping weight (open-station; cab)

    Open operator station (OOS): 1288 kg
    2840 lb
    Cab: Not applicable

  • Wheelbase

    1574 mm
    62 in.
Engine

  • Manufacturer

    Yanmar®

  • Engine model

    3TNV86CT-KJPT

  • Engine power (gross)

    SAE J1995 rated power: 31 kW
    41.6 hp
    42.2 PS at 2800 rpm

  • Power take-off (PTO) power

    27.1 kW
    36.3 hp

  • Rated engine speed

    2800 rpm

  • Injection pump type

    High pressure common rail direct injection

  • Aspiration

    Turbocharged

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    3 / 1.57 L
    3 / 95.8 cu in.

  • Number of cylinders

    Three

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    86 x 90 mm
    3.39 x 3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Liquid

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    105.7 Nm
    78 lb-ft

  • Fuel tank capacity

    36.7 L
    9.7 U.S. gal.
Electrical

  • Battery size

    600 CCA

  • Alternator (12-V)

    55 amp

  • Starter size

    1.4 kW
    1.9 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    8F/8R synchromesh shuttle shift gear transmission

  • Left-hand reverser

    Yes

  • Transmission gear ranges

    Four gears and two ranges

  • Final drive

    Spur gear

  • Brakes

    Wet disk

  • Steering

    Power steering

  • Axle capacity

    Front
    880 kg
    1940 lb
    Rear
    1600 kg
    3527 lb

  • Creeper

    No

  • Cruise control

    No

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    16.8 L/min
    4.4 gpm
    Implement
    22.4 L/min
    5.9 gpm
    39.2 L/min
    10.3 gpm

  • Pump type

    Single gear

  • Maximum operating pressure

    172 bar
    2495 psi

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to two (optional)
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    944 kg
    2081.2 lb
Power take-off (PTO)

  • Standard

    At 2400 rpm: 540 rpm

  • Control

    Mechanical

  • Clutch

    Transmission

  • Brake (for mid and rear PTO)

    Wet disk
Fluid capacities

  • Crankcase with filter

    4.5 L
    4.8 qt

  • Transmission and hydraulic system

    33 L
    34.8 qt
Final drive

  • Type

    Spur gear
Operator station

  • Rollover protective structure

    Type
    Foldable
    ASABE S478

  • Platform - flat/straddle

    Straddle

  • Gear shift location - console/floor

    Right-hand side
Cab
Dimensions

  • Wheelbase

    1574 mm
    62 in.

  • Front axle clearance

    Minimum: 331 mm
    13 in.
    Maximum: 353 mm
    13.9 in.

  • Turning radius with brakes

    1.63 m
    5.3 ft

  • Approximate shipping weight (open-station; cab)

    OOS: 1288 kg
    2840 lb
    Cab: Not applicable
Tires

  • Front

    R1 Bar: 7-14
    R3 Turf: 27x8.5-15
    R4 Industrial: 25x8.5-14

  • Rear

    R1 Bar: 11.2-24
    R3 Turf: 41x14-20
    R4 Industrial: 15-19.5
Miscellaneous

  • Toolbox

    Yes

  • Tilt steering wheel

    No

  • 12-V Outlet

    No
Back to Top
3E Series Compact Tractors

3E Series Compact Tractors

3R Series

3R Series

4M Series

4M Series

Available models: 3032E3038E3025E

DetailsFeaturesSpecifications

Details:

3032E

Compact Utility Tractor

  • Standard four-wheel drive(4WD) for maximum traction
  • Hydro transmission with Twin Touch™ pedals for ease of use
  • Category 1 3-pt hitch compatible with dozens of implements

Features:

  • Powerful, diesel engine delivers plenty of power under heavy loads
  • Easy-to-use hydrostatic transmission (HST) increases tractor performance
  • Clean and simple operator station is comfortable and convenient
  • Optional two-spool rear selective control valve (SCV) for superior implement performance
  • Optional iMatch™ Quick-Hitch feature allows for easy implement hookup
  • Excellent serviceability reduces operational costs and improves productivity

Specifications:

Key Specs

  • Engine power (gross)

    22.9 kW
    31.2 hp

  • Power take-off (PTO) power

    18.6 kW
    25 hp

  • Steering hydraulics

    15 L/min
    4 gpm

  • Implement hydraulics

    20.2 L/min
    5.3 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    615.1 kg
    1356 lb

  • Standard transmission; forward/reverse

    Hydrostatic transmission (HST)

  • Cruise control

    Optional

  • Approximate shipping weight (open-station; cab)

    1007.9 kg
    2222 lb

  • Wheelbase

    159.5 cm
    62.8 in.
Engine

  • Family

    EYDXL1.64NDA
    FYDXL1.64NDA
    GYDXL1.64NDA

  • Manufacturer

    Yanmar

  • Engine model

    3TNV88C-NJT

  • Engine power (gross)

    22.9 kW
    31.2 hp

  • Power take-off (PTO) power

    18.6 kW
    25 hp

  • Rated engine speed

    2500 rpm

  • Type

    Diesel

  • Injection pump type

    High pressure common rail direct injection

  • Aspiration

    Natural

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    3 / 1.64 L
    3 / 100.2 cu in.

  • Number of cylinders

    Three

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    88 x 90 mm
    3.46 x 3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Water pump

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    87 Nm
    64.2 lb-ft

  • Fuel tank capacity

    28.5 L
    7.5 U.S. gal.
Electrical

  • Battery size

    500 CCA

  • Alternator (12-V)

    55 amp

  • Starter size

    1.4 kW
    1.9 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    Hydrostatic transmission (HST)

  • Left-hand reverser

    No

  • Final drive

    Bull Gear

  • Brakes

    Wet disc

  • Steering

    Power steering

  • Axle capacity

    Front
    798 kg
    1760 lb
    Rear
    1197 kg
    2640 lb

  • Creeper

    No

  • Cruise control

    Optional

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    15 L/min
    4 gpm
    Implement
    20.2 L/min
    5.3 gpm
    35.2 L/min
    9.3 gpm

  • Pump type

    Dual gear

  • Maximum operating pressure

    172.4 bar
    2500 psi

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to two (optional)
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    615.1 kg
    1356 lb
Power take-off (PTO)

  • Standard

    540 rpm at 2500 rpm

  • Control

    Independent

  • Clutch

    Wet disk

  • Brake (for mid and rear PTO)

    Wet disk
Fluid capacities

  • Crankcase with filter

    4.5 L
    4.8 qt
Final drive

  • Type

    Bull Gear
Operator station

  • Rollover protective structure

    Type
    Foldable
    ASABE S478

  • Platform - flat/straddle

    Semi-flat

  • Gear shift location - console/floor

    Left-hand side
Cab
Dimensions

  • Wheelbase

    159.5 cm
    62.8 in.

  • Front axle clearance

    36.3 cm
    14.3 in.

  • Turning radius without brakes

    2.9 m
    9.4 ft

  • Approximate shipping weight (open-station; cab)

    1007.9 kg
    2222 lb
Tires

  • Front

    Farm - 7-14
    Turf - 27x8.5-15
    R4 - 25x8.5-14
    R4 - 27x8.5-15

  • Rear

    Farm - 11.2-24
    Turf - 41x14-20
    R4 - 15-19.5
    R4 - 43x16-20
Miscellaneous
Back to Top
DetailsFeaturesSpecifications

Details:

3038E

Compact Utility Tractor

  • Standard four-wheel drive(4WD) for maximum traction
  • Hydro transmission with Twin Touch™ pedals for ease of use
  • Category 1 3-pt hitch compatible with dozens of implements

Features:

  • Powerful, diesel engine delivers plenty of power under heavy loads
  • Easy-to-use hydrostatic transmission (HST) increases tractor performance
  • Clean and simple operator station is comfortable and convenient
  • Optional two-spool rear selective control valve (SCV) for superior implement performance
  • Optional iMatch™ Quick-Hitch feature allows for easy implement hookup
  • Excellent serviceability reduces operational costs and improves productivity

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 27.4 kW
    36.7 hp
    37.2 PS at 2500 rpm

  • Power take-off (PTO) power

    22.4 kW
    30 hp

  • Steering hydraulics

    15 L/min
    4 gpm

  • Implement hydraulics

    20.2 L/min
    5.3 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    615 kg
    1356 lb

  • Standard transmission; forward/reverse

    Hydrostatic transmission (HST)

  • Cruise control

    Optional

  • Approximate shipping weight (open-station; cab)

    Open operator station (OOS): 1210 kg
    2668 lb
    Cab: Not applicable

  • Wheelbase

    1593 mm
    62.7 in.
Engine

  • Family

    FYDXL1.57TDA
    EYDXL1.57TDA
    GYDXL1.57TDA

  • Manufacturer

    Yanmar

  • Engine model

    3TNV86CT-NJT2

  • Engine power (gross)

    SAE J1995 rated power: 27.4 kW
    36.7 hp
    37.2 PS at 2500 rpm

  • Power take-off (PTO) power

    22.4 kW
    30 hp

  • Rated engine speed

    2500 rpm

  • Type

    Diesel

  • Injection pump type

    High pressure common rail direct injection

  • Aspiration

    Turbocharged

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    3 / 1.57 L
    3 / 95.7 cu in.

  • Number of cylinders

    Three

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    86 x 90 m
    3.4 x 3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Water Pump

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    104.7 Nm
    77.2 lb-ft

  • Fuel tank capacity

    28.5 L
    7.5 gal.
Electrical

  • Battery size

    500 CCA

  • Alternator (12-V)

    55 amp

  • Starter size

    1.4 kW
    1.9 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    Hydrostatic transmission (HST)

  • Left-hand reverser

    No

  • Final drive

    Spur gear

  • Brakes

    Wet disk

  • Steering

    Power steering

  • Axle capacity

    Front
    880 kg
    1940 lb
    Rear
    1200 kg
    2645 lb

  • Creeper

    No

  • Cruise control

    Optional

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    15 L/min
    4 gpm
    Implement
    20.2 L/min
    5.3 gpm
    35.2 L/min
    9.3 gpm

  • Pump type

    Dual gear

  • Maximum operating pressure

    172 bar
    2495 psi

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to two (optional)
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    615 kg
    1356 lb
Power take-off (PTO)

  • Standard

    Rear - 540 rpm

  • Control

    Independent

  • Clutch

    Wet disk

  • Brake (for mid and rear PTO)

    Wet disk
Fluid capacities

  • Crankcase with filter

    4.5 L
    4.8 qt

  • Transmission and hydraulic system

    20.8 L
    22 qt
Final drive

  • Type

    Spur gear

  • Differential lock

    Yes
Operator station

  • Rollover protective structure

    Type
    Foldable

  • Platform - flat/straddle

    Straddle

  • Gear shift location - console/floor

    Left-hand side
Cab
Dimensions

  • Wheelbase

    1593 mm
    62.7 in.

  • Front axle clearance

    Minimum: 299 mm
    11.8 in.
    Maximum: 333 mm
    13.1 in.

  • Turning radius without brakes

    2.9 m
    9.4 ft

  • Approximate shipping weight (open-station; cab)

    OOS: 1210 kg
    2668 lb
    Cab: Not applicable
Tires

  • Front

    R1 Bar: 7-14
    R3 Turf: 27x8.5-15
    R4 Industrial: 25x8.5-14
    R4 Industrial: 27x8.5-15

  • Rear

    R1 Bar: 11.2-24
    R3 Turf: 41x14-20
    R4 Industrial: 15-19.5
    R4 Industrial: 43x16-20
Miscellaneous
Back to Top
DetailsFeaturesSpecifications

Details:

3025E

Compact Utility Tractor

  • Standard four-wheel drive (4WD) for maximum traction
  • Tightest turning radius in its horsepower class
  • Hydro transmission with Twin Touch™ pedals for ease of use

Features:

  • Powerful, diesel engine delivers plenty of power under heavy loads
  • Easy-to-use hydrostatic transmission (HST) increases tractor performance
  • Clean and simple operator station is comfortable and convenient
  • Optional two-spool rear selective control valve (SCV) for superior implement performance
  • Optional iMatch™ Quick-Hitch feature allows for easy implement hookup
  • Excellent serviceability reduces operational costs and improves productivity

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 18.2 kW
    24.4 hp
    24.7 PS at 2400 rpm

  • Power take-off (PTO) power

    13 kW
    17.4 hp

  • Steering hydraulics

    15 L/min
    4 gpm

  • Implement hydraulics

    20.2 L/min
    5.3 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    615 kg
    1356 lb

  • Standard transmission; forward/reverse

    Hydrostatic transmission (HST)

  • Cruise control

    Optional

  • Approximate shipping weight (open-station; cab)

    Open operator station (OOS): 1181 kg
    2603 lb
    Cab: Not applicable

  • Wheelbase

    1593 mm
    62.7 in.
Engine

  • Family

    EYDXL1.64NDA
    FYDXL1.64NDA
    GYDXL1.64NDA

  • Manufacturer

    Yanmar

  • Engine model

    3TNV88F-EPJT2

  • Engine power (gross)

    SAE J1995 rated power: 18.2 kW
    24.4 hp
    24.7 PS at 2400 rpm

  • Power take-off (PTO) power

    13 kW
    17.4 hp

  • Rated engine speed

    2400 rpm

  • Type

    Diesel

  • Injection pump type

    Direct injection

  • Aspiration

    Natural

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    3 / 1.64 L
    3 / 100.2 cu in.

  • Number of cylinders

    Three

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    88 x 90 mm
    3.46 x 3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Water pump

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    72.4 Nm
    53.4 lb-ft

  • Fuel tank capacity

    28.5 L
    7.5 U.S. gal.
Electrical

  • Battery size

    500 CCA

  • Alternator (12-V)

    55 amp

  • Starter size

    1.4 kW
    1.9 hp
Fuel system

  • Type

    Direct injection
Transmission

  • Standard transmission; forward/reverse

    Hydrostatic transmission (HST)

  • Left-hand reverser

    No

  • Final drive

    Spur gear

  • Brakes

    Wet disk

  • Steering

    Power steering

  • Axle capacity

    Front
    880 kg
    1940 lb
    Rear
    1200 kg
    2645 lb

  • Creeper

    No

  • Cruise control

    Optional

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    15 L/min
    4 gpm
    Implement
    20.2 L/min
    5.3 gpm
    35.2 L/min
    9.3 gpm

  • Pump type

    Dual gear

  • Maximum operating pressure

    172 bar
    2495 psi

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to two (optional)
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    615 kg
    1356 lb
Power take-off (PTO)

  • Standard

    Rear - 540 rpm

  • Control

    Independent

  • Clutch

    Wet disk

  • Brake (for mid and rear PTO)

    Wet disk
Fluid capacities

  • Crankcase with filter

    4.5 L
    4.8 qt

  • Transmission and hydraulic system

    20.8 L
    22 qt
Final drive

  • Type

    Spur gear
Operator station

  • Rollover protective structure

    Type
    Foldable

  • Platform - flat/straddle

    Straddle

  • Gear shift location - console/floor

    Left-hand side
Cab
Dimensions

  • Wheelbase

    1593 mm
    62.7 in.

  • Front axle clearance

    Minimum: 299 mm
    11.8 in.
    Maximum: 333 mm
    13.1 in.

  • Turning radius without brakes

    2.9 m
    9.4 ft

  • Approximate shipping weight (open-station; cab)

    OOS: 1181 kg
    2603 lb
    Cab: Not applicable
Tires

  • Front

    R1 Bar: 7-14
    R3 Turf: 27x8.5-15
    R4 Industrial: 25x8.5-14
    R4 Industrial: 27x8.5-15

  • Rear

    R1 Bar: 11.2-24
    R3 Turf: 41x14-20
    R4 Industrial: 15-19.5
    R4 Industrial: 43x16-20
Miscellaneous
Back to Top

Available models: 3033R3039R3046R

DetailsFeaturesSpecifications

Details:

3033R

Compact Utility Tractor

  • AutoConnect™ deck compatible for deck attach/detach in seconds
  • Cab or Open Station configuration available
  • PowrReverser™ or E-hydro transmission with Twin Touch™ pedals

Features:

  • Attractive styling provides improved visibility and serviceability
  • Powerful Yanmar® diesel engine delivers plenty of power under heavy loads
  • Maximize productivity with an eHydro™ transmission
  • PowrReverser™ transmission allows for clutchless direction changes
  • Operator station is comfortable and convenient
  • Optional premium ComfortGard™ cab provides superior comfort and performance

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 23.7 kW
    31.8 hp
    32.2 PS at 2600 rpm

  • Power take-off (PTO) power

    PowrReverser™ transmission: 19.5 kW
    26.1 hp
    eHydro™ transmission: 17.2 kW
    23 hp
    Per SAE J1995

  • Steering hydraulics

    23.5 L/min
    6.2 gpm

  • Implement hydraulics

    34.3 L/min
    9.1 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    995 kg
    2194 lb

  • Standard transmission; forward/reverse

    PowrReverser transmission

  • Cruise control

    PowrReverser transmission: Not applicable
    eHydro transmission: Standard

  • Approximate shipping weight (open-station; cab)

    Open operator station (OOS): 1353 kg
    2983 lb
    Cab: 1633 kg
    3600 lb

  • Wheelbase

    1727 mm
    68 in.
Engine

  • Manufacturer

    Yanmar®

  • Engine model

    3TNV88C-MJTV

  • Engine power (gross)

    SAE J1995 rated power: 23.7 kW
    31.8 hp
    32.2 PS at 2600 rpm

  • Power take-off (PTO) power

    PowrReverser transmission: 19.5 kW
    26.1 hp
    eHydro transmission: 17.2 kW
    23 hp

  • Rated engine speed

    2600 rpm

  • Type

    Diesel

  • Injection pump type

    High pressure common rail direct injection

  • Aspiration

    Natural

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    Three cylinders: 1.64 L
    100 cu in.

  • Number of cylinders

    Three

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    88x90 mm
    3.46x3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Liquid

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    87 Nm
    64.2 lb-ft

  • Fuel tank capacity

    OOS: 37.4 L
    10 U.S. gal.
    Cab eHydro transmission only: 47.6 L
    12.6 U.S. gal.
Electrical

  • Battery size

    500 CCA

  • Alternator (12-V)

    75 amp

  • Starter size

    1.4 kW
    1.9 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    PowrReverser transmission; 12F/12R

  • Optional transmission; forward/reverse

    eHydro transmission

  • Left-hand reverser

    PowrReverser transmission only

  • Transmission gear ranges

    PowrReverser transmission: 12F/12R
    eHydro transmission: three-range, infinitely variable

  • Final drive

    Spur gear

  • Brakes

    Multi-plate wet disk

  • Steering

    Hydrostatic power steering

  • Clutch, wet/dry

    PowrReverser transmission: Wet disk

  • Axle capacity

    Front
    1450 kg
    3197 lb
    Rear
    1850 kg
    4079 lb

  • Cruise control

    PowrReverser transmission: Not applicable
    eHydro transmission: Standard

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    23.5 L/min
    6.2 gpm
    Implement
    34.28 L/min
    9.1 gpm
    57.8 L/min
    15.3 gpm

  • Pump type

    Single gear

  • Maximum operating pressure

    172 bar
    2495 psi

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to six rear remotes
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    995 kg
    2194 lb
Power take-off (PTO)

  • Standard

    Independent rear: 540 rpm

  • Optional

    PowrReverser transmission: Mid - not applicable
    eHydro transmission: Mid - 2100 rpm

  • Control

    Lever and switch

  • Clutch

    Wet disk

  • Brake (for mid and rear PTO)

    Wet disk
Fluid capacities

  • Crankcase with filter

    4.3 L
    4.5 qt

  • Transmission and hydraulic system

    PowrReverser transmission: 24.6 L
    6.5 U.S. gal.
    eHydro transmission: 26.5 L
    7 gal.
    Cab eHydro transmission only: 26.5 L
Final drive

  • Type

    Spur gear
Operator station

  • Rollover protective structure

    Type
    Foldable

  • Platform - flat/straddle

    One-piece semi flat

  • Gear shift location - console/floor

    PowrReverser transmission: Right-hand side
    eHydro transmission: Not applicable
Cab

  • Compliance

    Complies with OSHA, SAE, and CSA standards for rollover protection

  • Visibility

    360 degree (angle)

  • Doors

    Two

  • Noise rating

    80 dBA

  • Seat equipment

    Scissor-link
Dimensions

  • Wheelbase

    1727 mile
    68 in.

  • Front axle clearance

    Minimum: 171 mm
    6.7 in.
    Maximum: 299 mm
    11.8 in.

  • Turning radius with brakes

    2.7 m
    8.8 ft

  • Turning radius without brakes

    2.8 m
    9.2

  • Approximate shipping weight (open-station; cab)

    OOS: 1353 kg
    2983 lb
    Cab: 1633 kg
    3600 lb
Tires

  • Front

    R1 Bar: 7-14
    R3 Turf : 27x8.50-15
    R3 Turf Special: 25/10.5LLx15
    R4 Industrial: 25x8.5-14 or 27x8.5-15

  • Rear

    R1 Bar: 11.2-24
    R3 Turf: 41x14-20
    R3 Turf Special: 41x18LL-16.1
    R4 Industrial: 15-19.5 or 43x16-20

  • Front tread range

    1117 mm
    44 in.

  • Rear tread spacing

    1031 mm
    40.6 in.
Miscellaneous
Back to Top
DetailsFeaturesSpecifications

Details:

3039R

Compact Utility Tractor

  • AutoConnect™ deck compatible for deck attach/detach in seconds
  • Cab or Open Station configuration available
  • PowrReverser™ or E-hydro transmission with Twin Touch™ pedals

Features:

  • Attractive styling provides improved visibility and serviceability
  • Powerful Yanmar® diesel engine delivers plenty of power under heavy loads
  • Maximize productivity with an eHydro™ transmission
  • PowrReverser™ transmission allows for clutchless direction changes
  • Operator station is comfortable and convenient
  • Optional premium ComfortGard™ cab provides superior comfort and performance

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 28.5 kW
    38.2 hp
    38.7 PS at 2600 rpm

  • Power take-off (PTO) power

    PowrReverser™ transmission: 24.4 kW
    32.8 hp
    eHydro™ transmission: 22.2 kW
    29.8 hp

  • Steering hydraulics

    23.5 L/min
    6.2 gpm

  • Implement hydraulics

    34.3 L/min
    9.1 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    995 kg
    2194 lb

  • Standard transmission; forward/reverse

    PowrReverser transmission

  • Cruise control

    PowrReverser transmission: Not applicable
    eHydro transmission: Standard

  • Approximate shipping weight (open-station; cab)

    Open operator station (OOS) PowrReverser transmission: 1363 kg
    3005 lb
    OOS eHydro trasmission: 1382 kg
    3047 lb
    Cab eHydro transmission only: 1676 kg
    3695 lb

  • Wheelbase

    1727 mm
    68 in.
Engine

  • Manufacturer

    Yanmar®

  • Engine model

    3TNV86CT-MJT

  • Engine power (gross)

    SAE J1995 rated power: 28.5 kW
    38.2 hp
    38.7 PS at 2600 rpm

  • Power take-off (PTO) power

    PowrReverser transmission: 24.4 kW
    32.8 hp
    eHydro transmission: 22.2 kW
    29.8 hp

  • Rated engine speed

    2600 rpm

  • Type

    Diesel

  • Injection pump type

    High pressure common rail direct injection

  • Aspiration

    Turbocharged

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    Three cylinders: 1.57 L
    95.7 cu in.

  • Number of cylinders

    Three

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    86 x 90 mm
    3.4 x 3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Liquid

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    105 Nm
    77.4 lb-ft

  • Fuel tank capacity

    OOS: 37.4 L
    10 U.S. gal.
    Cab eHydro transmission only: 47.6 L
    12.6 U.S. gal.
Electrical

  • Battery size

    500 CCA

  • Alternator (12-V)

    75 amp

  • Starter size

    1.4 kW
    1.9 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    PowrReverser transmission; 12F/12R

  • Optional transmission; forward/reverse

    eHydro transmission

  • Left-hand reverser

    PowrReverser transmission only

  • Transmission gear ranges

    PowrReverser transmission: 12F/12R
    eHydro transmission: three-range, infinitely variable

  • Final drive

    Spur gear

  • Brakes

    Wet disk

  • Steering

    Hydrostatic power steering

  • Clutch, wet/dry

    PowrReverser transmission: Wet disk

  • Axle capacity

    Front
    1450 kg
    3197 lb
    Rear
    1850 kg
    4079 lb

  • Cruise control

    PowrReverser transmission: Not applicable
    eHydro transmission: Standard
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    23.5 L/min
    6.2 gpm
    Implement
    34.3 L/min
    9.1 gpm
    57.8 L/min
    15.3 gpm

  • Pump type

    Single gear

  • Maximum operating pressure

    172 bar
    2495 psi

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to six rear remotes
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    995 kg
    2194 lb
Power take-off (PTO)

  • Standard

    Independent rear: 540 rpm

  • Optional

    PowrReverser transmission: Mid - not applicable
    eHydro transmission: Mid - 2100 rpm

  • Control

    Lever and switch

  • Clutch

    Wet disk

  • Brake (for mid and rear PTO)

    Wet disk
Fluid capacities

  • Crankcase with filter

    4.3 L
    4.5 qt

  • Transmission and hydraulic system

    PowrReverser transmission: 24.6 L
    6.5 U.S. gal.
    eHydro transmission: 26.5 L
    7 gal.
    Cab eHydro transmission only: 26.5 L
Final drive

  • Type

    Spur gear
Operator station

  • Rollover protective structure

    Type
    Foldable

  • Platform - flat/straddle

    One-piece semi flat

  • Gear shift location - console/floor

    PowrReverser transmission: Right-hand side
    eHydro transmission: Not applicable
Cab

  • Compliance

    Complies with OSHA, SAE, and CSA standards for rollover protection

  • Visibility

    360 degree (angle)

  • Doors

    Two

  • Noise rating

    80 dBA

  • Seat equipment

    Scissor-link
Dimensions

  • Wheelbase

    1727 mm
    68 in.

  • Front axle clearance

    Minimum: 171 mm
    6.7 in.
    Maximum: 299 mm
    11.8 in.

  • Turning radius with brakes

    2.7 m
    8.8 ft

  • Turning radius without brakes

    2.8 m
    9.2 ft

  • Approximate shipping weight (open-station; cab)

    OOS PowrReverser transmission: 1363 kg
    3005 lb
    OOS eHydro trasmission: 1382 kg
    3047 lb
    Cab eHydro transmission only: 1676 kg
    3695 lb
Tires

  • Front

    R1 Bar: 7-14
    R3 Turf : 27x8.50-15
    R3 Turf Special: 25/10.5LLx15
    R4 Industrial: 25x8.5-14 or 27x8.5-15

  • Rear

    R1 Bar: 11.2-24
    R3 Turf: 41x14-20
    R3 Turf Special: 41x18LL-16.1
    R4 Industrial: 15-19.5 or 43x16-20

  • Front tread range

    1117 mm
    44 in.

  • Rear tread spacing

    1031 mm
    40.6 in.
Miscellaneous
Back to Top
DetailsFeaturesSpecifications

Details:

3046R

Compact Utility Tractor

  • AutoConnect™ deck compatible for deck attach/detach in seconds
  • Cab or Open Station configuration available
  • Standard hydrostatic transmission with Twin Touch™ pedals
  • See Ways To Save

Features:

  • Attractive styling provides improved visibility and serviceability
  • Powerful Yanmar® diesel engine delivers plenty of power under heavy loads
  • Maximize productivity with an eHydro™ transmission
  • PowrReverser™ transmission allows for clutchless direction changes
  • Operator station is comfortable and convenient
  • Optional premium ComfortGard™ cab provides superior comfort and performance

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 33.3 kW
    44.7 hp
    45.3 PS at 2600 rpm

  • Power take-off (PTO) power

    25.2 kW
    33.9 hp

  • Steering hydraulics

    23.5 L/min
    6.2 gpm

  • Implement hydraulics

    34.3 L/min
    9.1 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    995 kg
    2194 lb

  • Standard transmission; forward/reverse

    eHydro transmission

  • Cruise control

    Standard

  • Approximate shipping weight (open-station; cab)

    Open operator station (OOS): 1391 kg
    3066 lb
    Cab: 1818 kg
    4008 lb

  • Wheelbase

    1727 mm
    68 in.
Engine

  • Manufacturer

    Yanmar®

  • Engine model

    3TNV86CHT-MJTV

  • Engine power (gross)

    SAE J1995 rated power: 33.3 kW
    44.7 hp
    45.3 PS at 2600 rpm

  • Power take-off (PTO) power

    25.2 kW
    33.9 hp

  • Rated engine speed

    2600 rpm

  • Type

    Diesel

  • Injection pump type

    High pressure common rail direct injection

  • Aspiration

    Turbocharged and intercooled

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    Three cylinders: 1.57 L
    95.7 cu in.

  • Number of cylinders

    Three

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    86 x 90 mm
    3.4 x 3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Liquid

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    112.3 Nm
    90 lb-ft

  • Fuel tank capacity

    OOS: 37.4 L
    10 U.S. gal.
    Cab only: 47.6 L
    12.6 U.S. gal.
Electrical

  • Battery size

    500 CCA

  • Alternator (12-V)

    75 amp

  • Starter size

    1.4 kW
    1.9 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    eHydro transmission

  • Transmission gear ranges

    Three-range, infinitely variable

  • Final drive

    Spur gear

  • Brakes

    Wet disk

  • Steering

    Hydrostatic power steering

  • Axle capacity

    Front
    1450 kg
    3197 lb
    Rear
    1850 kg
    4079 lb

  • Cruise control

    Standard
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    23.5 L/min
    6.2 gpm
    Implement
    34.3 L/min
    9.1 gpm
    57.8 L/min
    15.3 gpm

  • Pump type

    Single gear

  • Maximum operating pressure

    172 bar
    2495 psi

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to six rear remotes
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    995 kg
    2194 lb
Power take-off (PTO)

  • Standard

    Independent rear: 540 rpm

  • Optional

    Mid: 2100 rpm

  • Control

    Lever and switch

  • Clutch

    Wet disk

  • Brake (for mid and rear PTO)

    Wet disk
Fluid capacities

  • Crankcase with filter

    5.7 L
    6 qt

  • Transmission and hydraulic system

    26.5 L
    7 U.S. gal.
Final drive

  • Type

    Spur gear
Operator station

  • Rollover protective structure

    Type
    Foldable

  • Platform - flat/straddle

    One-piece semi flat
Cab

  • Compliance

    Complies with OSHA, SAE, and CSA standards for rollover protection

  • Visibility

    360 degree (angle)

  • Doors

    Two

  • Noise rating

    80 dBA

  • Seat equipment

    Scissor-link
Dimensions

  • Wheelbase

    1727 mm
    68 in.

  • Front axle clearance

    Minimum: 171 mm
    6.7 in.
    Maximum: 299 mm
    11.8 in.

  • Turning radius with brakes

    2.7 m
    8.8 ft

  • Turning radius without brakes

    2.8 m
    9.2 ft

  • Approximate shipping weight (open-station; cab)

    OOS: 1391 kg
    3066 lb
    Cab: 1818 kg
    4008 lb
Tires

  • Front

    R1 Bar: 7-14
    R3 Turf : 27x8.50-15
    R3 Turf Special: 25/10.5LLx15
    R4 Industrial: 25x8.5-14 or 27x8.5-15

  • Rear

    R1 Bar: 11.2-24
    R3 Turf: 41x14-20
    R3 Turf Special: 41x18LL-16.1
    R4 Industrial: 15-19.5 or 43x16-20

  • Front tread range

    1117 mm
    44 in.

  • Rear tread spacing

    1031 mm
    40.6 in.
Miscellaneous
Back to Top

Available models: 4044M4052M4066M4052M Heavy Duty4066M Heavy Duty

DetailsFeaturesSpecifications

Details:

4044M

Compact Utility Tractor

  • Powerful and reliable Yanmar Diesel Engine
  • PowrReverser™ or eHydrostatic Transmission options
  • Standard 4-wheel-drive
  • Category 1, 3-point hitch compatible with iMatch™ Quick-Hitch

Features:

  • Attractive styling provides improved visibility and serviceability
  • Powerful Yanmar® diesel engine delivers plenty of power under heavy loads
  • PowrReverser™ transmission allows for clutchless direction changes
  • Maximize productivity with an eHydro™ transmission
  • Operator station is comfortable and convenient
  • Built-in safety features for operator peace of mind
  • Optional iMatch™ Quick-Hitch allows for easy implement hookup
  • Excellent serviceability reduces operational costs and improves productivity

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 31.7 kW
    42.5 hp
    43.1 PS at 2600 rpm

  • Power take-off (PTO) power

    PowrReverser™ transmission: 25 kW
    33.6 hp
    eHydro™ transmission: 24.1 kW
    32.3 hp
    Per SAE J1995

  • Steering hydraulics

    23.5 L/min
    6.2 gpm

  • Implement hydraulics

    42.3 L/min
    11.2 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb

  • Standard transmission; forward/reverse

    PowrReverser transmission

  • Cruise control

    Optional

  • Approximate shipping weight (open-station; cab)

    Open operator station (OOS): 1705 kg
    3759 lb
    Cab: Not applicable

  • Wheelbase

    185.5 cm
    73 in.
Engine

  • Family

    EYDXL2.19NDA
    FYDXL2.19NDA
    GYDXL2.19NDA

  • Manufacturer

    Yanmar®

  • Engine model

    4TNV88C-MJT

  • Engine power (gross)

    SAE J1995 rated power: 31.7 kW
    42.5 hp
    43.1 PS at 2600 rpm

  • Power take-off (PTO) power

    PowrReverser transmission: 25 kWh
    33.6 hp
    eHydro transmission: 24.1 kW
    32.3 hp
    Per SAE J1995

  • Rated engine speed

    2600 rpm

  • Type

    Diesel

  • Injection pump type

    High pressure common rail direct injection

  • Aspiration

    Natural

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    4 / 2.189 L
    4 / 133.5 cu in.

  • Number of cylinders

    Four

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    88x90 mm
    3.46x3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Liquid

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    116 Nm
    85.6 lb-ft

  • Fuel tank capacity

    56.9 L
    15 U.S. gal.
Electrical

  • Battery size

    770 CCA

  • Alternator (12-V)

    75 amp

  • Starter size

    2 kW
    2.68 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    PowrReverser transmission

  • Optional transmission; forward/reverse

    eHydro transmission

  • Left-hand reverser

    PowrReverser transmission only

  • Transmission gear ranges

    12F/12R PowrReverser
    Infinitely-variable, three range

  • Final drive

    Planetary

  • Brakes

    Multi-plate wet disc

  • Steering

    Hydrostatic power steering

  • Clutch, wet/dry

    Wet

  • Clutch disk diameter wet clutch

    129 mm
    5.08 in.

  • Axle capacity

    Front
    1600 kg
    3528 lb
    Rear
    2400 kg
    5292 lb

  • Creeper

    No

  • Cruise control

    Optional

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    23.5 L/min
    6.2 gpm
    Implement
    42.3 L/min
    11.2 gpm
    65.8 L/min
    17.4 gpm

  • Pump type

    Single gear

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to six rear remotes
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb
Power take-off (PTO)

  • Standard

    Independent
    540 rpm at 2600 rpm

  • Control

    Position

  • Clutch

    Wet disc
Fluid capacities

  • Crankcase with filter

    5.3 L
    1.4 qt

  • Transmission and hydraulic system

    47.3 L
    12.5 gal.
Final drive

  • Type

    Planetary

  • Differential lock

    Yes
Operator station

  • Rollover protective structure

    Type
    Foldable
    Yes

  • Platform - flat/straddle

    Flat

  • Gear shift location - console/floor

    PowrReverser - Left-hand side
Cab
Dimensions

  • Wheelbase

    185.5 cm
    73 in.

  • Front axle clearance

    35.1 cm
    13.8 in.

  • Turning radius with brakes

    2.8 m
    9.19 ft

  • Turning radius without brakes

    3 m
    9.84 ft

  • Approximate shipping weight (open-station; cab)

    OOS: 1705 kg
    3759 lb
    Cab: Not applicable
Tires

  • Front

    Farm - 8-16
    Turf - 27x10.5-15 or 27x12LL-15
    Industrial - 10-16.5

  • Rear

    Farm - 13.6-28
    Turf - 44x18-20 or 22.5LL-16.1
    Industrial - 16.9Lx24

  • Front tread range

    148.1 cm
    58.3 in.

  • Rear tread spacing

    137.2 cm
    54 in.
Miscellaneous
Back to Top
DetailsFeaturesSpecifications

Details:

4052M

Compact Utility Tractor

  • Turbocharged diesel engine
  • PowrReverser™ or eHydrostatic Transmission options
  • Standard 4-wheel-drive
  • Category 1, 3-point hitch compatible with iMatch™ Quick-Hitch

Features:

  • Attractive styling provides improved visibility and serviceability
  • Powerful Yanmar® diesel engine delivers plenty of power under heavy loads
  • PowrReverser™ transmission allows for clutchless direction changes
  • Maximize productivity with an eHydro™ transmission
  • Operator station is comfortable and convenient
  • Built-in safety features for operator peace of mind
  • Optional iMatch™ Quick-Hitch allows for easy implement hookup
  • Excellent serviceability reduces operational costs and improves productivity

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 37.9 kW
    50.8 hp
    51.5 PS at 2600 rpm

  • Power take-off (PTO) power

    29.2 kW
    39.1 hp

  • Steering hydraulics

    23.5 L/min
    6.2 gpm

  • Implement hydraulics

    42.3 L/min
    11.2 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb

  • Standard transmission; forward/reverse

    PowrReverser transmission

  • Cruise control

    Optional

  • Approximate shipping weight (open-station; cab)

    Open station with hydrostatic transmission: 1664 kg
    3668 lb
    Cab with hydrostatic transmission: Not applicable
    Open station with PowrReverser transmission: 1703 kg
    3754 lb
    Cab with PowerReverser: Not applicable

  • Wheelbase

    185.5 cm
    73 in.
Engine

  • Family

    EYDXL2.09TDA
    FYDXL2.09TDA
    GYDXL2.09TDA

  • Manufacturer

    Yanmar®

  • Engine model

    4TNV86CT-MJT

  • Engine power (gross)

    SAE J1995 rated power: 37.9 kW
    50.8 hp
    51.5 PS at 2600 rpm

  • Power take-off (PTO) power

    29.2 kW
    39.1 hp

  • Rated engine speed

    2600 rpm

  • Type

    Diesel

  • Injection pump type

    High pressure common rail direct injection

  • Aspiration

    Turbocharged

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    4 / 2.091 L
    4 / 127.6 cu in.

  • Number of cylinders

    Four

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    86 x 90 mm
    3.4 x 3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Liquid

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    139 Nm
    102.5 lb-ft

  • Fuel tank capacity

    56.9 L
    15 U.S. gal.
Electrical

  • Battery size

    770 CCA

  • Alternator (12-V)

    75 amp

  • Starter size

    2 kW
    2.68 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    PowrReverser transmission

  • Optional transmission; forward/reverse

    eHydro transmission

  • Left-hand reverser

    PowrReverser transmission only

  • Transmission gear ranges

    PowrReverser: 12F/12R
    eHydro: Infinitely-variable three range

  • Final drive

    Planetary

  • Brakes

    Multi-plate wet disc

  • Steering

    Hydrostatic power steering

  • Clutch, wet/dry

    Wet

  • Clutch disk diameter wet clutch

    129 mm
    5.08 in.

  • Axle capacity

    Front
    1600 kg
    3528 lb
    Rear
    2400 kg
    5292 lb

  • Cruise control

    Optional

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    23.5 L/min
    6.2 gpm
    Implement
    42.3 L/min
    11.2 gpm
    65.8 L/min
    17.4 gpm

  • Pump type

    Single gear

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to three rear remotes
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb
Power take-off (PTO)

  • Standard

    Independent 540 rpm at 2600 rpm

  • Control

    Position

  • Clutch

    Wet disc
Fluid capacities

  • Crankcase with filter

    5.3 L
    1.4 qt

  • Transmission and hydraulic system

    47.3 L
    12.5 gal.
Final drive

  • Type

    Planetary

  • Differential lock

    Yes
Operator station

  • Rollover protective structure

    Type
    Foldable
    Yes

  • Platform - flat/straddle

    Flat

  • Gear shift location - console/floor

    PowrReverser - Left-hand side
Cab
Dimensions

  • Wheelbase

    185.5 cm
    73 in.

  • Front axle clearance

    25.1 cm
    13.8 in.

  • Turning radius with brakes

    2.8 m
    9.19 ft

  • Turning radius without brakes

    3 m
    9.84 ft

  • Approximate shipping weight (open-station; cab)

    Open station with hydrostatic transmission: 1664 kg
    3668 lb
    Cab with hydrostatic transmission: Not applicable
    Open station with PowrReverser transmission: 1703 kg
    3754 lb
    Cab with PowerReverser: Not applicable
Tires

  • Front

    Farm - 8-16
    Turf - 27x10.5-15
    Industrial - 10-16.5

  • Rear

    Farm - 13.6-28
    Turf - 44x18-20 or 22.5LL-16.1
    Industrial - 16.9Lx24

  • Front tread range

    148.1 cm
    58.3 in.

  • Rear tread spacing

    137.2 cm
    54 in.
Miscellaneous
Back to Top
DetailsFeaturesSpecifications

Details:

4066M

Compact Utility Tractor

  • Turbocharged diesel engine
  • PowrReverser™ or eHydrostatic Transmission options
  • Standard 4-wheel-drive
  • Category 1, 3-point hitch compatible with iMatch™ Quick-Hitch

Features:

  • Attractive styling provides improved visibility and serviceability
  • Powerful Yanmar® diesel engine delivers plenty of power under heavy loads
  • PowrReverser™ transmission allows for clutchless direction changes
  • Maximize productivity with an eHydro™ transmission
  • Operator station is comfortable and convenient
  • Built-in safety features for operator peace of mind
  • Optional iMatch™ Quick-Hitch allows for easy implement hookup
  • Excellent serviceability reduces operational costs and improves productivity

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 48.5 kW
    65 hp
    65.9 PS at 2600 rpm

  • Power take-off (PTO) power

    PowrReverser™ transmission: 40.4 kW
    54.2 hp
    eHydro™ transmission: 38.7 kW
    51.9 hp

  • Steering hydraulics

    23.5 L/min
    6.2 gpm

  • Implement hydraulics

    42.3 L/min
    11.2 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb

  • Standard transmission; forward/reverse

    PowrReverser transmission

  • Cruise control

    Optional

  • Approximate shipping weight (open-station; cab)

    Open operator station (OOS): 1806 kg
    3982 lb
    Cab: Not applicable

  • Wheelbase

    185.5 cm
    73 in.
Engine

  • Family

    EYDXL2.09HDA
    FYDXL2.09HDA
    GYDXL2.09HDA

  • Manufacturer

    Yanmar®

  • Engine model

    4TNV86CHT-MJT

  • Engine power (gross)

    SAE J1995 rated power: 48.5 kW
    65 hp
    65.9 PS at 2600 rpm

  • Power take-off (PTO) power

    PowrReverser transmission: 40.4 kW
    54.2 hp
    eHydro transmission: 38.7 kW
    51.9 hp

  • Rated engine speed

    2600 rpm

  • Type

    Diesel

  • Injection pump type

    High pressure common rail direct injection

  • Aspiration

    Turbocharged and charge air cooled

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    4 / 2.091 L
    4 / 127.6 cu in.

  • Number of cylinders

    Four

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    86 x 90 mm
    3.4 x 3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Liquid

  • Air cleaner

    Dual element

  • Engine torque at rated speed

    178 Nm
    131.3 lb-ft

  • Fuel tank capacity

    56.9 L
    15 U.S. gal.
    Cab - 50 L
    13.8 U.S. gal.
Electrical

  • Battery size

    770 CCA

  • Alternator (12-V)

    75 amp

  • Starter size

    2 kW
    2.68 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    12/12 PowrReverser transmission

  • Optional transmission; forward/reverse

    eHydro transmission

  • Left-hand reverser

    PowrReverser transmission only

  • Final drive

    Planetary

  • Brakes

    Multi-plate wet disc

  • Steering

    Hydrostatic power steering

  • Clutch, wet/dry

    Wet

  • Clutch disk diameter wet clutch

    129 mm
    5.08 in.

  • Axle capacity

    Front
    1600 kg
    3528 lb
    Rear
    2400 kg
    5292 lb

  • Creeper

    No

  • Cruise control

    Optional

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    21.5 L/min
    5.7 gpm
    Implement
    38.7 L/min
    10.2 gpm
    65.86617 L/min
    17.4 gpm

  • Pump type

    Dual gear

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to six rear remotes
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb
Power take-off (PTO)

  • Standard

    Independent 540 rpm at 2600 rpm

  • Control

    Independent

  • Clutch

    Wet disc
Fluid capacities

  • Crankcase with filter

    5.3 L
    1.4 qt

  • Transmission and hydraulic system

    47.3 L
    12.5 gal.
Final drive

  • Type

    Planetary

  • Differential lock

    Yes
Operator station

  • Rollover protective structure

    Type
    Fixed
    Yes

  • Platform - flat/straddle

    Flat

  • Gear shift location - console/floor

    PowrReverser - Left-hand side
Cab
Dimensions

  • Wheelbase

    185.5 cm
    73 in.

  • Front axle clearance

    35.1 cm
    13.8 in.

  • Turning radius with brakes

    2.8 m
    9.19 ft

  • Turning radius without brakes

    3 m
    9.84 ft

  • Approximate shipping weight (open-station; cab)

    OOS: 1806 kg
    3982 lb
    Cab: Not applicable
Tires

  • Front

    Farm - 8-16
    Turf - 27x10.5-15
    Industrial - 10-16.5

  • Rear

    Farm - 14.9-24
    Turf - 44x18-20 or 22.5LL-16.1
    Industrial - 16.9Lx24

  • Front tread range

    148.1 cm
    58.3 in.

  • Rear tread spacing

    137.2 cm
    54 in.
Miscellaneous
Back to Top
DetailsFeaturesSpecifications

Details:

4052M Heavy Duty

Compact Utility Tractor

  • Factory-installed 440R Quick Park™ Loader Mounting System included
  • Turbocharged diesel engine
  • eHydrostatic Transmission
  • Standard mid and rear hydraulics
  • Category 1 and 2, Three-point hitch

Features:

  • Increased versatility with Category 1 and 2 implement compatibility
  • Excellent visibility provided by standard lighting equipment
  • Maximize productivity with an eHydro™ transmission
  • Increase productivity with integrated mid-mount loader selective control valve (SCV) and mechanical rear SCV
  • Powerful Yanmar® diesel engine delivers plenty of power under heavy loads
  • Improved traction in muddy conditions with larger tires

Specifications:

Key Specs

  • Engine power (gross)

    37.9 kW
    51.5 hp
    PS at 2600 rpm
    SAE J1995 rated power

  • Power take-off (PTO) power

    eHydro™ transmission: 30.5 kW
    40.9 hp
    Per SAE J1995

  • Steering hydraulics

    23.5 L/min
    6.2 gpm

  • Implement hydraulics

    42.3 L/min
    11.2 gpm

  • Hitch type

    Category 1/Category 2

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb

  • Standard transmission; forward/reverse

    eHydro transmission

  • Cruise control

    Standard

  • Approximate shipping weight (open-station; cab)

    Open station: 1943 kg
    4255 lb
    Cab: Not applicable

  • Wheelbase

    185.5 cm
    73 in.
Engine

  • Family

    EYDXL2.09TDA
    FYDXL2.09TDA
    GYDXL2.09TDA

  • Manufacturer

    Yanmar®

  • Engine model

    4TNV86CT-MJT

  • Engine power (gross)

    37.9 kW
    51.5 hp
    PS at 2600 rpm
    SAE J1995 rated power

  • Power take-off (PTO) power

    eHydro™ transmission: 30.5 kW
    40.9 hp
    Per SAE J1995

  • Rated engine speed

    2600 rpm

  • Type

    Diesel

  • Injection pump type

    High-pressure common rail direct injection

  • Aspiration

    Turbocharged

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    4 cylinders
    2.091 L
    127.6 cu in.

  • Number of cylinders

    Four

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    86 x 90 mm
    3.4 x 3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Liquid

  • Air cleaner

    Dual element with electronic restriction indicator

  • Engine torque at rated speed

    139 Nm
    102.5 lb-ft

  • Fuel tank capacity

    56.9 L
    15 U.S. gal.
Electrical

  • Battery size

    770 CCA

  • Alternator (12-V)

    75 amp

  • Starter size

    2 kW
    2.68 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    eHydro transmission

  • Transmission gear ranges

    eHydro - Infinitely-variable three range

  • Final drive

    Planetary

  • Brakes

    Multi-plate wet disc

  • Steering

    Hydrostatic power steering

  • Clutch, wet/dry

    Wet

  • Clutch disk diameter wet clutch

    129 mm
    5.08 in.

  • Axle capacity

    Front
    1600 kg
    3528 lb
    Rear
    2400 kg
    5292 lb

  • Creeper

    SpeedMatch™ standard

  • Cruise control

    Standard

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    23.5 L/min
    6.2 gpm
    Implement
    42.3 L/min
    11.2 gpm

  • Pump type

    Single gear

  • Draft control sensing

    Position control

  • Remote control valves available

    Two remotes standard
3-point hitch

  • Type

    Category 1/Category 2

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb
Power take-off (PTO)

  • Standard

    Independent 540 rpm at 2600 rpm

  • Optional

    540E rpm

  • Control

    Independent

  • Clutch

    Wet disc
Fluid capacities

  • Crankcase with filter

    5.3 L
    1.4 qt

  • Transmission and hydraulic system

    47.3 L
    12.5 gal.
Final drive

  • Type

    Planetary

  • Differential lock

    Yes
Operator station

  • Rollover protective structure

    Type
    Foldable
    Yes

  • Platform - flat/straddle

    Flat
Cab
Dimensions

  • Wheelbase

    185.5 cm
    73 in.

  • Front axle clearance

    35.1 cm
    13.8 in.

  • Turning radius with brakes

    2.8 m
    9.19 ft

  • Turning radius without brakes

    3 m
    9.84 ft

  • Approximate shipping weight (open-station; cab)

    Open station: 1943 kg
    4255 lb
    Cab: Not applicable
Tires

  • Front

    R4 Industrial 31.5x13-16.5

  • Rear

    R4 Industrial 16.9-24
    R4 Industrial 19.5L-24

  • Front tread range

    1374.6 mm
    54.1 in.

  • Rear tread spacing

    1375 mm
    54.1 in.
    1495 mm
    58.9 in.
Miscellaneous
Back to Top
DetailsFeaturesSpecifications

Details:

4066M Heavy Duty

Compact Utility Tractor

  • Factory-installed 440R Quick Park™ Loader Mounting System included
  • Turbocharged diesel engine
  • eHydrostatic Transmission
  • Standard mid and rear hydraulics
  • Category 1 and 2, Three-point hitch

Features:

  • Increased versatility with Category 1 and 2 implement compatibility
  • Excellent visibility provided by standard lighting equipment
  • Maximize productivity with an eHydro™ transmission
  • Increase productivity with integrated mid-mount loader selective control valve (SCV) and mechanical rear SCV
  • Powerful Yanmar® diesel engine delivers plenty of power under heavy loads
  • Improved traction in muddy conditions with larger tires

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 48.5 kW
    65hp
    65.9 PS at 2600 rpm

  • Power take-off (PTO) power

    38.7 kW
    51.9 hp

  • Steering hydraulics

    23.5 L/min
    6.2 gpm

  • Implement hydraulics

    42.3 L/min
    11.2 gpm

  • Hitch type

    Category 1/Category 2

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb

  • Standard transmission; forward/reverse

    eHydro transmission

  • Cruise control

    Standard

  • Approximate shipping weight (open-station; cab)

    Open station: 1950 kg
    4290 lb
    Cab: Not applicable

  • Wheelbase

    185.5 cm
    73 in.
Engine

  • Family

    EYDXL2.09HDA
    FYDXL2.09HDA
    GYDXL2.09HDA

  • Manufacturer

    Yanmar®

  • Engine model

    4TNV86CT-MJT

  • Engine power (gross)

    SAE J1995 rated power: 48.5 kW
    65 hp
    65.9 PS at 2600 rpm

  • Power take-off (PTO) power

    38.7 kW
    51.9 hp

  • Rated engine speed

    2600 rpm

  • Type

    Diesel

  • Injection pump type

    High-pressure common rail direct injection

  • Aspiration

    Turbocharged

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    4 cylinders
    2.091 L
    127.6 cu in.

  • Number of cylinders

    Four

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    86 x 90 mm
    3.4 x 3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Liquid

  • Air cleaner

    Dual element with electronic restriction indicator

  • Engine torque at rated speed

    178 Nm
    131.3 lb-ft

  • Fuel tank capacity

    56.9 L
    15 U.S. gal.
Electrical

  • Battery size

    770 CCA

  • Alternator (12-V)

    75 amp

  • Starter size

    2 kW
    2.68 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    eHydro transmission

  • Transmission gear ranges

    eHydro - Infinitely-variable three range

  • Final drive

    Planetary

  • Brakes

    Multi-plate wet disc

  • Steering

    Hydrostatic power steering

  • Clutch, wet/dry

    Wet

  • Clutch disk diameter wet clutch

    129 mm
    5.08 in.

  • Axle capacity

    Front
    1600 kg
    3528 lb
    Rear
    2400 kg
    5292 lb

  • Creeper

    SpeedMatch™ standard

  • Cruise control

    Standard

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    23.5 L/min
    6.2 gpm
    Implement
    42.3 L/min
    11.2 gpm

  • Pump type

    Single gear

  • Draft control sensing

    Position control

  • Remote control valves available

    Two remotes standard
3-point hitch

  • Type

    Category 1/Category 2

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb
Power take-off (PTO)

  • Standard

    Independent 540 rpm at 2600 rpm

  • Optional

    540E rpm

  • Control

    Independent

  • Clutch

    Wet disc
Fluid capacities

  • Crankcase with filter

    5.3 L
    1.4 qt

  • Transmission and hydraulic system

    47.3 L
    12.5 gal.
Final drive

  • Type

    Planetary

  • Differential lock

    Yes
Operator station

  • Rollover protective structure

    Type
    Foldable
    Yes

  • Platform - flat/straddle

    Flat
Cab
Dimensions

  • Wheelbase

    185.5 cm
    73 in.

  • Front axle clearance

    35.1 cm
    13.8 in.

  • Turning radius with brakes

    2.8 m
    9.19 ft

  • Turning radius without brakes

    3 m
    9.84 ft

  • Approximate shipping weight (open-station; cab)

    Open station: 1950 kg
    4290 lb
    Cab: Not applicable
Tires

  • Front

    R4 Industrial 31.5x13-16.5

  • Rear

    R4 Industrial 16.9-24
    R4 Industrial 19.5L-24

  • Front tread range

    1374.6 mm
    54.1 in.

  • Rear tread spacing

    1375 mm
    54.1 in.
    1495 mm
    58.9 in.
Miscellaneous
Back to Top
4R Series

4R Series

Available models: 4044R4052R4066R4075R

DetailsFeaturesSpecifications

Details:

4044R

Compact Utility Tractor

  • Naturally aspirated diesel engine
  • PowrReverser™ or eHydrostatic Transmission Options
  • Cab or Open Station configurations
  • Premium features: Hitch Assist, Aux Hitch Control, HST controls

Features:

  • Attractive styling provides improved visibility and serviceability
  • Powerful Yanmar® diesel engine delivers plenty of power under heavy loads
  • PowrReverser™ transmission allows for clutchless direction changes
  • Maximize productivity with an eHydro™ transmission
  • Operator station is comfortable and convenient
  • Optional premium ComfortGard™ cab provides superior comfort and performance
  • Built-in safety features for operator peace of mind
  • Hitch assist, auxiliary 3-point hitch control, and optional iMatch™ Quick-Hitch for easy implement hookup
  • Save fuel, reduce noise, and increase engine life with the economy power take-off (PTO)
  • Excellent serviceability reduces operational costs and improves productivity

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 31.7 kW
    42.5 hp
    43.1 PS at 2600 rpm

  • Power take-off (PTO) power

    PowrReverser™ transmission: 25 kW
    33.6 hp
    eHydro™ transmission: 24.1 kW
    32.3 hp
    Per SAE J1995

  • Steering hydraulics

    23.5 L/min
    6.2 gpm

  • Implement hydraulics

    42.3 L/min
    11.2 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb

  • Standard transmission; forward/reverse

    eHydro Transmission (eHST)

  • Cruise control

    Standard

  • Approximate shipping weight (open-station; cab)

    OOS - 1710 kg
    3770 lb
    Cab - 2120 kg
    4675 lb

  • Wheelbase

    185.5 cm
    73 in.
Engine

  • Family

    EYDXL2.19NDA
    FYDXL2.19NDA
    GYDXL2.19NDA

  • Manufacturer

    Yanmar

  • Engine model

    4TNV88C-MJT

  • Engine power (gross)

    SAE J1995 rated power: 31.7 kW
    42.5 hp
    43.1 PS at 2600 rpm

  • Power take-off (PTO) power

    PowrReverser transmission: 25 kW
    33.6 hp
    eHydro transmission: 24.1 kW
    32.3 hp

  • Rated engine speed

    2600 rpm

  • Type

    Diesel

  • Injection pump type

    High pressure common rail direct injection

  • Aspiration

    Natural

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    4 / 2.189 L
    4 / 133.5 cu in.

  • Number of cylinders

    Four

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    88x90 mm
    3.46x3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Liquid

  • Air cleaner

    Dual element with electronic restriction indicator

  • Engine torque at rated speed

    116 Nm
    85.6 lb-ft

  • Fuel tank capacity

    Rollover protective structure (ROPS) - 56.9 L
    15 U.S. gal.
    Cab - 52.2 L
    13.8 U.S. gal.
Electrical

  • Battery size

    770 CCA

  • Alternator (12-V)

    75 amp

  • Starter size

    2 kW
    2.68 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    eHydro transmission (eHST)

  • Optional transmission; forward/reverse

    12/12 PowrReverser transmission (PRT)

  • Left-hand reverser

    PRT only

  • Transmission gear ranges

    PRT - 12F/12R
    eHydro - Infinitely-variable, 3 range

  • Final drive

    Planetary

  • Brakes

    Multi-plate wet disc

  • Steering

    Hydrostatic power steering

  • Clutch, wet/dry

    Wet

  • Clutch disk diameter wet clutch

    129 mm
    5.08 in.

  • Axle capacity

    Front
    1600 kg
    3528 lb
    Rear
    2400 kg
    5292 lb

  • Creeper

    SpeedMatch standard

  • Cruise control

    Standard

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    23.5 L/min
    6.2 gpm
    Implement
    42.3 L/min
    11.2 gpm
    65.8 L/min
    17.4 gpm

  • Pump type

    Single gear

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to six rear remotes
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb
Power take-off (PTO)

  • Standard

    Independent
    540 rpm at 2600 rpm

  • Optional

    540E rpm

  • Control

    Position

  • Clutch

    Wet disc
Fluid capacities

  • Crankcase with filter

    5.3 L
    1.4 qt

  • Transmission and hydraulic system

    47.3 L
    12.5 gal.
Final drive

  • Type

    Planetary

  • Differential lock

    Yes
Operator station

  • Rollover protective structure

    Type
    Foldable
    Yes

  • Platform - flat/straddle

    Flat

  • Gear shift location - console/floor

    PRT - Left-hand side
Cab

  • Compliance

    OSHA, SAE, ASAE

  • Visibility

    360 degree (angle)

  • Air conditioning, temperature differential

    14.4 °C
    58 °F

  • Doors

    Two

  • Noise rating

    78 dBA

  • Seat equipment

    Air suspension with swivel
Dimensions

  • Wheelbase

    185.5 cm
    73 in.

  • Front axle clearance

    35.1 cm
    13.8 in.

  • Turning radius with brakes

    2.8 m
    9.17 ft

  • Turning radius without brakes

    3 m
    9.84 ft

  • Approximate shipping weight (open-station; cab)

    OOS - 1710 kg
    3770 lb
    Cab - 2120 kg
    4675 lb
Tires

  • Front

    Farm - 8-16
    Turf - 27x10.5-15 or 27x12LL-15
    Industrial - 10-16.5

  • Rear

    Farm - 13.6-28
    Turf - 44x18-20 or 22.5LL-16.1
    Industrial - 16.9Lx24

  • Front tread range

    148.1 cm
    58.3 in.

  • Rear tread spacing

    137.2 cm
    54 in.
Miscellaneous
Back to Top
DetailsFeaturesSpecifications

Details:

4052R

Compact Utility Tractor

  • Turbocharged diesel engine
  • PowrReverser™ or eHydrostatic Transmission Options
  • Cab or Open Station configurations
  • Premium features: Hitch Assist, Aux Hitch Control, HST controls

Features:

  • Attractive styling provides improved visibility and serviceability
  • Powerful Yanmar® diesel engine delivers plenty of power under heavy loads
  • PowrReverser™ transmission allows for clutchless direction changes
  • Maximize productivity with an eHydro™ transmission
  • Operator station is comfortable and convenient
  • Optional premium ComfortGard™ cab provides superior comfort and performance
  • Built-in safety features for operator peace of mind
  • Hitch assist, auxiliary 3-point hitch control, and optional iMatch™ Quick-Hitch for easy implement hookup
  • Save fuel, reduce noise, and increase engine life with the economy power take-off (PTO)
  • Excellent serviceability reduces operational costs and improves productivity

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 37.9 kW
    50.8 hp
    51.5 PS at 2600 rpm

  • Power take-off (PTO) power

    PowrReverser™ transmisison: 30.5 kW
    40.8 hp
    eHydro™ transmission: 29.2 kW
    39.1 hp

  • Steering hydraulics

    23.5 L/min
    6.2 gpm

  • Implement hydraulics

    42.3 L/min
    11.2 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb

  • Standard transmission; forward/reverse

    eHydro Transmission (eHST)

  • Cruise control

    Standard

  • Approximate shipping weight (open-station; cab)

    Open operator station (OOS) - 1710 kg
    3770 lb
    Cab - 2120 kg
    4675 lb

  • Wheelbase

    185.5 cm
    73 in.
Engine

  • Family

    EYDXL2.09TDA
    FYDXL2.09TDA
    GYDXL2.09TDA

  • Manufacturer

    Yanmar

  • Engine model

    4TNV86CT-MJT

  • Engine power (gross)

    SAE J1995 rated power: 37.9 kW
    50.8 hp
    51.5 PS at 2600 rpm

  • Power take-off (PTO) power

    PowrReverser transmisison: 30.5 kW
    40.8 hp
    eHydro transmission: 29.2 kW
    39.1 hp

  • Rated engine speed

    2600 rpm

  • Type

    Diesel

  • Injection pump type

    High pressure common rail direct injection

  • Aspiration

    Turbocharged

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    4 / 2.091 L
    4 / 127.6 cu in.

  • Number of cylinders

    Four

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    86 x 90 mm
    3.4 x 3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Liquid

  • Air cleaner

    Dual element with electronic restriction indicator

  • Engine torque at rated speed

    139 Nm
    102.5 lb-ft

  • Fuel tank capacity

    Rollover protective structure (ROPS) - 56.9 L
    15 U.S. gal.
    Cab - 52.2 L
    13.8 U.S. gal.
Electrical

  • Battery size

    770 CCA

  • Alternator (12-V)

    75 amp

  • Starter size

    2 kW
    2.68 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    eHydro transmission (eHST)

  • Optional transmission; forward/reverse

    12/12 PowrReverser transmission (PRT)

  • Left-hand reverser

    PRT only

  • Transmission gear ranges

    PRT - 12F/12R eHydro - Infinitely-variable 3 range

  • Final drive

    Planetary

  • Brakes

    Multi-plate wet disc

  • Steering

    Hydrostatic power steering

  • Clutch, wet/dry

    Wet

  • Clutch disk diameter wet clutch

    129 mm
    5.08 in.

  • Axle capacity

    Front
    1600 kg
    3528 lb
    Rear
    2400 kg
    5292 lb

  • Creeper

    SpeedMatch standard

  • Cruise control

    Standard

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    23.5 L/min
    6.2 gpm
    Implement
    42.3 L/min
    11.2
    65.8 L/min
    17.4 gpm

  • Pump type

    Single gear

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to six rear remotes
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb
Power take-off (PTO)

  • Standard

    Independent 540 rpm at 2600 rpm

  • Optional

    540E rpm

  • Control

    Independent

  • Clutch

    Wet disc
Fluid capacities

  • Crankcase with filter

    5.3 L
    1.4 qt

  • Transmission and hydraulic system

    47.3 L
    12.5 gal.
Final drive

  • Type

    Planetary

  • Differential lock

    Yes
Operator station

  • Rollover protective structure

    Type
    Foldable
    Yes

  • Platform - flat/straddle

    Flat

  • Gear shift location - console/floor

    PRT - Left-hand side
Cab

  • Compliance

    OSHA, SAE, ASAE

  • Visibility

    360 degree (angle)

  • Air conditioning, temperature differential

    14.4 °C
    58 °F

  • Doors

    Two

  • Noise rating

    78 dBA

  • Seat equipment

    Air suspension with swivel
Dimensions

  • Wheelbase

    185.5 cm
    73 in.

  • Front axle clearance

    35.1 cm
    13.8 in.

  • Turning radius with brakes

    2.8 m
    9.19 ft

  • Turning radius without brakes

    3 m
    9.84 ft

  • Approximate shipping weight (open-station; cab)

    Open operator station (OOS) - 1710 kg
    3770 lb
    Cab - 2120 kg
    4675 lb
Tires

  • Front

    Farm - 8-16
    Turf - 27x10.5-15 or 27x12LL-15
    Industrial - 10-16.5

  • Rear

    Farm - 13.6-28
    Turf - 44x18-20 or 22.5LL-16.1
    Industrial - 16.9Lx24

  • Front tread range

    148.1 cm
    58.3 in.

  • Rear tread spacing

    137.2 cm
    54 in.
Miscellaneous
Back to Top
DetailsFeaturesSpecifications

Details:

4066R

Compact Utility Tractor

  • Turbocharged diesel engine
  • PowrReverser™ or eHydrostatic Transmission Options
  • Cab or Open Station configurations
  • Premium features: Hitch Assist, Aux Hitch Control, HST controls

Features:

  • Attractive styling provides improved visibility and serviceability
  • Powerful Yanmar® diesel engine delivers plenty of power under heavy loads
  • PowrReverser™ transmission allows for clutchless direction changes
  • Maximize productivity with an eHydro™ transmission
  • Operator station is comfortable and convenient
  • Optional premium ComfortGard™ cab provides superior comfort and performance
  • Built-in safety features for operator peace of mind
  • Hitch assist, auxiliary 3-point hitch control, and optional iMatch™ Quick-Hitch for easy implement hookup
  • Save fuel, reduce noise, and increase engine life with the economy power take-off (PTO)
  • Excellent serviceability reduces operational costs and improves productivity

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 48.5 kW
    65 hp
    65.9 PS at 2600 rpm

  • Power take-off (PTO) power

    PowrReverser™ transmission: 40.4 kW
    54.2 hp
    eHydro™ transmission: 38.7 kW
    51.9 hp
    Per SAE J1995

  • Steering hydraulics

    23.5 L/min
    6.2 gpm

  • Implement hydraulics

    42.3 L/min
    11.2 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb

  • Standard transmission; forward/reverse

    eHydro Transmission (eHST)

  • Cruise control

    Standard

  • Approximate shipping weight (open-station; cab)

    Open operator station (OOS) - 1710 kg
    3770 lb
    Cab - 2120 kg
    4675 lb

  • Wheelbase

    185.5 cm
    73 in.
Engine

  • Family

    EYDXL2.09HDA
    FYDXL2.09HDA
    GYDXL2.09HDA

  • Manufacturer

    Yanmar

  • Engine model

    4TNV86CHT-MJT

  • Engine power (gross)

    SAE J1995 rated power: 48.5 kW
    65 hp
    65.9 PS at 2600 rpm

  • Power take-off (PTO) power

    PowrReverser transmission: 40.4 kW
    54.2 hp
    eHydro transmission: 38.7 kW
    51.9 hp

  • Rated engine speed

    2600 rpm

  • Type

    Diesel

  • Injection pump type

    High pressure common rail direct injection

  • Aspiration

    Turbocharged and charge air cooled

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    4 / 2.091 L
    4 / 127.6 cu in.

  • Number of cylinders

    Four

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    86 x 90 mm
    3.4 x 3.54 in.

  • Compression ratio

    19.1:1

  • Lubrication

    Pressurized

  • Cooling system

    Liquid

  • Air cleaner

    Dual element with electronic restriction indicator

  • Engine torque at rated speed

    178 Nm
    131.3 lb-ft

  • Fuel tank capacity

    Rollover protective structure (ROPS) - 56.9 L
    15 U.S. gal.
    Cab - 52.2 L
    13.8 U.S. gal.
Electrical

  • Battery size

    770 CCA

  • Alternator (12-V)

    75 amp

  • Starter size

    2 kW
    2.68 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    eHydro transmission (eHST)

  • Optional transmission; forward/reverse

    12/12 PowrReverser transmission (PRT)

  • Left-hand reverser

    PRT only

  • Transmission gear ranges

    PRT - 12F/12R eHydro - Infinitely-variable 3 range

  • Final drive

    Planetary

  • Brakes

    Multi-plate wet disc

  • Steering

    Hydrostatic power steering

  • Clutch, wet/dry

    Wet

  • Clutch disk diameter wet clutch

    129 mm
    5.08 in.

  • Axle capacity

    Front
    1600 kg
    3528 lb
    Rear
    2400 kg
    5292 lb

  • Creeper

    SpeedMatch standard

  • Cruise control

    Standard

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    23.5 L/min
    6.2 gpm
    Implement
    42.3 L/min
    11.2 gpm
    65.8 L/min
    17.4 gpm

  • Pump type

    Single gear

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to six rear remotes
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb
Power take-off (PTO)

  • Standard

    Independent 540 rpm at 2600 rpm

  • Optional

    540E rpm

  • Control

    Independent

  • Clutch

    Wet disc
Fluid capacities

  • Crankcase with filter

    5.3 L
    1.4 qt

  • Transmission and hydraulic system

    47.3 L
    12.5 gal.
Final drive

  • Type

    Planetary

  • Differential lock

    Yes
Operator station

  • Rollover protective structure

    Type
    Foldable
    Yes

  • Platform - flat/straddle

    Flat

  • Gear shift location - console/floor

    PRT - Left-hand side
Cab

  • Compliance

    OSHA, SAE, ASAE

  • Visibility

    360 degree (angle)

  • Air conditioning, temperature differential

    14.4 °C
    58 °F

  • Doors

    Two

  • Noise rating

    78 dBA

  • Seat equipment

    Air suspension with swivel
Dimensions

  • Wheelbase

    185.5 cm
    73 in.

  • Front axle clearance

    35.1 cm
    13.8 in.

  • Turning radius with brakes

    2.8 m
    9.19 ft

  • Turning radius without brakes

    3 m
    9.84 ft

  • Approximate shipping weight (open-station; cab)

    Open operator station (OOS) - 1710 kg
    3770 lb
    Cab - 2120 kg
    4675 lb
Tires

  • Front

    Farm - 8-16
    Turf - 27x10.5-15 or 27x12LL-15
    Industrial - 10-16.5

  • Rear

    Farm - 13.6-28
    Turf - 44x18-20 or 22.5LL-16.1
    Industrial - 16.9Lx24

  • Front tread range

    148.1 cm
    58.3 in.

  • Rear tread spacing

    137.2 cm
    54 in.
Miscellaneous
Back to Top
DetailsFeaturesSpecifications

Details:

4075R

Compact Utility Tractor

  • Cab only with 75 Engine HP
  • HD Front Axle for commercial grade work
  • Electro-hydraulic Hitch for precision depth control
  • LED Headlights and Work Lights standard, LED Beacon Light optional

Features:

  • Attractive styling provides improved visibility and serviceability
  • Powerful Yanmar® diesel engine delivers plenty of power under heavy loads
  • Maximize productivity with an eHydro™ transmission
  • Optional Snow or Deluxe cab provides superior comfort and performance
  • Built-in safety features for operator peace of mind
  • Hitch assist, auxiliary 3-point hitch control, and optional iMatch™ Quick-Hitch for easy implement hookup
  • Save fuel, reduce noise, and increase engine life with the economy power take-off (PTO)
  • Excellent serviceability reduces operational costs and improves productivity

Specifications:

Key Specs

  • Engine power (gross)

    SAE J1995 rated power: 55.6 kW
    74.6 hp
    75.6 PS at 2600 rpm

  • Power take-off (PTO) power

    eHydro™ transmission: 44.7 kW
    60 hp
    Per SAE J1995

  • Steering hydraulics

    23.5 L/min
    6.2 gpm

  • Implement hydraulics

    42.3 L/min
    11.2 gpm

  • Hitch type

    Category 1

  • Lift capacity, 24-in. behind link arms

    1229 kg
    2709 lb

  • Standard transmission; forward/reverse

    eHydro Transmission (eHST)

  • Cruise control

    Standard

  • Approximate shipping weight (open-station; cab)

    Cab - 2120 kg
    3770 lb
    4675 lb

  • Wheelbase

    1850 mm
    73 in.
Engine

  • Family

    EYDXL2.09HDA
    FYDXL2.09HDA
    GYDXL2.09HDA

  • Manufacturer

    Yanmar

  • Engine model

    4TNV86CHT-MJT

  • Engine power (gross)

    SAE J1995 rated power: 55.6 kW
    74.6 hp
    75.6 PS at 2600 rpm

  • Power take-off (PTO) power

    eHydro transmission: 38.7 kW
    51.9 hp

  • Rated engine speed

    2600 rpm

  • Type

    Diesel

  • Injection pump type

    Direct Injection

  • Aspiration

    Turbocharged and Intercooled

  • Emissions compliance

    Final Tier 4

  • Cylinders/displacement

    4 / 2.091 L
    4 / 127.6 cu in.

  • Number of cylinders

    Four

  • Cylinder liners

    Cast-in-block

  • Bore and stroke

    86 x 90 mm
    3.4 x 3.54 in.

  • Compression ratio

    17.3:1

  • Lubrication

    Pressurized

  • Cooling system

    Liquid

  • Air cleaner

    Dry Type with Electronic Restriction Indicator

  • Engine torque at rated speed

    205 Nm

  • Fuel tank capacity

    55.8 L
    14.7 U.S. gal.
Electrical

  • Battery size

    770 CCA

  • Alternator (12-V)

    75 amp

  • Starter size

    2 kW
    2.68 hp
Fuel system

  • Type

    High pressure common rail direct injection
Transmission

  • Standard transmission; forward/reverse

    eHydro transmission (eHST)

  • Optional transmission; forward/reverse

    No

  • Left-hand reverser

    No

  • Transmission gear ranges

    eHydro - Infinitely-variable 3 range

  • Final drive

    Planetary

  • Brakes

    Multi-plate wet disc

  • Steering

    Hydrostatic power steering

  • Axle capacity

    Front
    1600 kg
    3528 lb
    Rear
    2400 kg
    5292 lb

  • Creeper

    SpeedMatch standard

  • Cruise control

    Standard

  • Differential lock

    Yes
Hydraulics

  • Type

    Open center

  • Pump rated output

    Steering
    23.5 L/min
    6.2 gpm
    Implement
    42.3 L/min
    11.2 gpm
    65.8 L/min
    17.4 gpm

  • Pump type

    Single

  • Draft control sensing

    Position control

  • Remote control valves available

    Up to six rear remotes
3-point hitch

  • Type

    Category 1

  • Lift capacity, 24-in. behind link arms

    1135 kg
    2500 lb
Power take-off (PTO)

  • Standard

    Independent 540 rpm at 2600 rpm

  • Optional

    540E rpm

  • Control

    Independent

  • Clutch

    Wet disc
Fluid capacities

  • Crankcase with filter

    5.4 L

  • Transmission and hydraulic system

    47.3 L
    12.5 gal.
Final drive

  • Type

    Planetary

  • Differential lock

    Yes
Operator station

  • Rollover protective structure

    Type
    Fixed
    Yes

  • Gear shift location - console/floor

    No
Cab

  • Compliance

    OSHA, SAE, ASAE

  • Visibility

    360 degree (angle)

  • Air conditioning, temperature differential

    14.4 °C
    58 °F

  • Doors

    Two

  • Noise rating

    78 dBA

  • Seat equipment

    Air suspension with swivel
Dimensions

  • Wheelbase

    185.5 cm
    73 in.

  • Front axle clearance

    35.1 cm
    13.8 in.

  • Turning radius with brakes

    3.19 m

  • Turning radius without brakes

    3.2 m

  • Approximate shipping weight (open-station; cab)

    Cab - 2120 kg
    4675 lb
Tires

  • Front

    Farm - 8-16
    Turf - 27x10.5-15 or 27x12LL-15
    Industrial - 10-16.5
    Snow 250/75R16

  • Rear

    Farm - 13.6-28
    Turf - 44x18-20 or 22.5LL-16.1
    Industrial - 16.9Lx24
    Snow 360/80/R28

  • Front tread range

    148.1 cm
    58.3 in.

  • Rear tread spacing

    137.2 cm
    54 in.
Miscellaneous
Back to Top
Learn How To Get Any Job Done Around Your Property Visit The John Deere Tips Notebook


Visit Little’s To Explore Your Compact Tractor Options

Stop by one of our five locations for a firsthand look at your John Deere compact tractor options. Then, take one out for a test drive. Your Little’s sales guide is ready to help you find the right compact tractor for your needs and will also provide information on our financing and leasing options.

FIND A STORE NEAR ME

Fulfill Your Lawn Care Needs, Big Or Small

Request My Quote Now
Need Help? Talk with an expert
Grass
