M Series
Available models: W36MW48M
Details:

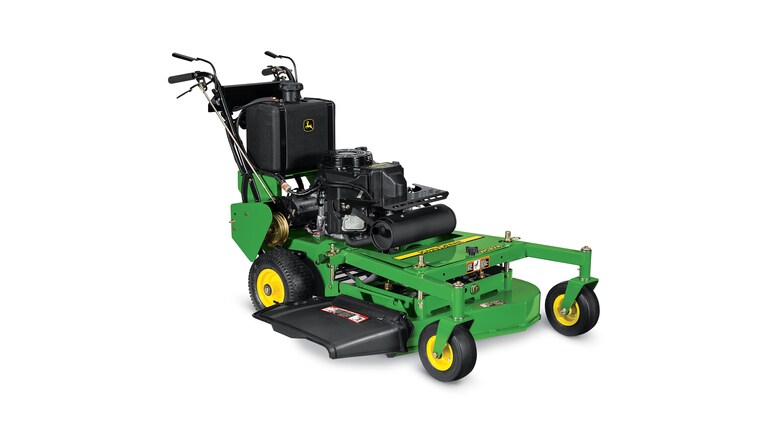

W36M
Commercial Walk-Behind Mower
- 36-inch (91-cm) floating mower deck
- Smooth-running, 14.5 hp (10.8 kW) V-twin engine
- Self-propelled hydrostatic drive system
- Easy-to-use controls for operator comfort and convenience
Features:
- V-twin engine delivers smooth operation and plenty of power
- A fabricated floating mower deck delivers high-quality cut
- Optional mulching attachment for extra convenience
- Convenient controls for operator comfort and productivity
- Serviceability features and 2-year, bumper-to-bumper warranty maximize uptime
- Compact design with a strong, welded frame for superior durability
- Self-propelled drive system gives infinite mowing speeds
- Thoughtful designs promote safe operation
- Optional grass catcher makes collecting grass and leaves easy
Specifications:
Key Specs
-
Engine manufacturer/model
FS481V
-
Engine power
At 3600 rpm 14.5 hp*
10.8 kW -
Fuel tank capacity
5.4 U.S. gal.
20.4 L -
Mower deck Size
36 in.
91.4 cm -
Blade tip speed
Approximately 18,000 fpm
5,486 m/min -
Transmission
Two Hydro-Gear™ ZT-2800™ unitized pump and wheel motor transmissions and ergonomic handles with spring-loaded neutral lock
-
Speed range
Forward, 0-6.5 mph
0-10.5 km/h
Reverse, 0-3 mph
0-4.8 km/h -
Drive wheels
18x6.5-8
-
Caster wheels
9x3.5-4 semi-pneumatic
-
Warranty
24 month, single source commercial
Engine
-
Manufacturer/model
FS481V
-
Power
At 3600 rpm 14.5 hp*
10.8 kW -
Displacement
36.8 cu in.
603 cc -
Cylinders
V-twin
-
Operating speed
3,600 rpm
-
Ignition/Starter
Electronic/recoil start
-
Valving
Overhead valves
-
Oil filter
Standard
-
Lubrication
Full pressure
-
Governor
Flyweight all speed governor
-
Hourmeter
Standard, digital
-
Cooling system
Air cooled
-
Air cleaner
Paper element with foam precleaner
-
Muffler
Low tone
Fuel System
-
Fuel type
Gasoline
-
Fuel tank capacity
5.4 U.S. gal.
20.4 L -
Fuel pump
Vacuum-operated diaphragm
-
Fuel delivery system
Carburetor
-
Fuel tank switch/Shut off valve
No
-
Fuel pickup
Top draw
Electrical System
-
Ignition
Electronic spark
-
Hourmeter
Standard, digital
-
Operator presence starting system
PTO off, park brake engaged, speed lever in neutral
Drivetrain
-
Transmission
Two Hydro-Gear ZT-2800 unitized pump and wheel motor transmissions and ergonomic handles with spring-loaded neutral lock
-
Shift mechanism
Ergonomic handles with spring-loaded neutral lock
Tires
-
Drive wheels
18x6.5-8
-
Caster wheels
9x3.5-4 semi-pneumatic
Travel Speed
-
Forward speeds
Infinite
-
Reverse speeds
Infinite
-
Speed range
Forward, 0-6.5 mph
0-10.5 km/h
Reverse, 0-3 mph
0-4.8 km/h
Brakes
-
Type
Dynamic braking with hand controls, hand lever to set parking brake
Dimensions
-
Height
44.8 in.
114 cm -
Length with deck
76.4 in.
194 cm -
Width
Deflector down - 50 in.
127 cm
Deflector up for storage - 40 in.
102 cm -
Weight
562 lb
255 kg
Mower Decks
-
Size
Material
10-gauge, 0.14-in. (3.42-mm) fabricated steel deck top with added 10-gauge, 0.14-in. (3.42-mm) spindle mounting plate, 7-gauge, 0.19-in. (4.8-mm) side skirts with reinforcement bar
Blades
Two high-lift
Length - 18 in.
45.7 cm
Thickness - 0.25 in.
0.64 cm
Blade drive
V-Belt
Blade tip speed
Approximately 18,000 fpm
5,486 m/min
Cutting height
1.5-4.5 in.
3.8-11.4 cm
36 in.
91.4 cm
Buyer's note
-
Warranty
24 month, single source commercial
Back to Top
Details:

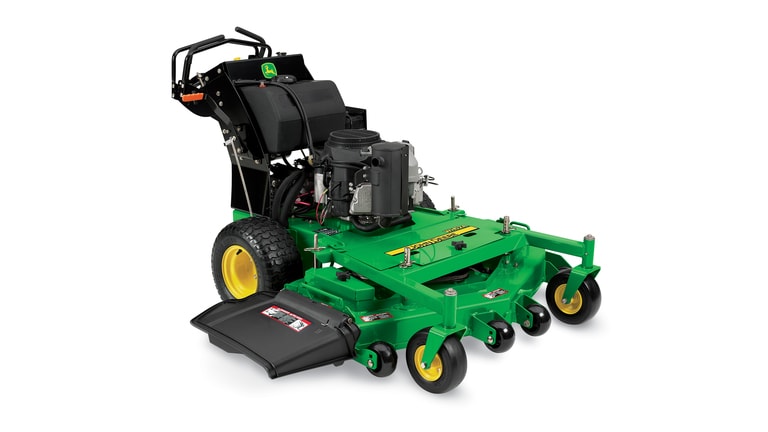

W48M
Commercial Walk-Behind Mower
- 48-inch (122-cm) floating mower deck
- Smooth-running, 14.5 hp (10.8 kW) V-twin engine
- Self-propelled hydrostatic drive system
- Easy-to-use controls for operator comfort and convenience
Features:
- V-twin engine delivers smooth operation and plenty of power
- A fabricated floating mower deck delivers high-quality cut
- Optional mulching attachment for extra convenience
- Convenient controls for operator comfort and productivity
- Serviceability features and 2-year, bumper-to-bumper warranty maximize uptime
- Compact design with a strong, welded frame for superior durability
- Self-propelled drive system gives infinite mowing speeds
- Thoughtful designs promote safe operation
- Optional grass catcher makes collecting grass and leaves easy
Specifications:
Key Specs
-
Engine manufacturer/model
FS481V
-
Engine power
At 3600 rpm 14.5 hp*
10.8 kW -
Fuel tank capacity
5.4 U.S. gal.
20.4 L -
Mower deck Size
48 in.
122 cm -
Blade tip speed
Approximately 18,000 fpm
5,486 m/min -
Transmission
Two Hydro-Gear™ ZT-2800™ unitized pump and wheel motor transmissions and ergonomic handles with spring-loaded neutral lock
-
Speed range
Forward, 0-6.5 mph
0-10.5 km/h
Reverse, 0-3 mph
0-4.8 km/h -
Drive wheels
18x8.5-8
-
Caster wheels
9x3.5-4 semi-pneumatic
-
Warranty
24 month, single source commercial
Engine
-
Manufacturer/model
FS481V
-
Power
At 3600 rpm 14.5 hp*
10.8 kW -
Displacement
36.8 cu in.
603 cc -
Cylinders
V-twin
-
Operating speed
3,600 rpm
-
Ignition/Starter
Electronic/recoil start
-
Valving
Overhead valves
-
Oil filter
Standard
-
Lubrication
Full pressure
-
Governor
Flyweight all speed governor
-
Hourmeter
Standard, digital
-
Cooling system
Air cooled
-
Air cleaner
Paper element with foam precleaner
-
Muffler
Low tone
Fuel System
-
Fuel type
Gasoline
-
Fuel tank capacity
5.4 U.S. gal.
20.4 L -
Fuel pump
Vacuum-operated diaphragm
-
Fuel delivery system
Carburetor
-
Fuel tank switch/Shut off valve
No
-
Fuel pickup
Top draw
Electrical System
-
Ignition
Electronic spark
-
Hourmeter
Standard, digital
-
Operator presence starting system
PTO off, park brake engaged, speed lever in neutral
Drivetrain
-
Transmission
Two Hydro-Gear ZT-2800 unitized pump and wheel motor transmissions and ergonomic handles with spring-loaded neutral lock
-
Shift mechanism
Ergonomic handles with spring-loaded neutral lock
Tires
-
Drive wheels
18x8.5-8
-
Caster wheels
9x3.5-4 semi-pneumatic
Travel Speed
-
Forward speeds
Infinite
-
Reverse speeds
Infinite
-
Speed range
Forward, 0-6.5 mph
0-10.5 km/h
Reverse, 0-3 mph
0-4.8 km/h
Brakes
-
Type
Dynamic braking with hand controls, hand lever to set parking brake
Dimensions
-
Height
44.8 in.
114 cm -
Length with deck
74 in.
188 cm -
Width
Deflector down - 62 in.
157 cm
Deflector up for storage - 50 in.
127 cm -
Weight
622 lb
282 kg
Mower Decks
-
Size
Material
10-gauge, 0.14-in. (3.42-mm) fabricated steel deck top with added 10-gauge, 0.14-in. (3.42-mm) spindle mounting plate, 7-gauge, 0.19-in. (4.8-mm) side skirts with reinforcement bar
Blades
Three high-lift
Length - 16.5 in.
41.9 cm
Thickness - 0.25 in.
0.64 cm
Blade drive
V-Belt
Blade tip speed
Approximately 18,000 fpm
5,486 m/min
Cutting height
1.5-4.5 in.
3.8-11.4 cm
48 in.
122 cm
Buyer's note
-
Warranty
24 month, single source commercial
Back to Top
R Series
Available models: W36RW48RW52RW61R
Details:

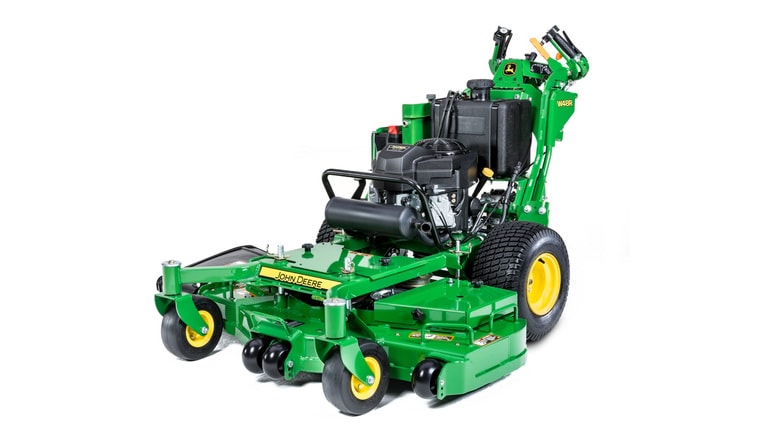

W36R
Commercial Walk-Behind Mower
- 36-inch (91-cm) floating mower deck
- Powerful 14.5 hp (10.8 kW) V-twin engine
- Self-propelled hydrostatic drive system
- Easy-to-use controls for operator comfort and convenience
Features:
- V-twin engine delivers smooth operation and plenty of power
- A fabricated floating mower deck delivers high-quality cut
- Optional mulching attachment for extra convenience
- Convenient controls for operator comfort and productivity
- Serviceability features and 2-year, bumper-to-bumper warranty maximize uptime
- Compact design with a strong, welded frame for superior durability
- Self-propelled drive system gives infinite mowing speeds
- Thoughtful designs promote safe operation
- Optional grass catcher makes collecting grass and leaves easy
Specifications:
Key Specs
-
Engine manufacturer/model
FS481V - California Air Resources Board (CARB) compliant
-
Engine power
At 3600 rpm 14.5 hp*
10.8 kW -
Fuel tank capacity
5.4 U.S. gal.
20.4 L -
Mower deck Size
36 in.
91.4 cm -
Blade tip speed
Approximately 18,000 fpm
5,486 m/min -
Transmission
Two Hydro-Gear™, 0.73-cu in. (10-cc) hydraulic pumps and Danfoss 12 cu-in. (197-cc) wheel motors and ergonomic handles with spring loaded neutral lock
-
Speed range
Forward, 0-7.5 mph
0-12.1 km/h
Reverse, 0-3 mph
0-4.8 mph -
Drive wheels
18x6.5-8
-
Caster wheels
9x3.5-4 semi-pneumatic
-
Warranty
24 month, single source commercial
Engine
-
Manufacturer/model
FS481V - California Air Resources Board (CARB)
-
Power
At 3600 rpm 14.5 hp*
10.8 kW -
Displacement
36.8 cu in.
603 cc -
Cylinders
V-twin
-
Operating speed
3,600 rpm
-
Ignition/Starter
Electronic/electric start
-
Valving
Overhead valves
-
Oil filter
Standard
-
Lubrication
Full pressure
-
Governor
Flyweight all speed governor
-
Hourmeter
Standard, digital
-
Cooling system
Air cooled
-
Air cleaner
Paper element with foam precleaner
-
Muffler
Low tone
Fuel System
-
Fuel type
Gasoline
-
Fuel tank capacity
5.4 U.S. gal.
20.4 L -
Fuel pump
Vacuum-operated diaphragm
-
Fuel delivery system
Carburetor
-
Fuel tank switch/Shut off valve
No
-
Fuel pickup
Top draw
Electrical System
-
Ignition
Electronic spark
-
Hourmeter
Standard, digital
-
Operator presence starting system
PTO off, park brake engaged, speed lever in neutral
Drivetrain
-
Transmission
Two Hydro-Gear, 0.73-cu in. (10-cc) hydraulic pumps and Danfoss 12 cu-in. (197-cc) wheel motors and ergonomic handles with spring loaded neutral lock
-
Wheel motors
Danfoss 12 cu in.
197 cc -
Shift mechanism
Ergonomic handles with spring-loaded neutral lock
Tires
-
Drive wheels
18x6.5-8
-
Caster wheels
9x3.5-4 semi-pneumatic
Travel Speed
-
Forward speeds
Infinite
-
Reverse speeds
Infinite
-
Speed range
Forward, 0-7.5 mph
0-12.1 km/h
Reverse, 0-3 mph
0-4.8 km/h
Brakes
-
Type
Dynamic braking with hand controls, hand lever to set parking brake
Dimensions
-
Height
44.8 in.
114 cm -
Length with deck
76.4 in.
194 cm -
Width
Deflector down - 50 in.
127 cm
Deflector up for storage - 40 in.
102 cm -
Weight
616 lb
279 kg
Mower Decks
-
Size
Material
10-gauge, 0.14-in. (3.42-mm) fabricated steel deck top with added 10-gauge, 0.14-in. (3.42-mm) spindle mounting plate, 7-gauge, 0.19-in. (4.8-mm) side skirts with reinforcement bar
Blades
Two high-lift
Length - 18 in.
45.7 cm
Thickness - 0.25 in.
0.64 cm
Blade drive
V-belt
Blade tip speed
Approximately 18,000 fpm
5,486 m/min
Cutting height
1.5-4.5 in.
3.8-11.4 cm
36 in.
91.4 cm
Buyer's note
-
Warranty
24 month, single source commercial
Back to Top
Details:

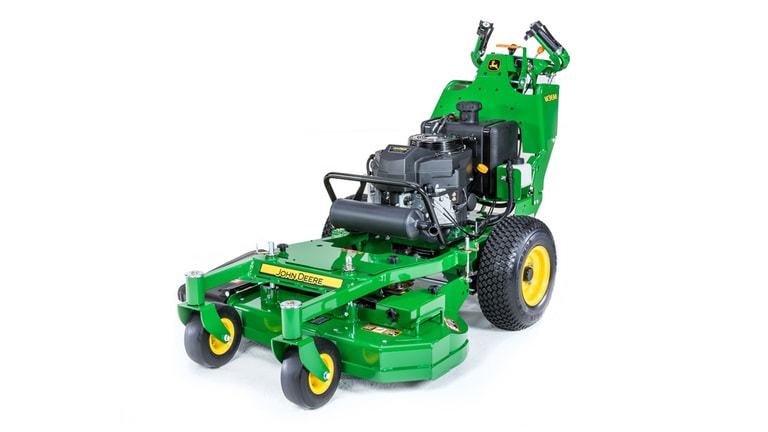

W48R
Commercial Walk-Behind Mower
- 48-inch (122-cm) floating mower deck
- Powerful 18.5 hp (13.8 kW) V-twin engine
- Self-propelled hydrostatic drive system
- Easy-to-use controls for operator comfort and convenience
Features:
- V-twin engine delivers smooth operation and plenty of power
- A fabricated floating mower deck delivers high-quality cut
- Optional mulching attachment for extra convenience
- Convenient controls for operator comfort and productivity
- Serviceability features and 2-year, bumper-to-bumper warranty maximize uptime
- Compact design with a strong, welded frame for superior durability
- Self-propelled drive system gives infinite mowing speeds
- Thoughtful designs promote safe operation
- Optional grass catcher makes collecting grass and leaves easy
Specifications:
Key Specs
-
Engine manufacturer/model
FS600V - California Air Resources Board (CARB) compliant
-
Engine power
At 3600 rpm 18.5 hp*
13.8 kW -
Fuel tank capacity
5.4 U.S. gal.
20.4 L -
Mower deck Size
48 in.
122 cm -
Blade tip speed
Approximately 18,000 fpm
5,486 m/min -
Transmission
Two Hydro-Gear™, 0.73-cu in. (10-cc) hydraulic pumps and Danfoss 12 cu-in. (197-cc) wheel motors and ergonomic handles with spring loaded neutral lock
-
Speed range
Forward, 0-7.5 mph
0-12.1 km/h
Reverse, 0-3 mph
0-4.8 km/h -
Drive wheels
18x8.5-8
-
Caster wheels
9x3.5-4 semi-pneumatic
-
Warranty
24 month, single source commercial
Engine
-
Manufacturer/model
FS600V - California Air Resources Board (CARB) compliant
-
Power
At 3600 rpm 18.5 hp*
13.8 kW -
Displacement
36.8 cu in.
603 cc -
Cylinders
V-twin
-
Operating speed
3,600 rpm
-
Ignition/Starter
Electronic/electric start
-
Valving
Overhead valves
-
Oil filter
Standard
-
Lubrication
Full pressure
-
Governor
Flyweight all speed governor
-
Hourmeter
Standard, digital
-
Cooling system
Air cooled
-
Air cleaner
Paper element with foam precleaner
-
Muffler
Low tone
Fuel System
-
Fuel type
Gasoline
-
Fuel tank capacity
5.4 U.S. gal.
20.4 L -
Fuel pump
Vacuum-operated diaphragm
-
Fuel delivery system
Carburetor
-
Fuel tank switch/Shut off valve
No
-
Fuel pickup
Top draw
Electrical System
-
Ignition
Electronic spark
-
Hourmeter
Standard, digital
-
Operator presence starting system
PTO off, park brake engaged, speed lever in neutral
Drivetrain
-
Transmission
Two Hydro-Gear, 0.73-cu in. (10-cc) hydraulic pumps and Danfoss 12 cu-in. (197-cc) wheel motors and ergonomic handles with spring loaded neutral lock
-
Wheel motors
Danfoss 12 cu in.
197 cc -
Shift mechanism
Ergonomic handles with spring-loaded neutral lock
Tires
-
Drive wheels
18x8.5-8
-
Caster wheels
9x3.5-4 semi-pneumatic
Travel Speed
-
Forward speeds
Infinite
-
Reverse speeds
Infinite
-
Speed range
Forward, 0-7.5 mph
0-12.1 km/h
Reverse, 0-3 mph
0-4.8 km/h
Brakes
-
Type
Dynamic braking with hand controls, hand lever to set parking brake
Dimensions
-
Height
44.8 in.
114 cm -
Length with deck
74 in.
188 cm -
Width
Deflector down - 62 in.
157 cm
Deflector up for storage - 50 in.
127 cm -
Weight
669 lb
303 kg
Mower Decks
-
Size
Material
10-gauge, 0.14-in. (3.42-mm) fabricated steel deck top with added 10-gauge, 0.14-in. (3.42-mm) spindle mounting plate, 7-gauge, 0.19-in. (4.8-mm) side skirts with reinforcement bar
Blades
Three high-lift
Length - 16.5 in.
41.9 cm
Thickness - 0.25 in.
0.64 cm
Blade drive
V-Belt
Blade tip speed
Approximately 18,000 fpm
5,486 m/min
Cutting height
1.5-4.5 in.
3.8-11.4 cm
48 in.
122 cm
Buyer's note
-
Warranty
24 month, single source commercial
Back to Top
Details:
W52R
Commercial Walk-Behind Mower
- 52-inch (132-cm) floating mower deck
- Powerful 18.5 hp (13.8 kW) V-twin engine
- Self-propelled hydrostatic drive system
- Easy-to-use controls for operator comfort and convenience
Features:
- V-twin engine delivers smooth operation and plenty of power
- A fabricated floating mower deck delivers high-quality cut
- Optional mulching attachment for extra convenience
- Convenient controls for operator comfort and productivity
- Serviceability features and 2-year, bumper-to-bumper warranty maximize uptime
- Compact design with a strong, welded frame for superior durability
- Self-propelled drive system gives infinite mowing speeds
- Thoughtful designs promote safe operation
- Optional grass catcher makes collecting grass and leaves easy
Specifications:
Key Specs
-
Engine manufacturer/model
FS600V - California Air Resources Board (CARB) compliant
-
Engine power
At 3600 rpm 18.5 hp*
13.8 kW -
Fuel tank capacity
5.4 U.S. gal.
21.9 L -
Mower deck Size
52 in.
132 cm -
Blade tip speed
Approximately 18,000 fpm
5,486 m/min -
Transmission
Two Hydro-Gear™, 0.73-cu in. (10-cc) hydraulic pumps and Danfoss 12 cu-in. (197-cc) wheel motors and ergonomic handles with spring loaded neutral lock
-
Speed range
Forward, 0-7.5 mph
0-12.1 km/h
Reverse, 0-3 mph
0-4.8 km/h -
Drive wheels
18x8.5-8
-
Caster wheels
9x3.5-4 semi-pneumatic
-
Warranty
24 month, single source commercial
Engine
-
Manufacturer/model
FS600V - California Air Resources Board (CARB) compliant
-
Power
At 3600 rpm 18.5 hp*
13.8 kW -
Displacement
36.8 cu in.
603 cc -
Cylinders
V-twin
-
Operating speed
3,600 rpm
-
Ignition/Starter
Electronic/electric start
-
Valving
Overhead valves
-
Oil filter
Standard
-
Lubrication
Full pressure
-
Governor
Flyweight all speed governor
-
Hourmeter
Standard, digital
-
Cooling system
Air cooled
-
Air cleaner
Paper element with foam precleaner
-
Muffler
Low tone
Fuel System
-
Fuel type
Gasoline
-
Fuel tank capacity
5.4 U.S. gal.
20.4 L -
Fuel pump
Vacuum-operated diaphragm
-
Fuel delivery system
Carburetor
-
Fuel tank switch/Shut off valve
No
-
Fuel pickup
Top draw
Electrical System
-
Ignition
Electronic spark
-
Hourmeter
Standard, digital
-
Operator presence starting system
PTO off, park brake engaged, speed lever in neutral
Drivetrain
-
Transmission
Two Hydro-Gear, 0.73-cu in. (10-cc) hydraulic pumps and Danfoss 12 cu-in. (197-cc) wheel motors and ergonomic handles with spring loaded neutral lock
-
Wheel motors
Danfoss 12 cu in.
197 cc -
Shift mechanism
Ergonomic handles with spring-loaded neutral lock
Tires
-
Drive wheels
18x8.5-8
-
Caster wheels
9x3.5-4 semi-pneumatic
Travel Speed
-
Forward speeds
Infinite
-
Reverse speeds
Infinite
-
Speed range
Forward, 0-7.5 mph
0-12.1 km/h
Reverse, 0-3 mph
0-4.8 km/h
Brakes
-
Type
Dynamic braking with hand controls, hand lever to set parking brake
Dimensions
-
Height
44.8 in.
114 cm -
Length with deck
74.5 in.
189 cm -
Width
Deflector down - 66 in.
168 cm
Deflector up for storage - 56 in.
142 cm -
Weight
679 lb
308 kg
Mower Decks
-
Size
Material
10-gauge, 0.14-in. (3.42-mm) fabricated steel deck top with added 10-gauge, 0.14-in. (3.42-mm) spindle mounting plate, 7-gauge, 0.19-in. (4.8-mm) side skirts with reinforcement bar
Blades
Three high-lift
Length - 18 in.
45.7 cm
Thickness - 0.25 in.
0.64 cm
Blade drive
V-Belt
Blade tip speed
Approximately 18,000 fpm
5,486 m/min
Cutting height
1.5-4.5 in.
3.8-11.4 cm
52 in.
132 cm
Buyer's note
-
Warranty
24 month, single source commercial
Back to Top
Details:
W61R
Commercial Walk-Behind Mower
- 61-inch (155-cm) floating mower deck
- Powerful 25 hp (18.6 kW) V-twin engine
- Self-propelled hydrostatic drive system
- Easy-to-use controls for operator comfort and convenience
Features:
- V-twin engine delivers smooth operation and plenty of power
- A fabricated floating mower deck delivers high-quality cut
- Optional mulching attachment for extra convenience
- Convenient controls for operator comfort and productivity
- Serviceability features and 2-year, bumper-to-bumper warranty maximize uptime
- Compact design with a strong, welded frame for superior durability
- Self-propelled drive system gives infinite mowing speeds
- Thoughtful designs promote safe operation
Specifications:
Key Specs
-
Engine manufacturer/model
ECV740-EFI - California Air Resources Board (CARB) compliant
-
Engine power
At 3600 rpm 25 hp*
18.6 kW -
Fuel tank capacity
5.4 U.S. gal.
20.4 L -
Mower deck Size
61 in.
155 cm -
Blade tip speed
Approximately 18,000 fpm
5,486 m/min -
Transmission
Two Hydro-Gear™, 0.73-cu in. (10-cc) hydraulic pumps and Danfoss 12 cu-in. (197-cc) wheel motors and ergonomic handles with spring loaded neutral lock
-
Speed range
Forward, 0-7.5 mph
0-12.1 km/h
Reverse, 0-3 mph
0-4.8 km/h -
Drive wheels
18x8.5-8
-
Caster wheels
9x3.5-4 semi-pneumatic
-
Warranty
24 month, single source commercial
Engine
-
Manufacturer/model
ECV740-EFI - California Air Resources Board (CARB) compliant
-
Power
At 3600 rpm 25 hp*
18.6 kW -
Displacement
45.6 cu in.
747 cc -
Cylinders
V-twin
-
Operating speed
3,600 rpm
-
Ignition/Starter
Electronic/electric start
-
Valving
Overhead valves
-
Oil filter
Standard
-
Lubrication
Full pressure
-
Governor
Flyweight all speed governor
-
Hourmeter
Standard, digital
-
Cooling system
Air cooled
-
Air cleaner
Dual HD canister
-
Muffler
Low tone
Fuel System
-
Fuel type
Gasoline
-
Fuel tank capacity
5.4 U.S. gal.
20.4 L -
Fuel pump
Vacuum-operated diaphragm
-
Fuel delivery system
Closed-loop electronic fuel injection (EFI)
-
Fuel tank switch/Shut off valve
No
-
Fuel pickup
Top draw
Electrical System
-
Ignition
Electronic spark
-
Hourmeter
Standard, digital
-
Operator presence starting system
PTO off, park brake engaged, speed lever in neutral
Drivetrain
-
Transmission
Two Hydro-Gear, 0.73-cu in. (10-cc) hydraulic pumps and Danfoss 12 cu-in. (197-cc) wheel motors and ergonomic handles with spring loaded neutral lock
-
Wheel motors
Danfoss 12 cu in.
197 cc -
Shift mechanism
Ergonomic handles with spring-loaded neutral lock
Tires
-
Drive wheels
18x8.5-8
-
Caster wheels
9x3.5-4 semi-pneumatic
Travel Speed
-
Forward speeds
Infinite
-
Reverse speeds
Infinite
-
Speed range
Forward, 0-7.5 mph
0-12.1 km/h
Reverse, 0-3 mph
0-4.8 km/h
Brakes
-
Type
Dynamic braking with hand controls, hand lever to set parking brake
Dimensions
-
Height
44.8 in.
114 cm -
Length with deck
83 in.
211 cm -
Width
Deflector down - 75 in.
191 cm
Deflector up for storage - 65 in.
165 cm -
Weight
745 lb
338 kg
Mower Decks
-
Size
Material
10-gauge, 0.14-in. (3.42-mm) fabricated steel deck top with added 10-gauge, 0.14-in. (3.42-mm) spindle mounting plate, 7-gauge, 0.19-in. (4.8-mm) side skirts with reinforcement bar
Blades
Three high-lift
Length - 21 in.
53.3 cm
Thickness - 0.25 in.
0.64 cm
Blade drive
V-Belt
Blade tip speed
Approximately 18,000 fpm
5,486 m/min
Cutting height
1.5-4.5 in.
3.8-11.4 cm
61 in.
155 cm
Buyer's note
-
Warranty
24 month, single source commercial
Back to Top
