E Series
M Series
R Series
E Series
Available models: Z915E
Details:

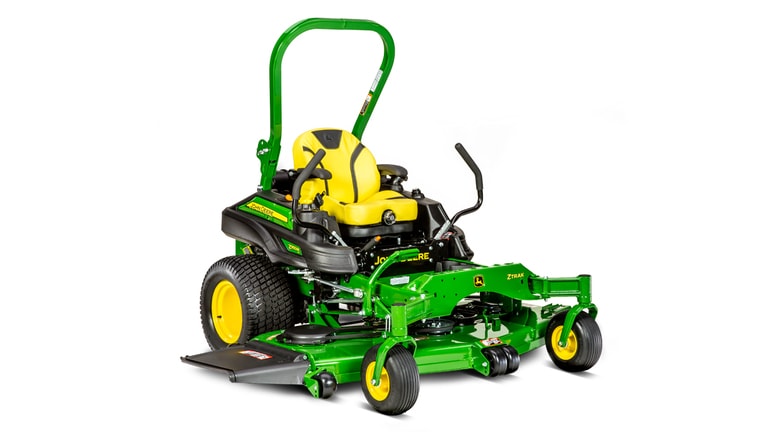

Z915E
ZTrak™ Zero-Turn Mower
- Limited Model Availability Please Call
- 7-Iron™ II Mowing Deck
- Gasoline Engine
- Hydrostatic Drive Train
- Commercial-grade Operator Seat
Features:
- Powerful 25.0-hp (18.6-kW) commercial-grade engine delivers class-leading performance and efficiency
- Extra durability and mowing performance from 7-Iron™ II Side-Discharge decks pressed from a single piece of steel
- Two seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort
- Three-year, bumper-to-bumper warranty
- Heavy-duty frame provides strength and durability
- Durable hydrostatic drive train that delivers better cooling and provides easy access

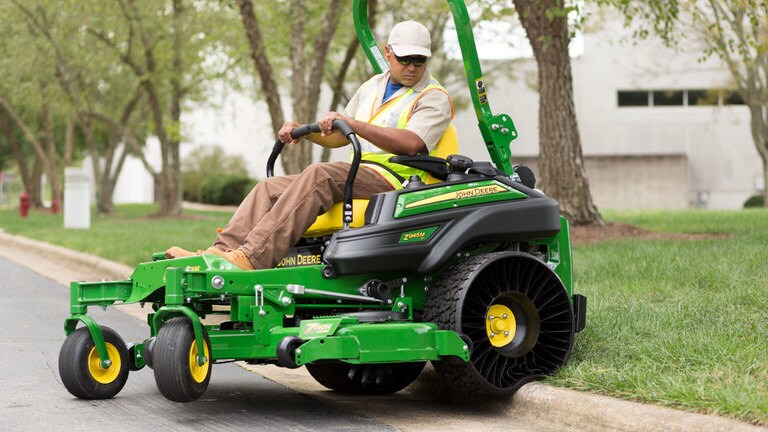

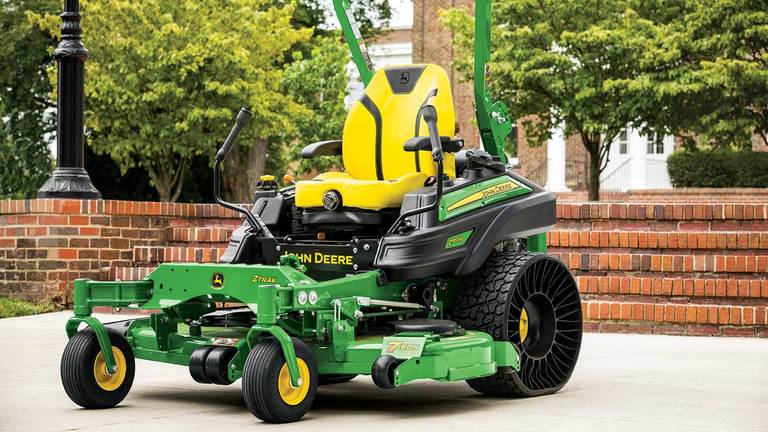

- Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
- Mower is easy to service with many accessible components
- Spindle assembly provides greater performance and reliability
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
Specifications:
Key Specs
-
Engine Manufacturer/model
CV742
-
Engine power
Gross at 3,600 rpm: 25 hp
18.6 kW -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Mower deck size
48, 54, 60 in.
122, 137, 152 cm -
Blade tip speed
Approximately 18,000 fpm
-
Transmission
Hydrostatic
-
Speed range
0-10 mph
0-16.1 km/h -
Drive wheels
24x9.5-12 (48 in.), 24x12-12 (54 in., 60 in.)
-
Caster wheels
13x5-6
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Engine
-
Manufacturer/Model
CV742
-
Power
At 3,600 rpm, 25 hp
18.6 kW -
Displacement
45.6 cu in.
747 cc -
Cylinders
Two
-
Crankcase capacity
With filter, 2 U.S. qt
1.9 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Air
-
Air cleaner
Pre-cleaner
Yes
Heavy-duty canister type with safety element
Fuel system
-
Fuel type
Gasoline
-
Fuel consumption
Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr
4.2-7.2 L/hr -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Fuel tank switch/shut-off valve
Yes
Electrical system
-
Charge system
15 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Standard, digital
-
Operator presence starting system
Brake-N-Go (hand)
Drivetrain
-
Transmission
Hydrostatic
-
Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor
-
Travel speed
Speed range
0-10 mph
0-16.1 km/h
Forward
0-10 mph
0-16.1 km/h
Reverse
0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin levers
-
Hydraulic capacity
5.9 U.S. qt
5.6 L -
Filter
Internal, replaceable
Buyer's note
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Tires
-
Drive wheels
24x9.5-12 (48 in.), 24x12-12 (54 in., 60 in.)
-
Load rating
4 PR
Brakes
-
Dynamic braking
Twin levers
-
Park brake
Internal wet disk integrated in the transmission
-
Park brake actuation
Hand brake
PTO
-
Type
Electro-magnetic, 200 lb-ft
271 Nm -
Drive
V-belt
Mower decks
-
Size
48, 54, 60 in.
122, 137, 152 cm -
Deck construction
One-piece stamped steel with reinforcements
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm -
Cutting width
48, 54, 60 in.
122, 137, 152 cm
Blades
-
Length
Varies by deck size
-
Thickness
0.25 in.
0.64 cm -
Blade tip speed
Approximately 18,000 fpm
-
Number
Three
Wheels
-
Caster wheel type
Pneumatic Front
-
Caster wheels
13x5-6
-
Front anti-scalp rollers
RH, center, LH
-
Rear anti-scalp rollers
Optional
Dimensions
-
Length
84 in.
213 cm -
Width
With chute down, 62, 68, 74 in.
157, 173, 188 cm -
Height
With ROPS up, 73 in.
185 cm
With ROPS down, 47 in.
119 cm -
Weight
1,100 to 1,178 lb
499 to 534 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
20 degrees (10 degrees with material collection system installed)
Back to Top
M Series
Available models: Z920MZ930MZ950MZ955M EFIZ960MZ965M EFIZ975M EFI
Details:

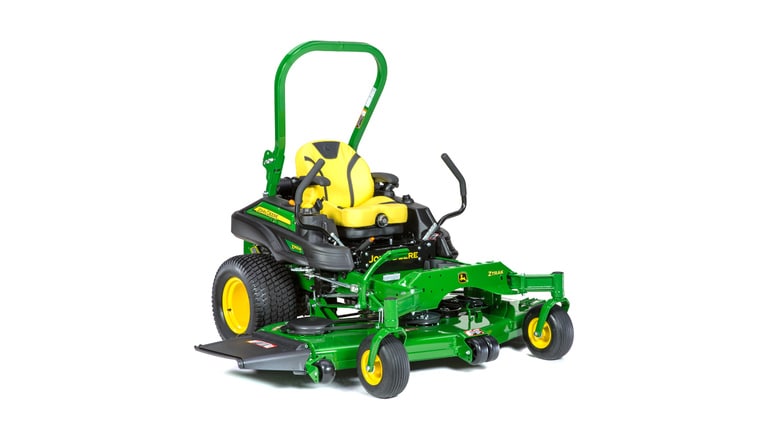

Z920M
ZTrak™ Zero-Turn Mower
- 7-Iron™ PRO Mowing Deck
- Mulch On Demand™ Available
- Gasoline Engine
- California CARB Approved
Features:
- Powerful 23.5-hp (17.5-kW) commercial-grade engine delivers class-leading performance and efficiency
- Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
- Available Mulch On Demand™ deck
- Three seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort
- Three-year, bumper-to-bumper warranty
- Heavy-duty frame provides strength and durability
- Durable hydrostatic drive train that delivers better cooling and provides easy access

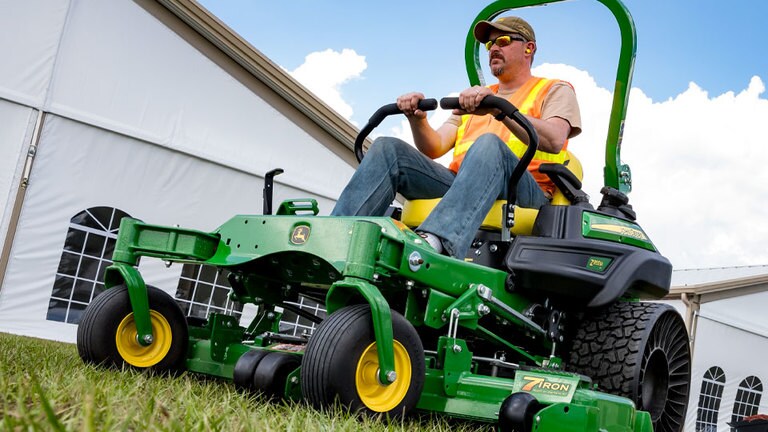

- Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
- Mower is easy to service with many accessible components
- Extra reliability and long life with cast-iron blade spindle housings
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Field-installed propane conversion kits for commercial walk-behind mowers, QuikTrak™ mowers, and commercial ZTrak™ mowers
Specifications:
Key Specs
-
Engine Manufacturer/model
FX730V
-
Engine Power
Gross at 3,600 rpm: 23.5 hp
17.5 kW -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Mower deck Size
48, 54, 60 in.
122, 137, 152 cm -
Blade tip speed
Approximately 18,000 fpm
5,486 m/min -
Transmission
Hydrostatic
-
Speed range
0-10 mph
0-16.1 km/h -
Drive wheels
24x9.5-12 (48 in.), 24x12-12 (54 in., 60 in.)
-
Caster wheels
13x6.5-6
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Engine
-
Manufacturer/Model
FX730V
-
Power
Gross at 3,600 rpm: 23.5 hp
17.5 kW -
Displacement
44.3 cu in.
726 cc -
Cylinders
Two
-
Crankcase capacity
With filter, 2 U.S. qt
1.9 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Air
-
Air cleaner
Pre-cleaner
Yes
Heavy-duty canister type with safety element
Fuel system
-
Fuel type
Gasoline
-
Fuel consumption
Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr
4.2-7.2 L/hr -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Fuel tank switch/shut-off valve
Yes
Electrical system
-
Charge system
20 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Standard, digital
-
Operator presence starting system
Brake-N-Go (hand)
Drivetrain
-
Transmission
Hydrostatic
-
Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor
-
Travel speed
Speed range
0-10 mph
0-16.1 km/h
Forward
0-10 mph
0-16.1 km/h
Reverse
0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin levers
-
Hydraulic capacity
5.9 U.S. qt
5.6 L -
Filter
Internal, replaceable
Buyer's note
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Tires
-
Drive wheels
24x9.5-12 (48 in.), 24x12-12 (54 in., 60 in.)
-
Load rating
4 PR
Brakes
-
Dynamic braking
Twin levers
-
Park brake
Internal wet disk integrated in the transmission
-
Park brake actuation
Hand brake
PTO
-
Type
Electro-magnetic, 200 lb-ft
271 Nm -
Drive
V-belt
Mower decks
-
Size
48, 54, 60 in.
122, 137, 152 cm -
Deck construction
7-Iron PRO, one-piece stamped steel with reinforcements
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side, Mulch On Demand™ system
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm -
Cutting width
48, 54, 60 in.
122, 137, 152 cm
Blades
-
Length
Varies by deck size
-
Thickness
0.25 in.
0.64 cm -
Blade tip speed
Approximately 18,000 fpm
5,486 m/min -
Number
Three
Wheels
-
Caster wheel type
Flat free
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
RH, center, LH
-
Rear anti-scalp rollers
Optional
Dimensions
-
Length
84 in.
213 cm -
Width
With chute down, 62, 68, 74 in.
157, 173, 188 cm -
Height
With ROPS up, 73 in.
185 cm
With ROPS down, 47 in.
119 cm -
Weight
1,220 to 1,283 lb
553 to 582 kg
Back to Top
Details:

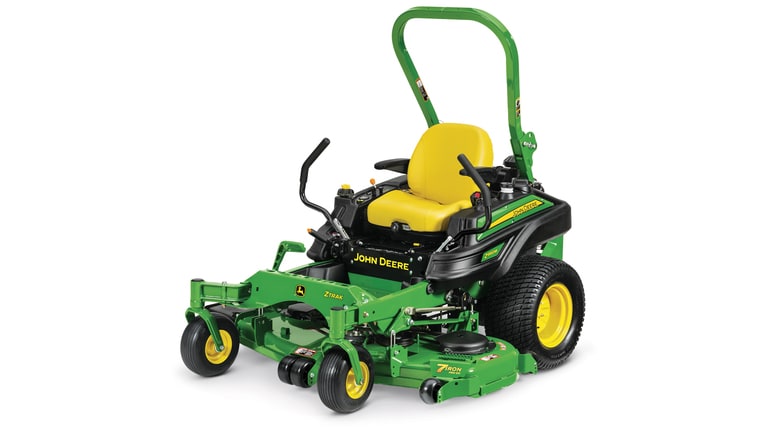

Z930M
ZTrak™ Zero-Turn Mower
- 7-Iron™ PRO deck
- Mulch On Demand™ Available
- Gasoline Engine
- Propane Option Available
- Rear Discharge Deck
Features:
- Powerful 25.5-hp (19.0-kW) commercial-grade engine delivers class-leading performance and efficiency
- Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
- Available Mulch On Demand™ deck
- Enhanced productivity, safety, and trim ability with a Fastback™ PRO rear-discharge mower deck
- Three seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort
- Three-year, bumper-to-bumper warranty
- Heavy-duty frame provides strength and durability
- Durable hydrostatic drive train that delivers better cooling and provides easy access
- Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
- Mower is easy to service with many accessible components
- Extra reliability and long life with cast-iron blade spindle housings
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Field-installed propane conversion kits for commercial walk-behind mowers, QuikTrak™ mowers, and commercial ZTrak™ mowers
Specifications:
Key Specs
-
Engine Manufacturer/model
FX801V
-
Engine power
Gross at 3,600 rpm
25.5 hp
19 kW -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Mower deck size
54, 60 in.
137, 152 cm -
Blade tip speed
Approximately 18,000 fpm
60 in. rear discharge: approximately 15,000 fpm -
Transmission
Hydrostatic
-
Speed range
0-10 mph
0-16.1 km/h -
Drive wheels
24x12-12
-
Caster wheels
13x6.5-6
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Engine
-
Manufacturer/Model
FX801V
-
Power
Gross at 3,600 rpm
25.5 hp
19 kW -
Displacement
52 cu in.
852 cc -
Cylinders
Two
-
Crankcase capacity
With filter, 2.4 U.S. qt
2.3 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Air
-
Air cleaner
Pre-cleaner
Yes
Heavy-duty canister type with safety element
Fuel system
-
Fuel type
Gasoline
-
Fuel consumption
Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr
4.2-7.2 L/hr -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Fuel tank switch/shut-off valve
Yes
Electrical system
-
Charge system
20 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Standard, digital
-
Operator presence starting system
Brake-N-Go (hand)
Drivetrain
-
Transmission
Hydrostatic
-
Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor
-
Travel speed
Speed range
0-10 mph
0-16.1 km/h
Forward
0-10 mph
0-16.1 km/h
Reverse
0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin levers
-
Hydraulic capacity
5.9 U.S. qt
5.6 L -
Filter
Internal, replaceable
Buyer's note
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Tires
-
Drive wheels
24x12-12
-
Load rating
4 PR
Brakes
-
Dynamic braking
Twin levers
-
Park brake
Internal wet disk integrated in the transmission
-
Park brake actuation
Hand brake
PTO
-
Type
Electro-magnetic, 225 lb-ft
305 Nm -
Drive
V-belt
Mower decks
-
Size
54, 60 in.
137, 152 cm
7Iron™ PRO side-discharge
60 in.
152 cm
PRO Mulch On Demand™
60 in.
152 cm
FastBack™ PRO rear-discharge -
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Height-of-cut range
Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm -
Cutting width
54, 60 in.
137, 152 cm
Blades
-
Length
Varies by deck size
-
Thickness
0.25 in.
0.64 cm -
Blade tip speed
Approximately 18,000 fpm
60 in. rear discharge: approximately 15,000 fpm -
Number
Three
Wheels
-
Caster wheel type
Flat free
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
RH, center, LH
-
Rear anti-scalp rollers
Standard
Dimensions
-
Length
84 in.
213 cm -
Width
With chute down, 68, 74 in.
173, 188 cm
Rear discharge, 63.5 in.
161.3 cm -
Height
With ROPS up, 73 in.
185 cm
With ROPS down, 47 in.
119 cm -
Weight
1,275 to 1,365 lb
578 to 619 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
20 degrees (10 degrees with material collection system installed)
Back to Top
Details:
Z950M
ZTrak™ Zero-Turn Mower
- 7-Iron™ PRO Mowing Deck
- Propane Option Available
- Gasoline Engine
- Rear Discharge Deck
Features:
- Powerful 27-hp (20.1-kW) commercial-grade engine delivers class-leading performance and efficiency
- Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
- Available Mulch On Demand™ deck
- Enhanced productivity, safety, and trim ability with a Fastback™ PRO rear-discharge mower deck
- Three seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort
- Three-year, bumper-to-bumper warranty
- Heavy-duty frame provides strength and durability
- Durable hydrostatic drive train that delivers better cooling and provides easy access
- Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
- Mower is easy to service with many accessible components
- Extra reliability and long life with cast-iron blade spindle housings
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Field-installed propane conversion kits for commercial walk-behind mowers, QuikTrak™ mowers, and commercial ZTrak™ mowers
Specifications:
Key Specs
-
Engine Manufacturer/model
FX850V
-
Engine Power
Gross at 3,600 rpm: 27 hp
20.1 kW -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Mower deck Size
60, 72 in.
152, 183 cm -
Blade tip speed
Approximately 18,000 fpm
4,486 m/min -
Transmission
Hydrostatic
-
Speed range
0-10 mph
0-16.1 km/h -
Drive wheels
24x12-12
-
Caster wheels
13x6.5-6
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Engine
-
Manufacturer/Model
FX850V
-
Power
Gross at 3,600 rpm: 27 hp
20.1 kW -
Displacement
52 cu in.
852 cc -
Cylinders
Two
-
Crankcase capacity
With filter, 2 U.S. qt
1.9 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Air
-
Air cleaner
Pre-cleaner
Yes
Heavy-duty canister type with safety element
Fuel system
-
Fuel type
Gasoline
-
Fuel consumption
Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr
4.2-7.2 L/hr -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Fuel tank switch/shut-off valve
Yes
Electrical system
-
Charge system
20 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Standard, digital
-
Operator presence starting system
Brake-N-Go (hand)
Drivetrain
-
Transmission
Hydrostatic
-
Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor
-
Travel speed
Speed range
0-10 mph
0-16.1 km/h
Forward
0-10 mph
0-16.1 km/h
Reverse
0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin levers
-
Hydraulic capacity
5.9 U.S. qt
5.6 L -
Filter
Internal, replaceable
Buyer's note
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Tires
-
Drive wheels
24x12-12
-
Load rating
4 PR
Brakes
-
Dynamic braking
Twin levers
-
Park brake
Internal wet disk integrated in the transmission
-
Park brake actuation
Hand brake
PTO
-
Type
Electro-magnetic, 225 lb-ft
305 Nm -
Drive
V-belt
Mower decks
-
Size
60, 72 in.
152, 183 cm
7Iron™ PRO side-discharge
54, 60 in.
137, 152 cm
7Iron™ PRO Mulch On Demand™
72 in.
183 cm
FastBack™ PRO rear-discharge -
Deck construction
7-Iron PRO, one-piece stamped steel with reinforcements
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side, MOD
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm -
Cutting width
60, 72 in.
152, 183 cm
Blades
-
Length
Varies by deck size
-
Thickness
0.25 in.
0.64 cm -
Blade tip speed
Approximately 18,000 fpm
5,486 m/min -
Number
Three
Wheels
-
Caster wheel type
Flat free
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
RH, center, LH
-
Rear anti-scalp rollers
Optional
Dimensions
-
Length
84 in.
213 cm -
Width
With chute down, 74, 86 in.
188, 218 cm -
Height
With ROPS up, 73 in.
185 cm
With ROPS down, 47 in.
119 cm -
Weight
1,275 to1,365 lb
578 to 619 kg
Back to Top
Details:
Z955M EFI
ZTrak™ Zero-Turn Mower
- 30.5-hp (22.7 kW) EFI gasoline engine
- 54-in. and 60-in. 7-Iron™ PRO Side-Discharge Decks, 54-in. and 60-in. 7-Iron™ PRO Mulch On Demand™ Decks, 60-in. FastBack™ PRO Rear-Discharge Deck
- Brake-N-Go starting
- Cross-porting hydraulic transmission
Features:
- Powerful 30.5 hp (22.7 kW) engine has electronic fuel injection (EFI) and electronic throttle control for quick starts and superior performance
- Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
- Available Mulch On Demand™ deck
- Enhanced productivity, safety, and trim ability with a FastBack™ PRO rear-discharge mower deck
- Three seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort
- Upgraded electrical system includes display panel and speeds troubleshooting
- Three-year, bumper-to-bumper warranty
- Heavy-duty frame provides strength and durability
- Durable, hydrostatic drivetrain including cross porting delivers better cooling and provides easy access
- Mower is easy to service with many accessible components
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Manage your commercial mowing fleet using John Deere Operations Center™
- Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
Specifications:
Key Specs
-
Engine Manufacturer/model
FX781V EVO EFI
-
Engine power
Gross at 3,600 rpm: 30.5 hp
22.7 kW -
Fuel tank capacity
11.5 U.S. gal.
43.5 L/hr -
Mower deck size
54-in. (137-cm) 7Iron™ PRO side-discharge
60-in. (152-cm) 7Iron™ PRO side-discharge
54-in. (137-cm) 7Iron™ PRO Mulch On Demand™
60-in. (152-cm) 7Iron™ PRO Mulch On Demand™
60-in. (152-cm) FastBack™ PRO rear-discharge -
Blade tip speed
7Iron PRO: Approximately 18,500 fpm
60-in. (152-cm) FastBack: Approximately 16,500 fpm -
Transmission
Hydrostatic
-
Speed range
0-12 mph
0-19.3 km/h -
Drive wheels
24x12-12
-
Caster wheels
13x6.5-6
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Engine
-
Manufacturer/Model
FX781V EVO EFI
-
Power
Gross at 3,600 rpm, 30.5 hp
22.7 kW -
Displacement
50.2 cu in.
822 cc -
Cylinders
Two
-
Crankcase capacity
With filter, 2.2 U.S. qt
2.1 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air, with integrated clean out ports and oil cooler
-
Air cleaner
Pre-cleaner
Yes
Heavy-duty canister type with safety element
Fuel system
-
Fuel type
Gasoline
-
Fuel consumption
Under normal conditions, load, operation, and dependent on loads and operating conditions 7Iron PRO side-discharge: 1.3 U.S. gal./hr
4.9 L/hr
FastBack PRO rear-discharge: 1.1 U.S. gal./hr
4.2 L/hr -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Fuel tank switch/shut-off valve
No
Electrical system
-
Charge system
30 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Display panel including hour meter, fuel level, engine speed, system voltage, low engine oil pressure indicator, starting interlock indicators (PTO, operator presence, park brake), caution warning, stop warning, and on-board diagnostics
-
Operator presence starting system
Brake-N-Go (hand)
Drivetrain
-
Transmission
Hydrostatic
-
Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor with cross porting
-
Travel speed
Speed range
0-12 mph
0-19.3 km/h
Forward
0-12 mph
0-19.3 km/h
Reverse
0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin levers
-
Hydraulic capacity
5.9 U.S. qt
5.6 L -
Filter
Internal, replaceable
Buyer's note
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Tires
-
Drive wheels
24x12-12
-
Load rating
4 PR
Brakes
-
Dynamic braking
Twin levers
-
Park brake
Internal wet disk integrated in the transmission
-
Park brake actuation
Hand brake
PTO
-
Type
Electro-magnetic, 225 lb-ft
305 Nm -
Drive
V-belt
Mower decks
-
Size
54-in. (137-cm) 7Iron™ PRO side-discharge
-
Size
60-in. (152-cm) 7Iron™ PRO side-discharge
-
Size
54-in. (137-cm) 7Iron™ PRO Mulch On Demand™
-
Size
60-in. (152-cm) 7Iron™ PRO Mulch On Demand™
-
Size
60-in. (152-cm) FastBack™ PRO rear-discharge
-
Deck construction
7-Iron™ PRO: 7-gauge, 0.179-in. (4.6-mm) one-piece forged steel
FastBack™ PRO: 7-gauge, 0.179-in. (4.6-mm) fabricated steel -
Height-of-cut range
Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm -
Cutting width
54, 60 in.
137, 152 cm
Blades
-
Length
Varies by deck size
-
Thickness
7Iron PRO: 0.25 in.
6.4 mm
FastBack PRO: 0.31 in.
8 mm -
Blade tip speed
7Iron PRO: Approximately 18,500 fpm
60-in. (152-cm) FastBack: Approximately 16,500 fpm -
Number
Three
Wheels
-
Caster wheel type
Flat free
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
Left, center, right
-
Rear anti-scalp rollers
7Iron PRO: Left, center, right
FastBack PRO: Left, right
Dimensions
-
Length
87 in.
221 cm -
Width
With chute down, 68, 74 in.
173, 188 cm
Rear discharge, 63.5 in.
161.3 cm -
Height
With ROPS up, 73 in.
185 cm
With ROPS down, 47 in.
119 cm -
Weight
1383 to 1454 lb
627 to 660 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
20 degrees (10 degrees with material collection system installed)
Back to Top
Details:
Z960M
ZTrak™ Zero-Turn Mower
- 7-Iron™ PRO Mowing Deck
- Mulch On Demand™ Available
- Gasoline Engine
Features:
- Powerful 31-hp (23.1-kW) commercial-grade engine delivers class-leading performance and efficiency
- Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
- Available Mulch On Demand™ deck
- Three seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort
- Three-year, bumper-to-bumper warranty
- Heavy-duty frame provides strength and durability
- Durable hydrostatic drive train that delivers better cooling and provides easy access
- Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
- Mower is easy to service with many accessible components
- Extra reliability and long life with cast-iron blade spindle housings
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
Specifications:
Key Specs
-
Engine Manufacturer/model
FX921V
-
Engine power
Gross at 3,600 rpm: 31 hp
23.1 kW -
Fuel tank capacity
11.5 U.S. gal.
43.5 L/hr -
Mower deck size
60, 72 in.
137, 183 cm -
Blade tip speed
Approximately 18,000 fpm
-
Transmission
Hydrostatic
-
Speed range
0-10 mph
0-16.1 km/h -
Drive wheels
24x12-12
-
Caster wheels
13x6.5-6
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Engine
-
Manufacturer/Model
FX921V
-
Power
Gross at 3,600 rpm, 31 hp
23.1 kW -
Displacement
61 cu in.
999 cc -
Cylinders
Two
-
Crankcase capacity
With filter, 2 U.S. qt
1.9 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Air
-
Air cleaner
Pre-cleaner
Yes
Heavy-duty canister type with safety element
Fuel system
-
Fuel type
Gasoline
-
Fuel consumption
Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr
4.2-7.2 L/hr -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Fuel tank switch/shut-off valve
Yes
Electrical system
-
Charge system
20 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Standard, digital
-
Operator presence starting system
Brake-N-Go (hand)
Drivetrain
-
Transmission
Hydrostatic
-
Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor
-
Travel speed
Speed range
0-10 mph
0-16.1 km/h
Forward
0-10 mph
16.1 km/h
Reverse
0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin levers
-
Hydraulic capacity
5.9 U.S. qt
5.6 L -
Filter
Internal, replaceable
Buyer's note
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Tires
-
Drive wheels
24x12-12
-
Load rating
4 PR
Brakes
-
Dynamic braking
Twin levers
-
Park brake
Internal wet disk integrated in the transmission
-
Park brake actuation
Hand brake
PTO
-
Type
Electro-magnetic, 225 lb-ft
305 Nm -
Drive
V-belt
Mower decks
-
Size
60, 72 in.
152, 183 cm
7Iron™ PRO side-discharge
60 in.
152 cm
7Iron™ PRO Mulch On Demand™
60, 72 in.
152, 183 cm
FastBack™ PRO rear-discharge -
Deck construction
7-Iron PRO, one-piece stamped steel with reinforcements
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side, Mulch On Demand™ system
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm -
Cutting width
60, 72 in.
152, 183 cm
Blades
-
Length
Varies by deck size
-
Thickness
0.25 in.
0.64 cm -
Blade tip speed
Approximately 18,000 fpm
-
Number
Three
Wheels
-
Caster wheel type
Flat free
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
RH, center, LH
-
Rear anti-scalp rollers
Standard
Dimensions
-
Length
84 in.
213 cm -
Width
With chute down, 74, 86 in.
188, 218 cm -
Height
With ROPS up, 73 in.
185 cm
With ROPS down, 47 in.
119 cm -
Weight
1,252 to 1,340 lb
568 to 608 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
20 degrees (10 degrees with material collection system installed)
Back to Top
Details:
Z965M EFI
ZTrak™ Zero-Turn Mower
- 33-hp (24.6 kW) EFI gasoline engine
- 60-in. and 72-in. 7-Iron™ PRO Side-Discharge Decks
- Brake-N-Go starting
- Cross-porting hydraulic transmission
Features:
- V-twin engine with Oil Guard™ System has electronic fuel injection (EFI) and electronic throttle control for quick starts and superior performance
- Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
- Three seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort
- Upgraded electrical system includes display panel and speeds troubleshooting
- Three-year, bumper-to-bumper warranty
- Heavy-duty frame provides strength and durability
- Durable, hydrostatic drivetrain including cross porting delivers better cooling and provides easy access
- Mower is easy to service with many accessible components
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Manage your commercial mowing fleet using John Deere Operations Center™
- Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
Specifications:
Key Specs
-
Engine Manufacturer/model
EFI gasoline engine
-
Engine power
Gross at 3,600 rpm: 33 hp
24.6 kW -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Mower deck size
60-in. (152-cm) 7Iron™ PRO side-discharge
72-in. (183-cm) 7Iron™ PRO side-discharge -
Transmission
Hydrostatic with cross-porting
-
Speed range
0-12 mph
0-19.3 km/h -
Drive wheels
24x12-12
-
Caster wheels
13x6.5-6
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Engine
-
Manufacturer/Model
EFI gasoline engine
-
Power
Gross at 3,600 rpm, 33 hp
24.6 kW -
Displacement
Information not provided
-
Cylinders
Information not provided
-
Crankcase capacity
Information not provided
-
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air, with integrated clean out ports and oil cooler
-
Air cleaner
Heavy-duty canister type with safety element
Fuel system
-
Fuel type
Gasoline
-
Fuel consumption
Information not provided
-
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Fuel tank switch/shut-off valve
No
Electrical system
-
Charge system
30 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Display panel including hour meter, fuel level, engine speed, system voltage, low engine oil pressure indicator, starting interlock indicators (PTO, operator presence, park brake), caution warning, stop warning, and on-board diagnostics
-
Operator presence starting system
Brake-N-Go (hand)
Drivetrain
-
Transmission
Hydrostatic with cross-porting
-
Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor with cross porting
-
Travel speed
Forward: 0-12 mph
0-19.3 km/h
Reverse: 0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin levers
-
Hydraulic capacity
5.9 U.S. qt
5.6 L -
Filter
Internal, replaceable
Buyer's note
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Tires
-
Drive wheels
24x12-12
-
Load rating
4 PR
Brakes
-
Dynamic braking
Twin levers
-
Park brake
Internal wet disk integrated in the transmission
-
Park brake actuation
Hand brake
PTO
-
Type
Electro-magnetic, 225 lb-ft
305 Nm -
Drive
V-belt
Mower decks
-
Size
60-in. (152-cm) 7Iron™ PRO side-discharge
-
Size
72-in. (183-cm) 7Iron™ PRO side-discharge
-
Deck construction
7-Iron™ PRO: 7-gauge, 0.179-in. (4.6-mm) one-piece forged steel
Back to Top
Details:
Z975M EFI
ZTrak™ Zero-Turn Mower
- 37-hp (27.6 kW) EFI gasoline engine
- 60-in. and 72-in. 7-Iron™ PRO Side-Discharge Decks, 60-in. 7-Iron™ PRO Mulch On Demand™ Deck, 60-in. and 72-in. FastBack™ Pro Rear-Discharge Decks
- Brake-N-Go starting
- Cross-porting hydraulic transmission
Features:
- Powerful 37 hp (27.6 kW) engine has electronic fuel injection (EFI) and electronic throttle control for quick starts and superior performance
- Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
- Available Mulch On Demand™ deck
- Enhanced productivity, safety, and trim ability with a FastBack™ PRO rear-discharge mower deck
- Three seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort
- Upgraded electrical system includes display panel and speeds troubleshooting
- Three-year, bumper-to-bumper warranty
- Heavy-duty frame provides strength and durability
- Durable, hydrostatic drivetrain including cross porting delivers better cooling and provides easy access
- Mower is easy to service with many accessible components
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Manage your commercial mowing fleet using John Deere Operations Center™
- Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
Specifications:
Key Specs
-
Engine Manufacturer/model
EFI gasoline engine
-
Engine power
Gross at 3,600 rpm: 37 hp
27.6 kW -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Mower deck size
60-in. (152-cm) 7Iron™ PRO side-discharge
72-in. (183-cm) 7Iron™ PRO side-discharge -
Transmission
Hydrostatic with cross-porting
-
Speed range
0-12 mph
0-19.3 km/h -
Drive wheels
24x12-12
-
Caster wheels
13x6.5-6
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Engine
-
Manufacturer/Model
EFI gasoline engine
-
Power
Gross at 3,600 rpm, 37 hp
27.6 kW -
Displacement
Information not provided
-
Cylinders
Information not provided
-
Crankcase capacity
Information not provided
-
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air, with integrated clean out ports and oil cooler
-
Air cleaner
Heavy-duty canister type with safety element
Fuel system
-
Fuel type
Gasoline
-
Fuel consumption
Information not provided
-
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Fuel tank switch/shut-off valve
No
Electrical system
-
Charge system
30 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Display panel including hour meter, fuel level, engine speed, system voltage, low engine oil pressure indicator, starting interlock indicators (PTO, operator presence, park brake), caution warning, stop warning, and on-board diagnostics
-
Operator presence starting system
Brake-N-Go (hand)
Drivetrain
-
Transmission
Hydrostatic with cross-porting
-
Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor with cross porting
-
Travel speed
Forward: 0-12 mph
0-19.3 km/h
Reverse: 0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin levers
-
Hydraulic capacity
5.9 U.S. qt
5.6 L -
Filter
Internal, replaceable
Buyer's note
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Tires
-
Drive wheels
24x12-12
-
Load rating
4 PR
Brakes
-
Dynamic braking
Twin levers
-
Park brake
Internal wet disk integrated in the transmission
-
Park brake actuation
Hand brake
PTO
-
Type
Electro-magnetic, 225 lb-ft
305 Nm -
Drive
V-belt
Mower decks
-
Size
60-in. (152-cm) 7Iron™ PRO side-discharge
-
Size
72-in. (183-cm) 7Iron™ PRO side-discharge
-
Deck construction
7-Iron™ PRO: 7-gauge, 0.179-in. (4.6-mm) one-piece forged steel
Blades
-
Length
Varies by deck size
-
Thickness
7Iron PRO: 0.25 in.
6.4 mm -
Blade tip speed
Approximately 18,500 fpm
-
Number
Three
Wheels
-
Caster wheel type
Flat free
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
Left, center, right
-
Rear anti-scalp rollers
7Iron PRO: Left, center, right
Dimensions
-
Length
87 in.
221 cm -
Width
With chute down, 68, 74 in.
173, 188 cm -
Height
With ROPS up, 73 in.
185 cm
With ROPS down, 47 in.
119 cm -
Weight
1383 to 1454 lb
627 to 660 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
20 degrees (10 degrees with material collection system installed)
Back to Top
R Series
Available models: Z930RZ950RZ955R EFIZ965R EFIZ970RZ985R EFI
Details:
Z930R
ZTrak™ Zero-Turn Mower
- 7-Iron™ PRO Mowing Deck
- Mulch On Demand™ Available
- Propane Option Available
- Cross-porting hydraulic transmission
Features:
- Powerful 25.5-hp (19.0-kW) commercial-grade engine delivers class-leading performance and efficiency
- Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
- Available Mulch On Demand™ deck
- Two seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort
- Standard comfort and convenience allows for easy deck height adjustment and power take-off (PTO) shutoff
- Three-year, bumper-to-bumper warranty
- Heavy-duty frame provides strength and durability
- Durable, hydrostatic drivetrain including cross porting delivers better cooling and provides easy access
- Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
- Mower is easy to service with many accessible components
- Extra reliability and long life with cast-iron blade spindle housings
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Field-installed propane conversion kits for commercial walk-behind mowers, QuikTrak™ mowers, and commercial ZTrak™ mowers
Specifications:
Key Specs
-
Engine Manufacturer/model
FX801V
-
Engine Power
Gross at 3,600 rpm: 25.5 hp
19 kW -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Mower deck Size
54, 60 in.
137, 152 cm -
Blade tip speed
Approximately 18,000 fpm
5,486 m/min -
Transmission
Hydrostatic
-
Speed range
0-12 mph
0-19.3 km/h -
Drive wheels
24x12-12
-
Caster wheels
13x6.5-6
-
Warranty
36 months or 1500 hours, whichever comes first
First 24 months, no hour limitation
Engine
-
Manufacturer/Model
FX801V
-
Power
Gross at 3,600 rpm, 25.5 rpm
19 kW -
Displacement
52 cu in.
852 cc -
Cylinders
Two
-
Crankcase capacity
With filter, 2 U.S. qt
1.9 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Air
-
Air cleaner
Pre-cleaner
Yes
Heavy-duty canister type with safety element
Fuel system
-
Fuel type
Gasoline
-
Fuel consumption
Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr
4.2-7.2 L/hr -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Fuel tank switch/shut-off valve
Yes
Electrical system
-
Charge system
20 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Standard, digital
-
Operator presence starting system
Brake-N-Go (foot)
Drivetrain
-
Transmission
Hydrostatic
-
Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor
-
Travel speed
Speed range
0-12 mph
0-19.3 km/h
Forward
0-12 mph
0-19.3 km/h
Reverse
0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin levers
-
Hydraulic capacity
5.9 U.S. qt
5.6 L -
Filter
Internal, replaceable
Buyer's note
-
Warranty
36 months or 1500 hours, whichever comes first
First 24 months, no hour limitation
Tires
-
Drive wheels
24x12-12
-
Load rating
4 PR
Brakes
-
Dynamic braking
Twin levers
-
Park brake
Internal wet disk integrated in the transmission
-
Park brake actuation
Foot brake
PTO
-
Type
Electro-magnetic, 225 lb-ft
305 Nm -
Drive
V-belt
Mower decks
-
Size
54, 60 in.
137, 152 cm
7Iron™ PRO side-discharge
54 in.
137 cm
7Iron™ PRO Mulch On Demand™ -
Deck construction
7-Iron PRO, one-piece stamped steel with reinforcements
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side, Mulch On Demand™ system
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm -
Cutting width
54, 60 in.
137, 152 cm
Blades
-
Length
Varies by deck size
-
Thickness
0.25 in.
0.64 cm -
Blade tip speed
Approximately 18,000 fpm
5,486 m/min -
Number
Three
Wheels
-
Caster wheel type
Flat free
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
RH, center, LH
-
Rear anti-scalp rollers
Optional
Dimensions
-
Length
84 in.
213 cm -
Width
With chute down, 68, 74 in.
173, 188 cm -
Height
With ROPS up, 73 in.
185 cm
With ROPS down, 47 in.
119 cm -
Weight
1,273 to 1,310 lb
577 to 594 kg
Back to Top
Details:
Z950R
ZTrak™ Zero-Turn Mower
- 7-Iron™ PRO Mowing Deck
- Mulch On Demand™ Available
- Rear Discharge Deck
- Propane Option Available
- Cross-porting hydraulic transmission
Features:
- Powerful 27-hp (20.1-kW) commercial-grade engine delivers class-leading performance and efficiency
- Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
- Available Mulch On Demand™ deck
- Enhanced productivity, safety, and trim ability with a Fastback™ PRO rear-discharge mower deck
- Two seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort
- Standard comfort and convenience allows for easy deck height adjustment and power take-off (PTO) shutoff
- Three-year, bumper-to-bumper warranty
- Heavy-duty frame provides strength and durability
- Durable, hydrostatic drivetrain including cross porting delivers better cooling and provides easy access
- Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
- Mower is easy to service with many accessible components
- Extra reliability and long life with cast-iron blade spindle housings
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Field-installed propane conversion kits for commercial walk-behind mowers, QuikTrak™ mowers, and commercial ZTrak™ mowers
Specifications:
Key Specs
-
Engine Manufacturer/model
FX850V
-
Engine Power
Gross at 3,600 rpm: 27 hp
20.1 kW -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Mower deck Size
60, 72 in.
152, 183 cm -
Blade tip speed
Approximately 18,000 fpm
5,486 m/min -
Transmission
Hydrostatic
-
Speed range
0-12 mph
0-19.3 km/h -
Drive wheels
24x12-12
-
Caster wheels
13x6.5-6
-
Warranty
36 months or 1500 hours, whichever comes first
First 24 months, no hour limitation
Engine
-
Manufacturer/Model
FX850V
-
Power
Gross at 3,600 rpm, 27 hp
20.1 kW -
Displacement
52 cu in.
852 cc -
Cylinders
Two
-
Crankcase capacity
With filter, 2 U.S. qt
1.9 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Air
-
Air cleaner
Pre-cleaner
Yes
Heavy-duty canister type with safety element
Fuel system
-
Fuel type
Gasoline
-
Fuel consumption
Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr
4.2-7.2 L/hr -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Fuel tank switch/shut-off valve
Yes
Electrical system
-
Charge system
20 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Standard, digital
-
Operator presence starting system
Brake-N-Go (foot)
Drivetrain
-
Transmission
Hydrostatic
-
Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor
-
Travel speed
Speed range
0-12 mph
19.3 km/h
Forward
0-12 mph
19.3 km/h
Reverse
0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin levers
-
Hydraulic capacity
5.9 U.S. qt
5.6 L -
Filter
Internal, replaceable
Buyer's note
-
Warranty
36 months or 1500 hours, whichever comes first
First 24 months, no hour limitation
Tires
-
Drive wheels
24x12-12
-
Load rating
4 PR
Brakes
-
Dynamic braking
Twin levers
-
Park brake
Internal wet disk integrated in the transmission
-
Park brake actuation
Foot brake
PTO
-
Type
Electro-magnetic, 225 lb-ft
305 Nm -
Drive
V-belt
Mower decks
-
Size
60, 72 in.
152, 183 cm
7Iron™ PRO side-discharge
60 in.
152 cm
7Iron™ PRO Mulch On Demand™
60 in.
152 cm
FastBack™ PRO rear-discharge -
Deck construction
7-Iron PRO, one-piece stamped steel with reinforcements
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side, Mulch On Demand™ system
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm -
Cutting width
60, 72 in.
152, 183 cm
Blades
-
Length
Varies by deck size
-
Thickness
0.25 in.
0.64 cm -
Blade tip speed
Approximately 18,000 fpm
5,486 m/min -
Number
Three
Wheels
-
Caster wheel type
Flat free
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
RH, center, LH
-
Rear anti-scalp rollers
Optional
Dimensions
-
Length
84 in.
213 cm -
Width
With chute down, 74, 86 in.
188, 218 cm -
Height
With ROPS up, 73 in.
185 cm
With ROPS down, 47 in.
119 cm -
Weight
1,292 to 1,340 lb
586 to 608 kg
Back to Top
Details:
Z955R EFI
ZTrak™ Zero-Turn Mower
- 30.5-hp (22.7 kW) EFI gasoline engine
- 60-in. 7-Iron™ PRO Side-Discharge Deck, 60-in. 7-Iron™ PRO Mulch On Demand™ Deck, 72-in. FastBack™ PRO Rear-Discharge Deck
- Brake-N-Go starting
- Cross-porting hydraulic transmission
Features:
- Powerful 30.5 hp (22.7 kW) engine has electronic fuel injection (EFI) and electronic throttle control for quick starts and superior performance
- Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
- Available Mulch On Demand™ deck
- Enhanced productivity, safety, and trim ability with a FastBack™ PRO rear-discharge mower deck
- Fully adjustable suspension seat with ComfortGlide™ fore/aft suspension offers exceptional operator comfort
- Upgraded electrical system includes display panel and speeds troubleshooting
- Standard comfort and convenience allows for easy deck height adjustment and power take-off (PTO) shutoff
- Three-year, bumper-to-bumper warranty
- Heavy-duty frame provides strength and durability
- Durable, hydrostatic drivetrain including cross porting delivers better cooling and provides easy access
- Mower is easy to service with many accessible components
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Manage your commercial mowing fleet using John Deere Operations Center™
- Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
Specifications:
Key Specs
-
Engine Manufacturer/model
ECV860J EFI
-
Engine power
Gross at 3,600 rpm: 29 hp
21.6 kW -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Mower deck size
60-in. (152-cm) 7-Iron™ PRO side-discharge
-
Blade tip speed
Approximately 18,000 fpm
-
Transmission
Hydrostatic
-
Speed range
0-12 mph
0-19.3 km/h -
Drive wheels
24x12-12
-
Caster wheels
13x6.5-6
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Engine
-
Manufacturer/Model
ECV860J EFI
-
Power
Gross at 3,600 rpm, 29 hp
21.6 kW -
Displacement
50.3 cu in.
824 cc -
Cylinders
Two
-
Crankcase capacity
With filter, 2.7 U.S. qt
2.6 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Air
-
Air cleaner
Pre-cleaner
Yes
Heavy-duty canister type with safety element
Fuel system
-
Fuel type
Gasoline
-
Fuel consumption
Information not provided
-
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Fuel tank switch/shut-off valve
No
Electrical system
-
Charge system
30 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Display panel including hour meter, fuel level, engine speed, system voltage, low engine oil pressure indicator, starting interlock indicators (PTO, operator presence, park brake), caution warning, stop warning, and on-board diagnostics
-
Operator presence starting system
Brake-N-Go (hand)
Drivetrain
-
Transmission
Hydrostatic
-
Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor with cross porting
-
Travel speed
Forward: 0-12 mph
0-19.3 km/h
Reverse: 0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin levers
-
Hydraulic capacity
5.9 U.S. qt
5.6 L -
Filter
Internal, replaceable
Buyer's note
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Tires
-
Drive wheels
24x12-12
-
Load rating
4 PR
Brakes
-
Dynamic braking
Twin levers
-
Park brake
Internal wet disk integrated in the transmission
-
Park brake actuation
Hand brake
PTO
-
Type
Electro-magnetic, 225 lb-ft
305 Nm -
Drive
V-belt
Mower decks
-
Size
60-in. (152-cm) 7-Iron™ PRO side-discharge
-
Deck construction
7-gauge, 0.179-in. (4.6-mm) one-piece forged steel
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm -
Cutting width
60 in.
152 cm
Blades
-
Length
Varies by deck size
-
Thickness
0.25 in.
6.4 mm -
Blade tip speed
Approximately 18,000 fpm
-
Number
Three
Wheels
-
Caster wheel type
Flat free
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
Left, center, right
-
Rear anti-scalp rollers
Left, center, right
Dimensions
-
Length
87 in.
221 cm -
Width
With chute down, 68 in.
173 cm -
Height
With ROPS up, 73 in.
185 cm
With ROPS down, 47 in.
119 cm -
Weight
1383 to 1454 lb
627 to 660 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
20 degrees (10 degrees with material collection system installed)
Back to Top
Details:
Z965R EFI
ZTrak™ Zero-Turn Mower
- 33-hp (24.6 kW) EFI gasoline engine
- 60-in. and 72-in. 7-Iron™ PRO Side-Discharge Decks or 72-in. FastBack™ PRO Rear-Discharge Deck
- Brake-N-Go starting
- Cross-porting hydraulic transmission
Features:
- V-twin engine with Oil Guard™ System has electronic fuel injection (EFI) and electronic throttle control for quick starts and superior performance
- Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
- Enhanced productivity, safety, and trim ability with a FastBack™ PRO rear-discharge mower deck
- Fully adjustable suspension seat with ComfortGlide™ fore/aft suspension offers exceptional operator comfort
- Upgraded electrical system includes display panel and speeds troubleshooting
- Standard comfort and convenience allows for easy deck height adjustment and power take-off (PTO) shutoff
- Three-year, bumper-to-bumper warranty
- Heavy-duty frame provides strength and durability
- Durable, hydrostatic drivetrain including cross porting delivers better cooling and provides easy access
- Mower is easy to service with many accessible components
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Manage your commercial mowing fleet using John Deere Operations Center™
- Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
Specifications:
Key Specs
-
Engine Manufacturer/model
61A6 EFI
-
Engine power
Gross at 3,600 rpm: 33 hp
24.6 kW -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Mower deck size
60-in. (152-cm) 7-Iron™ PRO side-discharge
72-in. (183-cm) 7-Iron™ PRO side-discharge
72-in. (183-cm) FastBack™ PRO rear-discharge -
Blade tip speed
Approximately 18,000 fpm
-
Transmission
Hydrostatic
-
Speed range
0-12 mph
0-19.3 km/h -
Drive wheels
24x12-12
-
Caster wheels
13x6.5-6
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Engine
-
Manufacturer/Model
61A6 EFI
-
Power
Gross at 3,600 rpm, 33 hp
24.6 kW -
Displacement
61.2 cu in.
999 cc -
Cylinders
Two
-
Crankcase capacity
With filter, 2.7 U.S. qt
2.6 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Air
-
Air cleaner
Pre-cleaner
Yes
Heavy-duty canister type with safety element
Fuel system
-
Fuel type
Gasoline
-
Fuel consumption
Information not provided
-
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Fuel tank switch/shut-off valve
No
Electrical system
-
Charge system
30 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Display panel including hour meter, fuel level, engine speed, system voltage, low engine oil pressure indicator, starting interlock indicators (PTO, operator presence, park brake), caution warning, stop warning, and on-board diagnostics
-
Operator presence starting system
Brake-N-Go (hand)
Drivetrain
-
Transmission
Hydrostatic
-
Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor with cross porting
-
Travel speed
Forward: 0-12 mph
0-19.3 km/h
Reverse: 0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin levers
-
Hydraulic capacity
5.9 U.S. qt
5.6 L -
Filter
Internal, replaceable
Buyer's note
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Tires
-
Drive wheels
24x12-12
-
Load rating
4 PR
Brakes
-
Dynamic braking
Twin levers
-
Park brake
Internal wet disk integrated in the transmission
-
Park brake actuation
Hand brake
PTO
-
Type
Electro-magnetic, 225 lb-ft
305 Nm -
Drive
V-belt
Mower decks
-
Size
60-in. (152-cm) 7-Iron™ PRO side-discharge
-
Size
72-in. (183-cm) 7-Iron™ PRO side-discharge
-
Size
72-in. (183-cm) FastBack™ PRO rear-discharge
-
Deck construction
7-gauge, 0.179-in. (4.6-mm) one-piece forged steel
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm -
Cutting width
60, 72 in.
152, 183 cm
Blades
-
Length
Varies by deck size
-
Thickness
0.25 in.
6.4 mm -
Blade tip speed
Approximately 18,000 fpm
-
Number
Three
Wheels
-
Caster wheel type
Flat free
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
Left, center, right
-
Rear anti-scalp rollers
Left, center, right
Dimensions
-
Length
87 in.
221 cm -
Width
With chute down, 68, 80 in.
173, 203 cm -
Height
With ROPS up, 73 in.
185 cm
With ROPS down, 47 in.
119 cm -
Weight
1383 to 1454 lb
627 to 660 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
20 degrees (10 degrees with material collection system installed)
Back to Top
Details:
Z970R
Zero-Turn Mower
- 7-Iron™ PRO Mowing Deck
- Brake-N-Go starting
- Cross-porting hydraulic transmission
- Rear Discharge Deck
Features:
- Powerful 35.0-hp (26.1-kW) commercial-grade engine delivers class-leading performance and efficiency
- Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
- Available Mulch On Demand™ deck
- Enhanced productivity, safety, and trim ability with a Fastback™ PRO rear-discharge mower deck
- Two seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort
- Standard comfort and convenience allows for easy deck height adjustment and power take-off (PTO) shutoff
- Three-year, bumper-to-bumper warranty
- Heavy-duty frame provides strength and durability
- Durable, hydrostatic drivetrain including cross porting delivers better cooling and provides easy access
- Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
- Mower is easy to service with many accessible components
- Extra reliability and long life with cast-iron blade spindle housings
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
Specifications:
Key Specs
-
Engine Manufacturer/model
FX1000V
-
Engine Power
Gross at 3,600 rpm: 35 hp
26.1 kW -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Mower deck Size
60, 72 in.
152, 183 cm -
Blade tip speed
Approximately 18,000 fpm
5,486 m/min -
Transmission
Hydrostatic
-
Speed range
0-12 mph
0-19.3 km/h -
Drive wheels
24x12-12
-
Caster wheels
13x6.5-6
-
Warranty
36 months or 1500 hours, whichever comes first
First 24 months, no hour limitation
Engine
-
Manufacturer/Model
FX1000V
-
Power
Gross at 3,600 rpm, 35 hp
26.1 kW -
Displacement
61 cu in.
999 cc -
Cylinders
Two
-
Crankcase capacity
With filter, 2 U.S. qt
1.9 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Air
-
Air cleaner
Pre-cleaner
Yes
Heavy-duty canister type with safety element
Fuel system
-
Fuel type
Gasoline
-
Fuel consumption
Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr
4.2-7.2 L/hr -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Fuel tank switch/shut-off valve
Yes
Electrical system
-
Charge system
20 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Standard, digital
-
Operator presence starting system
Brake-N-Go (foot)
Drivetrain
-
Transmission
Hydrostatic
-
Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor
-
Travel speed
Speed range
0-12 mph
0-19.3 km/h
Forward
0-12 mph
0-19.3 km/h
Reverse
0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin levers
-
Hydraulic capacity
5.9 U.S. qt
5.6 L -
Filter
Internal, replaceable
Buyer's note
-
Warranty
36 months or 1500 hours, whichever comes first
First 24 months, no hour limitation
Tires
-
Drive wheels
24x12-12
-
Load rating
4 PR
Brakes
-
Dynamic braking
Twin levers
-
Park brake
Internal wet disk integrated in the transmission
-
Park brake actuation
Foot brake
PTO
-
Type
Electro-magnetic, 225 lb-ft
305 Nm -
Drive
V-belt
Mower decks
-
Size
60, 72 in.
152, 183 cm
7Iron™ PRO side-discharge
72 in.
183 cm
FastBack™ PRO rear-discharge -
Deck construction
7-Iron PRO, one-piece stamped steel with reinforcements
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side, MOD
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm -
Cutting width
60, 72 in.
152, 183 cm
Blades
-
Length
Varies by deck size
-
Thickness
0.25 in.
0.64 cm -
Blade tip speed
Approximately 18,000 fpm
5,486 m/min -
Number
Three
Wheels
-
Caster wheel type
Flat free
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
RH, center, LH
-
Rear anti-scalp rollers
Optional
Dimensions
-
Length
84 in.
213 cm -
Width
With chute down, 74, 86 in.
188, 218 cm -
Height
With ROPS up, 73 in.
185 cm
With ROPS down, 47 in.
119 cm -
Weight
1,336 to 1,345 lb
606 to 610 kg
Back to Top
Details:
Z985R EFI
ZTrak™ Zero-Turn Mower
- 40-hp (29.8 kW) EFI gasoline engine
- 72-in. 7-Iron™ PRO Side-Discharge and 72-in. FastBack™ PRO Rear-Discharge Decks
- Brake-N-Go starting
- Cross-porting hydraulic transmission
Features:
- V-twin engine with Oil Guard™ System has electronic fuel injection (EFI) and electronic throttle control for quick starts and superior performance
- Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
- Enhanced productivity, safety, and trim ability with a FastBack™ PRO rear-discharge mower deck
- Fully adjustable suspension seat with ComfortGlide™ fore/aft suspension offers exceptional operator comfort
- Upgraded electrical system includes display panel and speeds troubleshooting
- Standard comfort and convenience allows for easy deck height adjustment and power take-off (PTO) shutoff
- Three-year, bumper-to-bumper warranty
- Heavy-duty frame provides strength and durability
- Durable, hydrostatic drivetrain including cross porting delivers better cooling and provides easy access
- Mower is easy to service with many accessible components
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Manage your commercial mowing fleet using John Deere Operations Center™
- Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
Specifications:
Key Specs
-
Engine Manufacturer/model
61G8 EFI
-
Engine power
Gross at 3,600 rpm: 40 hp
29.8 kW -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Mower deck size
72-in. (183-cm) 7-Iron™ PRO side-discharge
72-in. (183-cm) FastBack™ PRO rear-discharge -
Blade tip speed
7-Iron PRO: Approximately 18,500 fpm
72-in. (183-cm) FastBack: Approximately 18,000 fpm -
Transmission
Hydrostatic
-
Speed range
0-12 mph
0-19.3 km/h -
Drive wheels
24x12-12
-
Caster wheels
13x6.5-6
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Engine
-
Manufacturer/Model
61G8 EFI
-
Power
Gross at 3,600 rpm, 40 hp
29.8 kW -
Displacement
61.2 cu in.
999 cc -
Cylinders
Two
-
Crankcase capacity
With filter, 2.7 U.S. qt
2.6 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Air
-
Air cleaner
Pre-cleaner
Yes
Heavy-duty canister type with safety element
Fuel system
-
Fuel type
Gasoline
-
Fuel consumption
Information not provided
-
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Fuel tank switch/shut-off valve
No
Electrical system
-
Charge system
30 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Display panel including hour meter, fuel level, engine speed, system voltage, low engine oil pressure indicator, starting interlock indicators (PTO, operator presence, park brake), caution warning, stop warning, and on-board diagnostics
-
Operator presence starting system
Brake-N-Go (hand)
Drivetrain
-
Transmission
Hydrostatic
-
Wheel motors
Tuff Torq heavy-duty integrated piston wheel motor with cross porting
-
Travel speed
Forward: 0-12 mph
0-19.3 km/h
Reverse: 0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin levers
-
Hydraulic capacity
5.9 U.S. qt
5.6 L -
Filter
Internal, replaceable
Buyer's note
-
Warranty
36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation
Tires
-
Drive wheels
24x12-12
-
Load rating
4 PR
Brakes
-
Dynamic braking
Twin levers
-
Park brake
Internal wet disk integrated in the transmission
-
Park brake actuation
Hand brake
PTO
-
Type
Electro-magnetic, 225 lb-ft
305 Nm -
Drive
V-belt
Mower decks
-
Size
72-in. (183-cm) 7-Iron™ PRO side-discharge
-
Size
72-in. (183-cm) FastBack™ PRO rear-discharge
-
Deck construction
7-gauge, 0.179-in. (4.6-mm) one-piece forged steel
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm -
Cutting width
72 in.
183 cm
Blades
-
Length
Varies by deck size
-
Thickness
7-Iron PRO: 0.25 in.
6.4 mm
FastBack PRO: 0.31 in.
8 mm -
Blade tip speed
7-Iron PRO: Approximately 18,500 fpm
72-in. (183-cm) FastBack: Approximately 18,000 fpm -
Number
Three
Wheels
-
Caster wheel type
Flat free
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
Left, center, right
-
Rear anti-scalp rollers
Left, center, right
Dimensions
-
Length
87 in.
221 cm -
Width
With chute down, 80 in.
203 cm -
Height
With ROPS up, 73 in.
185 cm
With ROPS down, 47 in.
119 cm -
Weight
1383 to 1454 lb
627 to 660 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
20 degrees (10 degrees with material collection system installed)
Back to Top
Diesel R Series
Diesel R Series
Available models: Z997R DieselZ994R Diesel
Details:
Z997R Diesel
ZTrak™ Zero-Turn Mower
- 37.4 HP (27.5 kW)
- Biodiesel (B20) compatible
- Tier 4 compliant
- 7-Iron™ PRO deck
- Rear Discharge Deck Available
Features:
- Powerful diesel engine for increased performance
- Two 7-Iron™ PRO Side-Discharge Mower Deck options for the Z997R give superior performance in every application
- Great productivity and lawn appearance with a Fastback™ PRO rear-discharge mower deck
- Standard operator comfort and convenience package for ease of use
- Deluxe comfort seat is fully adjustable and includes ComfortGlide™ fore/aft suspension
- Easily accessed daily service points mean less maintenance time and more working time
- Heavy-duty frame provides strength and durability
- Quality drive system provides longer life and less maintenance
- Mower deck height-of-cut adjustment is easy to use
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Michelin® X® Tweel® Turf airless radial tire technology option for a smoother ride and more uptime
Specifications:
Key Specs
-
Engine Manufacturer/model
3TNV88C
-
Engine power
Gross at 3,000 rpm, PS: 37.4 hp
27.5 kW -
Fuel tank capacity
12 U.S. gal.
45.4 L -
Mower deck size
Side discharge, rear discharge: 60 in.
152 cm
Side discharge, rear discharge: 72 in.
183 cm -
Blade tip speed
Side discharge: approximately 18,000 fpm
Rear discharge: approximately 15,000 fpm -
Transmission
Hydrostatic
-
Speed range
0-11.5 mph
0-18.5 km/h -
Drive wheels
26x12-12 square shoulder 4-ply turf, optional 26x12-12 Michelin® Tweel® turf tires
-
Caster wheels
15x6-6 flat free
-
Warranty
36 months or 1500 hours, whichever comes first, no hour limitation for the first 24 months.
Engine
-
Manufacturer/Model
3TNV88C
-
Power
Gross at 3,000 rpm, PS: 37.4 hp
27.5 kW -
Displacement
100.2 cu in.
1,642 cc -
Cylinders
Three
-
Crankcase capacity
3.8 U.S. qt
3.6 L -
Oil filter
Full flow, replaceable, spin-on type
-
Lubrication
Full pressure
-
Cooling
Liquid
-
Air cleaner
Pre-cleaner
Yes
Heavy-duty canister, dry type with safety element and air-restriction indicator
Fuel system
-
Fuel type
Diesel or Biodiesel (up to B20)
-
Fuel tank capacity
12 U.S. gal.
45.4 L -
Fuel tank switch/shut-off valve
Yes
Electrical system
-
Charge system
75 amp
-
Battery voltage
12 V
-
Cold cranking amp
At 18 degrees C, 490 amp
-
Hour meter
Digital multi-function display
-
Operator presence starting system
Standard
Drivetrain
-
Transmission
Hydrostatic
-
Wheel motors
Parker Ross TG0310, 18.9 cu in.
310 cc -
Travel speed
Speed range
0-11.5 mph
0-18.5 km/h
Forward
0-11.5 mph
0-18.5 km/h
Reverse
0-5 mph
0-8 km/h -
Speed and direction control
Zero turn
-
Hydraulic capacity
Tank capacity, 3.2 U.S. gal.
12.1 L -
Hydraulic oil cooler
Yes
-
Filter
Spin-on Type
Buyer's note
-
Warranty
36 months or 1500 hours, whichever comes first, no hour limitation for the first 24 months.
Tires
-
Drive wheels
26x12-12 square shoulder 4-ply turf, optional 26x12-12 Michelin Tweel turf tires
-
Rear tires
26x12-12 square shoulder 4-ply turf, optional 26x12-12 Michelin Tweel turf tires
-
Load rating
4PR
Brakes
-
Dynamic braking
Dual hand controlled levers
-
Park brake
Caliper disc brake
-
Park brake actuation
Hand lever
PTO
-
Type
Hydraulic clutch
-
Drive
Internal wet disk clutch
Mower decks
-
Size
Side discharge, rear discharge: 60 in.
152 cm
Side discharge, rear discharge: 72 in.
183 cm -
Deck construction
7-Iron™ PRO side discharge: One piece stamped steel
Fastback™ PRO rear discharge: 7-gauge fabricated steel -
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side-discharge, rear-discharge
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm -
Cutting width
60, 72 in.
152, 183 cm
Blades
-
Length
60-in. (152-cm) deck: 21 in.
53.3 cm
72-in. (183-cm) deck: 25 in.
63.5 cm -
Thickness
0.25 in.
0.64 cm
Varies by deck size and configuration -
Blade tip speed
Side discharge: approximately 18,000 fpm
Rear discharge: approximately 15,000 fpm -
Number
Three
Wheels
-
Caster wheel type
Flat free
-
Caster wheels
15x6-6
-
Front anti-scalp rollers
LH, RH, Center
-
Rear anti-scalp rollers
LH, RH, Center
Dimensions
-
Length
60-in. (152-cm) side-discharge: 96 in.
244 cm -
Width
With 60-in. (152-cm) side-discharge mower deck: 74 in.
188 cm
With 72-in. (183-cm) side-discharge mower deck: 86 in.
218.4 cm
With 60-in. (152-cm) rear discharge mower deck: 63.5 in.
161.3 cm
With 72-in. (183-cm) rear discharge mower deck: 75.8 in.
192.5 cm -
Height
With ROPs up, 85 in.
216 cm
With ROPS down 48 in.
122 cm -
Weight
60-in. (152-cm) side-discharge, 1,774 lb
805 kg
60-in. (152-cm) rear-discharge, 1,827 lb
829 kg
72-in. (183-cm) side-discharge, 1,841 lb
835 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
20 degrees (10 degrees with material collection system)
Back to Top
Details:
Z994R Diesel
ZTrak™ Zero-Turn Mower
- 24.7 hp (18.4 kW) liquid-cooled diesel engine
- ComfortGlide™ Suspension on all seat options
- 11.5 U.S. gallon fuel tank (43.5 L)
- 7-Iron PRO Deck
- Rear Discharge Deck
- Mulch On Demand™ Available
Features:
- Powerful 24.7-hp (18.4-kW) diesel engine delivers superior performance and efficiency
- Four 7-Iron™ PRO Side-Discharge Mower Deck options give superior performance in every application
- Enhanced productivity, safety, and trim ability with a Fastback™ PRO rear-discharge mower deck
- Exceptional operator comfort begins with a high-quality seat and suspension
- Instruments and controls are easy to find and use
- Serviceability features give convenience and maximize uptime
- Heavy-duty chassis components provide strength and durability
- Durable pump and wheel motor hydrostatic drive delivers speeds up to 11.4 mph (18.3 km/h)
- Thoughtful designs and high-quality controls promote safe operation
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Michelin® X® Tweel® Turf airless radial tire technology option for a smoother ride and more uptime
Specifications:
Key Specs
-
Engine Manufacturer/model
3TNV80F
-
Engine Power
Gross at 3,200 rpm, PS: 24.7 hp
18.4 kW -
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Mower deck Size
Side discharge, 54 in.
137 cm
Side discharge, 60 in.
152 cm
Side discharge, Mulch On Demand™, 60 in.
Side discharge, 72 in.
183 cm -
Blade tip speed
Approximately 16,000 fpm
4,877 m/min -
Transmission
Dual hydrostatic wheel drive TuffTorq™ heavy-duty ground drive with cross porting for improved cooling
-
Speed range
0-11.4 mph
0-18.3 km/h -
Drive wheels
24x12.00-12 4-ply turf, optional 24x12-12 Michelin Tweel™ turf tires
-
Caster wheels
13x5.0-6 flat free
-
Warranty
36 months or 1500 hours, whichever comes first, no hour limitation for the first 24 months.
Engine
-
Manufacturer/Model
3TNV80F
-
Power
Gross at 3,200 rpm, PS: 24.7 hp
18.4 kW -
Displacement
77.3 cu in.
1.27 L -
Cylinders
Three
-
Crankcase capacity
3.6 U.S. qt
3.4 L -
Oil filter
Full flow, replaceable, spin-on type
-
Lubrication
Full pressure
-
Cooling
Liquid
-
Air cleaner
Pre-cleaner
Yes
Heavy-duty canister, dry type with safety element and air-restriction indicator
Fuel system
-
Fuel type
Diesel or Biodiesel (up to B20)
-
Fuel tank capacity
11.5 U.S. gal.
43.5 L -
Fuel tank switch/shut-off valve
Yes
Electrical system
-
Charge system
75 amp
-
Battery voltage
12 V
-
Cold cranking amp
At 18 degrees C, 600 amp
-
Hour meter
Digital multi-function display
-
Operator presence starting system
Standard
Drivetrain
-
Transmission
Dual hydrostatic wheel drive TuffTorq heavy-duty ground drive with cross porting for improved cooling
-
Travel speed
Speed range
0-11.4 mph
0-18.3 km/h
Forward
0-11.4 mph
0-18.3 km/h
Reverse
0-4.5 mph
0-7.2 km/h -
Speed and direction control
Zero turn
-
Hydraulic capacity
5.9 U.S. gal.
5.6 L -
Hydraulic oil cooler
Fins and fan
-
Filter
Internal, replaceable
Buyer's note
-
Warranty
36 months or 1500 hours, whichever comes first, no hour limitation for the first 24 months.
Tires
-
Drive wheels
24x12.00-12 4-ply turf, optional 24x12N12 Michelin Tweel turf tires
-
Rear tires
24x12.00-12 4-ply turf, optional 24x12N12 Michelin Tweel turf tires
-
Load rating
4PR
Brakes
-
Dynamic braking
Twin motion control levers
-
Park brake
Internal wet disk integrated in the transmission
-
Park brake actuation
Foot brake engagement also brings steering levers to the neutral position
PTO
-
Type
Electric clutch
-
Drive
V-belt
Mower decks
-
Size
Side discharge, 54 in.
137 cm
Side discharge, 60 in.
152 cm
Side discharge, Mulch On Demand, 60 in.
Side discharge, 72 in.
183 cm -
Deck construction
One-piece stamped steel with reinforcements
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side-discharge, Side-discharge, Mulch On Demand
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm -
Cutting width
54, 60, 72 in.
137, 152, 183 cm
Blades
-
Length
Varies by deck size
-
Thickness
0.25 in.
0.64 cm -
Blade tip speed
Approximately 16,000 fpm
4,877 m/min -
Number
Three
Wheels
-
Caster wheel type
Flat free
-
Caster wheels
13x5.0-6
-
Front anti-scalp rollers
LH, RH, Center
-
Rear anti-scalp rollers
Standard
Dimensions
-
Length
88.6 in.
225 cm -
Width
With 54-in. side-discharge mower 68 in.
172.7 cm
With 60-in. side-discharge mower 74 in.
188 cm
With 60-in. Mulch On Demand side-discharge mower 74 in.
With 72-in. side-discharge mower 86 in.
218.4 cm -
Height
With ROPS up 73 in.
185 cm
With ROPS down 47 in.
119 cm -
Weight
54-in. side discharge 1,660 lb
753 kg
60-in. side discharge 1,700 lb
771 kg
60-in. Mulch On Demand 1,720 lb
780 kg
72-in. side discharge 1,760 lb
798 kg
Back to Top
