Premium Riding Mowers

Explore Our Wide Selection Of John Deere Premium Riding Mowers

Click on products below to learn more.

S200 Series

Available models: S240S220

Details

Details:

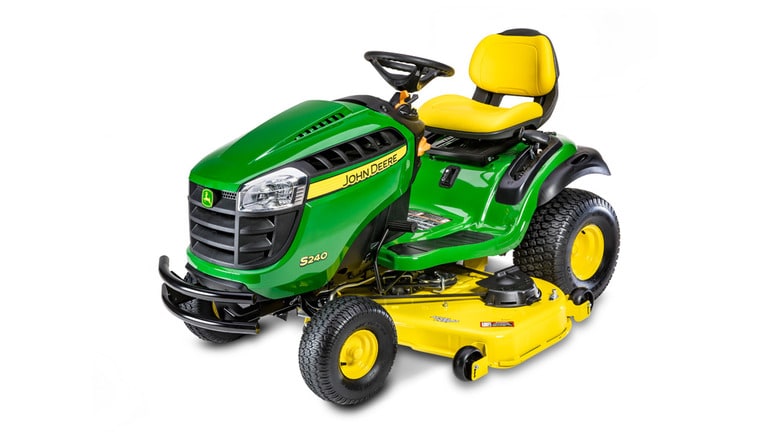

S240

Lawn Tractor with 42-in. or 48-in Deck

Two side-by-side forward and reverse pedals
Wide, welcoming operator station
Cool and comfortable 15-in (38 cm) open, high-back seat
Powerful V-Twin Engine
Tested and proven 42-in. (106.7-cm) Edge Cutting System

DetailsFeaturesSpecifications

Details:

S220

Lawn Tractor with 42-in. Deck

22 HP* Cyclonic V-Twin Engine
42-in. (107-cm) Accel Deep™ Deck, compatible with optional MulchControl™ kit
Comfortable 15-in (38-cm) open-back seat
Side-by-side forward and reverse pedals
3-year/200-hour bumper-to-bumper warranty

Features:

Cyclonic V-twin engine is smooth running and powerful
42-in. (107-cm) Accel Deep™ (42A) Mower Deck cuts clean and is versatile
MulchControl™ system provides superior mulching performance and rapid conversion
Three-year or 200-hour bumper-to-bumper warranty is standard
Hydrostatic/automatic drive transmission gives an infinite choice of ground speeds
Snow removal is a strength of lawn tractors
Full-length, welded-steel frame and cast-iron front axle for reliability
Operator station designed for operator comfort and convenience
Instruments and controls are easy to find and convenient to use
Serviceability is convenient with easy-open hood
Help maintain your mower and lawn with the MowerPlus™ app and connector

Specifications:

Key Specs
- Engine power
  22 hp
  16.4 kW
- Oil change
  No-tools oil drain with replaceable filter
- Engine manufacturer/model
  44J6 Cyclonic
- Transaxle type
  TLT200 hydrostatic, two-wheel drive
- Transaxle control
  Side-by-side pedals
- Rear tires
  20x10-8
- Lift system type
  Spring-assisted hand-grip lever
- Cutting width
  Accel Deep™ mower deck, 42 in.
  107 in.
- U.S. warranty
  3-year/200-hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  22 hp
  16.4 kW
- Displacement
  44.2 cu in.
  724 cc
- Manufacturer/model
  44J6 Cyclonic
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  Separate levers, automatic choke return
- Cooling method
  Air
- Air cleaner
  Pleated paper cartridge filter with poly pre-filter
- Oil change
  No-tools oil drain with replaceable filter
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump and carburetor
- Fuel gauge
  Mechanical, viewable from seat
- Fuel tank location
  Rear
- Fuel fill opening
  Center, 1.75 in.
  4.45 cm
- Fuel tank capacity
  2.4 U.S. gal.
  9.1 L
Electrical system
- Battery
  12 V
  300 CCA
- Charging system
  Flywheel alternator, regulated, 14 amp
- Engine starter
  Bendix type
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent
- Taillights or reflector
  No
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  No
Transaxle
- Type
  TLT200 hydrostatic, two-wheel drive
- Control
  Side-by-side pedals
- Cruise control
  Standard
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Internal, not replaceable
- Differential lock
  No
- Forward speed
  0-5.5 mph
  0-8.9 km/h
- Reverse speed
  0-3.2 mph
  0-5.2 km/h
- Brakes
  Internal wet disk
Chassis
- Frame
  Full-length welded steel
- Primer/paint
  E-coat/powder
- Weight bracket
  Optional rear
- Receiver hitch
  No
- Front axle
  Cast iron front axle, front wheel sealed ball bearings
- Spindle bushings
  No
- Front tires
  15x6-6
- Rear tires
  20x10-8
- Hood material
  Molded-in color material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Yes, with debris removing channels
- Storage
  Storage tray with cover
- Service interval decal
  Yes
- Fender handles/grips
  No
- Cup holder
  Yes
- Equipment mounting
  CargO Mount™ system
- Maximum towing capacity
  500 lb
  227 kg
Steering
- Type
  Sector and pinion with single drag link and tie rod
- Four-wheel steer
  Not available on this model
- Steering wheel
  Standard design, diameter - 12 in.
  30.5 cm
- Tilt steering wheel
  No
- Turning radius
  18 in.
  45.7 cm
- Uncut circle radius
  24 in.
  61 cm
Seat
- Type
  Two piece with open-back
- Seat back height
  15 in.
  38.1 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, 5.5 in.
  14 cm
- Seat suspension
  Tilt, two rubber isolators
Lift system
- Type
  Spring-assisted hand-grip lever
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  No
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep mower deck, 42 in.
  107 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  Steel, 12 gauge
  0.105 in.
  2.6 mm
- Mower wash port
  Yes, with hose end
- Mower drive system
  Manual power take-off (PTO) clutch
- Mower wheels
  Two
- Mower wheel adjustment
  One bolt
- Mower level adjustment
  Easy-level deck
Mower attachability
- Type
  Slide under tractor
- Front draft arms
  One spring clip
- Rear draft arms
  Two spring clips
- Mower wheels rotate
  No
- Drive system
  Single V-belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Molded-in color material reduces sound, will not rust or dent
  Durable primer and powder paint finish
  Large, 14-in. (36-cm) steering wheel for more comfortable operation
- Warranty
  3-year/200-hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Rear bagger
  2-bag, 6.5 bu
  229 L
- Mulching system
  Yes, MulchControl™
- Front blade
  46 in.
  116.8 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Sprayer
  Tow-behind only, 15 U.S. gal.
  56.8 L
  Tow-behind only, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind only, 125 lb
  57.7 kg
  Tow-behind only, 175 lb
  79.4 kg
- Front bumper
  Included
- Weather protection
  Weather enclosure
- Sun canopy
  Sun canopy
- Bucket holder
  Yes, single bucket
- Grass striping
  Lawn striping kit
- Tow-behind tools
  16
Dimensions
- Height
  45 in.
  114 cm
- Overall length
  75.1 in.
  191 cm
- Wheelbase
  48.9 in.
  124.2 cm
- Width with mower
  50 in.
  127 cm
- Width with mower (deflector raised for storage)
  49 in.
  124 cm
- Weight
  481 lb
  218 kg
Additional information
- Manufacturing location
  Greeneville, Tennessee, USA
- Date collected
  1-Sept-2021

S240 Series

X300 Select Series

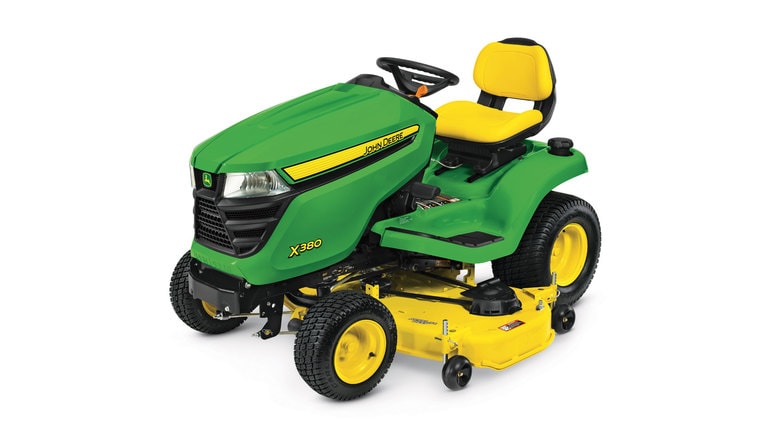

Available models: X330X350X350RX354X370X380X384X390X394

Details

Details:

X330

Lawn Tractor with 42 or 48 in. Deck

Powered by 20 hp (14.9 kW)* Cyclonic engine
42-in. Accel Deep™ Mower Deck
Easy mulching with optional MulchControl™ Kit (one-touch or from deck versions)
Upgraded instrument panel
4 year/300 hour bumper-to-bumper warranty

Details

Details:

X350

Lawn Tractor with 42 or 48 in. Deck

Powered by 18.5 hp (13.8 kW)* iTorque™ Power System
42-in. Accel™ Deep Deck
Easy mulching with optional MulchControl™ Kit (one-touch or from deck versions)
Upgraded instrument panel
4 year/300 hour bumper-to-bumper warranty

DetailsFeaturesSpecifications

Details:

X350R

Lawn Tractor with 42-inch Rear-Discharge Deck

18.5-hp (13.8 kW)* V-twin, full-pressure lubricated, air-cooled
Rear-discharge, rear-collect deck cuts clean
Rear hopper has large capacity and is easy to empty
4 year/300 hour bumper-to-bumper warranty

Features:

Engine is smooth-running and reliable V-twin air-cooled design
42-in. (107-cm) Rear-Discharge Rear-Collect Mower Deck cuts clean
Rear hopper has large capacity and is easy to empty
Four-year or 300-hour bumper-to-bumper warranty is standard
Snow removal is a strength of lawn tractors
Steering is low-effort sector and pinion system
Integrated hydrostatic transaxle is efficient
Controls and display functions are easy to identify and convenient to use
Frame is reliable heavy-duty welded steel
Modern styling is eye-appealing and functional
Operator station is comfortable and convenient
Serviceability convenience is built in
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  18.5 hp
  13.8 kW
- Engine manufacturer/model
  FS600V
- Transaxle type
  K46 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  20x10-8
- Steering type
  Manual, sector and pinion
- Lift system type
  Foot pedal with non-adjustable spring assist, optional adjustable spring assist kit available (required for snow blower use)
- Cutting width
  42 in.
  107 cm
- U.S. warranty
  4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  18.5 hp
  13.8 kW
- Displacement
  36.8 cu in.
  603 cc
- Manufacturer/model
  FS600V
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  Separate levers, automatic choke return
- Cooling method
  Air
- Air cleaner
  Dry, replaceable with foam precleaner
- Oil drain
  No tools
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump, carburetor
- Fuel gauge
  Low fuel indicator
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  2 U.S. gal.
  7.6 L
Electrical system
- Battery
  12 V
  340 CCA
- Charging system
  Flywheel alternator, regulated, 15 amp
- Engine starter
  Bendix
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent, 27 W
- Taillights or reflector
  No
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  Optional
Transaxle
- Type
  K46 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes, button on dash
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Internal, not replaceable
- Differential lock
  No
- Forward speed
  0-5.3 mph
  0-8.5 km/h
- Reverse speed
  0-4 mph
  0-6.4 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Optional front
- Receiver hitch
  No
- Front axle
  Cast iron front axle, front wheel ball bearings
- Spindle bushings
  No
- Front tires
  15x6-6
- Rear tires
  20x10-8
- Hood material
  Molded-in color hood material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Sure-grip rubber
- Storage
  On fender and under seat
- Service interval decal
  Yes
- Fender handles/grips
  No
- Cup holder
  Yes
- Equipment mounting
  Yes, front
Steering
- Type
  Manual, sector and pinion
- Four-wheel steer
  Not available on this model
- Steering wheel
  Large, 14 in.
  35.6 cm
- Tilt steering wheel
  No
- Turning radius
  16.5 in.
  42 cm
- Uncut circle radius
  Right, 23 in.
  58.4 cm
  Left 28 in.
  71.1 cm
Seat
- Type
  Open-back design with grasp
- Seat back height
  15 in.
  38.1 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Tilt, two coil springs, three-position no-tools adjustment for operator weight
Lift system
- Type
  Foot pedal with non-adjustable spring assist, optional adjustable spring assist kit available (required for snow blower use)
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-9.5 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Rear discharge, rear collect, mulch
- Cutting width
  42 in.
  107 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  11 gauge
  0.12 in.
  3 mm
- Mower wash port
  Yes
- Mower drive system
  Electric power take-off (PTO) clutch, in-line belt
- Mower wheels
  Three
- Mower wheel adjustment
  Four-position, tool required
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Slide under tractor
- Front draft arms
  Attached with spring pins at two points
- Rear draft arms
  Two pins and spring clips
- Mower wheels rotate
  No
- Drive system
  Dual belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Includes rear hopper and mulch plug, optional rear deflector available
  One-piece hood for easy service access, molded-in color hood material reduces sound and will not rust or dent
  Durable E-coat primer and powder-paint finish
- Warranty
  4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  Rear discharge, rear collect (standard), 42 in.
  107 cm
- Rear bagger
  Rear hopper, 8.5 bu
  300 L
- Mulching system
  Standard mulch plug
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  44 in.
  111.8 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Sprayer
  Tow-behind, 15 U.S. gal.
  56.8 L
  Tow-behind, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind, 125 lb
  57.7 kg
  Tow-behind, 175 lb
  79.4 kg
- Front bumper
  Styled bumper option
- Brush guard
  Yes
- Grass striping
  Lawn striping kit
- Tractor shovel
  40 in.
  101.6 cm
- Tow-behind tools
  16
Dimensions
- Height
  47 in.
  120 cm
- Overall length
  99 in.
  251.4 cm
- Wheelbase
  49.4 in.
  125.5 cm
- Width with mower
  43.8 in.
  111 cm
- Width without mower
  38 in.
  96.5 cm
- Weight
  Mower, no fuel, 646 lb
  293 kg

DetailsFeaturesSpecifications

Details:

X354

Lawn Tractor with 42-in. Deck

Exclusive 4-wheel steering for excellent maneuverability
Powered by 18.5 hp (13.8 kW)* iTorque™ Power System
42-in. Accel Deep™ mower deck
Easy mulching with optional MulchControl™ Kit (one-touch or from deck versions)
4 year/300 hour bumper-to-bumper warranty

Features:

Engine is smooth-running and reliable V-twin air-cooled design
The 42-in. (107-cm) Accel Deep™ (42A) Mower Deck cuts clean and is versatile
Four-year or 300-hour bumper-to-bumper warranty is standard
Four-wheel steer gives superior maneuverability and trimming ability
Lever-action or electric one-touch MulchControl™ options are available for extra mowing convenience
Snow removal is a strength of lawn tractors
Integrated hydrostatic transaxle efficiently transmits power to wheels
Controls and display functions are easy to identify and convenient to use
Frame is reliable heavy-duty welded steel
Modern styling with functional design enhances appearance and performance
Operator station is comfortable and convenient
Serviceability is convenient with easy-open hood
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  18.5 hp
  13.8 kW
- Engine manufacturer/model
  FS600V
- Transaxle type
  K46 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  20x10-10
- Steering type
  Manual, sector and pinion
- Lift system type
  Foot pedal with optional adjustable spring assist kit
- Cutting width
  Accel Deep™ mower deck, 42 in.
  107 cm
- U.S. warranty
  4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  18.5 hp
  13.8 kW
- Displacement
  36.8 cu in.
  603 cc
- Manufacturer/model
  FS600V
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  Separate levers, automatic choke return
- Cooling method
  Air
- Air cleaner
  Dry, replaceable with foam precleaner
- Oil drain
  No tools
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump, carburetor
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  3.3 U.S. gal.
  12.5 L
Electrical system
- Battery
  12 V
  340 CCA
- Charging system
  Flywheel alternator, regulated, 15 amp
- Engine starter
  Bendix
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent, 27 W
- Taillights or reflector
  No
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  Optional
Transaxle
- Type
  K46 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes, button on dash
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Internal, not replaceable
- Differential lock
  No
- Forward speed
  0-5.5 mph
  0-8.9 km/h
- Reverse speed
  0-4 mph
  0-6.4 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Optional front and rear
- Receiver hitch
  No
- Front axle
  Cast iron front axle, front wheel ball bearings
- Spindle bushings
  No
- Front tires
  15x6-6
- Rear tires
  20x10-10
- Hood material
  Molded-in color hood material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Sure-grip rubber
- Storage
  On fender and under seat
- Service interval decal
  Yes
- Fender handles/grips
  No
- Cup holder
  Yes
- Equipment mounting
  Yes, heavy duty
Steering
- Type
  Manual, sector and pinion
- Four-wheel steer
  Yes
- Steering wheel
  Large, 14 in.
  35.6 cm
- Tilt steering wheel
  No
- Turning radius
  15 in.
  38.1 cm
- Uncut circle radius
  15 in.
  38.1 cm
Seat
- Type
  Open-back design with grasp
- Seat back height
  15 in.
  38.1 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Tilt, two coil springs, three-position no-tools adjustment for operator weight
Lift system
- Type
  Foot pedal with optional adjustable spring assist kit
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep™ mower deck, 42 in.
  107 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  12 gauge
  0.105 in.
  2.7 mm
- Mower wash port
  Yes
- Mower drive system
  Electric power take-off (PTO) clutch, in-line belt
- Mower wheels
  Two
- Mower wheel adjustment
  Four-position, tool required
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Slide under tractor
- Front draft arms
  Attached with spring pins at two points
- Rear draft arms
  Two pins and spring clips
- Mower wheels rotate
  No
- Drive system
  Single belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  One-piece hood for easy service access, molded-in color hood material reduces sound and will not rust or dent
  4-wheel steering for unmatched maneuverability and trimming capability
  Durable E-coat primer and powder-paint finish
- Warranty
  4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  42A (standard)
- Rear bagger
  2-bag, 7 bu
  247 L
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  44 in.
  111.8 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Sprayer
  Tow-behind, 15 U.S. gal.
  56.8 L
  Tow-behind, 25 U.S. gal.
  94.6 L
  Mounted, 25 U.S. gal.
- Spreader
  Tow-behind, 125 lb
  57.7 kg
  Tow-behind, 175 lb
  79.4 kg
  Mounted, 125 lb
- Front bumper
  Styled bumper option
- Brush guard
  Yes
- Weather protection
  Weather enclosure
- Sun canopy
  Yes
- Bucket holder
  Yes, double bucket
- Grass striping
  Lawn striping kit
- Tractor shovel
  40 in.
  101.6 cm
- Tow-behind tools
  16
Dimensions
- Height
  47 in.
  120 cm
- Overall length
  72 in.
  182.9 cm
- Wheelbase
  49.4 in.
  125.5 cm
- Width with mower
  50.5 in.
  128 cm
- Width with mower (deflector raised for storage)
  50.5 in.
  128 cm
- Width without mower
  41 in.
  104.1 cm
- Weight
  Mower, no fuel, 623 lb
  283 kg

DetailsFeaturesSpecifications

Details:

X370

Lawn Tractor with 42-inch Deck

Powered by 18.5 hp (13.8 kW)* iTorque™ Power System
42-in. Accel Deep™ Deck
Easy mulching with optional MulchControl™ Kit (one-touch or from deck versions)
Automotive-style power steering
4 year/300 hour bumper-to-bumper warranty

Features:

Engine is smooth-running and reliable V-twin air-cooled design
The 42-in. (107-cm) Accel Deep™ (42A) Mower Deck cuts clean and is versatile
Four-year or 300-hour bumper-to-bumper warranty is standard
Power steering and hydraulic lift enable easy operation
Lever-action or electric one-touch MulchControl™ options are available for extra mowing convenience
Snow removal is a strength of lawn tractors
Integrated hydrostatic transaxle efficiently transmits power to wheels
Controls are convenient and easy to find
Frame is reliable heavy-duty welded steel
Modern styling with functional design enhances appearance and performance
Operator station is comfortable and convenient
Serviceability is convenient with easy-open hood
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  18.5 hp
  13.8 kW
- Engine manufacturer/model
  FS600V
- Transaxle type
  K57 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  20x10-8
- Steering type
  Power, hydraulic
- Lift system type
  Hydraulic
- Cutting width
  Accel Deep™ mower deck, 42 in.
  107 cm
- U.S. warranty
  4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  18.5 hp
  13.8 kW
- Displacement
  36.8 cu in.
  603 cc
- Manufacturer/model
  FS600V
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  Separate levers, automatic choke return
- Cooling method
  Air
- Air cleaner
  Dry, replaceable with foam precleaner
- Oil drain
  No tools
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump, carburetor
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  3.3 U.S. gal.
  12.5 L
Electrical system
- Battery
  12 V
  340 CCA
- Charging system
  Flywheel alternator, regulated, 15 amp
- Engine starter
  Bendix
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent, 27 W
- Taillights or reflector
  No
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  Optional
Transaxle
- Type
  K57 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes, button on dash
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Internal, replaceable
- Differential lock
  No
- Forward speed
  0-5.8 mph
  0-9.3 km/h
- Reverse speed
  0-3.5 mph
  0-5.6 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Standard rear, optional front
- Receiver hitch
  No
- Front axle
  Cast iron front axle, front wheel ball bearings
- Spindle bushings
  Metal, replaceable
- Front tires
  15x6-6
- Rear tires
  20x10-8
- Hood material
  Molded-in color hood material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Sure-grip rubber
- Storage
  On fender and under seat
- Service interval decal
  Yes
- Fender handles/grips
  No
- Cup holder
  Yes
- Equipment mounting
  Yes, heavy duty
Steering
- Type
  Power, hydraulic
- Four-wheel steer
  Not available on this model
- Steering wheel
  Large, 14 in.
  35.6 cm
- Tilt steering wheel
  No
- Turning radius
  22 in.
  55.9 cm
- Uncut circle radius
  30 in.
  76 cm
Seat
- Type
  Open-back design with grasp
- Seat back height
  15 in.
  38.1 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Tilt, two coil springs, three-position no-tools adjustment for operator weight
Lift system
- Type
  Hydraulic
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep™ mower deck, 42 in.
  107 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  12 gauge
  0.105 in.
  2.7 mm
- Mower wash port
  Yes
- Mower drive system
  Electric power take-off (PTO) clutch, in-line belt
- Mower wheels
  Two
- Mower wheel adjustment
  Four-position, tool required
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Slide under tractor
- Front draft arms
  Attached with spring pins at two points
- Rear draft arms
  Two pins and spring clips
- Mower wheels rotate
  No
- Drive system
  Single belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Hydraulic power lift for superior convenience and ease of use
  Power steering for exceptional maneuverability and comfort
  One-piece hood for easy service access, molded-in color hood material reduces sound and will not rust or dent
  Durable E-coat primer and powder-paint finish
- Warranty
  4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  42A (standard)
- Rear bagger
  2-bag, 7 bu
  247 L
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  44 in.
  111.8 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Sprayer
  Tow-behind, 15 U.S. gal.
  56.8 L
  Tow-behind, 25 U.S. gal.
  94.6 L
  Mounted, 25 U.S. gal.
- Spreader
  Tow-behind, 125 lb
  57.7 kg
  Tow-behind, 175 lb
  79.4 kg
  Mounted, 125 lb
- Front bumper
  Styled bumper option
- Brush guard
  Yes
- Weather protection
  Weather enclosure
- Sun canopy
  Yes
- Bucket holder
  Yes, double bucket
- Grass striping
  Lawn striping kit
- Tractor shovel
  40 in.
  101.6 cm
- Tow-behind tools
  16
Dimensions
- Height
  47 in.
  120 cm
- Overall length
  72 in.
  182.9 cm
- Wheelbase
  49.4 in.
  125.5 cm
- Width with mower
  50.5 in.
  128 cm
- Width with mower (deflector raised for storage)
  50.5 in.
  128 cm
- Width without mower
  38 in.
  96.5 cm
- Weight
  Mower, no fuel, 570 lb
  259 kg

Details

Details:

X380

Lawn Tractor with 48 or 54 in. Deck

48-in. Accel Deep™ Deck
Easy mulching with optional MulchControl™ Kit (one-touch or from deck versions)
Powered by 22 hp (16.4 kW)* iTorque™ Power System
Twin Touch™ hydrostatic transmission
4 year/300 hour bumper-to-bumper warranty

DetailsFeaturesSpecifications

Details:

X384

Lawn Tractor with 48-inch Deck

Exclusive 4-wheel steering for excellent maneuverability
48-in. Accel Deep™ mower deck
Easy mulching with optional MulchControl™ Kit (one-touch or from deck versions)
Powered by 22 hp (16.4 kW)* iTorque™ Power System
4 year/300 hour bumper-to-bumper warranty

Features:

Engine is smooth running and reliable V-twin air-cooled design
The 48-in. (122-cm) Accel Deep™ (48A) Mower Deck cuts clean and is versatile
Four-year or 300-hour bumper-to-bumper warranty is standard
Four-wheel steer gives superior maneuverability and trimming ability
Lever-action or electric one-touch MulchControl™ options are available for extra mowing convenience
Snow removal is a strength of lawn tractors
Integrated hydrostatic transaxle efficiently transmits power to wheels
Controls and display functions are easy to identify and convenient to use
Frame is reliable heavy-duty welded steel
Modern styling with functional design enhances appearance and performance
Operator station is comfortable and convenient
Serviceability is convenient with easy-open hood
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  22 hp
  16.4 kW
- Engine manufacturer/model
  FS651V
- Transaxle type
  K58 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  20x10-10
- Steering type
  Manual, sector and pinion
- Lift system type
  Foot pedal with adjustable spring assist
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
- U.S. warranty
  4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  22 hp
  16.4 kW
- Displacement
  44.3 cu in.
  726 cc
- Manufacturer/model
  FS651V
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  Separate levers, automatic choke return
- Cooling method
  Air
- Air cleaner
  Dry, replaceable with foam precleaner
- Oil drain
  No tools
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump, carburetor
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  3.3 U.S. gal.
  12.5 L
Electrical system
- Battery
  12 V
  340 CCA
- Charging system
  Flywheel alternator, regulated, 15 amp
- Engine starter
  Bendix
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent, 27 W
- Taillights or reflector
  No
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  Optional
Transaxle
- Type
  K58 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes, button on dash
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Internal, not replaceable
- Differential lock
  No
- Forward speed
  0-5.9 mph
  0-9.5 km/h
- Reverse speed
  0-3.5 mph
  0-5.6 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Optional front and rear
- Receiver hitch
  No
- Front axle
  Cast iron front axle, front wheel ball bearings
- Spindle bushings
  No
- Front tires
  15x6-6
- Rear tires
  20x10-10
- Hood material
  Molded-in color hood material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Sure-grip rubber
- Storage
  On fender and under seat
- Service interval decal
  Yes
- Fender handles/grips
  No
- Cup holder
  Yes
- Equipment mounting
  Yes, heavy duty
Steering
- Type
  Manual, sector and pinion
- Four-wheel steer
  Yes
- Steering wheel
  Large, 14 in.
  35.6 cm
- Tilt steering wheel
  No
- Turning radius
  15 in.
  38.1 cm
- Uncut circle radius
  9 in.
  22.9 cm
Seat
- Type
  Open-back design with grasp
- Seat back height
  15 in.
  38.1 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Tilt, two coil springs, three-position no-tools adjustment for operator weight
Lift system
- Type
  Foot pedal with adjustable spring assist
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  10 gauge
  0.135 in.
  3.4 mm
- Mower wash port
  Yes
- Mower drive system
  Electric power take-off (PTO) clutch, in-line belt
- Mower wheels
  Four
- Mower wheel adjustment
  Seven-position, spring-loaded pin
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Roll under tractor
- Front draft arms
  Attached with spring pins at two points
- Rear draft arms
  Quick-pull pins
- Mower wheels rotate
  Yes, 90 degrees for easy mower removal
- Drive system
  Dual belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  One-piece hood for easy service access, molded-in color hood material reduces sound and will not rust or dent
  4-wheel steering for unmatched maneuverability and trimming capability
  Durable E-coat primer and powder-paint finish
- Warranty
  4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  48A (standard)
- Rear bagger
  7, 19 bu
  247, 670 L
- Powered material collection
  Power Flow™ blower
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  44 in.
  111.8 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Sprayer
  Tow-behind, 15 U.S. gal.
  56.8 L
  Tow-behind, 25 U.S. gal.
  94.6 L
  Mounted, 25 U.S. gal.
- Spreader
  Tow-behind, 125 lb
  57.7 kg
  Tow-behind, 175 lb
  79.4 kg
  Mounted, 125 lb
- Front bumper
  Styled bumper option
- Brush guard
  Yes
- Weather protection
  Weather enclosure
- Sun canopy
  Yes
- Bucket holder
  Yes, double bucket
- Grass striping
  Lawn striping kit
- Tractor shovel
  40 in.
  101.6 cm
- Tow-behind tools
  16
Dimensions
- Height
  47 in.
  120 cm
- Overall length
  72 in.
  182.9 cm
- Wheelbase
  49.4 in.
  125.5 cm
- Width with mower
  62.5 in.
  159 cm
- Width with mower (deflector raised for storage)
  53.6 in.
  136 cm
- Width without mower
  41 in.
  104.1 cm
- Weight
  Mower, no fuel, 700 lb
  318 kg

Details

Details:

X390

Lawn Tractor with 48 or 54 in. Deck

54-in. Accel Deep™ Deck
Easy mulching with optional MulchControl™ Kit (one-touch or from deck versions)
Powered by 22 hp (16.4 kW)* iTorque™ Power System
Automotive-style power steering
4 year/300 hour bumper-to-bumper warranty

DetailsFeaturesSpecifications

Details:

X394

Lawn Tractor with 48-inch Deck

48-in. Accel Deep™ Deck
Easy mulching with optional MulchControl™ Kit (one-touch or from deck versions)
4-wheel steer
Automotive-style power steering
4 year/300 hour bumper-to-bumper warranty

Features:

Engine is smooth running and reliable V-twin air-cooled design
The 48-in. (122-cm) Accel Deep™ (48A) Mower Deck cuts clean and is versatile
Four-year or 300-hour bumper-to-bumper warranty is standard
Four-wheel power steering gives superior maneuverability and trimming ability
Lever-action or electric one-touch MulchControl™ options are available for extra mowing convenience
Snow removal is a strength of lawn tractors
Integrated hydrostatic transaxle efficiently transmits power to wheels
Power steering and hydraulic lift enable easy operation
Controls are convenient and easy to find
Frame is reliable heavy-duty welded steel
Modern styling with functional design enhances appearance and performance
Operator station is comfortable and convenient
Serviceability is convenient with easy-open hood
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  22 hp
  16.4 kW
- Engine manufacturer/model
  FS651V
- Transaxle type
  K58 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  22x9.5-12
- Steering type
  Power, hydraulic
- Lift system type
  Hydraulic
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
- U.S. warranty
  4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  22 hp
  16.4 kW
- Displacement
  44.3 cu in.
  726 cc
- Manufacturer/model
  FS651V
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  Separate levers, automatic choke return
- Cooling method
  Air
- Air cleaner
  Dry, replaceable with foam precleaner
- Oil drain
  No tools
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump, carburetor
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  3.3 U.S. gal.
  12.5 L
Electrical system
- Battery
  12 V
  340 CCA
- Charging system
  Flywheel alternator, regulated, 15 amp
- Engine starter
  Bendix
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent, 27 W
- Taillights or reflector
  No
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  Optional
Transaxle
- Type
  K58 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes, button on dash
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Internal, not replaceable
- Differential lock
  No
- Forward speed
  0-6.2 mph
  0-10 km/h
- Reverse speed
  0-3.5 mph
  0-5.6 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Optional front and rear
- Receiver hitch
  No
- Front axle
  Cast iron front axle, front wheel ball bearings
- Spindle bushings
  Metal, replaceable
- Front tires
  15x6.5-8
- Rear tires
  22x9.5-12
- Hood material
  Molded-in color hood material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Sure-grip rubber
- Storage
  On fender and under seat
- Service interval decal
  Yes
- Fender handles/grips
  No
- Cup holder
  Yes
- Equipment mounting
  Yes, heavy duty
Steering
- Type
  Power, hydraulic
- Four-wheel steer
  Yes
- Steering wheel
  Large, 14 in.
  35.6 cm
- Tilt steering wheel
  Standard, five position
- Turning radius
  19 in.
  48.3 cm
- Uncut circle radius
  15 in.
  38 cm
Seat
- Type
  Open-back design with grasp
- Seat back height
  15 in.
  38.1 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Tilt, two coil springs, three-position no-tools adjustment for operator weight
Lift system
- Type
  Hydraulic
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  10 gauge
  0.135 in.
  3.4 mm
- Mower wash port
  Yes
- Mower drive system
  Electric power take-off (PTO) clutch, in-line belt
- Mower wheels
  Four
- Mower wheel adjustment
  Seven-position, spring-loaded pin
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Roll under tractor
- Front draft arms
  Attached with spring pins at two points
- Rear draft arms
  Quick-pull pins
- Mower wheels rotate
  Yes, 90 degrees for easy mower removal
- Drive system
  Dual belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  One-piece hood for easy service access, molded-in color hood material reduces sound and will not rust or dent
  4-wheel steering for unmatched maneuverability and trimming capability
  Power steering with tilt steering wheel for exceptional maneuverability and comfort
  Hydraulic power lift for superior convenience and ease of use
- Warranty
  4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  48A (standard)
- Rear bagger
  7, 19 bu
  247, 670 L
- Powered material collection
  Power Flow™ blower
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  44 in.
  111.8 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Sprayer
  Tow-behind, 15 U.S. gal.
  56.8 L
  Tow-behind, 25 U.S. gal.
  94.6 L
  Mounted, 25 U.S. gal.
- Spreader
  Tow-behind, 125 lb
  57.7 kg
  Tow-behind, 175 lb
  79.4 kg
  Mounted, 125 lb
- Front bumper
  Styled bumper option
- Brush guard
  Yes
- Weather protection
  Weather enclosure
- Sun canopy
  Yes
- Bucket holder
  Yes, double bucket
- Grass striping
  Lawn striping kit
- Tractor shovel
  40 in.
  101.6 cm
- Tow-behind tools
  16
Dimensions
- Height
  47 in.
  120 cm
- Overall length
  74 in.
  188 cm
- Wheelbase
  51.2 in.
  130 cm
- Width with mower
  62.5 in.
  159 cm
- Width with mower (deflector raised for storage)
  53.6 in.
  136 cm
- Width without mower
  45 in.
  114 cm
- Weight
  Mower, no fuel, 755 lb
  342 kg

X500 Select Series

Available models: X570X570 X580X584X590

DetailsFeaturesSpecifications

Details:

X570

Lawn Tractor with 48-in. Deck

48-in. Accel Deep™ Mower Deck
Easy mulching with optional MulchControl™ Kit (one-touch or from deck versions)
Powered by 24 hp (17.9 kW)* iTorque™ Power System
Twin Touch™ hydrostatic transmission
4-year/500-hour bumper-to-bumper warranty

Features:

Engine is smooth running and reliable V-twin air-cooled design
The 48-in. (122-cm) Accel Deep™ (48A) Mower Deck cuts clean and is versatile
Four-year or 500-hour bumper-to-bumper warranty is standard
Hydrostatic transaxle has traction assist
Lever-action or electric one-touch MulchControl™ options are available for extra mowing convenience
Snow removal and yard care is a strength of lawn tractors
Steering is low-effort sector and pinion system
Control and display functions are easy to identify and convenient to use
Frame is formed from heavy-duty steel and welded for reliability
Modern styling is eye appealing and functional
Operator station is comfortable and convenient
Serviceability is convenient with easy-open hood
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  24 hp
  17.9 kW
- Engine manufacturer/model
  FS730V
- Transaxle type
  K72 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  24x12-12 turf
- Steering type
  Manual, sector and pinion
- Lift system type
  Foot pedal with adjustable spring assist
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
- U.S. warranty
  4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  24 hp
  17.9 kW
- Displacement
  44.3 cu in.
  726 cc
- Manufacturer/model
  FS730V
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  Separate levers, automatic choke return
- Cooling method
  Air
- Air cleaner
  Dry, replaceable with foam precleaner
- Oil drain
  No tools
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump and carburetor
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  4.4 U.S. gal.
  16.7 L
Electrical system
- Battery
  12 V
  500 CCA
- Charging system
  Flywheel alternator, regulated, 15 amp
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent, 27 W
- Taillights or reflector
  Reflectors
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  Yes
Transaxle
- Type
  K72 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes, button on dash
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Yes
- Differential lock
  Standard
- Forward speed
  0-7.2 mph
  0-11.6 km/h
- Reverse speed
  0-5.2 mph
  0-8.4 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Standard rear, optional front - each holds up to four Quik-Tatch weights, 42 lb
  19 kg
- Receiver hitch
  No
- Front axle
  Cast iron front axle, front wheel ball bearings
- Spindle bushings
  Metal, replaceable
- Front tires
  15x6.5-8
- Rear tires
  24x12-12 turf
- Hood material
  Molded-in color hood material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Sure-grip rubber
- Storage
  Yes, under seat and covered toolbox
- Service interval decal
  Yes
- Fender handles/grips
  Handles
- Cup holder
  Yes
- Equipment mounting
  Yes, heavy duty
Steering
- Type
  Manual, sector and pinion
- Four-wheel steer
  Not available on this model
- Steering wheel
  14 in.
  35.6 cm
- Tilt steering wheel
  No
- Turning radius
  16 in.
  40.6 cm
- Uncut circle radius
  23 in.
  58 cm
Seat
- Type
  Open-back design with grasp
- Seat back height
  15 in.
  38.1 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Tilt, two coil springs, three-position no-tools adjustment for operator weight
Lift system
- Type
  Foot pedal with adjustable spring assist
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  10 gauge
  0.135 in.
  3.4 mm
- Mower wash port
  Yes
- Mower drive system
  Electric power take-off (PTO) clutch, in-line belt
- Mower wheels
  Four
- Mower wheel adjustment
  Seven-position, spring-loaded pin
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Roll under tractor
- Front draft arms
  Attached with spring pins at two points
- Rear draft arms
  Quick-pull pins
- Mower wheels rotate
  Yes, 90 degrees for easy mower removal
- Drive system
  Dual belts
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Heavy-duty garden tractor transaxle
  Steering spindle bushings for long life
  Built-in rear weight bracket
- Warranty
  4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  48A (standard)
- Rear bagger
  7, 14, 19 bu
  247, 493, 670 L
- Powered material collection
  Power Flow™ blower
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  48 in.
  121.9 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Rotary tiller
  Mechanical, 30 in.
  76.2 cm
- Sleeve hitch
  Yes, implements include box scraper, rear blade, plow, disk, and cultivator
- Plow, moldboard
  Yes
- Box scraper
  Yes
- Cultivator
  Yes
- Rear blade
  Yes
- Sprayer
  Tow-behind, 15, 25, 45 U.S. gal.
  56.8, 94.6, 170.3 L
  Mounted, 25 U.S. gal.
  94.6 L
- Spreader
  125, 175 lb
  57.7, 79.4 kg
  Mounted, 125 lb
  57.7 kg
- Front bumper
  Styled bumper option
- Brush guard
  Yes
- Weather protection
  Weather enclosure
- Sun canopy
  Yes
- Bucket holder
  Yes, double bucket
- Grass striping
  Lawn striping kit
- Tractor shovel
  40 in.
  101.6 cm
- Tow-behind tools
  19
Dimensions
- Height
  45 in.
  114.3 cm
- Overall length
  75 in.
  190.5 cm
- Wheelbase
  51.2 in.
  130 cm
- Width with mower
  62.5 in.
  159 cm
- Width with mower (deflector raised for storage)
  53.6 in.
  136 cm
- Width without mower
  41 in.
  104.1 cm
- Weight
  Mower, no fuel, 748 lb
  339 kg

DetailsFeaturesSpecifications

Details:

X570

Lawn Tractor with 54-in. Deck

54-in. Accel Deep™ Mower Deck
Easy mulching with optional MulchControl™ Kit (one-touch or from deck versions)
Powered by 24 hp (17.9 kW)* iTorque™ Power System
Twin Touch™ hydrostatic transmission
4-year/500-hour bumper-to-bumper warranty

Features:

Engine is smooth running and reliable V-twin air-cooled design
The 54-in. (137-cm) Accel Deep™ (54A) Mower Deck cuts clean and is versatile
Four-year or 500-hour bumper-to-bumper warranty is standard
Hydrostatic transaxle has traction assist
Lever-action or electric one-touch MulchControl™ options are available for extra mowing convenience
Snow removal and yard care is a strength of lawn tractors
Steering is low-effort sector and pinion system
Control and display functions are easy to identify and convenient to use
Frame is formed from heavy-duty steel and welded for reliability
Modern styling is eye appealing and functional
Operator station is comfortable and convenient
Serviceability is convenient with easy-open hood
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  24 hp
  17.9 kW
- Engine manufacturer/model
  FS730V
- Transaxle type
  K72 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  24x12-12 turf
- Steering type
  Manual, sector and pinion
- Lift system type
  Foot pedal with adjustable spring assist
- Cutting width
  Accel Deep™ mower deck, 54 in.
  137 cm
- U.S. warranty
  4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  24 hp
  17.9 kW
- Displacement
  44.3 cu in.
  726 cc
- Manufacturer/model
  FS730V
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  Separate levers, automatic choke return
- Cooling method
  Air
- Air cleaner
  Dry, replaceable with foam precleaner
- Oil drain
  No tools
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump and carburetor
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  4.4 U.S. gal.
  16.7 L
Electrical system
- Battery
  12 V
  500 CCA
- Charging system
  Flywheel alternator, regulated, 15 amp
- Engine starter
  Solenoid shift
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent, 27 W
- Taillights or reflector
  Reflectors
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  Yes
Transaxle
- Type
  K72 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes, button on dash
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Yes
- Differential lock
  Standard
- Forward speed
  0-7.2 mph
  0-11.6 km/h
- Reverse speed
  0-5.2 mph
  0-8.4 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Standard rear, optional front - each holds up to four Quik-Tatch weights, 42 lb
  19 kg
- Receiver hitch
  No
- Front axle
  Cast iron front axle, front wheel ball bearings
- Spindle bushings
  Metal, replaceable
- Front tires
  15x6.5-8
- Rear tires
  24x12-12 turf
- Hood material
  Molded-in color hood material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Sure-grip rubber
- Storage
  Yes, under seat and covered toolbox
- Service interval decal
  Yes
- Fender handles/grips
  Handles
- Cup holder
  Yes
- Equipment mounting
  Yes, heavy duty
Steering
- Type
  Manual, sector and pinion
- Four-wheel steer
  Not available on this model
- Steering wheel
  14 in.
  35.6 cm
- Tilt steering wheel
  No
- Turning radius
  16 in.
  40.6 cm
- Uncut circle radius
  20 in.
  51 cm
Seat
- Type
  Open-back design with grasp
- Seat back height
  15 in.
  38.1 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Tilt, two coil springs, three-position no-tools adjustment for operator weight
Lift system
- Type
  Foot pedal with adjustable spring assist
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep™ mower deck, 54 in.
  137 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  10 gauge
  0.135 in.
  3.4 mm
- Mower wash port
  Yes
- Mower drive system
  Electric power take-off (PTO) clutch, in-line belt
- Mower wheels
  Four
- Mower wheel adjustment
  Seven-position, spring-loaded pin
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Roll under tractor
- Front draft arms
  Attached with spring pins at two points
- Rear draft arms
  Quick-pull pins
- Mower wheels rotate
  Yes, 90 degrees for easy mower removal
- Drive system
  Dual belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Heavy-duty garden tractor transaxle
  Steering spindle bushings for long life
  Built-in rear weight bracket
- Warranty
  4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  54A (standard)
- Rear bagger
  7, 14, 19 bu
  247, 493, 670 L
- Powered material collection
  Power Flow™ blower
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  48 in.
  121.9 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Rotary tiller
  Mechanical, 30 in.
  76.2 cm
- Sleeve hitch
  Yes, implements include box scraper, rear blade, plow, disk, and cultivator
- Plow, moldboard
  Yes
- Box scraper
  Yes
- Cultivator
  Yes
- Rear blade
  Yes
- Sprayer
  Tow-behind, 15, 25, 45 U.S. gal.
  56.8, 94.6, 170.3 L
  Mounted, 25 U.S. gal.
  94.6 L
- Spreader
  125, 175 lb
  57.7, 79.4 kg
  Mounted, 125 lb
  57.7 kg
- Front bumper
  Styled bumper option
- Brush guard
  Yes
- Weather protection
  Weather enclosure
- Sun canopy
  Yes
- Bucket holder
  Yes, double bucket
- Grass striping
  Lawn striping kit
- Tractor shovel
  40 in.
  101.6 cm
- Tow-behind tools
  19
Dimensions
- Height
  45 in.
  114.3 cm
- Overall length
  75 in.
  190.5 cm
- Wheelbase
  51.2 in.
  130 cm
- Width with mower
  68.4 in.
  174 cm
- Width with mower (deflector raised for storage)
  59.4 in.
  151 cm
- Width without mower
  41 in.
  104.1 cm
- Weight
  Mower, no fuel, 756 lb
  343 kg

DetailsFeaturesSpecifications

Details:

X580

Lawn Tractor with 54-in. Deck

54-in. Accel Deep™ Deck
Easy mulching with optional MulchControl™ Kit (one-touch or from deck versions)
Powered by 24 hp (17.9 kW)* iTorque™ Power System
Automotive-style power steering
4-year/500-hour bumper-to-bumper warranty

Features:

Engine is smooth running and reliable V-twin air-cooled design
The 54-in. (137-cm) Accel Deep™ (54A) Mower Deck cuts clean and is versatile
Four-year or 500-hour bumper-to-bumper warranty is standard
Power steering and hydraulic lift enable easy operation
Hydrostatic transaxle has traction assist
Lever-action or electric one-touch MulchControl™ options are available for extra mowing convenience
Snow removal and yard care is a strength of lawn tractors
Control and display functions are easy to identify and convenient to use
Frame is formed from thick steel and welded for reliability
Modern styling is eye appealing and functional
Operator station is comfortable and convenient
Serviceability is convenient with easy-open hood
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  24 hp
  17.9 kW
- Engine manufacturer/model
  FS730V
- Transaxle type
  K72 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  24x12-12 HDAP
- Steering type
  Power, hydraulic
- Lift system type
  Hydraulic
- Cutting width
  Accel Deep™ mower deck, 54 in.
  137 cm
- U.S. warranty
  year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  24 hp
  17.9 kW
- Displacement
  44.3 cu in.
  726 cc
- Manufacturer/model
  FS730V
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  Separate levers, automatic choke return
- Cooling method
  Air
- Air cleaner
  Dry, replaceable with foam precleaner
- Oil drain
  No tools
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump and carburetor
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  4.4 U.S. gal.
  16.7 L
Electrical system
- Battery
  12 V
  500 CCA
- Charging system
  Flywheel alternator, regulated, 15 amp
- Engine starter
  Solenoid shift
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent, 27 W
- Taillights or reflector
  Reflectors
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  Yes
Transaxle
- Type
  K72 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes, button on dash
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Yes, replaceable
- Differential lock
  Standard
- Forward speed
  0-7.2 mph
  0-11.6 km/h
- Reverse speed
  0-5.2 mph
  0-8.4 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Standard front and rear - each holds up to four Quik-Tatch weights, 42 lb
  19 kg
- Receiver hitch
  No
- Front axle
  Cast iron front axle, front wheel ball bearings
- Spindle bushings
  Metal, replaceable
- Front tires
  16x6.5-8 turf
- Rear tires
  24x12-12 HDAP
- Hood material
  Molded-in color hood material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Sure-grip rubber
- Storage
  Yes, under seat and covered toolbox
- Service interval decal
  Yes
- Fender handles/grips
  Handles
- Cup holder
  Yes
- Equipment mounting
  Yes, heavy duty
Steering
- Type
  Power, hydraulic
- Four-wheel steer
  Not available on this model
- Steering wheel
  14 in.
  35.6 cm
- Tilt steering wheel
  No
- Turning radius
  22 in.
  55.9 cm
- Uncut circle radius
  24 in.
  61 cm
Seat
- Type
  Open-back design with grasp
- Seat back height
  15 in.
  38.1 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Tilt, two coil springs, three-position no-tools adjustment for operator weight
Lift system
- Type
  Hydraulic
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep™ mower deck, 54 in.
  137 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  10 gauge
  0.135 in.
  3.4 mm
- Mower wash port
  Yes
- Mower drive system
  Electric power take-off (PTO) clutch, in-line belt
- Mower wheels
  Four
- Mower wheel adjustment
  Seven-position, spring-loaded pin
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Roll under tractor
- Front draft arms
  Attached with spring pins at two points
- Rear draft arms
  Quick-pull pins
- Mower wheels rotate
  Yes, 90 degrees for easy mower removal
- Drive system
  Dual belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Heavy-duty garden tractor transaxle
  Convenient power steering and hydraulic lift
  Built-in front and rear weight bracket
- Warranty
  4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  54XA (standard)
- Rear bagger
  7, 14, 19 bu
  247, 493, 670 L
- Powered material collection
  Power Flow™ blower
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  48 in.
  121.9 cm
- Snow blower
  Two-stage, 47 in.
  119.4 cm
- Rotary tiller
  Mechanical, 30 in.
  76.2 cm
- Sleeve hitch
  Yes, implements include box scraper, rear blade, plow, disk, and cultivator
- Plow, moldboard
  Yes
- Box scraper
  Yes
- Cultivator
  Yes
- Rear blade
  Yes
- Sprayer
  Tow-behind, 15, 25, 45 U.S. gal.
  56.8, 94.6, 170.3 L
  Mounted, 25 U.S. gal.
  94.6 L
- Spreader
  125, 175 lb
  57.7, 79.4 kg
  Mounted, 125 lb
  57.7 kg
- Front bumper
  Standard front bumper/weight bracket
- Brush guard
  Yes
- Weather protection
  Weather enclosure
- Sun canopy
  Yes
- Bucket holder
  Yes, double bucket
- Grass striping
  Lawn striping kit
- Tractor shovel
  40 in.
  101.6 cm
- Tow-behind tools
  19
Dimensions
- Height
  45 in.
  114.3 cm
- Overall length
  79 in.
  201 cm
- Wheelbase
  51.2 in.
  130 cm
- Width with mower
  68.4 in.
  174 cm
- Width with mower (deflector raised for storage)
  59.4 in.
  151 cm
- Width without mower
  41 in.
  104.1 cm
- Weight
  Mower, no fuel, 787 lb
  357 kg

DetailsFeaturesSpecifications

Details:

X584

Lawn Tractor with 48- or 54-in. Deck

48-in. or 54-in. Accel Deep™ Mower Deck
Easy mulching with optional MulchControl™ Kit (one-touch or from deck versions)
4-wheel steering
Automotive-style power steering
4-year/500-hour bumper-to-bumper warranty

Features:

Engine is smooth running and reliable V-twin air-cooled design
The 48-in. (122-cm) Accel Deep™ (48A) Mower Deck cuts clean and is versatile
The 54-in. (137-cm) Accel Deep™ (54A) Mower Deck cuts clean and is versatile
Four-year or 500-hour bumper-to-bumper warranty is standard
Four-wheel power steering gives superior maneuverability and trimming ability
Hydrostatic transaxle has traction assist
Lever-action or electric one-touch MulchControl™ options are available for extra mowing convenience
Snow removal and yard care is a strength of lawn tractors
Control and display functions are easy to identify and convenient to use
Frame is formed from thick steel and welded for reliability
Modern styling is eye appealing and functional
Operator station is comfortable and convenient
Serviceability is convenient with easy-open hood
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  24 hp
  17.9 kW
- Engine manufacturer/model
  FS730V
- Transaxle type
  K72 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  24x9.5-12 turf
- Steering type
  Power, hydraulic
- Lift system type
  Hydraulic
- Cutting width
  Accel Deep™ mower deck, 48, 54 in.
  122, 137 cm
- U.S. warranty
  4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  24 hp
  17.9 kW
- Displacement
  44.3 cu in.
  726 cc
- Manufacturer/model
  FS730V
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  Separate levers, automatic choke return
- Cooling method
  Air
- Air cleaner
  Dry, replaceable with foam precleaner
- Oil drain
  No tools
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump and carburetor
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  4.4 U.S. gal.
  16.7 L
Electrical system
- Battery
  12 V
  500 CCA
- Charging system
  Flywheel alternator, regulated, 15 amp
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent, 27 W
- Taillights or reflector
  Reflectors
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  Yes
Transaxle
- Type
  K72 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes, button on dash
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Yes, replaceable
- Differential lock
  Standard
- Forward speed
  0-7.2 mph
  0-11.6 km/h
- Reverse speed
  0-5.2 mph
  0-8.4 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Standard front and optional rear - each holds up to four Quik-Tatch weights, 42 lb
  19 kg
- Receiver hitch
  No
- Front axle
  Cast iron front axle, front wheel ball bearings
- Spindle bushings
  Metal, replaceable
- Front tires
  16x6.5-8 turf
- Rear tires
  24x9.5-12 turf
- Hood material
  Molded-in color hood material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Sure-grip rubber
- Storage
  Yes, under seat and covered toolbox
- Service interval decal
  Yes
- Fender handles/grips
  Handles
- Cup holder
  Yes
- Equipment mounting
  Yes, heavy duty
Steering
- Type
  Power, hydraulic
- Four-wheel steer
  Yes
- Steering wheel
  14 in.
  35.6 cm
- Tilt steering wheel
  Standard, five position
- Turning radius
  19 in.
  48.3 cm
- Uncut circle radius
  48A, 15 in.
  38 cm
  54A, 12 in.
  30 cm
Seat
- Type
  High-back
- Seat back height
  21 in.
  53.3 cm
- Armrests
  Optional
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Tilt, two coil springs, three-position no-tools adjustment for operator weight
Lift system
- Type
  Hydraulic
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep™ mower deck, 48, 54 in.
  122, 137 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  10 gauge
  0.135 in.
  3.4 mm
- Mower wash port
  Yes
- Mower drive system
  Electric power take-off (PTO) clutch, in-line belt
- Mower wheels
  Four
- Mower wheel adjustment
  Seven-position, spring-loaded pin
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Roll under tractor
- Front draft arms
  Attached with spring pins at two points
- Rear draft arms
  Quick-pull pins
- Mower wheels rotate
  Yes, 90 degrees for easy mower removal
- Drive system
  Dual belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Heavy-duty garden tractor transaxle
  Convenient power steering and hydraulic lift
  Standard four-wheel steering for exceptional maneuverability and trimming
  Built-in front weight bracket
- Warranty
  4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  48A option, 54A option
- Rear bagger
  7, 14, 19 bu
  247, 493, 670 L
- Powered material collection
  Power Flow™ blower
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  48 in.
  121.9 cm
- Snow blower
  Two-stage, 47 in.
  119.4 cm
- Sleeve hitch
  Yes, implements include box scraper, rear blade, plow, disk, and cultivator
- Plow, moldboard
  Yes
- Box scraper
  Yes
- Cultivator
  Yes
- Rear blade
  Yes
- Sprayer
  Tow-behind, 15, 25, 45 U.S. gal.
  56.8, 94.6, 170.3 L
  Mounted, 25 U.S. gal.
  94.6 L
- Spreader
  125, 175 lb
  57.7, 79.4 kg
  Mounted, 125 lb
  57.7 kg
- Front bumper
  Standard front bumper/weight bracket
- Brush guard
  Yes
- Weather protection
  Weather enclosure
- Sun canopy
  Yes
- Bucket holder
  Yes, double bucket
- Grass striping
  Lawn striping kit
- Tractor shovel
  40 in.
  101.6 cm
- Tow-behind tools
  19
Dimensions
- Height
  52.25 in.
  132.7 cm
- Overall length
  79 in.
  201 cm
- Wheelbase
  51.2 in.
  130 cm
- Width with mower
  48A, 62.5 in.
  159 cm
  54A, 68.4 in.
  174 cm
- Width with mower (deflector raised for storage)
  48A, 53.6 in.
  136 cm
  54A, 59.4 in.
  151 cm
- Width without mower
  45 in.
  114.3 cm
- Weight
  48A Mower, no fuel, 837 lb
  380 kg
  54A Mower, no fuel, 845 lb
  383 kg

DetailsFeaturesSpecifications

Details:

X590

Lawn Tractor with 54-in. Deck

54-in. Accel Deep™ Deck
Easy mulching with optional MulchControl™ Kit (one-touch or from deck versions)
Excellent power and performance
Constant-speed governor technology
4-year/500-hour bumper-to-bumper warranty

Features:

V-twin engine has electronic fuel injection (EFI) and constant-speed governor for quick starts and superior performance
The 54-in. (137-cm) Accel Deep™ (54A) Mower Deck cuts clean and is versatile
Four-year or 500-hour bumper-to-bumper warranty is standard
Power steering and hydraulic lift enable easy operation
Hydrostatic transaxle has traction assist
Lever-action or electric one-touch MulchControl™ options are available for extra mowing convenience
Snow removal and yard care is a strength of lawn tractors
Control and display functions are easy to identify and convenient to use
Frame is formed from thick steel and welded for reliability
Modern styling is eye appealing and functional
Operator station is comfortable and convenient
Serviceability is convenient with easy-open hood
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  25.5 hp
  19 kW
- Engine manufacturer/model
  FS730 EFI
- Transaxle type
  K72 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  24x12-12 HDAP
- Steering type
  Power, hydraulic
- Lift system type
  Hydraulic
- Cutting width
  Accel Deep™ mower deck, 54 in.
  137 cm
- U.S. warranty
  4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  25.5 hp
  19 kW
- Displacement
  44.3 cu in.
  726 cc
- Manufacturer/model
  FS730 EFI
- Type
  Electronic fuel injection (EFI), overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin, cast-iron liners
- Governor
  Constant-speed electronic
- Choke/speed control
  No choke required
- Cooling method
  Air
- Air cleaner
  Dry, replaceable with foam precleaner
- Oil drain
  No tools
Fuel system
- Type
  Gasoline
- Fuel delivery
  Open-loop electronic fuel injection (EFI)
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  4.4 U.S. gal.
  16.7 L
Electrical system
- Battery
  12 V
  500 CCA
- Charging system
  Flywheel alternator, regulated, 15 amp
- Engine starter
  Solenoid shift
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent, 27 W
- Taillights or reflector
  Reflectors
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  Yes
Transaxle
- Type
  K72 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes, button on dash
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Yes, replaceable
- Differential lock
  Standard
- Forward speed
  0-7.2 mph
  0-11.6 km/h
- Reverse speed
  0-5.2 mph
  0-8.4 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Standard front and rear - each holds up to four Quik-Tatch weights, 42 lb
  19 kg
- Receiver hitch
  No
- Front axle
  Cast iron front axle, front wheel ball bearings
- Spindle bushings
  Metal, replaceable
- Front tires
  16x6.5-8 turf
- Rear tires
  24x12-12 HDAP
- Hood material
  Molded-in color hood material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Sure-grip rubber
- Storage
  Yes, under seat and covered toolbox
- Service interval decal
  Yes
- Fender handles/grips
  Handles
- Cup holder
  Yes
- Equipment mounting
  Yes, heavy duty
Steering
- Type
  Power, hydraulic
- Four-wheel steer
  Not available on this model
- Steering wheel
  14 in.
  35.6 cm
- Tilt steering wheel
  Standard, five position
- Turning radius
  22 in.
  55.9 cm
- Uncut circle radius
  24 in.
  61 cm
Seat
- Type
  High-back
- Seat back height
  21 in.
  53.3 cm
- Armrests
  Optional
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Tilt, two coil springs, three-position no-tools adjustment for operator weight
Lift system
- Type
  Hydraulic
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep™ mower deck, 54 in.
  137 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  10 gauge
  0.135 in.
  3.4 mm
- Mower wash port
  Yes
- Mower drive system
  Electric power take-off (PTO) clutch, in-line belt
- Mower wheels
  Four
- Mower wheel adjustment
  Seven-position, spring-loaded pin
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Roll under tractor
- Front draft arms
  Attached with spring pins at two points
- Rear draft arms
  Quick-pull pins
- Mower wheels rotate
  Yes, 90 degrees for easy mower removal
- Drive system
  Dual belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Heavy-duty garden tractor transaxle
  Convenient power steering and hydraulic lift
  Built-in front and rear weight brackets
- Warranty
  4 year/500 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  54A (standard)
- Rear bagger
  7, 14, 19 bu
  247, 493, 670 L
- Powered material collection
  Power Flow™ blower
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  48 in.
  121.9 cm
- Snow blower
  Two-stage, 47 in.
  119.4 cm
- Rotary tiller
  Mechanical, 30 in.
  76.2 cm
  Hydraulic, 42 in.
  106.7 cm
- Sleeve hitch
  Yes, implements include box scraper, rear blade, plow, disk, and cultivator
- Plow, moldboard
  Yes
- Box scraper
  Yes
- Cultivator
  Yes
- Rear blade
  Yes
- Sprayer
  Tow-behind, 15, 25 U.S. gal.
  56.8, 94.6, 170.3 L
  Mounted, 25 U.S. gal.
  94.6 L
- Spreader
  125, 175 lb
  57.7, 79.4 kg
  Mounted, 125 lb
  57.7 kg
- Front bumper
  Standard front bumper/weight bracket
- Brush guard
  Yes
- Weather protection
  Weather enclosure
- Sun canopy
  Yes
- Bucket holder
  Yes, double bucket
- Grass striping
  Lawn striping kit
- Tractor shovel
  40 in.
  101.6 cm
- Tow-behind tools
  19
Dimensions
- Height
  52.25 in.
  132.7 cm
- Overall length
  79 in.
  201 cm
- Wheelbase
  51.2 in.
  130 cm
- Width with mower
  68.4 in.
  174 cm
- Width with mower (deflector raised for storage)
  59.4 in.
  151 cm
- Width without mower
  41 in.
  104.1 cm
- Weight
  Mower, no fuel, 805 lb
  365 kg

X700 Signature Series

Available models: X730X734X738X739 X750X754X758

DetailsFeaturesSpecifications

Details:

X730

Signature Series Lawn Tractor

Electronic fuel injection
Power steering and hydraulic lift
4-year/700-hour bumper-to-bumper warranty

Features:

Engine is smooth running and reliable V-twin liquid-cooled design
54-in. (137-cm) and 60-in. (152-cm) Edge™ High-Capacity (HC) Mower Decks are heavy duty
Four-year or 700-hour bumper-to-bumper warranty is standard
Operator station is comfortable and convenient
Snow removal and yard care equipment
Instruments and controls are easy to find and use
Modern styling has a functional design
Hydrostatic drive with Twin Touch™ control is easy to operate
Thoughtful designs promote safe operation and convenient service
MulchControl™ system options for Accel Deep™ and High-Capacity Mower Decks are convenient to use
Power Flow™ material collection systems make lawn cleanup easy
48-in. (122-cm) Accel Deep™ Mower Deck cuts clean and is versatile
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  25.5 hp
  19 kW
- Engine manufacturer/model
  FD750D EFI
- Transaxle type
  K90 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  26x12-12 turf
- Steering type
  Hydraulic power
- Lift system type
  Two-function hydraulic
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
  High capacity mower deck, 54, 60 in.
  137, 152 cm
- U.S. warranty
  4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  25.5 hp
  19 kW
- Displacement
  45.5 cu in.
  745 cc
- Manufacturer/model
  FD750D EFI
- Type
  Electronic fuel injection (EFI), overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  No choke required
- Cooling method
  Liquid
- Air cleaner
  Dry, replaceable with foam precleaner
- Oil drain
  No tools
Fuel system
- Type
  Gasoline
- Fuel delivery
  Electronic fuel injection
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  5.2 U.S. gal.
  19.7 L
Electrical system
- Battery
  12 V
  300 CCA
- Charging system
  Flywheel alternator, regulated, 20 amp
- Engine starter
  Solenoid shift
- Hourmeter
  Yes
- Headlights
  Two standard, halogen, 37 W
- Taillights or reflector
  Taillights
- Backup lights
  Yes
- Rear work lights
  Yes
- 12-V outlet
  Yes
Transaxle
- Type
  K90 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes
- Oil cooler
  Yes
- Oil filter
  Replaceable suction side 10 micron
- Differential lock
  Standard
- Forward speed
  0-8.5 mph
  0-13.7 km/h
- Reverse speed
  0-6 mph
  0-9.7 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Standard front - holds up to four Quik-Tatch weights, 42 lb
  19 kg
- Receiver hitch
  Yes, front
- Front axle
  JDM BA8 nodular iron casting
- Spindle bushings
  Metal, replaceable
- Front tires
  18x8.5-8 turf
- Rear tires
  26x12-12 turf
- Hood material
  Noryl GTX902, painted
- Fender deck material
  RIM with in-mold paint
- Floor mats
  Sure-grip rubber
- Storage
  Covered toolbox
- Service interval decal
  Yes
- Fender handles/grips
  Handles
- Cup holder
  Yes
- Equipment mounting
  Optional category 1 3-point hitch
Steering
- Type
  Hydraulic power
- Four-wheel steer
  Not available on this model
- Steering wheel
  14 in.
  35.6 cm
- Tilt steering wheel
  Standard, six position
- Turning radius
  25 in.
  63.5 cm
- Uncut circle radius
  54 HC, 32 in.
  81.3 cm
  60 HC, 28 in.
  71.1 cm
Seat
- Type
  Two-piece adjustable seat with brand embroidery
- Seat back height
  21 in.
  53.3 cm
- Armrests
  Optional
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Six-position parallel arm
Lift system
- Type
  Two-function hydraulic
- Hydraulic outlets
  Four, standard
- Mower cut height
  1-5.25 in.
  2.5-13.3 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
  High capacity mower deck, 54, 60 in.
  137, 152 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  48A, 10 gauge
  0.135 in.
  3.4 mm
  54 HC and 60 HC, 9 gauge
  0.15 in.
  3.8 mm
- Mower wash port
  Yes
- Mower drive system
  Hydraulic clutch, shaft
- Mower wheels
  Four
- Mower wheel adjustment
  Spring-loaded pin
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Roll under tractor (48A)
  Drive-over deck (54, 60 HC)
- Front draft arms
  Overcenter
- Rear draft arms
  V-align
- Mower wheels rotate
  Yes, 90 degrees for easy mower removal (48A), N/A (54 HC, 60 HC)
- Drive system
  Shaft or AutoConnect
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Styled alloy wheels are standard equipment
  One-piece hood for easy engine access
  Hydraulic modulated PTO clutch for smooth mower and implement engagement
- Warranty
  4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  48A, 54 HC, 60 HC
- Rear bagger
  7, 14, 19 bu
  250, 500, 670 L
- Powered material collection
  Power Flow, 7, 14, 19 bu
  250, 500, 670 L
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  54 in.
  137.2 cm
- Snow blower
  Two-stage, 47, 54 in.
  119.4, 137.2 cm
- Rotary broom
  52, 60 in.
  132.1, 152.4 cm
- Rotary tiller
  42, 48 in.
  106.7, 121.9 cm
- 3-point hitch
  Category 1
- Rear power take-off (PTO)
  540 rpm
- Plow, moldboard
  Adjustable, 8-14 in.
  20.3-35.6 cm
- Box scraper
  48 in.
  121.9 cm
- Cultivator
  Adjustable, 30-46 in.
  76.2-116.8 cm
- Rear blade
  60 in.
  152.4 cm
- Disk harrow
  Adjustable, 42-52 in.
  106.7-132.1 cm
- Landscape rake
  60 in.
  152.4 cm
- Sprayer
  Tow-behind, 15, 25, 45 U.S. gal.
  56.8, 94.6, 170.3 L
  Mounted, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind, 125, 175 lb
  57.7, 79.4 kg
  Mounted, 125 lb
  57.7 kg
- Front bumper
  Standard bumper/weight bracket
- Brush guard
  Yes
- Weather protection
  Hard-side cab, weather enclosure
- Rear receiver hitch
  1.25x1.25 in.
  3.18x3.18 cm
- Bucket holder
  Yes, double
- Grass striping
  Grass groomer kit, 48-in. (122-cm) mower only
- Tractor shovel
  54 in.
  137.2 cm
- Front loader
  Not available
- Tow-behind tools
  21
Dimensions
- Height
  54.5 in.
  138 cm
- Overall length
  75 in.
  190.5 cm
- Wheelbase
  54.5 in.
  138.4 cm
- Width with mower
  48A, 62.5 in.
  159 cm
  54 HC, 64.5 in.
  163.8 cm
  60 HC, 74 in.
  188 cm
- Width with mower (deflector raised for storage)
  48A, 53.6 in.
  136 cm
  54 HC, 57.5 in.
  146.1 cm
  60 HC, 62 in.
  157.5 cm
- Width without mower
  47 in.
  119.4 cm
- Weight
  No fuel or mower, 863 lb
  391 kg

DetailsFeaturesSpecifications

Details:

X734

Signature Series Lawn Tractor

Electronic fuel injection
4-wheel steering
4-year/700-hour bumper-to-bumper warranty

Features:

Engine is smooth running and reliable V-twin liquid-cooled design
54-in. (137-cm) and 60-in. (152-cm) Edge™ High-Capacity (HC) Mower Decks are heavy duty
Four-year or 700-hour bumper-to-bumper warranty is standard
Four-wheel power steering for superior maneuverability and trimming
Operator station is comfortable and convenient
Snow removal and yard care equipment
Instruments and controls are easy to find and use
Modern styling has a functional design
Hydrostatic drive with Twin Touch™ control is easy to operate
Thoughtful designs promote safe operation and convenient service
MulchControl™ system options for Accel Deep™ and High-Capacity Mower Decks are convenient to use
Power Flow™ material collection systems make lawn cleanup easy
48-in. (122-cm) Accel Deep™ Mower Deck cuts clean and is versatile
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  25.5 hp
  19 kW
- Engine manufacturer/model
  FD750D EFI
- Transaxle type
  K90 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  26x10.5-12 turf
- Steering type
  Hydraulic power
- Lift system type
  Two-function hydraulic
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
  High capacity mower deck, 54, 60 in.
  137, 152 cm
- U.S. warranty
  4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  25.5 hp
  19 kW
- Displacement
  45.5 cu in.
  745 cc
- Manufacturer/model
  FD750D EFI
- Type
  Electronic fuel injection (EFI), overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  No choke required
- Cooling method
  Liquid
- Air cleaner
  Dry, replaceable with foam precleaner
- Oil drain
  No tools
Fuel system
- Type
  Gasoline
- Fuel delivery
  Electronic fuel injection
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  5.2 U.S. gal.
  19.7 L
Electrical system
- Battery
  12 V
  300 CCA
- Charging system
  Flywheel alternator, regulated, 20 amp
- Engine starter
  Solenoid shift
- Hourmeter
  Yes
- Headlights
  Two standard, halogen, 37 W
- Taillights or reflector
  Taillights
- Backup lights
  Yes
- Rear work lights
  Yes
- 12-V outlet
  Yes
Transaxle
- Type
  K90 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes
- Oil cooler
  Yes
- Oil filter
  Replaceable suction side 10 micron
- Differential lock
  Standard
- Forward speed
  0-8.5 mph
  0-13.7 km/h
- Reverse speed
  0-6 mph
  0-9.7 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Standard front - holds up to four Quik-Tatch weights, 42 lb
  19 kg
- Receiver hitch
  Yes, front
- Front axle
  JDM BA8 nodular iron casting
- Spindle bushings
  Metal, replaceable
- Front tires
  18x7-8 turf
- Rear tires
  26x10.5-12 turf
- Hood material
  Noryl GTX902, painted
- Fender deck material
  RIM with in-mold paint
- Floor mats
  Sure-grip rubber
- Storage
  Covered toolbox
- Service interval decal
  Yes
- Fender handles/grips
  Handles
- Cup holder
  Yes
- Equipment mounting
  Optional category 1 3-point hitch
Steering
- Type
  Hydraulic power
- Four-wheel steer
  Yes
- Steering wheel
  14 in.
  35.6 cm
- Tilt steering wheel
  Standard, six position
- Turning radius
  21 in.
  53.3 cm
- Uncut circle radius
  54 HC, 10 in.
  25.4 cm
  60 HC, 6 in.
  15.2 cm
Seat
- Type
  Two-piece adjustable seat with brand embroidery
- Seat back height
  21 in.
  53.3 cm
- Armrests
  Optional
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Six-position parallel arm
Lift system
- Type
  Two-function hydraulic
- Hydraulic outlets
  Four, standard
- Mower cut height
  1-5.25 in.
  2.5-13.3 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
  High capacity mower deck, 54, 60 in.
  137, 152 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  48A, 10 gauge
  0.135 in.
  3.4 mm
  54 HC and 60 HC, 9 gauge
  0.15 in.
  3.8 mm
- Mower wash port
  Yes
- Mower drive system
  Hydraulic clutch, shaft
- Mower wheels
  Four
- Mower wheel adjustment
  Spring-loaded pin
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Roll under tractor (48A)
  Drive-over deck (54, 60 HC)
- Front draft arms
  Overcenter
- Rear draft arms
  V-align
- Mower wheels rotate
  Yes, 90 degrees for easy mower removal (48X), N/A (54 HC, 60 HC)
- Drive system
  Shaft or AutoConnect
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Styled alloy wheels are standard equipment
  One-piece hood for easy engine access
  Hydraulic modulated PTO clutch for smooth mower and implement engagement
- Warranty
  4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  48A, 54 HC, 60 HC
- Rear bagger
  7, 14, 19 bu
  250, 500, 670 cm
- Powered material collection
  Power Flow, 7, 14, 19 bu
  250, 500, 670 cm
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  54 in.
  137.2 cm
- Snow blower
  Two-stage, 47, 54 in.
  119.4, 137.2 cm
- Rotary broom
  52, 60 in.
  132.1, 152.4 cm
- Rotary tiller
  42, 48 in.
  106.7, 121.9 cm
- 3-point hitch
  Category 1
- Rear power take-off (PTO)
  540 rpm
- Plow, moldboard
  Adjustable, 8-14 in.
  20.3-35.6 cm
- Box scraper
  48 in.
  121.9 cm
- Cultivator
  Adjustable, 30-46 in.
  76.2-116.8 cm
- Rear blade
  60 in.
  152.4 cm
- Disk harrow
  Adjustable, 42-52 in.
  106.7-132.1 cm
- Landscape rake
  60 in.
  152.4 cm
- Sprayer
  Tow-behind, 15, 25, 45 U.S. gal.
  56.8, 94.6, 170.3 L
  Mounted, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind, 125, 175 lb
  57.7, 79.4 kg
  Mounted, 125 lb
  57.7 kg
- Front bumper
  Standard bumper/weight bracket
- Brush guard
  Yes
- Weather protection
  Hard-side cab, weather enclosure
- Rear receiver hitch
  1.25x1.25 in.
  3.18x3.18 cm
- Bucket holder
  Yes, double bucket
- Grass striping
  Grass groomer kit, 48-in. (122-cm) mower only
- Tractor shovel
  54 in.
  137.2 cm
- Front loader
  Not available
- Tow-behind tools
  21
Dimensions
- Height
  54.5 in.
  138 cm
- Overall length
  75 in.
  190.5 cm
- Wheelbase
  54.5 in.
  138.4 cm
- Width with mower
  48A, 62.5 in.
  159 cm
  54 HC, 64.5 in.
  163.8 cm
  60 HC, 74 in.
  188 cm
- Width with mower (deflector raised for storage)
  48A, 53.6 in.
  136 cm
  54 HC, 57.5 in.
  146.1 cm
  60 HC, 62 in.
  157.5 cm
- Width without mower
  47 in.
  119.4 cm
- Weight
  No fuel or mower, 918 lb
  416 kg

DetailsFeaturesSpecifications

Details:

X738

Signature Series Lawn Tractor

Electronic fuel injection
Full-time 4-wheel drive
4-year/700-hour bumper-to-bumper warranty

Features:

Engine is smooth running and reliable V-twin liquid-cooled design
54-in. (137-cm) and 60-in. (152-cm) Edge™ High-Capacity (HC) Mower Decks are heavy duty
Four-year or 700-hour bumper-to-bumper warranty is standard
Hydrostatic four-wheel drive (4WD) with Twin Touch™ control gives superior traction and easy operation
Operator station is comfortable and convenient
Snow removal and yard care equipment
Instruments and controls are easy to find and use
Modern styling has a functional design
Thoughtful designs promote safe operation and convenient service
MulchControl™ system options for Accel Deep™ and High-Capacity Mower Decks are convenient to use
Power Flow™ material collection systems make lawn cleanup easy
48-in. (122-cm) Accel Deep™ Mower Deck cuts clean and is versatile
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  25.5 hp
  19 kW
- Engine manufacturer/model
  FD750D EFI
- Transaxle type
  K90 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  26x12-12 HDAP
- Steering type
  Hydraulic power
- Lift system type
  Two-function hydraulic
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
  High capacity mower deck, 54, 60 in.
  137, 152 cm
- U.S. warranty
  4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  25.5 hp
  19 kW
- Displacement
  45.5 cu in.
  745 cc
- Manufacturer/model
  FD750D EFI
- Type
  Electronic fuel injection (EFI), overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  No choke required
- Cooling method
  Liquid
- Air cleaner
  Dry, replaceable with foam precleaner
- Oil drain
  No tools
Fuel system
- Type
  Gasoline
- Fuel delivery
  Electronic fuel injection
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  5.2 U.S. gal.
  19.7 L
Electrical system
- Battery
  12 V
  300 CCA
- Charging system
  Flywheel alternator, regulated, 20 amp
- Engine starter
  Solenoid shift
- Hourmeter
  Yes
- Headlights
  Two standard, halogen, 37 W
- Taillights or reflector
  Taillights
- Backup lights
  Yes
- Rear work lights
  Yes
- 12-V outlet
  Yes
Transaxle
- Type
  K90 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes
- Oil cooler
  Yes
- Oil filter
  Replaceable suction side 10 micron
- Differential lock
  Standard
- Forward speed
  0-8.5 mph
  0-13.7 km/h
- Reverse speed
  0-6 mph
  0-9.7 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Standard front - holds up to four Quik-Tatch weights, 42 lb
  19 kg
- Receiver hitch
  Yes, front
- Front axle
  JDM BA8 nodular iron casting
- Front tires
  18x8.5-10 HDAP
- Rear tires
  26x12-12 HDAP
- Hood material
  Noryl GTX902, painted
- Fender deck material
  RIM with in-mold paint
- Floor mats
  Sure-grip rubber
- Storage
  Covered toolbox
- Service interval decal
  Yes
- Fender handles/grips
  Handles
- Cup holder
  Yes
- Equipment mounting
  Optional category 1 3-point hitch
Steering
- Type
  Hydraulic power
- Four-wheel steer
  Not available on this model
- Steering wheel
  14 in.
  35.6 cm
- Tilt steering wheel
  Standard, six position
- Turning radius
  25 in.
  63.5 cm
- Uncut circle radius
  54 HC, 32 in.
  63.5 cm
  60 HC Mower, 28 in.
  71.1 cm
Seat
- Type
  Two-piece adjustable seat with brand embroidery
- Seat back height
  21 in.
  53.3 cm
- Armrests
  Optional
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Six-position parallel arm
Lift system
- Type
  Two-function hydraulic
- Hydraulic outlets
  Four, standard
- Mower cut height
  1-5.25 in.
  2.5-13.3 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
  High capacity mower deck, 54, 60 in.
  137, 152 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  48A, 10 gauge
  0.135 in.
  3.4 mm
  54 HC and 60 HC, 9 gauge
  0.15 in.
  3.8 mm
- Mower wash port
  Yes
- Mower drive system
  Hydraulic clutch, shaft
- Mower wheels
  Four
- Mower wheel adjustment
  Spring-loaded pin
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Roll under tractor (48A)
  Drive-over deck (54, 60 HC)
- Front draft arms
  Overcenter
- Rear draft arms
  V-align
- Mower wheels rotate
  Yes, 90 degrees for easy mower removal (48X), N/A (54 HC, 60 HC)
- Drive system
  Shaft or AutoConnect
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Styled alloy wheels are standard equipment
  One-piece hood for easy engine access
  Hydraulic modulated PTO clutch for smooth mower and implement engagement
- Warranty
  4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  48A, 54 HC, 60 HC
- Rear bagger
  7, 14, 19 bu
  250, 500, 670 L
- Powered material collection
  Power Flow, 7, 14, 19 bu
  250, 500, 670 L
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  54 in.
  137.2 cm
- Snow blower
  Two-stage, 47, 54 in.
  119.4, 137.2 cm
- Rotary broom
  52, 60 in.
  132.1, 152.4 cm
- Rotary tiller
  42, 48 in.
  106.7, 121.9 cm
- 3-point hitch
  Category 1
- Rear power take-off (PTO)
  540 rpm
- Plow, moldboard
  Adjustable, 8-14 in.
  20.3-35.6 cm
- Box scraper
  48 in.
  121.9 cm
- Cultivator
  Adjustable, 30-46 in.
  76.2-116.8 cm
- Rear blade
  60 in.
  152.4 cm
- Disk harrow
  Adjustable, 42-52 in.
  106.7-132.1 cm
- Landscape rake
  60 in.
  152.4 cm
- Sprayer
  Tow-behind, 15, 25, 45 U.S. gal.
  56.8, 96.4, 170.3 L
  Mounted, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind only, 125, 175 lb
  57.7, 79.4 kg
  Mounted, 125 lb
  57.7 kg
- Front bumper
  Standard bumper/weight bracket
- Brush guard
  Yes
- Weather protection
  Hard-side cab, weather enclosure
- Rear receiver hitch
  1.25 x 1.25 in.
  3.18 x 3.18 cm
- Bucket holder
  Yes, double bucket
- Grass striping
  Grass groomer kit, 48-in. (122-cm) mower only
- Tractor shovel
  54 in.
  137.2 cm
- Front loader
  Not available
- Tow-behind tools
  21
Dimensions
- Height
  54.5 in.
  138 cm
- Overall length
  75 in.
  190.5 cm
- Wheelbase
  55.7 in.
  141.5 cm
- Width with mower
  48A, 62.5 in.
  159 cm
  54 HC, 64.5 in.
  163.8 cm
  60 HC, 74 in.
  188 cm
- Width with mower (deflector raised for storage)
  48A, 53.6 in.
  136 cm
  54 HC, 57.5 in.
  146.1 cm
  60 HC, 62 in.
  157.5 cm
- Width without mower
  47 in.
  119.4 cm
- Weight
  No fuel or mower, 953 lb
  432 kg

DetailsFeaturesSpecifications

Details:

X739

Signature Series Lawn Tractor

Electronic fuel injection
Full-time 4-wheel drive and four-wheel steering
4-year/700-hour bumper-to-bumper warranty

Features:

Engine is smooth running and reliable V-twin liquid-cooled design
54-in. (137-cm) and 60-in. (152-cm) Edge™ High-Capacity (HC) Mower Decks are heavy duty
Four-year or 700-hour bumper-to-bumper warranty is standard
Four-wheel power steering for superior maneuverability and trimming
Hydrostatic four-wheel drive (4WD) with Twin Touch™ control gives superior traction and easy operation
Operator station is comfortable and convenient
Snow removal and yard care equipment
Instruments and controls are easy to find and use
Modern styling has a functional design
Thoughtful designs promote safe operation and convenient service
MulchControl™ system options for Accel Deep™ and High-Capacity Mower Decks are convenient to use
Power Flow™ material collection systems make lawn cleanup easy
48-in. (122-cm) Accel Deep™ Mower Deck cuts clean and is versatile
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  25.5 hp
  19 kW
- Engine manufacturer/model
  FD750D EFI
- Transaxle type
  K90 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  26x12-12 HDAP
- Steering type
  Hydraulic power
- Lift system type
  Two-function hydraulic
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
  High capacity mower deck, 54, 60 in.
  137, 152 cm
- U.S. warranty
  4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  25.5 hp
  19 kW
- Displacement
  45.5 cu in.
  745 cc
- Manufacturer/model
  FD750D EFI
- Type
  Electronic fuel injection (EFI), overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  No choke required
- Cooling method
  Liquid
- Air cleaner
  Dry, replaceable with foam precleaner
- Oil drain
  No tools
Fuel system
- Type
  Gasoline
- Fuel delivery
  Electronic fuel injection
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  5.2 U.S. gal.
  19.7 L
Electrical system
- Battery
  12 V
  300 CCA
- Charging system
  Flywheel alternator, regulated, 20 amp
- Engine starter
  Solenoid shift
- Hourmeter
  Yes
- Headlights
  Two standard, halogen, 37 W
- Taillights or reflector
  Taillights
- Backup lights
  Yes
- Rear work lights
  Yes
- 12-V outlet
  Yes
Transaxle
- Type
  K90 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes
- Oil cooler
  Yes
- Oil filter
  Replaceable suction side 10 micron
- Differential lock
  Standard
- Forward speed
  0-8.5 mph
  0-13.7 km/h
- Reverse speed
  0-6 mph
  0-9.7 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Standard front - holds up to four Quik-Tatch weights, 42 lb
  19 kg
- Receiver hitch
  Yes, front
- Front axle
  JDM BA8 nodular iron casting
- Front tires
  18x8.5-10 HDAP
- Rear tires
  26x12-12 HDAP
- Hood material
  Noryl GTX902, painted
- Fender deck material
  RIM with in-mold paint
- Floor mats
  Sure-grip rubber
- Storage
  Covered toolbox
- Service interval decal
  Yes
- Fender handles/grips
  Handles
- Cup holder
  Yes
- Equipment mounting
  Optional category 1 3-point hitch
Steering
- Type
  Hydraulic power
- Four-wheel steer
  Yes
- Steering wheel
  14 in.
  35.6 cm
- Tilt steering wheel
  Standard, six position
- Turning radius
  21 in.
  53.3 cm
- Uncut circle radius
  54 HC, 10 in.
  25.4 cm
  60 HC, 6 in.
  15.2 cm
Seat
- Type
  Two piece professional high back
- Seat back height
  21 in.
  53.3 cm
- Armrests
  Optional
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Six-position parallel arm
Lift system
- Type
  Two-function hydraulic
- Hydraulic outlets
  Four, standard
- Mower cut height
  1-5.25 in.
  2.5-13.3 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
  High capacity mower deck, 54, 60 in.
  137, 152 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  48A, 10 gauge
  0.135 in.
  3.4 mm
  54 HC and 60 HC, 9 gauge
  0.15 in.
  3.8 mm
- Mower wash port
  Yes
- Mower drive system
  Hydraulic clutch, shaft
- Mower wheels
  Four
- Mower wheel adjustment
  Spring-loaded pin
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Roll under tractor (48A)
  Drive-over deck (54, 60 HC)
- Front draft arms
  Overcenter
- Rear draft arms
  V-align
- Mower wheels rotate
  Yes, 90 degrees for easy mower removal (48A), N/A (54 HC, 60 HC)
- Drive system
  Shaft or AutoConnect
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Hydraulic modulated PTO clutch for smooth mower and implement engagement
  One-piece hood for easy engine access
  540 rpm rear PTO and 3-point hitch options available
- Warranty
  4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  48A, 54 HC, 60 HC
- Rear bagger
  7, 14, 19 bu
  250, 500, 670 L
- Powered material collection
  Power Flow, 7, 14, 19 bu
  250, 500, 670 L
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  54 in.
  137.2 cm
- Snow blower
  Two-stage, 47, 54 in.
  119.4, 137.2 cm
- Rotary broom
  52, 60 in.
  132.1, 152.4 cm
- Rotary tiller
  42, 48 in.
  106.7, 121.9 cm
- 3-point hitch
  Category 1
- Rear power take-off (PTO)
  540 rpm
- Plow, moldboard
  Adjustable, 8-14 in.
  20.3-35.6 cm
- Box scraper
  48 in.
  121.9 cm
- Cultivator
  Adjustable, 30-46 in.
  76.2-116.8 cm
- Rear blade
  60 in.
  152.4 cm
- Disk harrow
  Adjustable, 42-52 in.
  106.7-132.1 cm
- Landscape rake
  60 in.
  152.4 cm
- Sprayer
  Tow-behind, 15, 25, 45 U.S. gal.
  56.8, 94.6, 170.3 L
  Mounted, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind, 125, 175 lb
  57.7, 79.4 kg
  Mounted, 125 lb
  57.7 kg
- Front bumper
  Standard bumper/weight bracket
- Brush guard
  Yes
- Weather protection
  Hard-side cab, weather enclosure
- Rear receiver hitch
  1.25x1.25 in.
  3.18x3.18 cm
- Bucket holder
  Yes, double bucket
- Grass striping
  Grass groomer kit, 48-in. (122-cm) mower only
- Tractor shovel
  54 in.
  137.2 cm
- Front loader
  Not available
- Tow-behind tools
  21
Dimensions
- Height
  51.2 in.
  130 cm
- Overall length
  75 in.
  190.5 cm
- Wheelbase
  55.7 in.
  141.5 cm
- Width with mower
  48A, 62.5 in.
  159 cm
  54 HC, 64.5 in.
  163.8 cm
  60 HC, 74 in.
  188 cm
- Width with mower (deflector raised for storage)
  48A, 53.6 in.
  136 cm
  54 HC, 57.5 in.
  146.1 cm
  60 HC, 62 in.
  157.5 cm
- Width without mower
  48 in.
  121.9 cm
- Weight
  No fuel or mower, 1,045 lb
  474 kg

DetailsFeaturesSpecifications

Details:

X750

Signature Series Lawn Tractor

3-cylinder diesel engine
Power steering and hydraulic lift
4-year/700-hour bumper-to-bumper warranty

Features:

Engine is 3-cylinder diesel for fuel economy and durability
54-in. (137-cm) and 60-in. (152-cm) Edge™ High-Capacity (HC) Mower Decks are heavy duty
Four-year or 700-hour bumper-to-bumper warranty is standard
Operator station is comfortable and convenient
Snow removal and yard care equipment
Instruments and controls are easy to find and use
Modern styling has a functional design
Hydrostatic drive with Twin Touch™ control is easy to operate
Thoughtful designs promote safe operation and convenient service
MulchControl™ system options for Accel Deep™ and High-Capacity Mower Decks are convenient to use
Power Flow™ material collection systems make lawn cleanup easy
48-in. (122-cm) Accel Deep™ Mower Deck cuts clean and is versatile
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  24 hp
  17.9 kW
- Engine manufacturer/model
  3TNM74F
- Transaxle type
  K90 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  26x12-12 turf
- Steering type
  Hydraulic power
- Lift system type
  Two-function hydraulic
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
  High capacity mower deck, 54, 60 in.
  137, 152 cm
- U.S. warranty
  4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  24 hp
  17.9 kW
- Displacement
  60.6 cu in.
  993 cc
- Manufacturer/model
  3TNM74F
- Type
  Diesel, overhead valve, full-pressure lube, oil filter
- Cylinders
  Three, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  One lever
- Cooling method
  Liquid
- Air cleaner
  Paper dry-type with primary and secondary elements
- Oil drain
  No tools
Fuel system
- Type
  Diesel
- Fuel delivery
  In-line indirect injection
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  5.2 U.S. gal.
  19.7 L
Electrical system
- Battery
  12 V
  500 CCA
- Charging system
  Engine-mounted alternator, regulated, 40 amp
- Engine starter
  Solenoid shift
- Hourmeter
  Yes
- Headlights
  Two standard, halogen, 37 W
- Taillights or reflector
  Taillights
- Backup lights
  Yes
- Rear work lights
  Yes
- 12-V outlet
  Yes
Transaxle
- Type
  K90 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes
- Oil cooler
  Yes
- Oil filter
  Replaceable suction side 10 micron
- Differential lock
  Standard
- Forward speed
  0-8.5 mph
  0-13.7 km/h
- Reverse speed
  0-6 mph
  0-9.7 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Standard front - holds up to four Quik-Tatch weights, 42 lb
  19 kg
- Receiver hitch
  Yes, front
- Front axle
  JDM BA8 nodular iron casting
- Spindle bushings
  Metal, replaceable
- Front tires
  18x8.5-8 turf
- Rear tires
  26x12-12 turf
- Hood material
  Noryl GTX902, painted
- Fender deck material
  RIM with in-mold paint
- Floor mats
  Sure-grip rubber
- Storage
  Covered toolbox
- Service interval decal
  Yes
- Fender handles/grips
  Handles
- Cup holder
  Yes
- Equipment mounting
  Optional category 1 3-point hitch
Steering
- Type
  Hydraulic power
- Four-wheel steer
  Not available on this model
- Steering wheel
  14 in.
  35.6 cm
- Tilt steering wheel
  Standard, six position
- Turning radius
  25 in.
  63.5 cm
- Uncut circle radius
  54 HC, 32 in.
  63.5 cm
  60 HC, 28 in.
  71.1 cm
Seat
- Type
  Two-piece adjustable seat with brand embroidery
- Seat back height
  21 in.
  53.3 cm
- Armrests
  Optional
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Six-position parallel arm
Lift system
- Type
  Two-function hydraulic
- Hydraulic outlets
  Four, standard
- Mower cut height
  1-5.25 in.
  2.5-13.3 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
  High capacity mower deck, 54, 60 in.
  137, 152 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  48A, 10 gauge
  0.135 in.
  3.4 mm
  54 HC and 60 HC, 9 gauge
  0.15 in.
  3.8 mm
- Mower wash port
  Yes
- Mower drive system
  Hydraulic clutch, shaft
- Mower wheels
  Four
- Mower wheel adjustment
  Spring-loaded pin
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Roll under tractor (48A)
  Drive-over deck (54, 60 HC)
- Front draft arms
  Overcenter
- Rear draft arms
  V-align
- Mower wheels rotate
  Yes, 90 degrees for easy mower removal (48X), N/A (54 HC, 60 HC)
- Drive system
  Shaft or AutoConnect
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Styled alloy wheels are standard equipment
  One-piece hood for easy engine access
  Hydraulic modulated PTO clutch for smooth mower and implement engagement
- Warranty
  4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  48A, 54 HC, 60 HC
- Rear bagger
  7, 14, 19 bu
  250, 500, 670 L
- Powered material collection
  Power Flow, 7, 14, 19 bu
  250, 500, 670 L
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  54 in.
  137.2 cm
- Snow blower
  Two-stage, 47, 54 in.
  119.4, 137.2 cm
- Rotary broom
  52, 60 in.
  132.1, 152.4 cm
- Rotary tiller
  42, 48 in.
  106.7, 121.9 cm
- 3-point hitch
  Category 1
- Rear power take-off (PTO)
  540 rpm
- Plow, moldboard
  Adjustable, 8-14 in.
  20.3-35.6 cm
- Box scraper
  48 in.
  121.9 cm
- Cultivator
  Adjustable, 30-46 in.
  76.2-116.8 cm
- Rear blade
  60 in.
  152.4 cm
- Disk harrow
  Adjustable, 42-52 in.
  106.7-132.1 cm
- Landscape rake
  60 in.
  152.4 cm
- Sprayer
  Tow-behind, 15, 25, 45 U.S. gal.
  56.8, 94.6, 170.3 L
  Mounted, 25 lb
  94.6 L
- Spreader
  Tow-behind, 125, 175 lb
  57.7, 79.4 kg
  Mounted, 125 lb
  57.7 kg
- Front bumper
  Standard bumper/weight bracket
- Brush guard
  Yes
- Weather protection
  Hard-side cab, weather enclosure
- Rear receiver hitch
  1.25 x 1.25 in.
  3.18 x 3.18 cm
- Bucket holder
  Yes, double bucket
- Grass striping
  Grass groomer kit, 48-in. (122 cm) mower only
- Tractor shovel
  54 in.
  137.2 cm
- Front loader
  Not available
- Tow-behind tools
  21
Dimensions
- Height
  54.5 in.
  138 cm
- Overall length
  75 in.
  190.5 cm
- Wheelbase
  54.5 in.
  138.4 cm
- Width with mower
  48A, 62.5 in.
  159 cm
  54 HC, 64.5 in.
  163.8 cm
  60 HC, 74 in.
  188 cm
- Width with mower (deflector raised for storage)
  48A, 53.6 in.
  136 cm
  54 HC, 57.5 in.
  146.1 cm
  60 HC, 62 in.
  157.5 cm
- Width without mower
  47 in.
  119.4 cm
- Weight
  No fuel or mower, 948 lb
  430 kg

DetailsFeaturesSpecifications

Details:

X754

Signature Series Lawn Tractor

3-cylinder diesel engine
4-wheel steering
4-year/700-hour bumper-to-bumper warranty

Features:

Engine is 3-cylinder diesel for fuel economy and durability
54-in. (137-cm) and 60-in. (152-cm) Edge™ High-Capacity (HC) Mower Decks are heavy duty
Four-year or 700-hour bumper-to-bumper warranty is standard
Four-wheel power steering for superior maneuverability and trimming
Operator station is comfortable and convenient
Snow removal and yard care equipment
Instruments and controls are easy to find and use
Modern styling has a functional design
Hydrostatic drive with Twin Touch™ control is easy to operate
Thoughtful designs promote safe operation and convenient service
MulchControl™ system options for Accel Deep™ and High-Capacity Mower Decks are convenient to use
Power Flow™ material collection systems make lawn cleanup easy
48-in. (122-cm) Accel Deep™ Mower Deck cuts clean and is versatile
The MowerPlus™ app helps maintain the tractor and lawn

Specifications:

Key Specs
- Engine power
  24 hp
  17.9 kW
- Engine manufacturer/model
  3TNM74F
- Transaxle type
  K90 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  26x10.5-12 turf
- Steering type
  Hydraulic power
- Lift system type
  Two-function hydraulic
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
  High capacity mower deck, 54,60 in.
  137, 152 cm
- U.S. warranty
  4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  24 hp
  17.9 kW
- Displacement
  60.6 cu in.
  993 cc
- Manufacturer/model
  3TNM74F
- Type
  Diesel, overhead valve, full-pressure lube, oil filter
- Cylinders
  Three, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  One lever
- Cooling method
  Liquid
- Air cleaner
  Paper dry-type with primary and secondary elements
- Oil drain
  No tools
Fuel system
- Type
  Diesel
- Fuel delivery
  In-line indirect injection
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  5.2 U.S. gal.
  19.7 L
Electrical system
- Battery
  12 V
  500 CCA
- Charging system
  Engine-mounted alternator, regulated, 40 amp
- Engine starter
  Solenoid shift
- Hourmeter
  Yes
- Headlights
  Two standard, halogen, 37 W
- Taillights or reflector
  Taillights
- Backup lights
  Yes
- Rear work lights
  Yes
- 12-V outlet
  Yes
Transaxle
- Type
  K90 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes
- Oil cooler
  Yes
- Oil filter
  Replaceable suction side 10 micron
- Differential lock
  Standard
- Forward speed
  0-8.5 mph
  0-13.7 km/h
- Reverse speed
  0-6 mph
  0-9.7 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Standard front - holds up to four Quik-Tatch weights, 42 lb
  19 kg
- Receiver hitch
  Yes, front
- Front axle
  JDM BA8 nodular iron casting
- Spindle bushings
  Metal, replaceable
- Front tires
  18x7-8 turf
- Rear tires
  26x10.5-12 turf
- Hood material
  Noryl GTX902, painted
- Fender deck material
  RIM with in-mold paint
- Floor mats
  Sure-grip rubber
- Storage
  Covered toolbox
- Service interval decal
  Yes
- Fender handles/grips
  Handles
- Cup holder
  Yes
- Equipment mounting
  Optional category 1 3-point hitch
Steering
- Type
  Hydraulic power
- Four-wheel steer
  Yes
- Steering wheel
  14 in.
  35.6 cm
- Tilt steering wheel
  Standard, six position
- Turning radius
  21 in.
  53.3 cm
- Uncut circle radius
  54 HC, 10 in.
  25.4 cm
  60 HC, 6 in.
  15.2 cm
Seat
- Type
  Two-piece adjustable seat with brand embroidery
- Seat back height
  21 in.
  53.3 cm
- Armrests
  Optional
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Six-position parallel arm
Lift system
- Type
  Two-function hydraulic
- Hydraulic outlets
  Four, standard
- Mower cut height
  1-5.25 in.
  2.5-13.3 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
  High capacity mower deck 54, 60 in.
  137, 152 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  48A, 10 gauge
  0.135 in.
  3.4 mm
  54 HC and 60 HC, 9 gauge
  0.15 in.
  3.8 mm
- Mower wash port
  Yes
- Mower drive system
  Hydraulic clutch, shaft
- Mower wheels
  Four
- Mower wheel adjustment
  Spring-loaded pin
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Roll under tractor (48A)
  Drive-over deck (54, 60 HC)
- Front draft arms
  Overcenter
- Rear draft arms
  V-align
- Mower wheels rotate
  Yes, 90 degrees for easy mower removal (48X), N/A (54 HC, 60 HC)
- Drive system
  Shaft or AutoConnect
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Styled alloy wheels are standard equipment
  One-piece hood for easy engine access
  Hydraulic modulated PTO clutch for smooth mower and implement engagement
- Warranty
  4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  48A, 54 HC, 60 HC
- Rear bagger
  7, 14, 19 bu
  250, 500, 670 L
- Powered material collection
  Power Flow, 7, 14, 19
  250, 500, 670 L
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  54 in.
  137.2 cm
- Snow blower
  Two-stage, 47, 54 in.
  119.4, 137.2 cm
- Rotary broom
  52, 60 in.
  132.1, 152.4 cm
- Rotary tiller
  42, 48 in.
  106.7, 121.9 cm
- 3-point hitch
  Category 1
- Rear power take-off (PTO)
  540 rpm
- Plow, moldboard
  Adjustable, 8-14 in.
  20.3-35.6 cm
- Box scraper
  48 in.
  121.9 cm
- Cultivator
  Adjustable, 30-46 in.
  76.2-116.8 cm
- Rear blade
  60 in.
  152.4 cm
- Disk harrow
  Adjustable, 42-52 in.
  106.7-132.1 cm
- Landscape rake
  60 in.
  152.4 cm
- Sprayer
  Tow-behind, 15, 25, 45 U.S. gal.
  56.8, 94.6, 170.3 L
  Mounted, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind, 125, 175 lb
  57.7, 79.4 kg
  Mounted, 125 lb
  57.7 kg
- Front bumper
  Standard bumper/weight bracket
- Brush guard
  Yes
- Weather protection
  Hard-side cab, weather enclosure
- Rear receiver hitch
  1.25 x 1.25 in.
  3.18 x 3.18 cm
- Bucket holder
  Yes, double bucket
- Grass striping
  Grass groomer kit, 48-in. (122 cm) mower only
- Tractor shovel
  54 in.
  137.2 cm
- Front loader
  Not available
- Tow-behind tools
  21
Dimensions
- Height
  54.5 in.
  138 cm
- Overall length
  75 in.
  190.5 cm
- Wheelbase
  54.5 in.
  138.4 cm
- Width with mower
  48A, 62.5 in.
  159 cm
  54 HC, 64.5 in.
  163.8 cm
  60 HC, 74 in.
  188 cm
- Width with mower (deflector raised for storage)
  48A, 53.6 in.
  136 cm
  54 HC, 57.5 in.
  146.1 cm
  60 HC, 62 in.
  157.5 cm
- Width without mower
  47 in.
  119.4 cm
- Weight
  No fuel or mower, 1,003 lb
  455 kg

DetailsFeaturesSpecifications

Details:

X758

Signature Series Lawn Tractor

3-cylinder engine
Full-time 4-wheel drive
4-year/700-hour bumper-to-bumper warranty

Features:

Modern styling has a functional design
Engine is 3-cylinder diesel for fuel economy and durability
Hydrostatic four-wheel drive (4WD) with Twin Touch™ control gives superior traction and easy operation
Operator station is comfortable and convenient
Instruments and controls are easy to find and use
Thoughtful designs promote safe operation and convenient service
The MowerPlus™ app helps maintain the tractor and lawn
48-in. (122-cm) Accel Deep™ Mower Deck cuts clean and is versatile
54-in. (137-cm) and 60-in. (152-cm) Edge™ High-Capacity (HC) Mower Decks are heavy duty
Power Flow™ material collection systems make lawn cleanup easy
MulchControl™ system options for Accel Deep™ and High-Capacity Mower Decks are convenient to use
Snow removal and yard care equipment

Specifications:

Key Specs
- Engine power
  24 hp
  17.9 kW
- Engine manufacturer/model
  3TNM74F
- Transaxle type
  K90 hydrostatic integrated with transaxle
- Transaxle control
  Twin Touch™ pedals
- Rear tires
  26x12-12 HDAP
- Steering type
  Hydraulic power
- Lift system type
  Two-function hydraulic
- Cutting width
  Accel Deep™ mower deck, 48 in.
  122 cm
  High capacity mower deck, 54, 60 in.
  137, 152 cm
- U.S. warranty
  4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  24 hp
  17.9 kW
- Displacement
  60.6 cu in.
  993 cc
- Manufacturer/model
  3TNM74F
- Type
  Diesel, overhead valve, full-pressure lube, oil filter
- Cylinders
  Three, cast-iron liners
- Governor
  Mechanical
- Choke/speed control
  One lever
- Cooling method
  Liquid
- Air cleaner
  Paper dry-type with primary and secondary elements
- Oil drain
  No tools
Fuel system
- Type
  Diesel
- Fuel delivery
  In-line indirect injection
- Fuel gauge
  Gauge on dash
- Fuel tank location
  Rear
- Fuel fill opening
  On left fender, 3 in.
  7.6 cm
- Fuel tank capacity
  5.2 U.S. gal.
  19.7 L
Electrical system
- Battery
  12 V
  500 CCA
- Charging system
  Engine-mounted alternator, regulated, 40 amp
- Engine starter
  Solenoid shift
- Hourmeter
  Yes
- Headlights
  Two standard, halogen, 37 W
- Taillights or reflector
  Taillights
- Backup lights
  Yes
- Rear work lights
  Yes
- 12-V outlet
  Yes
Transaxle
- Type
  K90 hydrostatic integrated with transaxle
- Control
  Twin Touch™ pedals
- Cruise control
  Yes
- Oil cooler
  Yes
- Oil filter
  Replaceable suction side 10 micron
- Differential lock
  Standard
- Forward speed
  0-8.5 mph
  0-13.7 km/h
- Reverse speed
  0-6 mph
  0-9.7 km/h
- Brakes
  Internal wet disc
Chassis
- Frame
  Welded heavy-duty
- Primer/paint
  E-coat/powder
- Weight bracket
  Standard front - holds up to four Quik-Tatch weights, 42 lb
  19 kg
- Receiver hitch
  Yes, front
- Front axle
  JDM BA8 nodular iron casting
- Front tires
  18x8.5-10 HDAP
- Rear tires
  26x12-12 HDAP
- Hood material
  Noryl GTX902, painted
- Fender deck material
  RIM with in-mold paint
- Floor mats
  Sure-grip rubber
- Storage
  Covered toolbox
- Service interval decal
  Yes
- Fender handles/grips
  Handles
- Cup holder
  Yes
- Equipment mounting
  Optional category 1 3-point hitch
Steering
- Type
  Hydraulic power
- Four-wheel steer
  Not available on this model
- Steering wheel
  14 in.
  35.6 cm
- Tilt steering wheel
  Standard, six position
- Turning radius
  25 in.
  63.5 cm
- Uncut circle radius
  54 HC, 32 in.
  63.5 cm
  60 HC, 28 in.
  71.1 cm
Seat
- Type
  Two-piece adjustable seat with brand embroidery
- Seat back height
  21 in.
  53.3 cm
- Armrests
  Optional
- Fore-aft adjustment
  While seated, slide rail, 14-position, 7 in.
  17.8 cm
- Seat suspension
  Six-position parallel arm
Lift system
- Type
  Two-function hydraulic
- Hydraulic outlets
  Four, standard
- Mower cut height
  1-5.25 in.
  2.5-13.3 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  Yes
Mower deck
- Type
  Side discharge
- Cutting width
  Accel Deep mower deck, 48 in.
  122 cm
  High capacity mower deck, 54, 60 in.
  137, 152 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  48A, 10 gauge
  0.135 in.
  3.4 mm
  54 HC and 60 HC, 9 gauge
  0.15 in.
  3.8 mm
- Mower wash port
  Yes
- Mower drive system
  Hydraulic clutch, shaft
- Mower wheels
  Four
- Mower wheel adjustment
  Spring-loaded pin
- Mower level adjustment
  Exact Adjust ports and onboard deck-leveling gauge
Mower attachability
- Type
  Roll under tractor (48A)
  Drive-over deck (54, 60 HC)
- Front draft arms
  Overcenter
- Rear draft arms
  V-align
- Mower wheels rotate
  Yes, 90 degrees for easy mower removal (48X), N/A (54 HC, 60 HC)
- Drive system
  Shaft or AutoConnect
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Styled alloy wheels are standard equipment
  One-piece hood for easy engine access
  Hydraulic modulated PTO clutch for smooth mower and implement engagement
- Warranty
  4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Mowers
  48A, 54 HC, 60 HC
- Rear bagger
  7, 14, 19 bu
  250, 500, 670 L
- Powered material collection
  Power Flow, 7, 14, 19 bu
  250, 500, 670 L
- Mulching system
  Yes, MulchControl™
- Front thatcher
  38, 46, 54 in.
  96.5, 116.8, 137.2 cm
- Front blade
  54 in.
  137.2 cm
- Snow blower
  Two-stage, 47, 54 in.
  119.4, 137.2 cm
- Rotary broom
  52, 60 in.
  132.1, 152.4 cm
- Rotary tiller
  42, 48 in.
  106.7, 121.9 cm
- 3-point hitch
  Category 1
- Rear power take-off (PTO)
  540 rpm
- Plow, moldboard
  Adjustable, 8-14 in.
  20.3-35.6 cm
- Box scraper
  48 in.
  121.9 cm
- Cultivator
  Adjustable, 30-46 in.
  76.2-116.8 cm
- Rear blade
  60 in.
  152.4 cm
- Disk harrow
  Adjustable, 42-52 in.
  106.7-132.1 cm
- Landscape rake
  60 in.
  152.4 cm
- Sprayer
  Tow-behind, 15, 25, 45 U.S. gal.
  56.8, 94.6, 170.3 L
  Mounted, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind, 125, 175 lb
  57.7, 79.4 kg
  Mounted, 125 lb
  57.7 kg
- Front bumper
  Standard bumper/weight bracket
- Brush guard
  Yes
- Weather protection
  Hard-side cab, weather enclosure
- Rear receiver hitch
  1.25 x 1.25 in.
  3.18 x 3.18 cm
- Bucket holder
  Yes, double bucket
- Grass striping
  Grass groomer kit, 48-in. (122 cm) mower only
- Tractor shovel
  54 in.
  137.2 cm
- Front loader
  Not available
- Tow-behind tools
  21
Dimensions
- Height
  54.5 in.
  138 cm
- Overall length
  75 in.
  190.5 cm
- Wheelbase
  55.7 in.
  141.5 cm
- Width with mower
  48A, 62.5 in.
  159 cm
  54 HC, 64.5 in.
  163.8 cm
  60 HC, 74 in.
  188 cm
- Width with mower (deflector raised for storage)
  48A, 53.6 in.
  136 cm
  54 HC, 57.5 in.
  146.1 cm
  60 HC, 62 in.
  157.5 cm
- Width without mower
  47 in.
  119.4 cm
- Weight
  No fuel or mower, 1,038 lb
  471 kg

S100 Series

Available models: S100S110S120S130S140S160S170S180

DetailsFeaturesSpecifications

Details:

S100

Lawn Tractor

17.5 hp (13 kW)* Engine
42-in. Edge™ Mower Deck
Hydrostatic Transmission w/side-by-side pedals
Spring-assisted hand grip lever raises and lowers deck easily
Operator station is wide and comfortable
2 year/120 hour bumper-to-bumper warranty

Features:

Powerful engine features full-pressure lubrication for long life
Frame made of full-length welded steel for reliability
Snow removal is a strength of lawn tractors
Hydrostatic transmission gives an infinite choice of ground speeds
Operator station designed for comfortable operation
Instruments and controls are easy to find and convenient to use
Serviceability is convenient with an easy-open hood
Help maintain your mower and lawn with the MowerPlus™ app and connector
The Edge™ cutting system gives superior performance
Two-year or 120-hour bumper-to-bumper warranty is included

Specifications:

Key Specs
- Engine power
  17.5 hp
  13 kW
- Oil change
  No-tools oil drain with replaceable filter
- Engine manufacturer/model
  31R977 (M31)
- Transaxle type
  TLT200 hydrostatic, two-wheel drive
- Transaxle control
  Side-by-side pedals
- Rear tires
  20x8-8
- Lift system type
  Spring-assisted hand-grip lever
- Cutting width
  Edge™ mower deck, 42 in.
  107 cm
- U.S. warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  17.5 hp
  13 kW
- Displacement
  30.5 cu in.
  500 cc
- Manufacturer/model
  31R977 (M31)
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  One
- Governor
  Mechanical
- Choke/speed control
  Single lever with spring-return on choke
- Cooling method
  Air
- Air cleaner
  Cartridge
- Oil change
  No-tools oil drain with replaceable filter
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump and carburetor
- Fuel gauge
  Mechanical, viewable from seat
- Fuel tank location
  Rear
- Fuel fill opening
  Center, 1.75 in.
  4.45 cm
- Fuel tank capacity
  2.4 U.S. gal.
  9.1 L
Electrical system
- Battery
  12 V
  300 CCA
- Charging system
  Regulated, 8 amp
- Engine starter
  Bendix type
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent
- Taillights or reflector
  No
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  No
Transaxle
- Type
  Hydrostatic, 2-wheel drive
- Control
  Side-by-side pedals
- Cruise control
  No
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Yes, not serviceable
- Differential lock
  No
- Forward speed
  0-5.5 mph
  0-8.9 km/h
- Reverse speed
  0-3.2 mph
  0-5.2 km/h
- Brakes
  Internal wet disk
Chassis
- Frame
  Full-length welded steel
- Primer/paint
  E-coat/powder
- Weight bracket
  Optional rear
- Receiver hitch
  No
- Front axle
  Cast-iron front axle, powdered-metal front wheel bushings
- Spindle bushings
  No
- Front tires
  15x6-6
- Rear tires
  20x8-8
- Hood material
  Molded-in color material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Yes, with debris removing channels
- Storage
  Storage tray with optional cover
- Service interval decal
  Yes
- Fender handles/grips
  No
- Cup holder
  Yes
- Equipment mounting
  CargO Mount™ system
Steering
- Type
  Sector and pinion with single drag link and tie rod
- Four-wheel steer
  Not available on this model
- Steering wheel
  Standard, diameter - 12 in.
  30.5 cm
- Tilt steering wheel
  No
- Turning radius
  18 in.
  45.7 cm
- Uncut circle radius
  25 in.
  63.5 cm
Seat
- Type
  One piece
- Seat back height
  11 in.
  28 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, 5.5 in.
  14 cm
- Seat suspension
  Tilt, two coil springs
Lift system
- Type
  Spring-assisted hand-grip lever
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  No
Mower deck
- Type
  Side discharge
- Cutting width
  Edge™ mower deck, 42 in.
  107 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  Steel, 13 gauge
  0.09 in.
  2.3 mm
- Mower wash port
  Yes
- Mower drive system
  Manual power take-off (PTO)
- Mower wheels
  Two
- Mower wheel adjustment
  One bolt
- Mower level adjustment
  Easy-level deck
Mower attachability
- Type
  Slide under tractor
- Front draft arms
  One spring clip
- Rear draft arms
  Two spring clips
- Mower wheels rotate
  No
- Drive system
  Single belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Molded-in color material reduces sound, will not rust or dent
  Durable primer and powder paint finish
  Full-length welded steel frame
- Warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Rear bagger
  2-bag, 6.5 bu
  229 L
- Mulching system
  Mulch cover or high-performance plug
- Front blade
  46 in.
  116.8 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Sprayer
  Tow-behind, 15 U.S. gal.
  56.8 L
  Mounted, 15 U.S. gal.
  Tow-behind only, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind only, 125-175 lb
  57.7-80 kg
- Front bumper
  Styled front bumper
- Weather protection
  Weather enclosure
- Sun canopy
  Sun canopy
- Bucket holder
  Yes, single bucket
- Grass striping
  Lawn striping kit
- Tow-behind tools
  16
Dimensions
- Height
  40 in.
  102 cm
- Overall length
  69.7 in.
  177 cm
- Wheelbase
  48.9 in.
  124.2 cm
- Width with mower
  55.2 in.
  140.2 cm
- Width with mower (deflector raised for storage)
  46.5 in.
  118.1 cm
- Weight
  Mower, no fuel, 414 lb
  188 kg
Additional information
- Manufacturing location
  Greeneville, Tennessee, USA
- Date collected
  24-Jul-2020

DetailsFeaturesSpecifications

Details:

S110

Lawn Tractor

19 hp (14.2 kW)* Engine
42-in. Edge™ Mower Deck
Hydrostatic Transmission w/side-by-side pedals
Spring-assisted hand grip lever raises and lowers deck easily
Operator station is wide and comfortable
15-in. Open-Back seat
2 year/120 hour bumper-to-bumper warranty

Features:

Powerful engine features full-pressure lubrication for long life
Frame made of full-length welded steel for reliability
Snow removal is a strength of lawn tractors
Hydrostatic transmission gives an infinite choice of ground speeds
Operator station designed for operator comfort and convenience
Instruments and controls are easy to find and convenient to use
Serviceability is convenient with an easy-open hood
The MowerPlus™ app helps maintain the tractor and lawn
The Edge™ cutting system gives superior performance
Two-year or 120-hour bumper-to-bumper warranty is included

Specifications:

Key Specs
- Engine power
  19 hp
  14.2 kW
- Oil change
  No-tools oil drain with replaceable filter
- Engine manufacturer/model
  33R877 (M33)
- Transaxle type
  TLT200 hydrostatic, two-wheel drive
- Transaxle control
  Side-by-side pedals
- Rear tires
  20x8-8
- Lift system type
  Spring-assisted hand-grip lever
- Cutting width
  Edge™ mower deck, 42 in.
  107
- U.S. warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  19 hp
  14.2 kW
- Displacement
  33 cu in.
  540 cc
- Manufacturer/model
  33R877 (M33)
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  One
- Governor
  Mechanical
- Choke/speed control
  Single lever with spring-return on choke
- Cooling method
  Air
- Air cleaner
  Cartridge
- Oil change
  No-tools oil drain with replaceable filter
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump and carburetor
- Fuel gauge
  Mechanical, viewable from seat
- Fuel tank location
  Rear
- Fuel fill opening
  Center, 1.75 in.
  4.45 cm
- Fuel tank capacity
  2.4 U.S. gal.
  9.1 L
Electrical system
- Battery
  12 V
  300 CCA
- Charging system
  Regulated, 8 amp
- Engine starter
  Bendix type
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent
- Taillights or reflector
  No
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  No
Transaxle
- Type
  Hydrostatic, 2-wheel drive
- Control
  Side-by-side pedals
- Cruise control
  No
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Yes, not serviceable
- Differential lock
  No
- Forward speed
  0-5.5 mph
  0-8.9 km/h
- Reverse speed
  0-3.2 mph
  0-5.2 km/h
- Brakes
  Internal wet disk
Chassis
- Frame
  Full-length welded steel
- Primer/paint
  E-coat/powder
- Weight bracket
  Optional rear
- Receiver hitch
  No
- Front axle
  Cast-iron front axle, powdered-metal front wheel bushings
- Spindle bushings
  No
- Front tires
  15x6-6
- Rear tires
  20x8-8
- Hood material
  Molded-in color material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Yes, with debris removing channels
- Storage
  Storage tray with optional cover
- Service interval decal
  Yes
- Fender handles/grips
  No
- Cup holder
  Yes
- Equipment mounting
  CargO Mount™ system
Steering
- Type
  Sector and pinion with single drag link and tie rod
- Four-wheel steer
  Not available on this model
- Steering wheel
  Standard, diameter - 12 in.
  30.5 cm
- Tilt steering wheel
  No
- Turning radius
  18 in.
  45.7 cm
- Uncut circle radius
  25 in.
  63.5 cm
Seat
- Type
  Two piece with open-back
- Seat back height
  15 in.
  38 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, 5.5 in.
  14 cm
- Seat suspension
  Tilt, two coil springs
Lift system
- Type
  Spring-assisted hand-grip lever
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  No
Mower deck
- Type
  Side discharge
- Cutting width
  Edge™ mower deck, 42 in.
  107 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  Steel, 13 gauge
  0.09 in.
  2.3 mm
- Mower wash port
  Yes
- Mower drive system
  Manual power take-off (PTO)
- Mower wheels
  Two
- Mower wheel adjustment
  One bolt
- Mower level adjustment
  Easy-level deck
Mower attachability
- Type
  Slide under tractor
- Front draft arms
  One spring clip
- Rear draft arms
  Two spring clips
- Mower wheels rotate
  No
- Drive system
  Single belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Molded-in color material reduces sound, will not rust or dent
  Durable primer and powder paint finish
  Full-length welded steel frame
- Warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Rear bagger
  2-bag, 6.5 bu
  229 L
- Mulching system
  Mulch cover or high-performing plug
- Front blade
  46 in.
  116.8 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Sprayer
  Tow-behind, 15 U.S. gal.
  56.8 L
  Mounted, 15 U.S. gal.
  Tow-behind only, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind only, 125-175 lb
  57.7-80 kg
- Front bumper
  Styled front bumper
- Weather protection
  Weather enclosure
- Sun canopy
  Sun canopy
- Bucket holder
  Yes, single bucket
- Grass striping
  Lawn striping kit
- Tow-behind tools
  16
Dimensions
- Height
  44 in.
  112 cm
- Overall length
  69.7 in.
  177 cm
- Wheelbase
  48.9 in.
  124.2 cm
- Width with mower
  55.2 in.
  140.2 cm
- Width with mower (deflector raised for storage)
  46.5 in.
  118.1 cm
- Weight
  Mower, no fuel, 414 lb
  188 kg
Additional information
- Manufacturing location
  Greeneville, Tennessee, USA
- Date collected
  24-Jul-2020

DetailsFeaturesSpecifications

Details:

S120

Lawn Tractor

22 hp (16.4 kW)* V-Twin Engine
42-in. Edge™ Mower Deck
Hydrostatic Transmission w/side-by-side pedals
Easy Change™ 30-Second Oil Change System
15-in Open-Back seat
Easy to read fuel gauge
2 year/120 hour bumper-to-bumper warranty

Features:

Powerful V-twin engine features full-pressure lubrication for dependability and long life
John Deere Easy Change™ 30-second oil change system
Frame made of full-length welded steel for reliability
Snow removal is a strength of lawn tractors
Hydrostatic transmission gives an infinite choice of ground speeds
Operator station designed for operator comfort and convenience
Easy-read fuel gauge shows fuel level on dashboard and controls are convenient to use
Serviceability is convenient with easy-open hood
Help maintain your mower and lawn with the MowerPlus™ app and connector
The Edge™ cutting system gives superior performance
Two-year or 120-hour bumper-to-bumper warranty is included

Specifications:

Key Specs
- Engine power
  22 hp
  16.4 kW
- Oil change
  John Deere Easy Change™ 30-second oil change system
- Engine manufacturer/model
  44N677 (M44)
- Transaxle type
  TLT200 hydrostatic, two-wheel drive
- Transaxle control
  Side-by-side pedals
- Rear tires
  20x8-8
- Lift system type
  Spring-assisted hand-grip lever
- Cutting width
  Edge™ mower deck, 42 in.
  107 cm
- U.S. warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  22 hp
  16.4 kW
- Displacement
  44.2 cu in.
  724 cm
- Manufacturer/model
  44N677 (M44)
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin
- Governor
  Mechanical
- Choke/speed control
  Single lever with spring-return on choke
- Cooling method
  Air
- Air cleaner
  Cartridge
- Oil change
  John Deere Easy Change 30-second oil change system
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump and carburetor
- Fuel gauge
  Easy-read on dash
- Fuel tank location
  Rear
- Fuel fill opening
  Center, 1.75 in.
  4.45 cm
- Fuel tank capacity
  2.4 U.S. gal.
  9.1 L
Electrical system
- Battery
  12 V
  300 CCA
- Charging system
  Regulated, 8 amp
- Engine starter
  Bendix type
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent
- Taillights or reflector
  No
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  No
Transaxle
- Type
  Hydrostatic, 2-wheel drive
- Control
  Side-by-side pedals
- Cruise control
  Standard
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Yes, not serviceable
- Differential lock
  No
- Forward speed
  0-5.5 mph
  0-8.9 km/h
- Reverse speed
  0-3.2 mph
  0-5.2 km/h
- Brakes
  Internal wet disk
Chassis
- Frame
  Full-length welded steel
- Primer/paint
  E-coat/powder
- Weight bracket
  Optional rear
- Receiver hitch
  No
- Front axle
  Cast-iron front axle, powdered-metal front wheel bushings
- Spindle bushings
  No
- Front tires
  15x6-6
- Rear tires
  20x8-8
- Hood material
  Molded-in color material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Yes, with debris removing channels
- Storage
  Storage tray with cover
- Service interval decal
  Yes
- Fender handles/grips
  No
- Cup holder
  Yes
- Equipment mounting
  CargO Mount™ system
Steering
- Type
  Sector and pinion with single drag link and tie rod
- Four-wheel steer
  Not available on this model
- Steering wheel
  Standard, diameter - 12 in.
  30.5 cm
- Tilt steering wheel
  No
- Turning radius
  18 in.
  45.7 cm
- Uncut circle radius
  25 in.
  63.5 cm
Seat
- Type
  Two piece with open-back
- Seat back height
  15 in.
  38 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, 5.5 in.
  14 cm
- Seat suspension
  Tilt, two coil springs
Lift system
- Type
  Spring-assisted hand-grip lever
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  No
Mower deck
- Type
  Side discharge
- Cutting width
  Edge™ mower deck, 42 in.
  107 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  Steel, 13 gauge
  0.09 in.
  2.3 mm
- Mower wash port
  Yes
- Mower drive system
  Manual power take-off (PTO)
- Mower wheels
  Two
- Mower wheel adjustment
  One bolt
- Mower level adjustment
  Easy-level deck
Mower attachability
- Type
  Slide under tractor
- Front draft arms
  One spring clip
- Rear draft arms
  Two spring clips
- Mower wheels rotate
  No
- Drive system
  Single belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Molded-in color material reduces sound, will not rust or dent
  Durable primer and powder paint finish
  Full-length welded steel frame
  John Deere Easy Change 30-second oil change system
- Warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Rear bagger
  2-bag, 6.5 bu
  229 L
- Mulching system
  Mulch cover or high-performance plug
- Front blade
  46 in.
  116.8 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Sprayer
  Tow-behind, 15 U.S. gal.
  56.8 L
  Mounted, 15 U.S. gal.
  Tow-behind only, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind only, 125-175 lb
  57.7-80 kg
- Front bumper
  Styled front bumper
- Weather protection
  Weather enclosure
- Sun canopy
  Sun canopy
- Bucket holder
  Yes, single bucket
- Grass striping
  Lawn striping kit
- Tow-behind tools
  16
Dimensions
- Height
  44 in.
  112 cm
- Overall length
  69.7 in.
  177 cm
- Wheelbase
  48.9 in.
  124.2 cm
- Width with mower
  55.2 in.
  140.2 cm
- Width with mower (deflector raised for storage)
  46.5 in.
  118.1 cm
- Weight
  Mower, no fuel, 444 lb
  201 kg
Additional information
- Manufacturing location
  Greeneville, Tennessee, USA
- Date collected
  24-Jul-2020

DetailsFeaturesSpecifications

Details:

S130

Lawn Tractor

22 hp (16.4 kW)* V-Twin Engine
42-in. Edge™ Mower Deck
Electric PTO, Hydrostatic Transmission w/side-by-side pedals
Easy Change™ 30-Second Oil Change System
15-in Open-Back seat and standard front bumper
Easy to read fuel gauge
2 year/120 hour bumper-to-bumper warranty

Features:

Powerful V-twin engine features full-pressure lubrication for dependability and long life
John Deere Easy Change™ 30-second oil change system
Frame made of full-length welded steel for reliability
Snow removal is a strength of lawn tractors
Hydrostatic transmission gives an infinite choice of ground speeds
Operator station designed for operator comfort and convenience
Easy-read fuel gauge shows fuel level on dashboard and controls are convenient to use
Serviceability is convenient with easy-open hood
Help maintain your mower and lawn with the MowerPlus™ app and connector
The Edge™ cutting system gives superior performance
Two-year or 120-hour bumper-to-bumper warranty is included

Specifications:

Key Specs
- Engine power
  22 hp
  16.4 kW
- Oil change
  John Deere Easy Change™ 30-second oil change system
- Engine manufacturer/model
  44N677 (M44)
- Transaxle type
  TLT200 hydrostatic, two-wheel drive
- Transaxle control
  Side-by-side pedals
- Rear tires
  20x10-8
- Lift system type
  Spring-assisted hand-grip lever
- Cutting width
  Edge™ mower deck, 42 in.
  107 cm
- U.S. warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  22 hp
  16.4 kW
- Displacement
  44.2 cu in.
  724 cc
- Manufacturer/model
  44N677 (M44)
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin
- Governor
  Mechanical
- Choke/speed control
  Single lever with spring-return on choke
- Cooling method
  Air
- Air cleaner
  Cartridge
- Oil change
  John Deere Easy Change 30-second oil change system
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump and carburetor
- Fuel gauge
  Easy-read on dash
- Fuel tank location
  Rear
- Fuel fill opening
  Center, 1.75 in.
  4.45 cm
- Fuel tank capacity
  2.4 U.S. gal.
  9.1 L
Electrical system
- Battery
  12 V
  300 CCA
- Charging system
  Regulated, 8 amp
- Engine starter
  Bendix type
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent
- Taillights or reflector
  No
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  No
Transaxle
- Type
  Hydrostatic, 2-wheel drive
- Control
  Side-by-side pedals
- Cruise control
  Standard
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Yes, not serviceable
- Differential lock
  No
- Forward speed
  0-5.5 mph
  0-8.9 km/h
- Reverse speed
  0-3.2 mph
  0-5.2 km/h
- Brakes
  Internal wet disk
Chassis
- Frame
  Full-length welded steel
- Primer/paint
  E-coat/powder
- Weight bracket
  Optional rear
- Receiver hitch
  No
- Front axle
  Cast-iron front axle, powdered-metal front wheel bushings
- Spindle bushings
  No
- Front tires
  15x6-6
- Rear tires
  20x10-8
- Hood material
  Molded-in color material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Yes, with debris removing channels
- Storage
  Storage tray with cover
- Service interval decal
  Yes
- Fender handles/grips
  No
- Cup holder
  Yes
- Equipment mounting
  CargO Mount™ system
Steering
- Type
  Sector and pinion with single drag link and tie rod
- Four-wheel steer
  Not available on this model
- Steering wheel
  Standard, diameter - 12 in.
  30.5 cm
- Tilt steering wheel
  No
- Turning radius
  18 in.
  45.7 cm
- Uncut circle radius
  25 in.
  63.5 cm
Seat
- Type
  Two piece with open-back
- Seat back height
  15 in.
  38 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, 5.5 in.
  14 cm
- Seat suspension
  Tilt, two coil springs
Lift system
- Type
  Spring-assisted hand-grip lever
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  No
Mower deck
- Type
  Side discharge
- Cutting width
  Edge™ mower deck, 42 in.
  107 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  Steel, 13 gauge
  0.09 in.
  2.3 mm
- Mower wash port
  Yes
- Mower drive system
  Electric power take-off (PTO) clutch
- Mower wheels
  Two
- Mower wheel adjustment
  One bolt
- Mower level adjustment
  Easy-level deck
Mower attachability
- Type
  Slide under tractor
- Front draft arms
  One spring clip
- Rear draft arms
  Two spring clips
- Mower wheels rotate
  No
- Drive system
  Single belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Molded-in color material reduces sound, will not rust or dent
  Durable primer and powder paint finish
  Full-length welded steel frame
  John Deere Easy Change 30-second oil change system
- Warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Rear bagger
  2-bag, 6.5 bu
  229 L
- Mulching system
  Mulch cover or high-performance plug
- Front blade
  46 in.
  116.8 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Sprayer
  Tow-behind, 15 U.S. gal.
  56.8 L
  Mounted, 15 U.S. gal.
  Tow-behind only, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind only, 125-175 lb
  57.7-80 kg
- Front bumper
  Included
- Weather protection
  Weather enclosure
- Sun canopy
  Sun canopy
- Bucket holder
  Yes, single bucket
- Grass striping
  Lawn striping kit
- Tow-behind tools
  16
Dimensions
- Height
  45 in.
  114 cm
- Overall length
  74.2 in.
  188 cm
- Wheelbase
  48.9 in.
  124.2 cm
- Width with mower
  55.2 in.
  140.2 cm
- Width with mower (deflector raised for storage)
  46.5 in.
  118.1 cm
- Weight
  Mower, no fuel, 462 lb
  210 kg
Additional information
- Manufacturing location
  Greeneville, Tennessee, USA
- Date collected
  24-Jul-2020

DetailsFeaturesSpecifications

Details:

S140

Lawn Tractor

22 hp (16.4 kW)* V-Twin Engine
48-in. Edge™ Mower Deck
Electric PTO, Hydrostatic Transmission w/side-by-side pedals
Operator station is wide and comfortable
15-in Open-Back seat and standard front bumper
2 year/120 hour bumper-to-bumper warranty

Features:

Engine is powerful and smooth-running V-twin design
Frame made of full-length welded steel for reliability
Snow removal is a strength of lawn tractors
Hydrostatic transmission gives an infinite choice of ground speeds
Operator station designed for operator comfort and convenience
Instruments and controls are easy to find and convenient to use
Serviceability is convenient with an easy-open hood
Help maintain your mower and lawn with the MowerPlus™ app and connector
The Edge™ cutting system gives superior performance
Two-year or 120-hour bumper-to-bumper warranty is included

Specifications:

Key Specs
- Engine power
  22 hp
  16.4 kW
- Oil change
  No-tools oil drain with replaceable filter
- Engine manufacturer/model
  44N677 (M44)
- Transaxle type
  TLT200 hydrostatic, two-wheel drive
- Transaxle control
  Side-by-side pedals
- Rear tires
  20x8-8
- Lift system type
  Spring-assisted hand-grip lever
- Cutting width
  Edge™ mower deck, 48 in.
  122 cm
- U.S. warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  22 hp
  16.4 kW
- Displacement
  44.2 cu in.
  724 cc
- Manufacturer/model
  44N677 (M44)
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin
- Governor
  Mechanical
- Choke/speed control
  Single lever with spring-return on choke
- Cooling method
  Air
- Air cleaner
  Cartridge
- Oil change
  No-tools oil drain with replaceable filter
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump and carburetor
- Fuel gauge
  Mechanical, viewable from seat
- Fuel tank location
  Rear
- Fuel fill opening
  Center, 1.75 in.
  4.45 cm
- Fuel tank capacity
  2.4 U.S. gal.
  9.1 L
Electrical system
- Battery
  12 V
  300 CCA
- Charging system
  Regulated, 8 amp
- Engine starter
  Bendix type
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent
- Taillights or reflector
  No
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  No
Transaxle
- Type
  Hydrostatic, 2-wheel drive
- Control
  Side-by-side pedals
- Cruise control
  No
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Yes, not serviceable
- Differential lock
  No
- Forward speed
  0-5.5 mph
  0-8.9 km/h
- Reverse speed
  0-3.2 mph
  0-5.2 km/h
- Brakes
  Internal wet disk
Chassis
- Frame
  Full-length welded steel
- Primer/paint
  E-coat/powder
- Weight bracket
  Optional rear
- Receiver hitch
  No
- Front axle
  Cast-iron front axle, powdered-metal front wheel bushings
- Spindle bushings
  No
- Front tires
  15x6-6
- Rear tires
  20x8-8
- Hood material
  Molded-in color material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Yes, with debris removing channels
- Storage
  Storage tray with optional cover
- Service interval decal
  Yes
- Fender handles/grips
  No
- Cup holder
  Yes
- Equipment mounting
  CargO Mount™ system
Steering
- Type
  Sector and pinion with single drag link and tie rod
- Four-wheel steer
  Not available on this model
- Steering wheel
  Standard, diameter - 12 in.
  30.5 cm
- Tilt steering wheel
  No
- Turning radius
  18 in.
  45.7 cm
- Uncut circle radius
  20 in.
  50.8 cm
Seat
- Type
  Two piece with open-back
- Seat back height
  15 in.
  38 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, 5.5 in.
  14 cm
- Seat suspension
  Tilt, two coil springs
Lift system
- Type
  Spring-assisted hand-grip lever
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  No
Mower deck
- Type
  Side discharge
- Cutting width
  Edge™ mower deck, 48 in.
  122 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  Steel, 12 gauge
  0.105 in.
  2.7 mm
- Mower wash port
  Yes
- Mower drive system
  Electric power take-off (PTO) clutch
- Mower wheels
  Four
- Mower wheel adjustment
  One bolt
- Mower level adjustment
  Easy-level deck
Mower attachability
- Type
  Slide under tractor
- Front draft arms
  One spring clip
- Rear draft arms
  Two spring clips
- Mower wheels rotate
  No
- Drive system
  Single belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Molded-in color material reduces sound, will not rust or dent
  Durable primer and powder paint finish
  Full-length welded steel frame
- Warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Rear bagger
  2-bag, 6.5 bu
  229 L
- Mulching system
  Mulch cover
- Front blade
  46 in.
  116.8 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Sprayer
  Tow-behind, 15 U.S. gal.
  56.8 L
  Mounted, 15 U.S. gal.
  Tow-behind only, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind only, 125-175 lb
  57.7-80 kg
- Front bumper
  Included
- Weather protection
  Weather enclosure
- Sun canopy
  Sun canopy
- Bucket holder
  Yes, single bucket
- Grass striping
  Lawn striping kit
- Tow-behind tools
  16
Dimensions
- Height
  44 in.
  112 cm
- Overall length
  69.7 in.
  177 cm
- Wheelbase
  48.9 in.
  124.2 cm
- Width with mower
  60.8 in.
  154 cm
- Width with mower (deflector raised for storage)
  51.7 in.
  131.3 cm
- Weight
  Mower, no fuel, 468 lb
  212 kg
Additional information
- Manufacturing location
  Greeneville, Tennessee, USA
- Date collected
  24-Jul-2020

DetailsFeaturesSpecifications

Details:

S160

Lawn Tractor

24 hp (17.9 kW)* V-Twin Extended Life Series (ELS) Engine
48-in. Edge™ Mower Deck
Electric PTO, Hydrostatic Transmission w/side-by-side pedals
Easy Change™ 30-Second Oil Change System
Adjustable lumbar seat and standard front bumper
Easy to read fuel gauge
2 year/120 hour bumper-to-bumper warranty

Features:

Engine is powerful and smooth-running V-twin design
John Deere Easy Change™ 30-second oil change system
Full-featured engine is more reliable and lasts longer
Frame made of full-length welded steel for reliability
Snow removal is a strength of lawn tractors
Hydrostatic transmission gives an infinite choice of ground speeds
Operator station designed for comfortable operation
Easy-read fuel gauge shows fuel level on dashboard and controls are convenient to use
Serviceability is convenient with easy-open hood
Help maintain your mower and lawn with the MowerPlus™ app and connector
The Edge™ cutting system gives superior performance
Two-year or 120-hour bumper-to-bumper warranty is included

Specifications:

Key Specs
- Engine power
  24 hp
  17.9 kW
- Oil change
  John Deere Easy Change™ 30-second oil change system
- Engine manufacturer/model
  44U877 (M44)
- Transaxle type
  TLT200 hydrostatic, two-wheel drive
- Transaxle control
  Side-by-side pedals
- Rear tires
  20x10-8
- Lift system type
  Spring-assisted hand-grip lever
- Cutting width
  Edge™ mower deck, 48 in.
  122 cm
- U.S. warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  24 hp
  17.9 kW
- Displacement
  44.2 cu in.
  724 cc
- Manufacturer/model
  44U877 (M44)
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin - extended life series (ELS)
- Governor
  Mechanical
- Choke/speed control
  Single lever with spring-return on choke
- Cooling method
  Air
- Air cleaner
  Cartridge with prefilter
- Oil change
  John Deere Easy Change 30-second oil change system
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump and carburetor
- Fuel gauge
  Easy-read on dash
- Fuel tank location
  Rear
- Fuel fill opening
  Center, 1.75 in.
  4.45 cm
- Fuel tank capacity
  2.4 U.S. gal.
  9.1 L
Electrical system
- Battery
  12 V
  300 CCA
- Charging system
  Regulated, 14 amp
- Engine starter
  Bendix type
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent
- Taillights or reflector
  Reflectors
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  No
Transaxle
- Type
  Hydrostatic, 2-wheel drive
- Control
  Side-by-side pedals
- Cruise control
  Standard
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Yes, not serviceable
- Differential lock
  No
- Forward speed
  0-5.5 mph
  0-8.9 km/h
- Reverse speed
  0-3.2 mph
  0-5.2 km/h
- Brakes
  Internal wet disk
Chassis
- Frame
  Full-length welded steel
- Primer/paint
  E-coat/powder
- Weight bracket
  Optional rear
- Receiver hitch
  No
- Front axle
  Cast-iron front axle, powdered-metal front wheel bushings
- Spindle bushings
  No
- Front tires
  15x6-6
- Rear tires
  20x10-8
- Hood material
  Molded-in color material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Yes, with debris removing channels
- Storage
  Storage tray with cover
- Service interval decal
  Yes
- Fender handles/grips
  Handgrips
- Cup holder
  Yes
- Equipment mounting
  CargO Mount™ system
Steering
- Type
  Sector and pinion with single drag link and tie rod
- Four-wheel steer
  Not available on this model
- Steering wheel
  Deluxe, diameter - 14 in.
  35.6 cm
- Tilt steering wheel
  No
- Turning radius
  18 in.
  45.7 cm
- Uncut circle radius
  20 in.
  50.8 cm
Seat
- Type
  One piece with lumbar adjustment
- Seat back height
  15 in.
  38 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, 5.5 in.
  14 cm
- Seat suspension
  Tilt, two coil springs
Lift system
- Type
  Spring-assisted hand-grip lever
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  No
Mower deck
- Type
  Side discharge
- Cutting width
  Edge™ mower deck, 48 in.
  122 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  Steel, 12 gauge
  0.105 in.
  2.7 mm
- Mower wash port
  Yes
- Mower drive system
  Electric power take-off (PTO) clutch
- Mower wheels
  Four
- Mower wheel adjustment
  One bolt
- Mower level adjustment
  Easy-level deck
Mower attachability
- Type
  Slide under tractor
- Front draft arms
  One spring clip
- Rear draft arms
  Two spring clips
- Mower wheels rotate
  No
- Drive system
  Single belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Molded-in color material reduces sound, will not rust or dent
  Durable primer and powder paint finish
  Large, 14-in. (36-cm) steering wheel for more comfortable operation
  John Deere Easy Change 30-second oil change system
- Warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Rear bagger
  2-bag, 6.5 bu
  229 L
- Mulching system
  Mulch cover
- Front blade
  46 in.
  116.8 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Sprayer
  Tow-behind, 15 U.S. gal.
  56.8 L
  Mounted, 15 U.S. gal.
  Tow-behind only, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind only, 125-175 lb
  57.7-80 kg
- Front bumper
  Included
- Weather protection
  Weather enclosure
- Sun canopy
  Sun canopy
- Bucket holder
  Yes, single bucket
- Grass striping
  Lawn striping kit
- Tow-behind tools
  16
Dimensions
- Height
  45.3 in.
  115 cm
- Overall length
  74.9 in.
  190 cm
- Wheelbase
  48.9 in.
  124.2 cm
- Width with mower
  60.8 in.
  154 cm
- Width with mower (deflector raised for storage)
  51.7 in.
  131.3 cm
- Weight
  Mower, no fuel, 481 lb
  218 kg
Additional information
- Manufacturing location
  Greeneville, Tennessee, USA
- Date collected
  24-Jul-2020

DetailsFeaturesSpecifications

Details:

S170

Lawn Tractor

24 hp (17.9 kW)* V-Twin Extended Life Series (ELS) Engine
48-in. Edge™ Mower Deck
Electric PTO, Heavy Duty Hydrostatic Transmission w/side-by-side pedals
Easy Change™ 30-Second Oil Change System
Adjustable lumbar seat and standard front bumper
Easy to read fuel gauge
2 year/120 hour bumper-to-bumper warranty

Features:

Engine is powerful and smooth-running V-twin design
John Deere Easy Change™ 30-second oil change system
Full-featured engine is more reliable and lasts longer
Frame made of full-length welded steel for reliability
Snow removal is a strength of lawn tractors
Hydrostatic transmission gives an infinite choice of ground speeds
Operator station designed for comfortable operation
Easy-read fuel gauge shows fuel level on dashboard and controls are convenient to use
Serviceability is convenient with easy-open hood
Help maintain your mower and lawn with the MowerPlus™ app and connector
The Edge™ cutting system gives superior performance
Two-year or 120-hour bumper-to-bumper warranty is included

Specifications:

Key Specs
- Engine power
  24 hp
  17.9 kW
- Oil change
  John Deere Easy Change™ 30-second oil change system
- Engine manufacturer/model
  44U877 (M44)
- Transaxle type
  K46 heavy-duty hydrostatic, two-wheel drive
- Transaxle control
  Side-by-side pedals
- Rear tires
  22x9.5-12
- Lift system type
  Spring-assisted hand-grip lever
- Cutting width
  Edge™ mower deck, 48 in.
  122 cm
- U.S. warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  24 hp
  17.9 kW
- Displacement
  44.2 cu in.
  724 cc
- Manufacturer/model
  44U877 (M44)
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin - extended life series (ELS)
- Governor
  Mechanical
- Choke/speed control
  Single lever with spring-return on choke
- Cooling method
  Air
- Air cleaner
  Cartridge with prefilter
- Oil change
  John Deere Easy Change 30-second oil change system
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump and carburetor
- Fuel gauge
  Easy-read on dash
- Fuel tank location
  Rear
- Fuel fill opening
  Center, 1.75 in.
  4.45 cm
- Fuel tank capacity
  2.4 U.S. gal.
  9.1 L
Electrical system
- Battery
  12 V
  300 CCA
- Charging system
  Regulated, 14 amp
- Engine starter
  Bendix type
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent
- Taillights or reflector
  Reflectors
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  No
Transaxle
- Type
  Hydrostatic, 2-wheel drive
- Control
  Side-by-side pedals
- Cruise control
  Standard
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Yes, not serviceable
- Differential lock
  No
- Forward speed
  0-5.5 mph
  0-8.9 km/h
- Reverse speed
  0-3.2 mph
  0-5.2 km/h
- Brakes
  Internal wet disk
Chassis
- Frame
  Full-length welded steel
- Primer/paint
  E-coat/powder
- Weight bracket
  Optional rear
- Receiver hitch
  No
- Front axle
  Cast-iron front axle, powdered-metal front wheel bushings
- Spindle bushings
  No
- Front tires
  16x6.5-8
- Rear tires
  22x9.5-12
- Hood material
  Molded-in color material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Yes, with debris removing channels
- Storage
  Storage tray with cover
- Service interval decal
  Yes
- Fender handles/grips
  Handgrips
- Cup holder
  Yes
- Equipment mounting
  CargO Mount™ system
Steering
- Type
  Sector and pinion with single drag link and tie rod
- Four-wheel steer
  Not available on this model
- Steering wheel
  Deluxe, diameter - 14 in.
  35.6 cm
- Tilt steering wheel
  No
- Turning radius
  18 in.
  45.7 cm
- Uncut circle radius
  20 in.
  50.8 cm
Seat
- Type
  One piece with lumbar adjustment
- Seat back height
  15 in.
  38 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, 5.5 in.
  14 cm
- Seat suspension
  Tilt, two coil springs
Lift system
- Type
  Spring-assisted hand-grip lever
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  No
Mower deck
- Type
  Side discharge
- Cutting width
  Edge™ mower deck, 48 in.
  122 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  Steel, 12 gauge
  0.105 in.
  2.7 mm
- Mower wash port
  Yes
- Mower drive system
  Electric power take-off (PTO) clutch
- Mower wheels
  Four
- Mower wheel adjustment
  One bolt
- Mower level adjustment
  Easy-level deck
Mower attachability
- Type
  Slide under tractor
- Front draft arms
  One spring clip
- Rear draft arms
  Two spring clips
- Mower wheels rotate
  No
- Drive system
  Single belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Molded-in color material reduces sound, will not rust or dent
  Durable primer and powder paint finish
  Large, 14-in. (36-cm) steering wheel for more comfortable operation
  John Deere Easy Change 30-second oil change system
- Warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Rear bagger
  2-bag, 6.5 bu
  229 L
- Mulching system
  Mulch cover
- Front blade
  46 in.
  116.8 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Sprayer
  Tow-behind, 15 U.S. gal.
  56.8 L
  Mounted, 15 U.S. gal.
  Tow-behind only, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind only, 125-175 lb
  57.7-80 kg
- Front bumper
  Included
- Weather protection
  Weather enclosure
- Sun canopy
  Sun canopy
- Bucket holder
  Yes, single bucket
- Grass striping
  Lawn striping kit
- Tow-behind tools
  16
Dimensions
- Height
  45.7 in.
  116 cm
- Overall length
  75.3 in.
  191 cm
- Wheelbase
  48.9 in.
  124.2 cm
- Width with mower
  60.8 in.
  154 cm
- Width with mower (deflector raised for storage)
  51.7 in.
  131.3 cm
- Weight
  Mower, no fuel, 503 lb
  288 kg
Additional information
- Manufacturing location
  Greeneville, Tennessee, USA
- Date collected
  24-Jul-2020

DetailsFeaturesSpecifications

Details:

S180

Lawn Tractor

24 hp (17.9 kW)* V-Twin Extended Life Series (ELS) Engine
54-in. Edge™ Mower Deck
Electric PTO, Heavy Duty Hydrostatic Transmission w/side-by-side pedals
Easy Change™ 30-Second Oil Change System
Adjustable lumbar seat and standard front bumper
Easy to read fuel gauge
2 year/120 hour bumper-to-bumper warranty

Features:

Engine is powerful and smooth-running V-twin design
John Deere Easy Change™ 30-second oil change system
Full-featured engine is more reliable and lasts longer
Frame made of full-length welded steel for reliability
Snow removal is a strength of lawn tractors
Hydrostatic transmission gives an infinite choice of ground speeds
Operator station designed for comfortable operation
Easy-read fuel gauge shows fuel level on dashboard and controls are convenient to use
Serviceability is convenient with easy-open hood
Help maintain your mower and lawn with the MowerPlus™ app and connector
The Edge™ cutting system gives superior performance
Two-year or 120-hour bumper-to-bumper warranty is included

Specifications:

Key Specs
- Engine power
  24 hp
  17.9 kW
- Oil change
  John Deere Easy Change™ 30-second oil change system
- Engine manufacturer/model
  44U877 (M44)
- Transaxle type
  K46 heavy-duty hydrostatic, two-wheel drive
- Transaxle control
  Side-by-side pedals
- Rear tires
  22x9.5-12
- Lift system type
  Spring-assisted hand-grip lever
- Cutting width
  Edge™ mower deck, 54 in.
  137 cm
- U.S. warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
- Power
  24 hp
  17.9 kW
- Displacement
  44.2 cu in.
  724 cc
- Manufacturer/model
  44U877 (M44)
- Type
  Overhead valve, full-pressure lube, oil filter
- Cylinders
  V-twin - extended life series (ELS)
- Governor
  Mechanical
- Choke/speed control
  Single lever with spring-return on choke
- Cooling method
  Air
- Air cleaner
  Cartridge with prefilter
- Oil change
  John Deere Easy Change 30-second oil change system
Fuel system
- Type
  Gasoline
- Fuel delivery
  Pulse pump and carburetor
- Fuel gauge
  Easy-read on dash
- Fuel tank location
  Rear
- Fuel fill opening
  Center, 1.75 in.
  4.45 cm
- Fuel tank capacity
  2.4 U.S. gal.
  9.1 L
Electrical system
- Battery
  12 V
  300 CCA
- Charging system
  Regulated, 14 amp
- Engine starter
  Bendix type
- Hourmeter
  Yes
- Headlights
  Two standard, incandescent
- Taillights or reflector
  Reflectors
- Backup lights
  No
- Rear work lights
  No
- 12-V outlet
  No
Transaxle
- Type
  Hydrostatic, 2-wheel drive
- Control
  Side-by-side pedals
- Cruise control
  Standard
- Oil cooler
  Fins and fan on transaxle
- Oil filter
  Yes, not serviceable
- Differential lock
  No
- Forward speed
  0-5.5 mph
  0-8.9 km/h
- Reverse speed
  0-3.2 mph
  0-5.2 km/h
- Brakes
  Internal wet disk
Chassis
- Frame
  Full-length welded steel
- Primer/paint
  E-coat/powder
- Weight bracket
  Optional rear
- Receiver hitch
  No
- Front axle
  Cast iron front axle, front wheel sealed ball bearings
- Spindle bushings
  No
- Front tires
  16x6.5-8
- Rear tires
  22x9.5-12
- Hood material
  Molded-in color material reduces sound, will not rust or dent
- Fender deck material
  Stamped steel
- Floor mats
  Yes, with debris removing channels
- Storage
  Storage tray with cover
- Service interval decal
  Yes
- Fender handles/grips
  Handgrips
- Cup holder
  Yes
- Equipment mounting
  CargO Mount™ system
Steering
- Type
  Sector and pinion with single drag link and tie rod
- Four-wheel steer
  Not available on this model
- Steering wheel
  Deluxe, diameter - 14 in.
  35.6 cm
- Tilt steering wheel
  No
- Turning radius
  18 in.
  45.7 cm
- Uncut circle radius
  18 in.
  45.7 cm
Seat
- Type
  One piece with lumbar adjustment
- Seat back height
  15 in.
  38 cm
- Armrests
  No
- Fore-aft adjustment
  While seated, 5.5 in.
  14 cm
- Seat suspension
  Tilt, two coil springs
Lift system
- Type
  Spring-assisted hand-grip lever
- Hydraulic outlets
  No
- Mower cut height
  13 positions, 1-4 in.
  2.5-10.2 cm
- Cut height increments
  0.25 in.
  0.64 cm
- Preset cut height
  No
Mower deck
- Type
  Side discharge
- Cutting width
  Edge™ mower deck, 54 in.
  137 cm
- Construction
  Stamped steel deck shell
- Mower deck material
  Steel, 11 gauge
  0.12 in.
  3 mm
- Mower wash port
  Yes
- Mower drive system
  Electric power take-off (PTO) clutch
- Mower wheels
  Five
- Mower wheel adjustment
  One bolt
- Mower level adjustment
  Easy-level deck
Mower attachability
- Type
  Slide under tractor
- Front draft arms
  One spring clip
- Rear draft arms
  Two spring clips
- Mower wheels rotate
  No
- Drive system
  Single belt
Safety
- Meets ANSI standard
  Yes
- Meets OPEI standard
  Yes
- Backup protection
  Reverse Implement Option (RIO)
- Safety video
  Yes
Buyer's notes
- Notes
  Molded-in color material reduces sound, will not rust or dent
  Durable primer and powder paint finish
  Large, 14-in. (36-cm) steering wheel for more comfortable operation
  John Deere Easy Change 30-second oil change system
- Warranty
  2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional equipment
- Rear bagger
  2-bag, 6.5 bu
  229 L
- Powered material collection
  Power Flow™ blower
- Mulching system
  High performance plug
- Front blade
  46 in.
  116.8 cm
- Snow blower
  Two-stage, 44 in.
  111.8 cm
- Sprayer
  Tow-behind, 15 U.S. gal.
  56.8 L
  Mounted, 15 U.S. gal.
  Tow-behind only, 25 U.S. gal.
  94.6 L
- Spreader
  Tow-behind only, 125-175 lb
  57.7-80 kg
- Front bumper
  Included
- Weather protection
  Weather enclosure
- Sun canopy
  Sun canopy
- Bucket holder
  Yes, single bucket
- Grass striping
  Lawn striping kit
- Tow-behind tools
  16
Dimensions
- Height
  45.7 in.
  116 cm
- Overall length
  75.3 in.
  191 cm
- Wheelbase
  48.9 in.
  124.2 cm
- Width with mower
  67 in.
  170.2 cm
- Width with mower (deflector raised for storage)
  57.1 in.
  145 cm
- Weight
  Mower, no fuel, 526 lb
  239 kg
Additional information
- Manufacturing location
  Greeneville, Tennessee, USA
- Date collected
  24-Jul-2020

7 Tips To Avoid Expensive Lawn Mower Repairs Discover How To Keep Your Mower Running Like New ACCESS MY TIP SHEET

Find Your John Deere Residential Riding Mower At Little’s

Stop by one of our five locations to learn more about John Deere’s wide range of residential riding lawn mowers. See your next mower up close and let our John Deere professionals help you find a mower that meets your needs. Don’t forget to ask about your financing and leasing options.

Fulfill Your Lawn Care Needs, Big Or Small

John Deere Residential Riding Lawn Mowers From Little’s

John Deere: Down To The Details

Explore Our Wide Selection Of John Deere Premium Riding Mowers

S200 Series

S240 Series

X300 Select Series

X500 Select Series

X700 Signature Series

S100 Series

Find Your John Deere Residential Riding Mower At Little’s

Fulfill Your Lawn Care Needs, Big Or Small
