Agile Machinery For Your Agricultural And Construction Needs

No matter what materials you’re moving, these compact wheel loaders help you move them faster and with less effort. These machines may be smaller than the typical wheel loader, but they offer surprising power and breakout force, without sacrificing maneuverability.

At Little’s, we carry a wide selection of these compact wheel loaders and support you with:

  • John Deere Financial Financing and Leasing Options
  • GreenFleet Loyalty Rewards

Explore Our Wide Selection Of John Deere Compact Wheel Loaders

Click on products below to learn more.

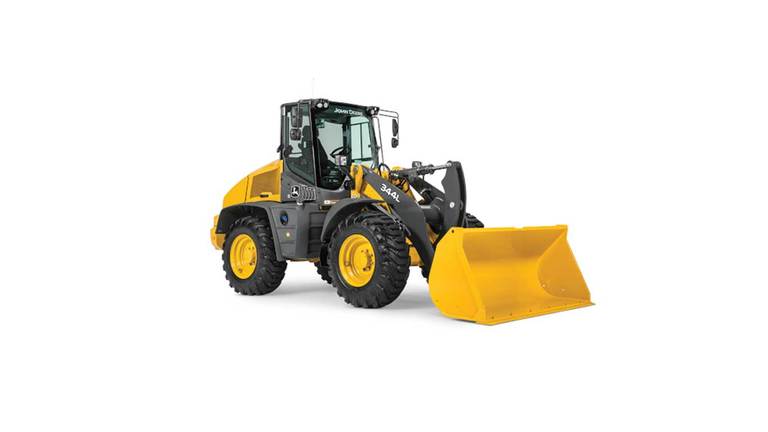

344L Wheel Loader

344L Wheel Loader

304L Wheel Loader

304L Wheel Loader

324L Wheel Loader

324L Wheel Loader

Available models: 344L

DetailsFeaturesSpecifications

Details:

344L

Compact Wheel Loader

  • Gross Power: 78 kW (106 hp)
  • Net Power: 76 kW (103 hp)
  • Operating Weight: 8860 kg (19,533 lb.)
  • Bucket Capacities: 1.5–2.0 m3 (2.0–2.6 cu. yd.)

Features:

  • Tighter Turning Radius and Increased Stability with Articulation Plus™ Steering
  • Increase your machine’s versatility with John Deere’s wide array of attachment offerings
  • Enjoy all day comfort with the spacious and ergonomically friendly cab
  • Productivity enhancements that can benefit you regardless of the machine’s application
  • Ease of serviceability allows you to spend more time completing the tasks at hand
  • Excellent visibility for increased situational and jobsite awareness

Specifications:

DRIVELINE

  • Engine Manufacturer

    John Deere

  • Engine Model

    PowerTech 4045T

  • Emission Rating

    Tier 4

  • Displacement, ltr (Inches³)

    4.5 (275)

  • Rated Speed, rpm

    2000

  • Engine Output - Net, kW (hp)

    76 (103)

  • Torque, Nm (lbf / ft)

    405 (299)

  • Transmission Type

    Hydrostatic

  • Front Differential Type

    Locking

  • Rear Differential Type

    Open

  • Tire size - Standard

    17.5 R25

  • Service Brake - Type

    Wet Disc & Drum

  • Service Brake - Actuation

    Hydraulic

  • Parking Brake - Type

    Wet Disc
DIMENSIONS

  • Height - Over Cab, mm (ft/in)

    3030 (9 ft 11 in)

  • Wheelbase, mm (ft/in)

    2600 (8 ft 6 in)

  • Ground clearance, mm (inches)

    430 (16.9)

  • Width Over tires - Std, mm (ft/in)

    2380 (7 ft 10 in)

  • Height - Pivot Pin, mm (ft/in)

    3720 (12 ft 2 in)

  • Reach - At 2130mm 45° Dump, mm (ft/in)

    1640 (5 ft 5 in)
CAPACITIES

  • Fuel Tank, ltr (gallons (US))

    155 (40.9)

  • Hydraulic Tank, ltr (gallons (US))

    115 (30.4)

  • Heaped Capacity, m³ (yd³)

    1.5 (2)

  • Breakout - Bucket , kgf (lbf)

    7443.9 (16411)

  • Ride Control System

    Optional

  • Pump Type

    Gear

  • Pump Flow - 1, lt/min (gallons (US) / min)

    115 (30)

  • System Pressure, bar (PSI)

    240 (3480)
WEIGHTS

  • Operating Weight, kg (lbs)

    8860 (19533)
Back to Top

Available models: 304L

DetailsFeaturesSpecifications

Details:

304L

Compact Wheel Loader

  • Net Power: 48 kW (65 hp) @ 2,400 rpm
  • Operating Weight: 5796 kg (12,778 lb.)
  • Bucket Capacity: 0.8–1.6 m³ (1.0–2.1 cu. yd.)

Features:

  • Convenient Controls
  • Low Profile
  • Multitasking
  • Power
  • Simple to Service
  • Attachment-Ready

Specifications:

DRIVELINE

  • Engine Manufacturer

    YANMAR

  • Engine Model

    4TNV98

  • Emission Rating

    Tier 4

  • Displacement, ltr (Inches³)

    3.3 (203)

  • Rated Speed, rpm

    2400

  • Engine Output - Net, kW (hp)

    48 (65)

  • Torque, Nm (lbf / ft)

    237 (175)

  • Transmission Type

    Hydrostatic

  • Front Differential Type

    Limited Slip

  • Rear Differential Type

    Limited Slip

  • Tire size - Standard

    405 / 70 R18

  • Service Brake - Type

    Wet Disc & Drum

  • Service Brake - Actuation

    Hydraulic

  • Parking Brake - Type

    Wet Disc
DIMENSIONS

  • Height - Over Cab, mm (ft/in)

    2470 (8 ft )

  • Wheelbase, mm (ft/in)

    2150 (7 ft 1 in)

  • Ground clearance, mm (inches)

    330 (13)

  • Width Over tires - Std, mm (ft/in)

    1790 (5 ft 10 in)

  • Height - Pivot Pin, mm (ft/in)

    3370 (11 ft 1 in)

  • Reach - At 2130mm 45° Dump, mm (ft/in)

    1600 (5 ft 4 in)
CAPACITIES

  • Fuel Tank, ltr (gallons (US))

    50 (13.2)

  • Hydraulic Tank, ltr (gallons (US))

    90 (23.8)

  • Heaped Capacity, m³ (yd³)

    0.8 (1)

  • Breakout - Bucket , kgf (lbf)

    5370 (11839)

  • Ride Control System

    Optional

  • Pump Type

    Gear

  • Pump Flow - 1, lt/min (gallons (US) / min)

    77 (20)

  • System Pressure, bar (PSI)

    230 (3335)
WEIGHTS

  • Operating Weight, kg (lbs)

    5796 (12778)
Back to Top

Available models: 324L

DetailsFeaturesSpecifications

Details:

324L

Compact Wheel Loader

  • Net Power: 52kW (71 hp)
  • Operating Weight: 6400 kg (14,110 lb.)
  • Bucket Capacity: 0.8–1.6 m3 (1.0–2.1 cu. yd.)

Features:

  • Tighter Turning Radius and Increased Stability with Articulation Plus™ Steering
  • Increase your machine’s versatility with John Deere’s wide array of attachment offerings
  • Enjoy all day comfort with the spacious and ergonomically friendly cab
  • Productivity enhancements that can benefit you regardless of the machine’s application
  • Ease of serviceability allows you to spend more time completing the tasks at hand
  • Excellent visibility for increased situational and jobsite awareness

Specifications:

DRIVELINE

  • Engine Manufacturer

    Yanmar

  • Engine Model

    4TNV98CT

  • Emission Rating

    Tier 4

  • Displacement, ltr (Inches³)

    3.3 (203)

  • Rated Speed, rpm

    2400

  • Engine Output - Net, kW (hp)

    52 (71)

  • Torque, Nm (lbf / ft)

    280 (206)

  • Transmission Type

    Hydrostatic

  • Front Differential Type

    Locking

  • Rear Differential Type

    Open

  • Tire size - Standard

    405 / 70 R18

  • Service Brake - Type

    Wet Disc & Drum

  • Service Brake - Actuation

    Hydraulic

  • Parking Brake - Type

    Wet Disc
DIMENSIONS

  • Height - Over Cab, mm (ft/in)

    2780 (9 ft 1 in)

  • Wheelbase, mm (ft/in)

    2300 (7 ft 7 in)

  • Ground clearance, mm (inches)

    295 (12)

  • Width Over tires - Std, mm (ft/in)

    2090 (6 ft 10 in)

  • Height - Pivot Pin, mm (ft/in)

    3350 (11 ft )

  • Reach - At 2130mm 45° Dump, mm (ft/in)

    1660 (5 ft 5 in)
CAPACITIES

  • Fuel Tank, ltr (gallons (US))

    90 (23.8)

  • Hydraulic Tank, ltr (gallons (US))

    66 (17.4)

  • Heaped Capacity, m³ (yd³)

    1.1 (1.4)

  • Breakout - Bucket , kgf (lbf)

    5650 (12456)

  • Ride Control System

    Optional

  • Pump Type

    Gear

  • Pump Flow - 1, lt/min (gallons (US) / min)

    93 (25)

  • System Pressure, bar (PSI)

    189.6 (2750)
WEIGHTS

  • Operating Weight, kg (lbs)

    6400 (14110)
Back to Top

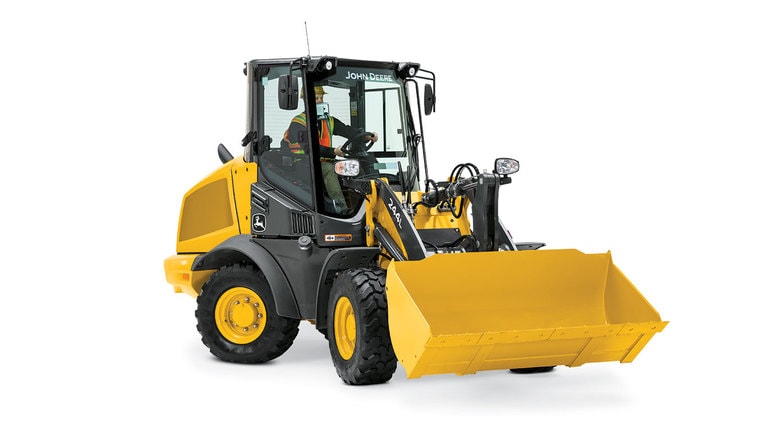

244L Wheel Loader

244L Wheel Loader

G-Tier Compact Wheel Loaders

G-Tier Compact Wheel Loaders

P-Tier Compact Wheel Loaders

P-Tier Compact Wheel Loaders

Available models: 244L

DetailsFeaturesSpecifications

Details:

244L

Compact Wheel Loader

  • Net Power: 52kW (71 hp)
  • Operating Weight: 5560 kg (12,258 lb.)
  • Bucket Capacity: 0.8–1.1 m3 (1.0–1.4 cu. yd.)

Features:

  • Tighter Turning Radius and Increased Stability with Articulation Plus™ Steering
  • Increase your machine’s versatility with John Deere’s wide array of attachment offerings
  • Enjoy all day comfort with the spacious and ergonomically friendly cab
  • Productivity enhancements that can benefit you regardless of the machine’s application
  • Ease of serviceability allows you to spend more time completing the tasks at hand
  • Excellent visibility for increased situational and jobsite awareness

Specifications:

DRIVELINE

  • Engine Manufacturer

    Yanmar

  • Engine Model

    4TNV98CT

  • Emission Rating

    Tier 4

  • Displacement, ltr (Inches³)

    3.3 (203)

  • Rated Speed, rpm

    2400

  • Engine Output - Net, kW (hp)

    52 (71)

  • Torque, Nm (lbf / ft)

    280 (206)

  • Transmission Type

    Hydrostatic

  • Front Differential Type

    Locking

  • Rear Differential Type

    Open

  • Tire size - Standard

    365 / 70 R18

  • Service Brake - Type

    Wet Disc & Drum

  • Service Brake - Actuation

    Hydraulic

  • Parking Brake - Type

    Wet Disc
DIMENSIONS

  • Height - Over Cab, mm (ft/in)

    2750 (9 ft )

  • Wheelbase, mm (ft/in)

    2150 (7 ft 1 in)

  • Ground clearance, mm (inches)

    285 (11)

  • Width Over tires - Std, mm (ft/in)

    1920 (6 ft 4 in)

  • Height - Pivot Pin, mm (ft/in)

    3220 (10 ft 7 in)

  • Reach - At 2130mm 45° Dump, mm (ft/in)

    1520 (5 ft )
CAPACITIES

  • Fuel Tank, ltr (gallons (US))

    90 (23.8)

  • Hydraulic Tank, ltr (gallons (US))

    66 (17.4)

  • Heaped Capacity, m³ (yd³)

    0.8 (1)

  • Breakout - Bucket , kgf (lbf)

    4895 (10792)

  • Ride Control System

    Optional

  • Pump Type

    Gear

  • Pump Flow - 1, lt/min (gallons (US) / min)

    70 (18)

  • System Pressure, bar (PSI)

    230 (3335)
WEIGHTS

  • Operating Weight, kg (lbs)

    5560 (12258)
Back to Top

Available models: 184 G-Tier204 G-Tier304 G-Tier

DetailsFeaturesSpecifications

Details:

184 G-Tier

Compact Wheel Loader

  • Net Power: 33 kW (44 hp) at 2,200 rpm
  • Operating Weight: 4840 kg (10,670 lb.)
  • Bucket Capacity: 0.7–1.1 m3 (0.9–1.4 cu. yd.)

Features:

  • Brand new 184 G-tier delivers a simple and compact machine solution to a wide range of customers
  • Compact size and simple optionality allow G-tier machines to excel on any site
  • Increase your machine’s versatility with John Deere’s wide array of attachment offerings
  • Enjoy all day comfort with the spacious and ergonomically friendly cab
  • Ease of serviceability allows you to spend more time completing the tasks at hand
  • Excellent visibility for increased situational and jobsite awareness

Specifications:

DRIVELINE

  • Engine Manufacturer

    Yanmar

  • Engine Model

    4TNV88C

  • Emission Rating

    Tier 4

  • Displacement, ltr (Inches³)

    2.2 (134)

  • Rated Speed, rpm

    2200

  • Engine Output - Net, kW (hp)

    33 (44)

  • Torque, Nm (lbf / ft)

    146 (107.6)

  • Transmission Type

    Hydrostatic

  • Front Differential Type

    Limited Slip

  • Rear Differential Type

    Limited Slip

  • Tire size - Standard

    365 / 70 R18

  • Service Brake - Type

    Wet Disc & Drum

  • Service Brake - Actuation

    Hydraulic

  • Parking Brake - Type

    Wet Disc
DIMENSIONS

  • Height - Over Cab, mm (ft/in)

    2430 (8 ft )

  • Wheelbase, mm (ft/in)

    2150 (7 ft 1 in)

  • Ground clearance, mm (inches)

    292 (12)

  • Width Over tires - Std, mm (ft/in)

    1780 (5 ft 10 in)

  • Height - Pivot Pin, mm (ft/in)

    3160 (10 ft 4 in)

  • Reach - At 2130mm 45° Dump, mm (ft/in)

    1580 (5 ft 2 in)
CAPACITIES

  • Fuel Tank, ltr (gallons (US))

    62 (16.4)

  • Hydraulic Tank, ltr (gallons (US))

    45 (11.9)

  • Heaped Capacity, m³ (yd³)

    0.7 (0.9)

  • Breakout - Bucket , kgf (lbf)

    3250 (7165)

  • Ride Control System

    Optional

  • Pump Type

    Gear

  • Pump Flow - 1, lt/min (gallons (US) / min)

    61 (16)

  • System Pressure, bar (PSI)

    230 (3336)
WEIGHTS

  • Operating Weight, kg (lbs)

    4820 (10626)
Back to Top
DetailsFeaturesSpecifications

Details:

204 G-Tier

Compact Wheel Loader

  • Net Power: 47 kW (62 hp) at 2,200 rpm
  • Operating Weight: 5220 kg (11,508 lb.)
  • Bucket Capacity: 0.7–1.1 m3 (0.9–1.4 cu. yd.)

Features:

  • Increase your machine’s versatility with John Deere’s wide array of attachment offerings
  • Enjoy all day comfort with the spacious and ergonomically friendly cab
  • Compact size and simple optionality allow G-tier machines to excel on any site
  • Productivity enhancements that can benefit you regardless of the machine’s application
  • Ease of serviceability allows you to spend more time completing the tasks at hand
  • Excellent visibility for increased situational and jobsite awareness

Specifications:

DRIVELINE

  • Engine Manufacturer

    Yanmar

  • Engine Model

    4TNV86CHT-M

  • Emission Rating

    Tier 4

  • Displacement, ltr (Inches³)

    2.1 (128)

  • Rated Speed, rpm

    2200

  • Engine Output - Net, kW (hp)

    47 (62)

  • Torque, Nm (lbf / ft)

    216 (159.3)

  • Transmission Type

    Hydrostatic

  • Front Differential Type

    Limited Slip

  • Rear Differential Type

    Limited Slip

  • Tire size - Standard

    365 / 70 R18

  • Service Brake - Type

    Wet Disc & Drum

  • Service Brake - Actuation

    Hydraulic

  • Parking Brake - Type

    Wet Disc
DIMENSIONS

  • Height - Over Cab, mm (ft/in)

    2430 (8 ft )

  • Wheelbase, mm (ft/in)

    2150 (7 ft 1 in)

  • Ground clearance, mm (inches)

    296 (12)

  • Width Over tires - Std, mm (ft/in)

    1780 (5 ft 10 in)

  • Height - Pivot Pin, mm (ft/in)

    3160 (10 ft 4 in)

  • Reach - At 2130mm 45° Dump, mm (ft/in)

    1580 (5 ft 2 in)
CAPACITIES

  • Fuel Tank, ltr (gallons (US))

    62 (16.4)

  • Hydraulic Tank, ltr (gallons (US))

    45 (11.9)

  • Heaped Capacity, m³ (yd³)

    0.7 (0.9)

  • Breakout - Bucket , kgf (lbf)

    4180 (9215)

  • Ride Control System

    Optional

  • Pump Type

    Gear

  • Pump Flow - 1, lt/min (gallons (US) / min)

    70 (18)

  • System Pressure, bar (PSI)

    230 (3336)
WEIGHTS

  • Operating Weight, kg (lbs)

    5170 (11398)
Back to Top
DetailsFeaturesSpecifications

Details:

304 G-Tier

Compact Wheel Loader

  • Net Power: 53 kW (72 hp) at 2,200 rpm
  • Operating Weight: 5920 kg (13,051 lb.)
  • Bucket Capacity: 0.7–1.1 m3 (0.9–1.4 cu. yd.)

Features:

  • Redesigned 304 G-tier comes equipped with many productivity enhancements
  • Compact size and simple optionality allow G-tier machines to excel on any site
  • Enjoy all day comfort with the spacious and ergonomically friendly cab
  • Increase your machine’s versatility with John Deere’s wide array of attachment offerings
  • Ease of serviceability allows you to spend more time completing the tasks at hand
  • Excellent visibility for increased situational and jobsite awareness

Specifications:

DRIVELINE

  • Engine Manufacturer

    Yanmar

  • Engine Model

    4TNV86CHT-M

  • Emission Rating

    Tier 4

  • Displacement, ltr (Inches³)

    2.1 (128)

  • Rated Speed, rpm

    2200

  • Engine Output - Net, kW (hp)

    53 (72)

  • Torque, Nm (lbf / ft)

    274 (202)

  • Transmission Type

    Hydrostatic

  • Front Differential Type

    Limited Slip

  • Rear Differential Type

    Limited Slip

  • Tire size - Standard

    405 / 70 R20

  • Service Brake - Type

    Wet Disc & Drum

  • Service Brake - Actuation

    Hydraulic

  • Parking Brake - Type

    Wet Disc
DIMENSIONS

  • Height - Over Cab, mm (ft/in)

    2610 (8 ft 7 in)

  • Wheelbase, mm (ft/in)

    2150 (7 ft 1 in)

  • Ground clearance, mm (inches)

    332 (13)

  • Width Over tires - Std, mm (ft/in)

    1960 (6 ft 5 in)

  • Height - Pivot Pin, mm (ft/in)

    3350 (11 ft )

  • Reach - At 2130mm 45° Dump, mm (ft/in)

    1680 (5 ft 6 in)
CAPACITIES

  • Fuel Tank, ltr (gallons (US))

    62 (16.4)

  • Hydraulic Tank, ltr (gallons (US))

    45 (11.9)

  • Heaped Capacity, m³ (yd³)

    0.8 (1)

  • Breakout - Bucket , kgf (lbf)

    5000 (11023)

  • Ride Control System

    Optional

  • Pump Type

    Gear

  • Pump Flow - 1, lt/min (gallons (US) / min)

    80 (21)

  • System Pressure, bar (PSI)

    230 (3336)
WEIGHTS

  • Operating Weight, kg (lbs)

    5870 (12941)
Back to Top

Available models: 244 P-Tier324 P-Tier326 P-Tier344 P-Tier

DetailsFeaturesSpecifications

Details:

244 P-Tier

Compact Wheel Loader

  • Net Power: 52 kW (71 hp) at 2,400 rpm
  • Operating Weight: 5560 kg (12,258 lb.)
  • Bucket Capacity: 0.8–1.1 m3 (1.0–1.4 cu. yd.)

Features:

  • Industry-exclusive Articulation Plus™ steering system combines 30 degrees of articulation with 10 additional degrees of rear-wheel steer
  • Loader arm and coupler design improves the lifting path to near parallel
  • With a standard top speed of over 23 mph, the 244 P-Tier can make some pretty quick moves on and between jobsites
  • Load-sensing AutoShift powertrain technology eliminates productivity-interrupting manual shifts between gear ranges while providing smooth direction changes
  • Low-effort joystick controls boom and bucket, forward-neutral-reverse (F-N-R), and differential lock

Specifications:

DRIVELINE

  • Engine Manufacturer

    Yanmar

  • Engine Model

    4TNV98CT

  • Emission Rating

    Tier 4

  • Displacement, ltr (Inches³)

    3.3 (203)

  • Rated Speed, rpm

    2400

  • Engine Output - Net, kW (hp)

    52 (71)

  • Torque, Nm (lbf / ft)

    280 (206)

  • Transmission Type

    Hydrostatic

  • Front Differential Type

    Locking

  • Rear Differential Type

    Open

  • Tire size - Standard

    365 / 70 R18

  • Service Brake - Type

    Wet Disc & Drum

  • Service Brake - Actuation

    Hydraulic

  • Parking Brake - Type

    Wet Disc
DIMENSIONS

  • Height - Over Cab, mm (ft/in)

    2750 (9 ft )

  • Wheelbase, mm (ft/in)

    2150 (7 ft 1 in)

  • Ground clearance, mm (inches)

    285 (11)

  • Width Over tires - Std, mm (ft/in)

    1920 (6 ft 4 in)

  • Height - Pivot Pin, mm (ft/in)

    3220 (10 ft 7 in)

  • Reach - At 2130mm 45° Dump, mm (ft/in)

    1520 (5 ft )
CAPACITIES

  • Fuel Tank, ltr (gallons (US))

    90 (23.8)

  • Hydraulic Tank, ltr (gallons (US))

    66 (17.4)

  • Heaped Capacity, m³ (yd³)

    0.8 (1)

  • Breakout - Bucket , kgf (lbf)

    4895 (10792)

  • Ride Control System

    Yes

  • Pump Type

    Gear

  • Pump Flow - 1, lt/min (gallons (US) / min)

    70 (18)

  • System Pressure, bar (PSI)

    230 (3335)
WEIGHTS

  • Operating Weight, kg (lbs)

    5560 (12258)
Back to Top
DetailsFeaturesSpecifications

Details:

324 P-Tier

Compact Wheel Loader

  • Net Power: 52 kW (71 hp) at 2,400 rpm
  • Operating Weight: 6400 kg (14,110 lb.)
  • Bucket Capacity: 0.8–1.1 m3 (1.0–1.4 cu. yd.)

Features:

  • Industry-exclusive Articulation Plus™ steering system combines 30 degrees of articulation with 10 additional degrees of rear-wheel steer
  • Loader arm and coupler design improves the lifting path to near parallel
  • With exceptional lift and height to hinge pin, the optional High-Lift configuration makes the 324 P-Tier especially adept at repetitive dumping and stacking applications
  • With a standard top speed of over 23 mph, the 324 P-Tier can make some pretty quick moves on and between jobsites
  • Low-effort joystick controls boom and bucket, forward-neutral-reverse (F-N-R), and differential lock
  • Standard ride control cushions the boom during travel over rough and uneven terrain, reducing material spillage from the bucket and minimizing site cleanup

Specifications:

DRIVELINE

  • Engine Manufacturer

    Yanmar

  • Engine Model

    4TNV98CT

  • Emission Rating

    Tier 4

  • Displacement, ltr (Inches³)

    3.3 (203)

  • Rated Speed, rpm

    2400

  • Engine Output - Net, kW (hp)

    52 (71)

  • Torque, Nm (lbf / ft)

    280 (206)

  • Transmission Type

    Hydrostatic

  • Front Differential Type

    Locking

  • Rear Differential Type

    Open

  • Tire size - Standard

    405 / 70 R20

  • Service Brake - Type

    Wet Disc & Drum

  • Service Brake - Actuation

    Hydraulic

  • Parking Brake - Type

    Wet Disc
DIMENSIONS

  • Height - Over Cab, mm (ft/in)

    2780 (9 ft 1 in)

  • Wheelbase, mm (ft/in)

    2300 (7 ft 7 in)

  • Ground clearance, mm (inches)

    295 (12)

  • Width Over tires - Std, mm (ft/in)

    2090 (6 ft 10 in)

  • Height - Pivot Pin, mm (ft/in)

    3350 (11 ft )

  • Reach - At 2130mm 45° Dump, mm (ft/in)

    1660 (5 ft 5 in)
CAPACITIES

  • Fuel Tank, ltr (gallons (US))

    90 (23.8)

  • Hydraulic Tank, ltr (gallons (US))

    66 (17.4)

  • Heaped Capacity, m³ (yd³)

    1.1 (1.4)

  • Breakout - Bucket , kgf (lbf)

    5650 (12456)

  • Ride Control System

    Yes

  • Pump Type

    Gear

  • Pump Flow - 1, lt/min (gallons (US) / min)

    93 (25)

  • System Pressure, bar (PSI)

    189.6 (2750)
WEIGHTS

  • Operating Weight, kg (lbs)

    6400 (14110)
Back to Top
DetailsFeaturesSpecifications

Details:

326 P-Tier

Compact Wheel Loader

  • Net Power: 52 kW (71 hp) at 2,400 rpm
  • Operating Weight: 6400 kg (14,110 lb.)
  • Bucket Capacity: 0.8–2.0 m3 (1.0–2.6 cu. yd.)

Features:

  • Discover unparalleled lifting capability with purpose-built telescopic arms
  • Articulation Plus™ steering provides a tighter turning radius and increased stability; the perfect pair with the Tele Lift
  • EH controls and new touchscreen display elevate the operator experience
  • Work confidently with the Load Limitation System
  • Visibility from the seat makes operators more efficient

Specifications:

DRIVELINE

  • Engine Manufacturer

    Yanmar

  • Engine Model

    4TNV98CT

  • Emission Rating

    Tier 4

  • Displacement, ltr (Inches³)

    3.3 (203)

  • Rated Speed, rpm

    2400

  • Engine Output - Net, kW (hp)

    52 (71)

  • Torque, Nm (lbf / ft)

    280 (206)

  • Transmission Type

    Hydrostatic

  • Front Differential Type

    Locking

  • Rear Differential Type

    Open

  • Tire size - Standard

    405 / 70 R20

  • Service Brake - Type

    Wet Disc & Drum

  • Service Brake - Actuation

    Hydraulic

  • Parking Brake - Type

    Wet Disc
DIMENSIONS

  • Height - Over Cab, mm (ft/in)

    2780 (9 ft 1 in)

  • Wheelbase, mm (ft/in)

    2300 (7 ft 7 in)

  • Ground clearance, mm (inches)

    295 (12)

  • Width Over tires - Std, mm (ft/in)

    2090 (6 ft 10 in)

  • Height - Pivot Pin, mm (ft/in)

    3350 (11 ft)

  • Reach - At 2130mm 45° Dump, mm (ft/in)

    1660 (5 ft 5 in)
CAPACITIES

  • Fuel Tank, ltr (gallons (US))

    90 (23.8)

  • Hydraulic Tank, ltr (gallons (US))

    66 (17.4)

  • Heaped Capacity, m³ (yd³)

    1.1 (1.4)

  • Breakout - Bucket, kgf (lbf)

    5650 (12456)

  • Ride Control System

    Yes

  • Pump Type

    Gear

  • Pump Flow - 1, lt/min (gallons (US) / min)

    93 (25)

  • System Pressure, bar (PSI)

    189.6 (2750)
WEIGHTS

  • Operating Weight, kg (lbs)

    6400 (14110)
Back to Top
DetailsFeaturesSpecifications

Details:

344 P-Tier

Compact Wheel Loader

  • Net Power: 76 kW (103 hp) at 2,000 rpm
  • Operating Weight: 8860 kg (19,533 lb.)
  • Bucket Capacity: 1.5–2.0 m3 (2.0–2.6 cu. yd.)

Features:

  • Industry-exclusive Articulation Plus™ steering system combines 30 degrees of articulation with 10 additional degrees of rear-wheel steer
  • Loader arm and coupler design improves the lifting path to near parallel — for better load-carrying capability than previous models
  • Outstanding reach enables the 344 P-Tier to efficiently dump to the center of tandem-axle trucks, for quick loading cycles
  • With a standard top speed of under 25 mph, the 344 P-Tier can make some pretty quick moves on and between jobsites
  • Low-effort joystick controls boom and bucket, forward-neutral-reverse (F-N-R), and differential lock
  • Standard ride control cushions the boom during travel over rough and uneven terrain, reducing material spillage from the bucket and minimizing site cleanup

Specifications:

DRIVELINE

  • Engine Manufacturer

    John Deere

  • Engine Model

    4045HL280

  • Emission Rating

    Tier 4

  • Displacement, ltr (Inches³)

    4.5 (275)

  • Rated Speed, rpm

    2200

  • Engine Output - Net, kW (hp)

    56 (75)

  • Torque, Nm (lbf / ft)

    300 (221)

  • Transmission Type

    Hydrostatic

  • Front Differential Type

    Locking

  • Rear Differential Type

    Open

  • Tire size - Standard

    405 / 70 R20

  • Service Brake - Type

    Wet Disc & Drum

  • Service Brake - Actuation

    Hydraulic

  • Parking Brake - Type

    Wet Disc
DIMENSIONS

  • Height - Over Cab, mm (ft/in)

    2780 (9 ft 1 in)

  • Wheelbase, mm (ft/in)

    2300 (7 ft 7 in)

  • Ground clearance, mm (inches)

    295 (12)

  • Width Over tires - Std, mm (ft/in)

    2090 (6 ft 10 in)

  • Height - Pivot Pin, mm (ft/in)

    3350 (11 ft)

  • Reach - At 2130mm 45° Dump, mm (ft/in)

    1660 (5 ft 5 in)
CAPACITIES

  • Fuel Tank, ltr (gallons (US))

    80 (21.1)

  • Hydraulic Tank, ltr (gallons (US))

    66 (17.4)

  • Heaped Capacity, m³ (yd³)

    1.2 (1.6)

  • Breakout - Bucket, kgf (lbf)

    6500 (14300)

  • Ride Control System

    Yes

  • Pump Type

    Gear

  • Pump Flow - 1, lt/min (gallons (US) / min)

    93 (24.5)

  • System Pressure, bar (PSI)

    210 (3000)
WEIGHTS

  • Operating Weight, kg (lbs)

    5750 (12600)
Back to Top


Visit Little’s To Explore Your Compact Wheel Loader Options

Stop by one of our five locations for a close look at your John Deere compact wheel loader options. Then take one out for a demonstration. Your Little’s sales guide is ready to help you find the right compact wheel loader for your needs and will also provide information on our financing and leasing options.

FIND A STORE NEAR ME

Fulfill Your Lawn Care Needs, Big Or Small

Request My Quote Now
Need Help? Talk with an expert
Grass
