316GR Radial Lift Skid Steer Loader
318G Vertical Lift Skid Steer Loader
320G Skid Steer
316GR Radial Lift Skid Steer Loader
Available models: 316GR
Details:
316GR
Skid Steer
- Rated Operating Capacity: 795 kg (1,750 lb.)
- Gross Horsepower: 48.5kW (65 hp)
- Net Horsepower: 45.6 kW (61 hp)
- Operating Weight: 2,894 kg (6,375 lb.)
Features:
- Radial-Lift Boom
- Engine
- Mobility
- Cab & Controls
- Uptime
Specifications:
DRIVELINE
-
Engine Manufacturer
Yanmar
-
Engine Model
4TNV86CHT
-
Emission Rating
Tier 4
-
Aspiration
Turbo
-
Displacement, ltr (Inches�)
2.1 (128)
-
Rated Speed, rpm
2600
-
SAE Net Power, kW (hp)
45.6 (61)
-
SAE Gross Power, kW (hp)
48.5 (65)
-
Max. Gross Torque, Nm (lbf / ft)
207 (153)
-
Drive Chain Rating [ANSI]
80 - HD
-
Tire size - Standard
10 x 16.5
DIMENSIONS
-
Length - No Bucket, mm (inches)
2630 (103)
-
Length - With Bucket, mm (inches)
3240 (127.6)
-
Width - No Bucket, mm (inches)
1600 (62.9)
-
Overall Height, mm (inches)
1960 (77.2)
-
Ground Clearance, mm (inches)
180 (7)
-
Wheelbase, mm (inches)
1050 (41.5)
-
Rear Departure Angle, �
22.3
-
Height to Hinge Pin, mm (inches)
2920 (115.1)
-
Dump Angle, �
45
-
Dump Height - Maximum, mm (inches)
2250 (88.6)
-
Reach - Max Dump Height, mm (inches)
400 (15.8)
-
Rollback - Ground Level, �
30
PERFORMANCE
-
Rated Operating Capacity - Optional Counterweight, kg (lbs)
863 (1900)
-
Rated Operating Capacity, kg (lbs)
795 (1750)
-
Tipping Capacity (SAE), kg (lbs)
1598 (3520)
-
Axle Torque - Maximum, Nm (lbf / ft)
6459 (4764)
-
Speed - Maximum, kph (mph)
11 (6.9)
-
Speed - Maximum Option, kph (mph)
16.3 (10.1)
-
Breakout - Lift, kN (lbf)
21.1 (4750)
-
Breakout - Bucket, kN (lbf)
17.7 (4000)
-
Hydraulic Power, kW (hp)
23.159 (31)
-
Pump Output, lt/min (gallons (US) / min)
59 (16)
-
System Pressure, bar (PSI)
237.87 (3450)
Back to Top
318G Vertical Lift Skid Steer Loader
Available models: 318G
Details:
318G
Skid Steer
- Rated Operating Capacity: 883 kg (1,945 lb.)
- Gross Horsepower: 48.5 kW (65 hp)
- Net Horsepower: 45.6 kW (61 hp)
- Operating Weight: 2,940 kg (6,475 lb.)
Features:
- Vertical Lift Boom
- Engine
- Mobility
- Cab & Controls
- Uptime
Specifications:
DRIVELINE
-
Engine Manufacturer
Yanmar
-
Engine Model
4TNV86CHT
-
Emission Rating
Tier 4
-
Aspiration
Turbo
-
Displacement, ltr (Inches�)
2.1 (128)
-
Rated Speed, rpm
2600
-
SAE Net Power, kW (hp)
45.6 (61)
-
SAE Gross Power, kW (hp)
48.5 (65)
-
Max. Gross Torque, Nm (lbf / ft)
207 (153)
-
Drive Chain Rating [ANSI]
80 - HD
-
Tire size - Standard
10 x 16.5
DIMENSIONS
-
Length - No Bucket, mm (inches)
2630 (103)
-
Length - With Bucket, mm (inches)
3240 (127.6)
-
Width - No Bucket, mm (inches)
1600 (62.9)
-
Overall Height, mm (inches)
1960 (77.2)
-
Ground Clearance, mm (inches)
180 (7)
-
Wheelbase, mm (inches)
1050 (41.5)
-
Rear Departure Angle, �
22.3
-
Height to Hinge Pin, mm (inches)
3050 (120)
-
Dump Angle, �
42
-
Dump Height - Maximum, mm (inches)
2400 (94.3)
-
Reach - Max Dump Height, mm (inches)
860 (34)
-
Rollback - Ground Level, �
30
PERFORMANCE
-
Rated Operating Capacity - Optional Counterweight, kg (lbs)
951 (2095)
-
Rated Operating Capacity, kg (lbs)
883 (1945)
-
Tipping Capacity (SAE), kg (lbs)
1766 (3890)
-
Axle Torque - Maximum, Nm (lbf / ft)
6459 (4764)
-
Speed - Maximum, kph (mph)
11.1 (6.9)
-
Speed - Maximum Option, kph (mph)
16.3 (10.1)
-
Breakout - Lift, kN (lbf)
22.2 (5000)
-
Breakout - Bucket, kN (lbf)
26.6 (6000)
-
Hydraulic Power, kW (hp)
23.159 (31)
-
Pump Output, lt/min (gallons (US) / min)
59 (16)
-
System Pressure, bar (PSI)
237.87 (3450)
Back to Top
320G Skid Steer
Available models: 320G
Details:
320G
Skid Steer
- Gross Power: 51.7 kW (69 hp)
- Net Power: 49.4 kW (66 hp)
- Rated Operating Capacity: 994 kg (2,190 lb.)
- Operating Weight: 3246 kg (7,150 lb.)
Features:
- Increase your machine’s versatility with John Deere’s wide array of attachment offerings
- Enjoy all day comfort with the spacious and ergonomically friendly cab
- Excellent visibility for increased situational and jobsite awareness
- Ease of serviceability allows you to spend more time completing the tasks at hand
- Productivity enhancements that can benefit you regardless of the machine’s application
Specifications:
Key Specs
-
SAE Net Power, kW (hp)
49.4 kW
66 hp -
Maximum traveling speed
0-6.9 (0- km/11.1h) forward
-
Length - No Bucket
2850 mm (112.3 in)
-
Width - No Bucket
1700 mm (67 in)
-
Overall Height
2060 mm (81.1 in)
-
Ground Clearance
240 mm (9.3 in)
-
Fuel Tank, ltr (gallons (US)
79 (21)
-
Rated Operating Capacity
994 kg (2190 lbs)
-
Hydraulic Power, kW (hp)
28.842 (38.6)
-
Pump Output
21 g
Back to Top
324G Skid Steer
330G Skid Steer Loader
332G Skid Steer Loader
324G Skid Steer
Available models: 324G
Details:
324G
Skid Steer
- Rated Operating Capacity: 1221 kg (2,690 lb.)
- Gross Horsepower: 55.0 kW (74 hp)
- Net Horsepower: 52.5 kW (70 net hp)
- Operating Weight: 3496 kg (7,700 lb.)
Features:
- Engine
- Cab & Controls
- Productivity
- Uptime
Specifications:
DESCRIPTION
-
Lift Geometry
Vertical
-
Fleet Management
Yes
-
Precision Guidance
No
-
Proximity Guidance
No
DRIVELINE
-
Engine Manufacturer
Yanmar
-
Engine Model
4TNV98CT
-
Emission Rating
Tier 4
-
Aspiration
Turbo
-
Displacement, ltr (Inches³)
3.3 (203)
-
Rated Engine Speed, rpm
2500
-
SAE Net Power, kW (hp)
52.5 (70)
-
SAE Gross Power, kW (hp)
72 (96.6)
-
SAE Gross Power, kW (hp)
54.8 (74)
-
Max. Gross Torque, Nm (lbf / ft)
280 (207)
-
Drive Chain Rating [ANSI]
80 - HD
-
Tire size - Standard
12 x 16.5 - 12PR SKS
DIMENSIONS
-
Length - No Bucket, mm (inches)
2850 (112.3)
-
Length - With Bucket, mm (inches)
3460 (136.3)
-
Width - No Bucket, mm (inches)
1700 (67)
-
Overall Height, mm (inches)
2060 (81.1)
-
Ground Clearance, mm (inches)
240 (9.3)
-
Wheelbase, mm (inches)
1120 (44.2)
-
Rear Departure Angle, °
28
-
Height to Hinge Pin, mm (inches)
3200 (126)
-
Dump Angle, °
41
-
Dump Height - Maximum, mm (inches)
2590 (102.1)
-
Reach - Max Dump Height, mm (inches)
760 (29.9)
-
Rollback - Ground Level, °
34
PERFORMANCE
-
Rated Operating Capacity - Optional Counterweight, kg (lbs)
1294 (2850)
-
Rated Operating Capacity, kg (lbs)
1221 (2690)
-
Tipping Capacity (SAE), kg (lbs)
2443 (5380)
-
Axle Torque - Maximum, Nm (lbf / ft)
6771 (4994)
-
Speed - Maximum, kph (mph)
11.1 (6.9)
-
Speed - Maximum Option, kph (mph)
17.9 (11.1)
-
Breakout - Lift, kN (lbf)
23.3 (5250)
-
Breakout - Bucket, kN (lbf)
38.9 (8750)
-
Hydraulic Power, kW (hp)
31.009 (41.5)
-
Hydraulic Power - Option, kW (hp)
47.103 (63.1)
-
Pump Output, lt/min (gallons (US) / min)
79 (21)
-
Pump Flow - Option, lt/min (gallons (US) / min)
120 (32)
-
System Pressure, bar (PSI)
237.87 (3450)
Back to Top

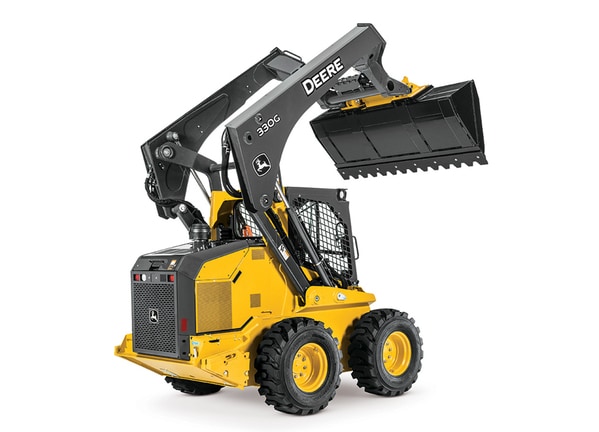

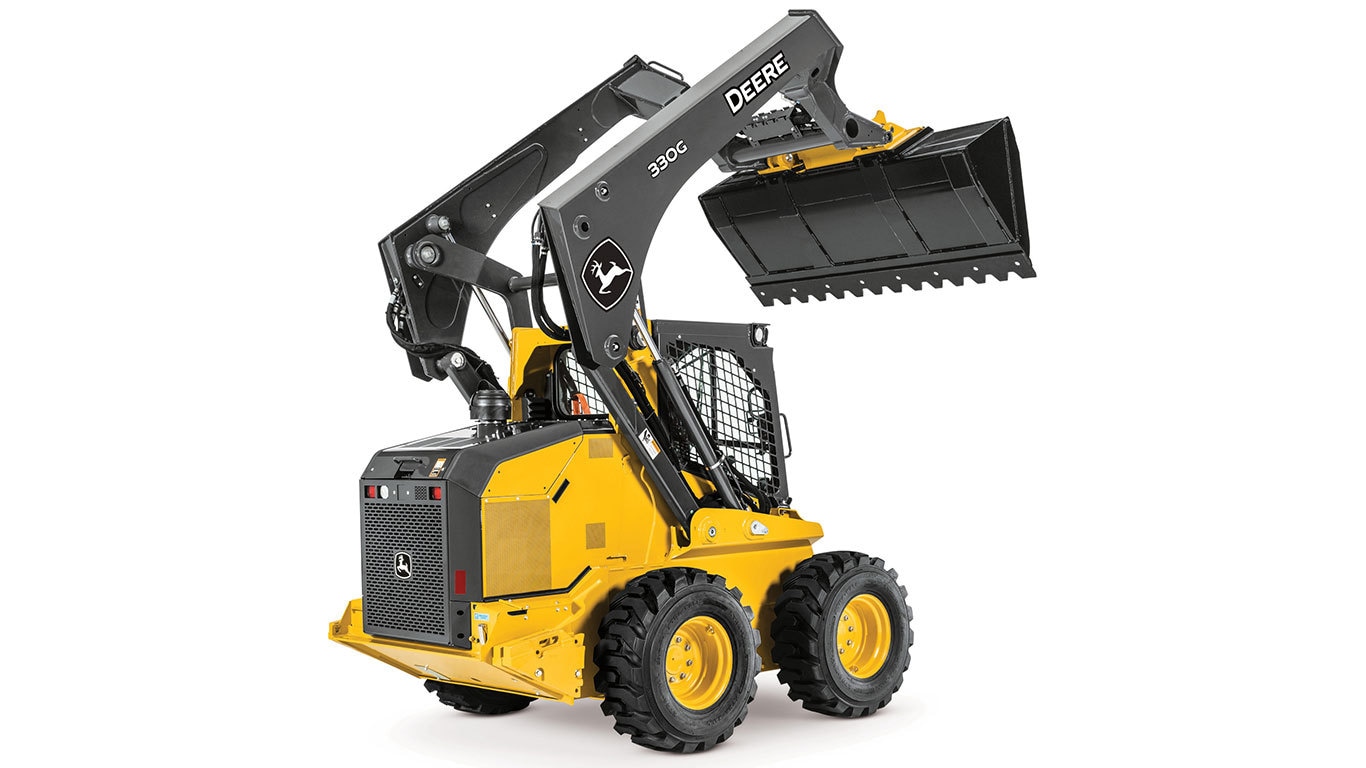

330G Skid Steer Loader
Available models: 330G
Details:
330G
Skid Steer
- Rated Operating Capacity: 1,362 kg (3,000 lb.)
- Gross Horsepower: 68.0 kW (91.2 hp)
- Net Horsepower: 66 kW (88.5 hp)
- Operating Weight: 4,495 kg (9,900 lb.)
Features:
- Engine
- Cab & Controls
- Productivity
- EH Boom Performance Package
- Onboard Grade Indication Option
- Vertical-Lift Boom
- Hydraulic Boost
- Easy Maintenance
Specifications:
DESCRIPTION
-
Lift Geometry
Vertical
-
Fleet Management
Yes
-
Precision Guidance
No
-
Proximity Guidance
No
DRIVELINE
-
Engine Manufacturer
Yanmar
-
Engine Model
4TNV94FHT
-
Emission Rating
Tier 4
-
Aspiration
Turbo. Intercooled
-
Displacement, ltr (Inches�)
3.1 (186.3)
-
Rated Speed, rpm
2500
-
SAE Net Power, kW (hp)
66 (88.5)
-
SAE Gross Power, kW (hp)
68 (91.2)
-
Max. Gross Torque, Nm (lbf / ft)
382 (281.8)
-
Drive Chain Rating [ANSI]
100 - HD
-
Tire size - Standard
14 x 17.5 - 12 PR Extra Wall
DIMENSIONS
-
Length - No Bucket, mm (inches)
3100 (122)
-
Length - With Bucket, mm (inches)
3710 (146)
-
Width - No Bucket, mm (inches)
1980 (78)
-
Overall Height, mm (inches)
2190 (86.3)
-
Ground Clearance, mm (inches)
250 (9.7)
-
Wheelbase, mm (inches)
1270 (49.9)
-
Rear Departure Angle, °
29
-
Height to Hinge Pin, mm (inches)
3350 (132)
-
Dump Angle, °
48
-
Dump Height - Maximum Foundry, mm (inches)
2690 (106.1)
-
Reach - Max Dump Height Foundry, mm (inches)
710 (28)
-
Rollback - Ground Level, °
35
PERFORMANCE
-
Rated Operating Capacity - Optional Counterweight Foundry, kg (lbs)
1430 (3150)
-
Rated Operating Capacity - Foundry, kg (lbs)
1362 (3000)
-
Tipping Load - Foundry, kg (lbs)
2724 (6000)
-
Axle Torque - Maximum, Nm (lbf / ft)
8480 (6235)
-
Speed - Maximum, kph (mph)
19.3 (12)
-
Breakout - Lift Foundry, kN (lbf)
31.1 (7000)
-
Breakout - Bucket Foundry, kN (lbf)
45.8 (10300)
-
Hydraulic Power, kW (hp)
31.402 (42.1)
-
Hydraulic Power - Option, kW (hp)
54.168 (72.6)
-
Pump Output, lt/min (gallons (US) / min)
80 (23.5)
-
Pump Flow - Option, lt/min (gallons (US) / min)
138 (36.5)
-
System Pressure, bar (PSI)
237.87 (3450)
Back to Top

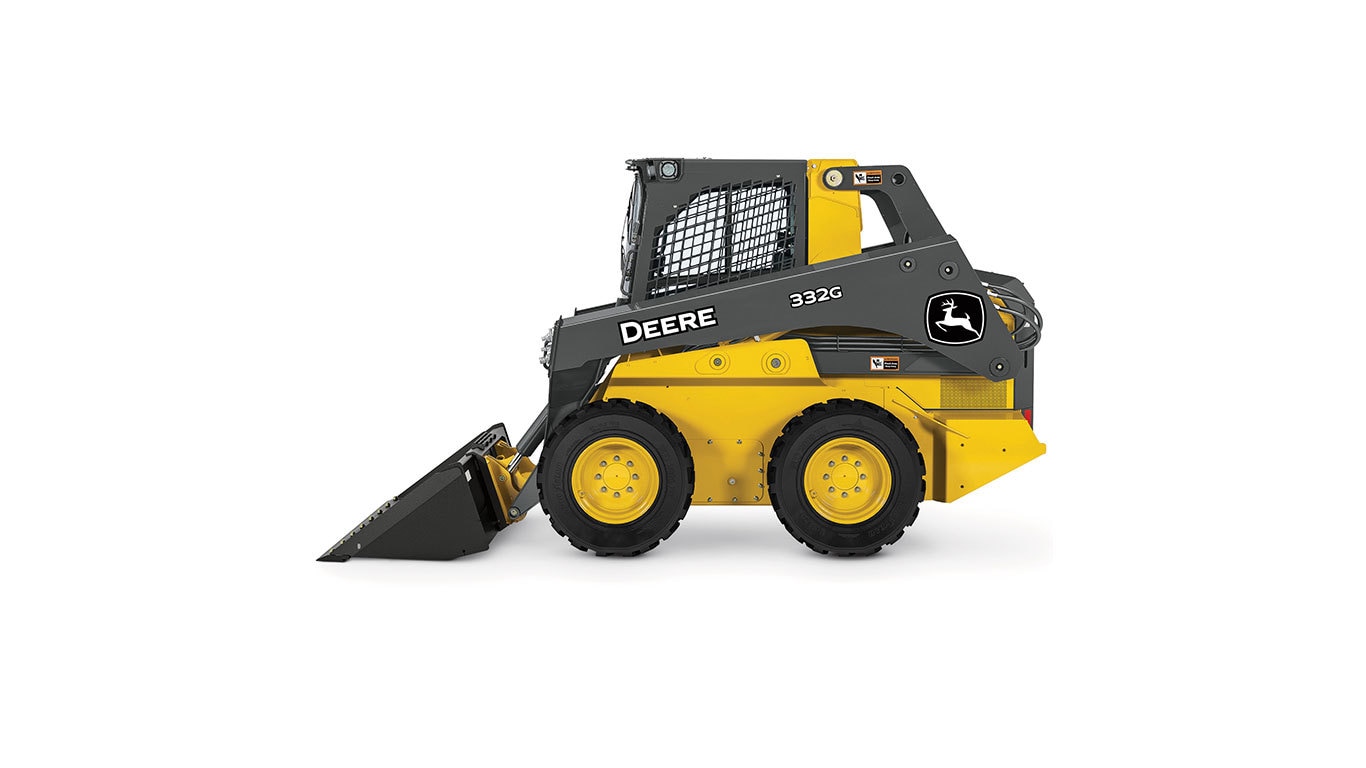

332G Skid Steer Loader
Available models: 332G
Details:
332G
Skid Steer
- Rated Operating Capacity: 1,634 kg (3,600 lb.)
- Gross Horsepower: 74.6 kW (100 hp)
- Net Horsepower: 72 kW (96.6 hp)
- Operating Weight: 4,540 kg (10,000 lb.)
Features:
- Engine
- Cab & Controls
- Productivity
- EH Boom Performance Package
- Onboard Grade Indication Option
- Vertical-Lift Boom
- Hydraulic Boost
- Easy Maintenance
Specifications:
DESCRIPTION
-
Lift Geometry
Vertical
-
Fleet Management
Yes
-
Precision Guidance
No
-
Proximity Guidance
No
DRIVELINE
-
Engine Manufacturer
Yanmar
-
Engine Model
4TNV94FHT
-
Emission Rating
Tier 4
-
Aspiration
Turbo. Intercooled
-
Displacement, ltr (Inches�)
3.1 (186.3)
-
Rated Engine Speed, rpm
2500
-
SAE Net Power, kW (hp)
66 (88.5)
-
SAE Gross Power, kW (hp)
72 (96.6)
-
SAE Gross Power, kW (hp)
74.6 (100)
-
Max. Gross Torque, Nm (lbf / ft)
395 (291.3)
-
Drive Chain Rating [ANSI]
100 - HD
-
Tire size - Standard
14 x 17.5 - 14PR Hauler
DIMENSIONS
-
Length - No Bucket, mm (inches)
3100 (122)
-
Length - With Bucket, mm (inches)
3710 (146)
-
Width - No Bucket, mm (inches)
1990 (78.4)
-
Overall Height, mm (inches)
2190 (86.3)
-
Ground Clearance, mm (inches)
250 (9.7)
-
Wheelbase, mm (inches)
1270 (49.9)
-
Rear Departure Angle, �
29
-
Height to Hinge Pin, mm (inches)
3350 (132)
-
Dump Angle, �
48
-
Dump Height - Maximum Foundry, mm (inches)
2680 (105.6)
-
Reach - Max Dump Height Foundry, mm (inches)
710 (28)
-
Rollback - Ground Level, �
35
PERFORMANCE
-
Rated Operating Capacity - Optional Counterweight, kg (lbs)
1703 (3750)
-
Rated Operating Capacity, kg (lbs)
1633 (3600)
-
Tipping Capacity (SAE), kg (lbs)
3269 (7200)
-
Axle Torque - Maximum, Nm (lbf / ft)
9289 (6830)
-
Speed - Maximum, kph (mph)
19.3 (12)
-
Breakout - Lift, kN (lbf)
37.8 (8520)
-
Breakout - Bucket, kN (lbf)
61.8 (13904)
-
Hydraulic Power, kW (hp)
37.29 (50)
-
Hydraulic Power - Option, kW (hp)
61.234 (82.1)
-
Pump Output, lt/min (gallons (US) / min)
95 (25)
-
Pump Flow - Option, lt/min (gallons (US) / min)
156 (41.1)
-
System Pressure, bar (PSI)
237.87 (3450)
Back to Top
330 P-Tier
330 P-Tier
Available models: 330 P-Tier334 P-Tier
Details:
330 P-Tier
Skid Steer
- Gross Rated Power: 73.0 kW (98.0 hp)
- Net Peak Power: 70.8 kW (95.0 hp)
- Rated Operating Capacity: 1339 kg (2,950 lb.)
- Operating Weight: 4508 kg (9,930 lb.)
- Bucket Breakout Force: 4767 kg (10,500 lb.)
Features:
- Completely Redesigned Cab that takes Comfort to the Next Level
- Large Frame Machines Offer a Suite of Technology Solutions
- Redesigned 330 and 331 Come Packed with More Power and Top of the Line Features
- Additional attachment offerings for optimal pairing with large frame P-Tier Skid Steers and Compact Track Loaders
- Quik-Tatch durability improvements allow for greater reliability
Details:
334 P-Tier
Skid Steer
- Gross Rated Power: 88.0 kW (118.0 hp)
- Net Peak Power: 85.5 kW (114.7 hp)
- Rated Operating Capacity: 1816 kg (4,000 lb.) with 1 standard counterweight set
- Operating Weight: 4660 kg (10,264 lb.)
Features:
- New 334 and 335 Machines Come Packed with More Power and Standard Top of the Line Features
- Large Frame Machines Offer a Suite of Technology Solutions
- New hydraulic system on 333, 334, and 335 P-Tier machines enables greater machine capabilities while saving fuel
- Completely Redesigned Cab that takes Comfort to the Next Level
- Additional attachment offerings for optimal pairing with large frame P-Tier Skid Steers and Compact Track Loaders
- Achieve Superior Accuracy and Efficiency with Grade Control Solutions
- Quik-Tatch durability improvements allow for greater reliability
Specifications:
Description
-
Lift Geometry
Vertical
DRIVELINE
-
Engine Manufacturer
Yanmar
-
Engine Model
4TNV94FHT
-
Aspiration
Turbocharger. Intercooled
-
Displacement, ltr (Inches³)
3.1 (186.3)
-
Rated Speed, rpm
2500
-
SAE Net Power, kW (hp)
85.5 (114.7)
-
SAE Gross Power, kW (hp)
88 (118)
-
Max. Gross Torque, Nm (lbf / ft)
395 (291.3)
-
Tire size - Standard
14 x 17.5
Back to Top
