Explore Our Wide Selection Of John Deere Speciality Tractors

Click on products below to learn more.

Narrow Series

Narrow Series

Available models: 5075GV-5075GN5090GV-5090GN5100GN

DetailsFeaturesSpecifications

Details:

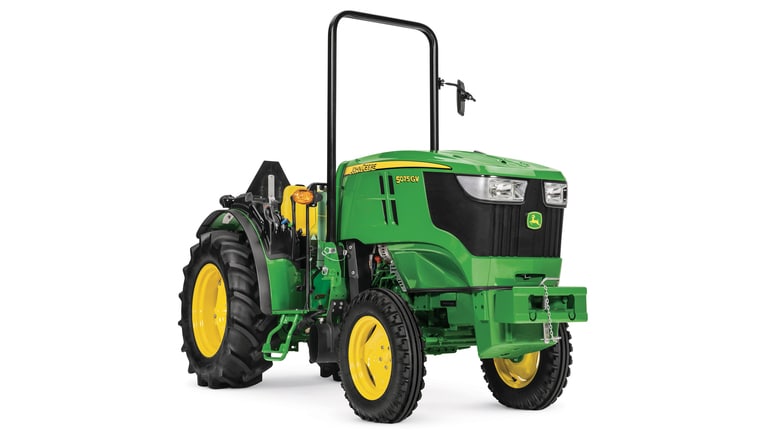

5075GV-5075GN

Tractor

  • Perfect for the narrower rows producers are moving toward to conserve water
  • Working widths of 49.5” for the 5GN and 43” for the 5GV
  • FT4 75 hp engines/61 hp PT
  • Two transmissions available: 12F/12R and 24F/12R

Features:

  • Tailored to fit: John Deere specialty solutions
  • Auxiliary fuel tank (5GN)
  • Powerful Final Tier 4 (FT4) engines
  • Heavy-duty weight
  • Excellent serviceability reduces operational costs and improves productivity
  • Outstanding hydraulic performance
  • Versatile rear hitch
  • Transmission

Specifications:

  • Key Specs
    • Engine description
      3.4L Fiat® Powertrain Technologies
    • Engine displacement
      4 cylinder: 3.4 L
      207 cu in.
    • Rated engine power
      54.4 kW
      73 hp
    • Rated PTO power (hp SAE)
      45.5 kW
      61 hp
    • Transmission type
      24F/12R PowrReverser, EH Hi-Lo
    • Hydraulic pump rated output
      Standard: 96.5 L/min
      25.5 gpm
      Optional: 126.4 L/min
      33.4 gpm
    • Rear hitch category (SAE designation)
      Category 1/Category 2
    • Base machine weight
      OOS: 2660 kg
      5864 lb
      Cab: 2975 kg
      6558 lb
  • Engine specifications
    • Description
      3.4L Fiat® Powertrain Technologies
    • Engine family
      FPTF34
    • Rated speed
      2300 rpm
    • Aspiration
      Wastegate Turbocharger with intercooler and eventually cooled Exhaust Gas
    • Cylinders liners
      Wet sleeved
    • Emission level
      Final Tier 4
    • After treatment type
      Diesel Oxidation Catalyst (DOC) and diesel Particulate Exhaust Filter (DPF)
    • Displacement
      4 cylinder: 3.4 L
      207 cu in.
  • Engine performance
    • Rated power
      54.4 kW
      73 hp
    • Rated PTO power (hp SAE)
      45.5 kW
      61 hp
  • Transmission
    • Type
      24F/12R PowrReverser, EH Hi-Lo
    • Reverser
      Yes
    • Clutch; wet/dry
      Wet
    • Creeper
      Yes
  • Hydraulic system
    • Type
      Open Center
    • Pump rated output
      Standard: 96.5 L/min
      25.5 gpm
      Optional: 126.4
      33.4 gpm
    • Available flow at a single rear SCV
      66.2 L/min
      17.6 gpm
    • Number of rear selective control valves (SCVs)
      Standard: 2
      Optional: 4
    • SCV control
      Mechanical
  • Rear hitch
    • Hitch draft control load sense type
      Mechanical
    • Hitch category (SAE designation)
      Category 1/Category 2
    • Maximum lift capacity behind lift points
      2549 kg
      5620 lb
    • Sensing type
      Top Link Draft Sensing
  • Drawbar
    • Drawbar category
      Extendable
  • Rear power take-off (PTO)
    • Type
      Standard: 540/540E
    • Engine rpm (at rated PTO speeds)
      540 at 1938 rpm
      540E at 1648 rpm
    • PTO actuation
      Electrohydraulic
  • Rear axle
    • Type
      Carraro Drivetech
    • Final drive type
      Three point inboard planetary drives
    • Differential controls
      Multi disk oil cooled design
    • Axle type
      Flanged
    • Brakes, type and control
      Multi-disc rear braking
    • Rear differential lock
      Electrohydraulic
  • Front axle
    • Type
      Carraro Drivetech
    • Front axle differential lock
      Self Locking Differential
  • Tires
    • Front
      7.50R16
    • Rear
      280/70 R18
    • Turning radius without brakes
      3627 mm
      11.9 ft
  • Electrical system
    • Alternator size
      120 amp
    • Type of bulb in beacon (Halogen, Zenon, LED)

    • Type of bulb in headlight (Halogen, Zenon, LED)

  • Operator station
    • Rollover protective structure, OOS
      Rigid - foldable - telescopic
      Rigid, front folding
      Platform - flat/straddle
      Straddle
      Gearshift location - console/floor
      Floor
      Yes
    • Seat
      OOS: standard: COBO MT SC74 M200
      Optional: COBO MT SC74 M97
      Cab: standard: COBO MT SC74 M200
      Optional: GRAMMER MSG93/511
    • dB(A) rating
      82
  • Dimensions
    • Wheelbase
      2098 mm
      82.5 in.
    • Overall length
      4319 mm
      170 in.
    • Drawbar clearance
      Min. 254 mm
      10 in.
      Max. 289 mm
      11.3 in.
    • Front axle center
      Min. 254 mm
      10 in.
      Max. 289 mm
      11.3 in.
  • Weight
    • Base machine weight


      OOS: 2660 kg
      5864 lb
      Cab: 2975 kg
      6558 lb
    • Maximum permissible weight
      4200 kg
      9259.41 lb
  • Capacities
    • Fuel tank
      Standard: 85.9 L
      22.7 U.S. gal.
      Optional: 114.3 L
      30.2 U.S. gal.
  • Serviceability
    • Interval for engine oil change
      500
    • Interval for hydraulic/transmission oil change
      750
Back to Top
DetailsFeaturesSpecifications

Details:

5090GV-5090GN

Tractor

  • Working widths down to 43 inches
  • Improved turning radius on the 5GN Series
  • FT4 90 hp engine/76 hp PTO
  • Two transmissions available: 12F/12R and 24F/12R

Features:

  • Tailored to fit: John Deere specialty solutions
  • Auxiliary fuel tank (5GN)
  • Powerful Final Tier 4 (FT4) engines
  • Heavy-duty weight
  • Excellent serviceability reduces operational costs and improves productivity
  • Outstanding hydraulic performance
  • Versatile rear hitch
  • Transmission

Specifications:

  • Key Specs
    • Engine description
      3.4L Fiat® Powertrain Technologies
    • Engine displacement
      4 cylinder: 3.4 L
      207 cu in.
    • Rated engine power
      67.1 kW
      90 hp
    • Rated PTO power (hp SAE)
      59 kW
      79 hp
    • Transmission type
      24F/12R PowrReverser, EH Hi-Lo
    • Hydraulic pump rated output
      Standard: 96.5 L/min
      25.5 gpm
      Optional: 126.4 L/min
      33.4 gpm
    • Rear hitch category (SAE designation)
      Category 1/Category 1N
    • Base machine weight
      OOS: 2529.7 kg
      5577 lb
      Cab: 2744.7 kg
      6051 lb
  • Engine specifications
    • Description
      3.4L Fiat® Powertrain Technologies
    • Engine family
      FPTF34
    • Rated speed
      2300 rpm
    • Aspiration
      Turbocharged
    • Cylinders liners
      Wet sleeved
    • Emission level
      Final Tier 4
    • After treatment type
      Diesel Oxidation Catalyst (DOC) and Selective Catalyst Reduction (SCR)
    • Displacement
      4 cylinder: 3.4 L
      207 cu in.
  • Engine performance
    • Rated power
      67.1 kW
      90 hp
    • Rated PTO power (hp SAE)
      59 kW
      79 hp
  • Transmission
    • Type
      24F/12R PowrReverser, EH Hi-Lo
    • Reverser
      Yes
    • Clutch; wet/dry
      Wet
    • Creeper
      Yes
  • Hydraulic system
    • Type
      Open Center
    • Pump rated output
      Standard: 96.5 L/min
      25.5 gpm
      Optional: 126.4
      33.4 gpm
    • Available flow at a single rear SCV
      41.6 L/min
      11 gpm
    • Number of rear selective control valves (SCVs)
      Standard: 2
      Optional: 4
    • SCV control
      Mechanical
  • Rear hitch
    • Hitch draft control load sense type
      Mechanical
    • Hitch category (SAE designation)
      Category 1/Category 1N
    • Maximum lift capacity behind lift points
      2549 kg
      5620 lb
    • Sensing type
      Top Link Draft Sensing
  • Drawbar
    • Drawbar category
      Extendable
  • Rear power take-off (PTO)
    • Type
      Standard: 540/540E
    • Engine rpm (at rated PTO speeds)
      540 at 1938 rpm
      540E at 1648 rpm
    • PTO actuation
      Electrohydraulic
  • Rear axle
    • Type
      Carraro Drivetech
    • Final drive type
      Three point inboard planetary drives
    • Differential controls
      Multi disk oil cooled design
    • Axle type
      Flanged
    • Brakes, type and control
      Multi-disc rear braking
    • Rear differential lock
      Electrohydraulic
  • Front axle
    • Type
      Carraro Drivetech
    • Front axle differential lock
      Self Locking Differential
  • Tires
    • Front
      6.50R16
    • Rear
      260/70 R16
    • Turning radius without brakes
      3627 mm
      11.9 ft
  • Electrical system
    • Alternator size
      120 amp
    • Type of bulb in beacon (Halogen, Zenon, LED)

    • Type of bulb in headlight (Halogen, Zenon, LED)

  • Operator station
    • Rollover protective structure, OOS
      Rigid - foldable - telescopic
      Rigid, front folding
      Platform - flat/straddle
      Straddle
      Gearshift location - console/floor
      Floor
      Yes
    • Seat
      OOS: standard: COBO MT SC74 M200
      Optional: COBO MT SC74 M97
      Cab: standard: COBO MT SC74 M200
    • dB(A) rating
      82
  • Dimensions
    • Wheelbase
      2098 mm
      82.5 in.
    • Overall length
      4319 mm
      170 in.
    • Drawbar clearance
      Min. 226.1 mm
      8.9 in.
      Max. 266.7 mm
      10.5 in.
    • Front axle center
      Min. 226.1 mm
      8.9 in.
      Max. 266.7 mm
      10.5 in.
  • Weight
    • Base machine weight


      OOS: 2529.7 kg
      5577 lb
      Cab: 2744.7 kg
      6051 lb
  • Capacities
    • Fuel tank
      Standard: 73.1 L
      19.3 U.S. gal.
  • Serviceability
    • Interval for engine oil change
      500
    • Interval for hydraulic/transmission oil change
      750
Back to Top
DetailsFeaturesSpecifications

Details:

5100GN

Tractor

  • FT4 100 hp engine/86 hp PTO
  • Improved turning radius
  • Two transmissions available: 12F/12R and 24F/12R
  • Multiple operator station options

Features:

  • Tailored to fit: John Deere specialty solutions
  • Auxiliary fuel tank (5GN)
  • Powerful Final Tier 4 (FT4) engines
  • Heavy-duty weight
  • Excellent serviceability reduces operational costs and improves productivity
  • Outstanding hydraulic performance
  • Versatile rear hitch
  • Transmission

Specifications:

  • Key Specs
    • Engine description
      3.4L Fiat® Powertrain Technologies
    • Engine displacement
      4 cylinder: 3.4 L
      207 cu in.
    • Rated engine power
      74.6 kW
      100 hp
    • Rated PTO power (hp SAE)
      64.9 kW
      87 hp
    • Transmission type
      24F/12R PowrReverser, EH Hi-Lo
    • Hydraulic pump rated output
      Standard: 96.5 L/min
      25.5 gpm
      Optional: 126.4 L/min
      33.4 gpm
    • Rear hitch category (SAE designation)
      Category 1/Category 2
    • Base machine weight
      OOS: 2660 kg
      5864 lb
      Cab: 2975 kg
      6558 lb
  • Engine specifications
    • Description
      3.4L Fiat® Powertrain Technologies
    • Engine family
      FPTF34
    • Rated speed
      2300 rpm
    • Aspiration
      Turbocharged
    • Cylinders liners
      Wet sleeved
    • Emission level
      Final Tier 4
    • After treatment type
      Diesel Oxidation Catalyst (DOC) and Selective Catalyst Reduction (SCR)
    • Displacement
      4 cylinder: 3.4 L
      207 cu in.
  • Engine performance
    • Rated power
      74.6 kW
      100 hp
    • Rated PTO power (hp SAE)
      64.9 kW
      87 hp
  • Transmission
    • Type
      24F/12R PowrReverser, EH Hi-Lo
    • Reverser
      Yes
    • Clutch; wet/dry
      Wet
    • Creeper
      Yes
  • Hydraulic system
    • Type
      Open Center
    • Pump rated output
      Standard: 96.5 L/min
      25.5 gpm
      Optional: 126.4
      33.4 gpm
    • Available flow at a single rear SCV
      41.6 L/min
      11 gpm
    • Number of rear selective control valves (SCVs)
      Standard: 2
      Optional: 4
    • SCV control
      Mechanical
  • Rear hitch
    • Hitch draft control load sense type
      Mechanical
    • Hitch category (SAE designation)
      Category 1/Category 2
    • Maximum lift capacity behind lift points
      2549 kg
      5620 lb
    • Sensing type
      Top Link Draft Sensing
  • Drawbar
    • Drawbar category
      Extendable
  • Rear power take-off (PTO)
    • Type
      Standard: 540/540E
    • Engine rpm (at rated PTO speeds)
      540 at 1938 rpm
      540E at 1648 rpm
    • PTO actuation
      Electrohydraulic
  • Rear axle
    • Type
      Carraro Drivetech
    • Final drive type
      Three point inboard planetary drives
    • Differential controls
      Multi disk oil cooled design
    • Axle type
      Flanged
    • Brakes, type and control
      Multi-disc rear braking
    • Rear differential lock
      Electrohydraulic
  • Front axle
    • Type
      Carraro Drivetech
    • Front axle differential lock
      Self Locking Differential
  • Tires
    • Front
      7.50R16
    • Rear
      280/70 R18
    • Turning radius without brakes
      3627 mm
      11.9 ft
  • Electrical system
    • Alternator size
      120 amp
    • Type of bulb in beacon (Halogen, Zenon, LED)

    • Type of bulb in headlight (Halogen, Zenon, LED)

  • Operator station
    • Rollover protective structure, OOS
      Rigid - foldable - telescopic
      Rigid, front folding
      Platform - flat/straddle
      Straddle
      Gearshift location - console/floor
      Floor
      Yes
    • Seat
      OOS: standard: COBO MT SC74 M200
      Optional: COBO MT SC74 M97
      Cab: standard: COBO MT SC74 M200
      Optional: GRAMMER MSG93/511
    • dB(A) rating
      82
  • Dimensions
    • Wheelbase
      2098 mm
      82.5 in.
    • Overall length
      4319 mm
      170 in.
    • Drawbar clearance
      Min. 254 mm
      10 in.
      Max. 289 mm
      11.3 in.
    • Front axle center
      Min. 254 mm
      10 in.
      Max. 289 mm
      11.3 in.
  • Weight
    • Base machine weight


      OOS: 2660 kg
      5864 lb
      Cab: 2975 kg
      6558 lb
    • Maximum permissible weight
      4200 kg
      9259.41 lb
  • Capacities
    • Fuel tank
      Standard: 73.1 L
      19.3 U.S. gal.
      Optional: 101.4 L
      26.8 U.S. gal.
  • Serviceability
    • Interval for engine oil change
      500
    • Interval for hydraulic/transmission oil change
      750
Back to Top

High Crop High Clearance Series

High Crop High Clearance Series

Available models: 5100MH

DetailsFeaturesSpecifications

Details:

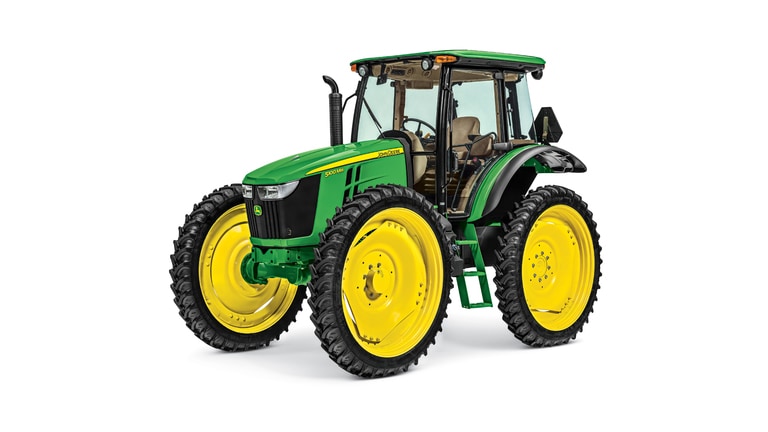

5100MH

Hi-Crop Utility Tractor

  • Over 23 inches (594 mm) of front axle clearance
  • Open station and premium cab offer comfort features that reduce fatigue
  • Cooling system handles harsh conditions, offers easy, tool-free cleaning and maximizes uptime
  • Low hood design for increased visibility and operational efficiency

Features:

  • Premium cab for the ultimate operating experience
  • Power bulge and torque reserve pull through the tough spots
  • Heavy-duty 3-point hitch lift capacity for implement versatility
  • Mid-frame design for support and strength

Specifications:

  • Key Specs
    • Engine description
      John Deere PowerTech PWL
    • Engine displacement
      4 cylinders: 4.5 L
      276 cu in.
    • Rated engine power
      At 2200 per ISO 97/68/EC: 74 kW
      100 hp
    • Rated PTO power (hp SAE)
      At 2100 per SAE: 63 kW
      85 hp
    • Transmission type
      16F/16R PowrReverser with creeper
    • Hydraulic pump rated output
      94 L/min
      24.7 gpm
    • Rear hitch category (SAE designation)
      Category 2; convertible to 1
  • Engine specifications
    • Description
      John Deere PowerTech PWL
    • Engine family
      FJDXL04.5305
    • Aspiration
      Turbocharged/Air-to-Air Aftercooled
    • Cylinders liners
      Wet sleeved
    • Displacement
      4 cylinders: 4.5 L
      276 cu in.
  • Engine performance
    • Rated power
      At 2200 per ISO 97/68/EC: 74 kW
      100 hp
    • Rated PTO power (hp SAE)
      At 2100 per SAE: 63 kW
      85 hp
    • PTO torque rise
      At 1600 rpm: 30 percent
  • Transmission
    • Type
      Standard: 16F/16R PowrReverser with creeper
    • Reverser
      Right hand, mechanical
    • Clutch; wet/dry
      Wet
    • Creeper
      16F/16R PowrReverser
  • Hydraulic system
    • Type
      Open Center
    • Pump rated output
      Standard: 94 L/min
      24.7 gpm
    • Available flow at a single rear SCV
      70 lb-ft
      18.4 gpm
    • Joystick SCV control
      Optional
  • Rear hitch
    • Hitch draft control load sense type
      Electrohydraulic
    • Remote control valves available
      Standard: 0
      Optional: 3
    • Hitch category (SAE designation)
      Category 2; convertible to 1
    • Maximum lift capacity behind lift points
      Standard: 2100 kg
      4600 lb
      Optional: 2550 kg
      5600 lb
    • Sensing type
      Lower Link
  • Rear power take-off (PTO)
    • Type
      Standard: Independent 540/540 Economy
      Optional: 540/540E/1000
    • Engine rpm (at rated PTO speeds)
      540 at 2100 rpm
      540E at 1645 rpm
    • PTO actuation
      Electrohydraulic
  • Rear axle
    • Final drive type
      Inboard planetary
    • Differential controls
      Mechanical (pedal)
    • Axle type
      Flanged
    • Brakes, type and control
      Hydraulic wet disc
  • Tires
    • Front
      MFWD: 230/95R40 R1
    • Rear
      MFWD: 230/95R40 R1
    • Wheel tread range
      MFWD: 1340-1904 mm
      52.8-75.0 in.
    • Turning radius with brakes
      MFWD: 3.9 m
      12.8 ft
    • Turning radius without brakes
      MFWD: 4.4 m
      14.4 ft
  • Electrical system
    • Type of bulb in beacon (Halogen, Zenon, LED)

    • Type of bulb in headlight (Halogen, Zenon, LED)

  • Operator station
    • Rollover protective structure, OOS
      Rigid - foldable - telescopic
      Foldable, 2-post
      Platform - flat/straddle
      Flat
      Gearshift location - console/floor
      Floor
    • dB(A) rating
      80 dBA
  • Dimensions
    • Wheelbase
      MFWD: 2301.24 mm
      90.6 in.
    • Approximate shipping weight, Open;Cab
      MFWD: Open: 3630 kg
      8000 lb
      Cab:4040 kg
      8900 lb
  • Weight
    • Base machine weight


  • Capacities
    • Fuel tank
      Standard: Open: 114 L
      30 U.S. gal.
      Cab: 140 L
      37 U.S. gal.
      Optional: Open: 144 L
      38 U.S. gal.
      Cab: 174 L
      46 U.S. gal.
  • Miscellaneous
    • Country of manufacture
      Augusta, GA
Back to Top

Low Profile Low Clearance Series

Low Profile Low Clearance Series

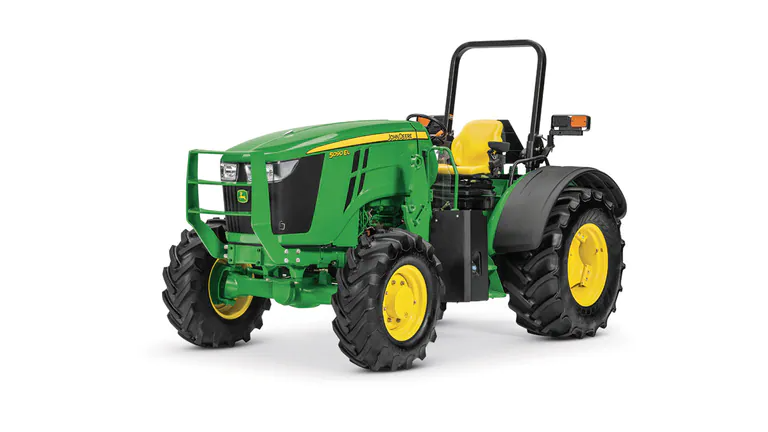

Available models: 5100ML5115ML5125ML5090EL

DetailsFeaturesSpecifications

Details:

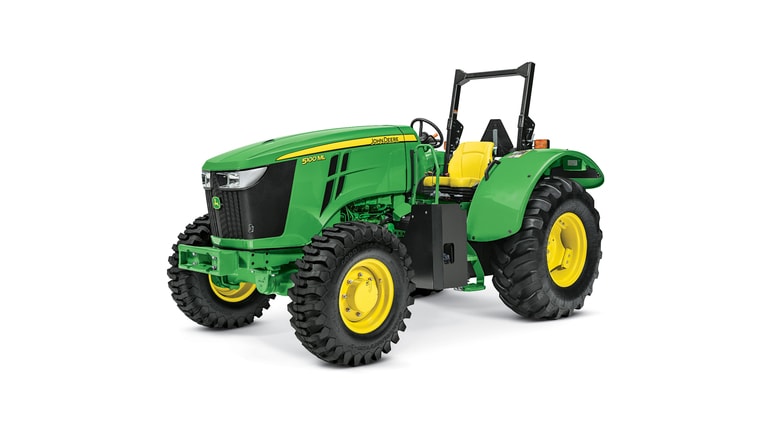

5100ML

Low-Profile Utility Tractor

  • Low profile hood design for visibility and access to hard-to-reach areas
  • 99 hp John Deere PowerTech™ engine is emissions compliant and performs regeneration automatically for maximum uptime
  • 16F/16R PowrReverser™ transmission for easy, clutch-free forward and reverse

Features:

  • Low-profile standard open operator station (OOS)
  • Power bulge and torque reserve pull through the tough spots
  • 16F/16R PowrReverser™ transmission (5100ML and 5115ML)
  • PowrQuad™ transmissions

Specifications:

  • Key Specs
    • Engine description
      John Deere PowerTech™ 4045 engine
    • Engine displacement
      4 cylinders: 4.5 L
      276 cu in.
    • Rated engine power
      At 2,200 per ISO 97/68/EC: 74 kW
      99.1 hp
    • Rated PTO power (hp SAE)
      At 2,100 per SAE: 63 kW
      85 hp
    • Transmission type
      Standard: 16F/16R PowrReverser™
      Optional: 16F/16R PowrQuad™
      16F/16R PowrQuad with creeper
      32F/16R PowrQuad
    • Hydraulic pump rated output
      Standard: 94 L/min
      24.7 gpm
      Optional: 117 L/min
      31 gpm
    • Rear hitch category (SAE designation)
      Category 2
  • Engine specifications
    • Description
      John Deere PowerTech™ 4045 engine
    • Engine family
      FJDXL04.5211
    • Aspiration
      Turbocharged
    • Cylinders liners
      Wet sleeved
    • Displacement
      4 cylinders: 4.5 L
      276 cu in.
  • Engine performance
    • Rated power
      At 2,200 per ISO 97/68/EC: 74 kW
      99.1 hp
    • Rated PTO power (hp SAE)
      At 2,100 per SAE: 63 kW
      85 hp
  • Transmission
    • Type
      Standard: 16F/16R PowrReverser™
      Optional: 16F/16R PowrQuad™
      16F/16R PowrQuad with creeper
      32F/16R PowrQuad
    • Reverser
      Yes
    • Clutch; wet/dry
      Wet
    • Creeper
      16F/16R PowrQuad with creeper
  • Hydraulic system
    • Type
      Standard: Open center
      Optional: Pressure-and-flow compensated (PFC) system
    • Pump rated output
      Standard: 94 L/min
      24.7 gpm
      Optional: 117 L/min
      31 gpm
    • Available flow at a single rear SCV
      Standard: 70 L/min
      18.4 gpm
      Optional: 100 L/min
      26.4 gpm
    • Number of rear selective control valves (SCVs)
      Standard: three
    • Number of mid selective control valves (SCVs)
      Zero; up to two
    • Joystick SCV control
      Optional
  • Rear hitch
    • Hitch draft control load sense type
      Standard: Mechanical
      Optional: Electrohydraulic
    • Remote control valves available
      Standard: three
    • Hitch category (SAE designation)
      Category 2
    • Maximum lift capacity behind lift points
      Standard: 2223 kg
      4900 lb
      Optional: 2565 kg
      5654 lb
      Optional with PowrQuad: 3164 kg
      6975 lb
      Optional with PowrQuad: 3569 kg
      7868 lb
    • Sensing type
      Top link
  • Rear power take-off (PTO)
    • Type
      Standard: 540/540E
      Optional: 540/540E/1000
    • Engine rpm (at rated PTO speeds)
      540 at 2100 rpm
      540E at 1645 rpm
      1000 at 2103 rpm
    • PTO actuation
      Electrohydraulic
  • Rear axle
    • Type
      Inboard planetary
    • Differential controls
      Electrohydraulic
    • Axle type
      Flanged
    • Brakes, type and control
      Hydraulic wet disc
  • Tires
    • Front
      12.5/80 - 18 In. I3 Bias
    • Rear
      19.5L - 24 In 10PR R4 Bias
    • Wheel tread range
      Front: 1299-1997 mm
      51.1-78.6 in.
    • Turning radius with brakes
      3.34 m
      11 ft
    • Turning radius without brakes
      3.8 m
      12.5 ft
  • Electrical system
    • Type of bulb in headlight (Halogen, Zenon, LED)

    • Type of bulb in beacon (Halogen, Zenon, LED)

  • Operator station
    • Rollover protective structure, OOS
      Rigid - foldable - telescopic
      Foldable, two-post
      Platform - flat/straddle
      Flat
      Gearshift location - console/floor
      Floor
    • Seat

  • Dimensions
    • Wheelbase
      2350 mm
      92.5 in.
    • Approximate shipping weight, Open;Cab
      PowrReverser models: Open: 3764 kg
      8298 lb
      PowrQuad models: Open: 3975 kg
      8740 lb
      Cab: Not applicable
  • Weight
    • Base machine weight


  • Capacities
    • Fuel tank
      Standard: Open: 112 L
      29.5 U.S. gal.
      Optional (PowrQuad models): 144 L
      38 U.S. gal.
    • Diesel exhaust fluid (DEF) tank
      12 L
      3.2 U.S. gal.
    • Cooling system

Back to Top
DetailsFeaturesSpecifications

Details:

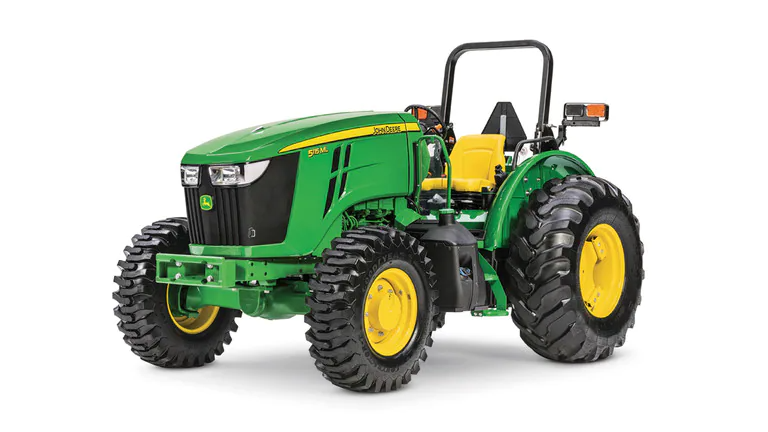

5115ML

Low-Profile Utility Tractor

  • 113.9 hp John Deere PowerTech™ engine complies with emissions requirements and performs regeneration automatically for maximum uptime
  • 16F/16R PowrReverser™ transmission for easy, clutch-free forward and reverse
  • Newly designed low-profile hood for improved visibility and access
  • PowrReverser transmission w/ left hand shuttle-shift control

Features:

  • Low-profile standard open operator station (OOS)
  • Power bulge and torque reserve pull through the tough spots
  • 16F/16R PowrReverser™ transmission (5100ML and 5115ML)
  • PowrQuad™ transmissions

Specifications:

  • Key Specs
    • Engine description
      John Deere PowerTech™ 4045 engine
    • Engine displacement
      4 cylinders: 4.5 L
      276 cu in.
    • Rated engine power
      At 2,200 per ISO 97/68/EC: 85 kW
      113.9 hp
    • Rated PTO power (hp SAE)
      At 2,100 per SAE: 74.5 kW
      100 hp
    • Transmission type
      Standard: 16F/16R PowrReverser™
      Optional: 16F/16R PowrQuad™
      16F/16R PowrQuad with creeper
      32F/16R PowrQuad
    • Hydraulic pump rated output
      Standard: 94 L/min
      24.7 gpm
      Optional: 117 L/min
      31 gpm
    • Rear hitch category (SAE designation)
      Category 2
  • Engine specifications
    • Description
      John Deere PowerTech™ 4045 engine
    • Engine family
      FJDXL04.5211
    • Aspiration
      Turbocharged
    • Cylinders liners
      Wet sleeved
    • Displacement
      4 cylinders: 4.5 L
      276 cu in.
  • Engine performance
    • Rated power
      At 2,200 per ISO 97/68/EC: 85 kW
      113.9 hp
    • Rated PTO power (hp SAE)
      At 2,100 per SAE: 74.5 kW
      100 hp
  • Transmission
    • Type
      Standard: 16F/16R PowrReverser™
      Optional: 16F/16R PowrQuad™
      16F/16R PowrQuad with creeper
      32F/16R PowrQuad
    • Reverser
      Yes
    • Clutch; wet/dry
      Wet
    • Creeper
      16F/16R PowrQuad with creeper
  • Hydraulic system
    • Type
      Standard: Open center
      Optional: Pressure-and-flow compensated (PFC) system
    • Pump rated output
      Standard: 94 L/min
      24.7 gpm
      Optional: 117 L/min
      31 gpm
    • Available flow at a single rear SCV
      Standard: 70 L/min
      18.4 gpm
      Optional: 100 L/min
      26.4 gpm
    • Number of rear selective control valves (SCVs)
      Standard: three
    • Number of mid selective control valves (SCVs)
      Zero; up to two
    • Joystick SCV control
      Optional
  • Rear hitch
    • Hitch draft control load sense type
      Standard: Mechanical
      Optional: Electrohydraulic
    • Remote control valves available
      Standard: three
    • Hitch category (SAE designation)
      Category 2
    • Maximum lift capacity behind lift points
      Standard: 2223 kg
      4900 lb
      Optional: 2565 kg
      5654 lb
      Optional with PowrQuad: 3164 kg
      6975 lb
      Optional with PowrQuad: 3569 kg
      7868 lb
    • Sensing type
      Top link
  • Rear power take-off (PTO)
    • Type
      Standard: 540/540E
      Optional: 540/540E/1000
    • Engine rpm (at rated PTO speeds)
      540 at 2100 rpm
      540E at 1645 rpm
      1000 at 2103 rpm
    • PTO actuation
      Electrohydraulic
  • Rear axle
    • Type
      Inboard planetary
    • Differential controls
      Electrohydraulic
    • Axle type
      Flanged
    • Brakes, type and control
      Hydraulic wet disc
  • Tires
    • Front
      12.5/80 - 18 In. I3 Bias
    • Rear
      19.5L - 24 In 10PR R4 Bias
    • Wheel tread range
      Front: 1299-1997 mm
      51.1-78.6 in.
    • Turning radius with brakes
      3.34 m
      11 ft
    • Turning radius without brakes
      3.8 m
      12.5 ft
  • Electrical system
    • Type of bulb in headlight (Halogen, Zenon, LED)

    • Type of bulb in beacon (Halogen, Zenon, LED)

  • Operator station
    • Rollover protective structure, OOS
      Rigid - foldable - telescopic
      Foldable, two-post
      Platform - flat/straddle
      Flat
      Gearshift location - console/floor
      Floor
    • Seat

  • Dimensions
    • Wheelbase
      2350 mm
      92.5 in.
    • Approximate shipping weight, Open;Cab
      PowrReverser models: Open: 3764 kg
      8298 lb
      PowrQuad models: Open: 3975 kg
      8740 lb
      Cab: Not applicable
  • Weight
    • Base machine weight


  • Capacities
    • Fuel tank
      Standard: Open: 112 L
      29.5 U.S. gal.
      Optional (PowrQuad models): 144 L
      38 U.S. gal.
    • Diesel exhaust fluid (DEF) tank
      12 L
      3.2 U.S. gal.
    • Cooling system

Back to Top
DetailsFeaturesSpecifications

Details:

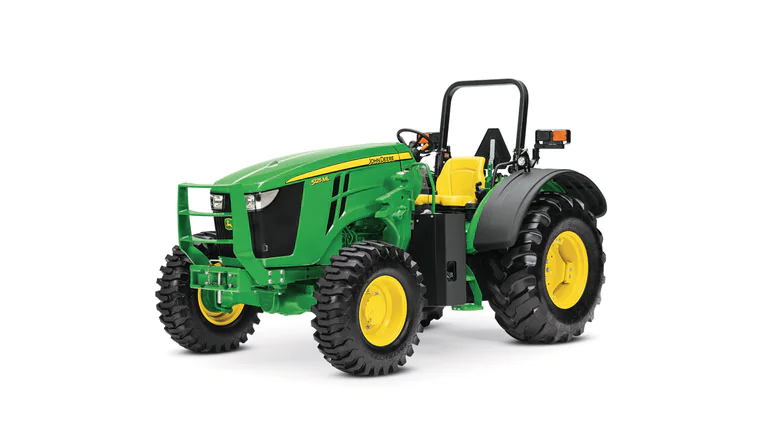

5125ML

Low-Profile Utility Tractor

  • 123.2 hp John Deere PowerTech™ engine
  • PowrQuad transmission offers push-button gear selection without the foot clutch
  • Optional high-capacity hitch option provides nearly four tons of lift

Features:

  • Low-profile standard open operator station (OOS)
  • Power bulge and torque reserve pull through the tough spots
  • PowrQuad™ transmissions

Specifications:

  • Key Specs
    • Engine description
      John Deere PowerTech™ 4045 engine
    • Engine displacement
      4 cylinders: 4.5 L
      276 cu in.
    • Rated engine power
      At 2,200 per ISO 97/68/EC: 91.9 kW
      123.2 hp
    • Rated PTO power (hp SAE)
      At 2,100 per SAE: 85.7 kW
      115 hp
    • Transmission type
      Standard: 16F/16R PowrQuad™
      Optional: 16F/16R PowrQuad with creeper
      32F/16R PowrQuad
    • Hydraulic pump rated output
      117 L/min
      31 gpm
    • Rear hitch category (SAE designation)
      Category 2
  • Engine specifications
    • Description
      John Deere PowerTech™ 4045 engine
    • Engine family
      FJDXL04.5211
    • Aspiration
      Turbocharged
    • Cylinders liners
      Wet sleeved
    • Displacement
      4 cylinders: 4.5 L
      276 cu in.
  • Engine performance
    • Rated power
      At 2,200 per ISO 97/68/EC: 91.9 kW
      123.2 hp
    • Rated PTO power (hp SAE)
      At 2,100 per SAE: 85.7 kW
      115 hp
  • Transmission
    • Type
      Standard: 16F/16R PowrQuad™
      Optional: 16F/16R PowrQuad with creeper
      32F/16R PowrQuad
    • Reverser
      Yes
    • Clutch; wet/dry
      Wet
    • Creeper
      16F/16R PowrQuad with creeper
  • Hydraulic system
    • Type
      Standard: Pressure-and-flow compensated (PFC) system
    • Pump rated output
      Standard: 117 L/min
      31 gpm
    • Available flow at a single rear SCV
      Standard: 100 L/min
      26.4 gpm
    • Number of rear selective control valves (SCVs)
      Standard: three
    • Number of mid selective control valves (SCVs)
      Zero; up to two
    • Joystick SCV control
      Optional
  • Rear hitch
    • Hitch draft control load sense type
      Standard: Electrohydraulic
    • Remote control valves available
      Standard: three
    • Hitch category (SAE designation)
      Category 2
    • Maximum lift capacity behind lift points
      Standard: 3164 kg
      6975 lb
      Optional: 3569 kg
      7868 lb
    • Sensing type
      Top link
  • Rear power take-off (PTO)
    • Type
      Standard: 540/540E/1000
    • Engine rpm (at rated PTO speeds)
      540 at 2100 rpm
      540E at 1645 rpm
      1000 at 2103 rpm
    • PTO actuation
      Electrohydraulic
  • Rear axle
    • Type
      Inboard planetary
    • Differential controls
      Electrohydraulic
    • Axle type
      Flanged
    • Brakes, type and control
      Hydraulic wet disc
  • Tires
    • Front
      12.5/80 - 18 In. I3 Bias
    • Rear
      19.5L - 24 In 10PR R4 Bias
    • Wheel tread range
      Front: 1299-1997 mm
      51.1-78.6 in.
    • Turning radius with brakes
      3.34 m
      11 ft
    • Turning radius without brakes
      3.8 m
      12.5 ft
  • Electrical system
    • Type of bulb in headlight (Halogen, Zenon, LED)

    • Type of bulb in beacon (Halogen, Zenon, LED)

  • Operator station
    • Rollover protective structure, OOS
      Rigid - foldable - telescopic
      Foldable, two-post
      Platform - flat/straddle
      Flat
      Gearshift location - console/floor
      Floor
    • Seat

  • Dimensions
    • Wheelbase
      2350 mm
      92.5 in.
    • Approximate shipping weight, Open;Cab
      PowrQuad models: Open: 3975 kg
      8740 lb
      Cab: Not applicable
  • Weight
    • Base machine weight


  • Capacities
    • Fuel tank
      Standard: 144 L
      38 U.S. gal.
    • Diesel exhaust fluid (DEF) tank
      12 L
      3.2 U.S. gal.
    • Cooling system

Back to Top
DetailsFeaturesSpecifications

Details:

5090EL

Low-Profile Utility Tractor

  • Low clearance design allows for overall height of 69 inches
  • 90 hp John Deere PowerTech™ engine
  • Economy PTO allows engine RPM to run lower, saving fuel and reducing overall cost of operation
  • 2-year or 2,000-hour full comprehensive warranty and 5-year or 2,000-hour Powertrain warranty

Features:

  • Tailor-made to fit many applications
  • Torque reserve for powering through tough spots
  • 24F/12R PowrReverser™ transmission for more speed selection variety
  • 12F/12R PowrReverser™ transmission
  • 540/1000 power take-off (PTO) rpm kit for implement versatility

Specifications:

  • Key Specs
    • Engine description
      John Deere PowerTech 4045
    • Engine displacement
      4 cylinders: 4.5 L
      276 cu in.
    • Rated engine power
      At 2400 per ISO 97/68/EC: 67.1 kW
      90 hp
    • Rated PTO power (hp SAE)
      At 2400 per SAE: 52.2 kW
      75 hp
    • Transmission type
      Standard: 12F/12R PowrReverser
      Optional: 24F/12R PowrReverser
    • Hydraulic pump rated output
      85.1 L/min
      22.5 gpm
    • Rear hitch category (SAE designation)
      Category 2
  • Engine specifications
    • Description
      John Deere PowerTech 4045
    • Engine family
      FJDXL04.5305
    • Aspiration
      Turbocharged
    • Cylinders liners
      Wet sleeved
    • Displacement
      4 cylinders: 4.5 L
      276 cu in.
  • Engine performance
    • Rated power
      At 2400 per ISO 97/68/EC: 67.1 kW
      90 hp
    • Rated PTO power (hp SAE)
      At 2400 per SAE: 52.2 kW
      75 hp
  • Transmission
    • Type
      Standard: 12F/12R PowrReverser
      Optional: 24F/12R PowrReverser
    • Reverser
      Yes
    • Clutch; wet/dry
      Wet
    • Creeper
      Not available
  • Hydraulic system
    • Type
      Open center
    • Pump rated output
      Standard: 85.1 L/min
      22.5 gpm
    • Available flow at a single rear SCV
      60.1 L/min
      15.9 gpm
    • Number of rear selective control valves (SCVs)
      2; up to 3
    • Number of mid selective control valves (SCVs)
      2; up to 3
    • Joystick SCV control
      Optional
  • Rear hitch
    • Hitch draft control load sense type
      Mechanical
    • Remote control valves available
      2; up to 3
    • Hitch category (SAE designation)
      Category 2
    • Maximum lift capacity behind lift points
      1457 kg
      3213 lb
    • Sensing type
      Top link
  • Rear power take-off (PTO)
    • Type
      Standard: 540/540E
      Optional: 540/1000
    • Engine rpm (at rated PTO speeds)
      540 at 2400 rpm
      540E at 1716 rpm
      1000 at 2400 rpm
    • PTO actuation
      Electrohydraulic
  • Rear axle
    • Type
      Inboard planetary
    • Differential controls
      Mechanical (pedal)
    • Axle type
      Flanged
    • Brakes, type and control
      Hydraulic wet disc
  • Tires
    • Front
      12.5/80-18 in. I3 Bias
    • Rear
      19.5L-24 in. 10PR R4 Bias
    • Wheel tread range
      Front: 1705-1834 mm
      67.1-72.2 in.
    • Turning radius with brakes
      3.7 m
      12.1 ft
    • Turning radius without brakes
      4.2 m
      13.8 ft
  • Electrical system
    • Type of bulb in headlight (Halogen, Zenon, LED)

    • Type of bulb in beacon (Halogen, Zenon, LED)

  • Operator station
    • Rollover protective structure, OOS
      Rigid - foldable - telescopic
      Foldable, 2-post
      Platform - flat/straddle
      Straddle
      Gearshift location - console/floor
      Floor
    • Seat

  • Dimensions
    • Wheelbase
      2350 mm
      92.5 in.
    • Approximate shipping weight, Open;Cab
      Open: 3200 kg
      7055 lb
      Cab: N/A
  • Weight
    • Base machine weight


  • Capacities
    • Fuel tank
      Standard: Open: 112.6 L
      29.7 U.S. gal.
    • Cooling system

Back to Top
Learn How To Get Any Job Done Around Your Property Visit The John Deere Tips Notebook


Visit Little’s To Explore Your Speciality Tractor Options

Stop by one of our five locations for a firsthand look at your John Deere speciality tractor options. Then, take one out for a test drive. Your Little’s sales guide is ready to help you find the right speciality tractor for your needs and will also provide information on our financing and leasing options.

FIND A STORE NEAR ME
Fulfill Your Lawn Care Needs, Big Or Small Request My Quote Now
