The Performance You Need At A Price You Can Afford

Whether you’re looking for affordable equipment to cover small acreage or you require a more powerful machine for heavy-duty chores, Little’s has a John Deere utility tractor in your budget that will meet your needs. Our knowledgeable staff knows how to help find the right fit for you and can customize it for your operations.

At Little’s, we carry a wide selection of these utility tractors and support you with:

  • John Deere Financial Financing and Leasing Options
  • Cash Discounts
  • GreenFleet Loyalty Rewards

Plus, you’re eligible to sign up for Little’s Green Carpet Maintenance Plan, where our technicians come to your location for maintenance and repairs.

Explore Our Wide Selection Of John Deere Commercial Utility Tractors

Click on products below to learn more.

5E Series Utility Tractors

5E Series Utility Tractors

5M Series Utility Tractors

5M Series Utility Tractors

5R Series Utility Tractors

5R Series Utility Tractors

Available models: 5050E5060E5067E5075E5090E5100E

DetailsFeaturesSpecifications

Details:

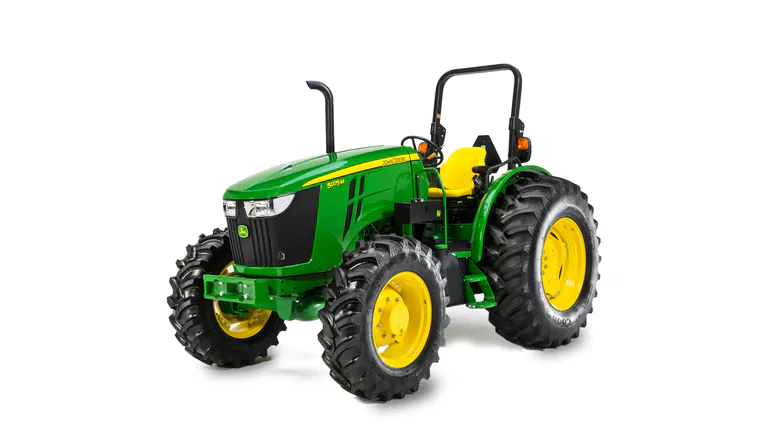

5050E

Utility Tractor

  • 2WD or MFWD
  • 5-year Powertrain warranty
  • Available in open operator station
  • No Regen required

Features:

  • Intuitive controls to aide in simple operation
  • SyncShuttle™ 9F/3R transmission - An easy-to-use transmission which saves time and effort
  • No regen required with final tier 4-compliant PowerTech™ engines on 5E 3-Cylinders

Specifications:

Key Specs

  • Engine description

    John Deere PowerTech™ 3029 EWR

  • Engine displacement

    3 cylinders: 2.9 L
    179 cu in.

  • Rated engine power

    At 2100 rpm: 37.4 kW
    50 hp

  • Rated PTO power (hp SAE)

    @ 2100 rpm
    27.6 kW
    37 hp

  • Maximum PTO power

  • Transmission type

    Syncshuttle 9F/3R

  • Hydraulic pump rated output

    68.8 L/min
    18.2 gpm

  • Rear hitch category (SAE designation)

    Category 2; convertible to 1
Engine specifications

  • Description

    John Deere PowerTech 3029 EWR

  • Aspiration

    Turbocharged

  • Cylinders liners

    Wet sleeved

  • Displacement

    3 cylinders: 2.9 L
    179 cu in.
Engine performance

  • Rated power

    At 2100 rpm: 27.6 kW
    37 hp

  • Rated PTO power (hp SAE)

    @ 2100 rpm
    27.6 kW
    37 hp

  • Maximum PTO power

Transmission

  • Type

    Syncshuttle 9F/3R

  • Reverser

    No

  • Clutch; wet/dry

    Dry

  • Creeper

    Kit available for OOS SyncShuttle 9F/3R transmission
Hydraulic system

  • Type

    Open Center

  • Pump rated output

    Standard: 68.8 L/min
    18.2 gpm

  • Available flow at a single rear SCV

    43.1 L/min
    11.4 gpm

  • Number of rear selective control valves (SCVs)

    Standard: 1
    Optional: 2

  • Number of mid selective control valves (SCVs)

    Standard: 2
    Optional: up to 3

  • Joystick SCV control

    Mechanical
Rear hitch

  • Hitch draft control load sense type

    Mechanical

  • Remote control valves available

    Standard: 1
    Optional: 2

  • Hitch category (SAE designation)

    Category 2

  • Maximum lift capacity behind lift points

    Standard: 3192 lb
    1448 kg

  • Sensing type

    Top link
Drawbar
Rear power take-off (PTO)

  • Type

    Independent 540

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm

  • PTO actuation

    Mechanical (lever)
Front hitch
Rear axle

  • Final drive type

    Planetary

  • Differential controls

    Mechanical (pedal)

  • Axle type

    Flanged

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Front

  • Rear

    2WD: 14.9-28, R1
    MFWD: 14.9-28, R1 Bias

  • Turning radius with brakes

    2WD: 3.5 m
    11.5 ft
    MFWD: 4.65 m
    15.3 ft

  • Turning radius without brakes

    2WD: 3.5 m
    11.5 ft
    MFWD: 4.65 m
    15.3 ft
Steering
Electrical system
Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Foldable, 2-Post
    Platform - flat/straddle
    Straddle
    Gearshift location - console/floor
    Floor

  • Seat

  • Radio

Dimensions

  • Wheelbase

    2WD and MFWD: 2050 mm
    80.7 in.

  • Overall length

  • Approximate shipping weight, Open;Cab

    2WD OOS: 2420 kg
    5335 lb
    MFWD OOS: 2634 kg
    5809 lb
Weight
Capacities

  • Fuel tank

    Standard: Open: 72.5 L
    19 U.S. gal.
    Cab: 82 L
    21 U.S. gal.
Serviceability
Loaders
Precision AG
Miscellaneous

  • Country of manufacture

    Mexico
Back to Top
DetailsFeaturesSpecifications

Details:

5060E

Utility Tractor

  • 2WD or MFWD
  • 5-year Powertrain warranty
  • Available in premium cab, standard cab, or open operator station
  • No Regen required

Features:

  • Enjoy premium comfort and value of Premium Cab
  • Easy headland turns with electronic quick raise lower (EQRL) of rear hitch
  • Light the way as you Go-Home from your day
  • No regen required with final tier 4-compliant PowerTech™ engines on 5E 3-Cylinders
  • Economical and versatile selective control valve (SCV) options
  • Effective in demanding applications - PowrReverser™ 12Fx12R transmission
  • A durable, mechanical front-wheel drive (MFWD) axle increases traction in tough conditions
  • Excellent maneuverability, visibility, and comfort in one package with heavy-duty, two-wheel drive (2WD) front axle and cab
  • SyncShuttle™ 9F/3R transmission - An easy-to-use transmission which saves time and effort
  • Standard independent 540-rpm rear power take-off (PTO) performs well in normal or heavy applications

Specifications:

Key Specs

  • Engine description

    John Deere PowerTech™ 3029 EWR

  • Engine displacement

    3 cylinders: 2.9 L
    179 cu in.

  • Rated engine power

  • Rated PTO power (hp SAE)

    At 2100 rpm: OOS 34 kW (45.6 hp)
    Cab 32 kW (42.9 hp)

  • Maximum PTO power

  • Transmission type

    Standard:Syncshuttle 9F/3R
    Optional: PowrReverser 12F/12R

  • Hydraulic pump rated output

    68.8 L/min
    18.2 gpm

  • Rear hitch category (SAE designation)

    Category 2; convertible to 1
Engine specifications

  • Description

    John Deere PowerTech 3029 EWR

  • Aspiration

    Turbocharged

  • Cylinders liners

    Wet sleeved

  • Displacement

    3 cylinders: 2.9 L
    179 cu in.
Engine performance

  • Rated power

    At 2100 rpm: 45 kW
    60 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm: OOS 34 kW (45.6 hp)
    Cab 32 kW (42.9 hp)

  • Maximum PTO power

Transmission

  • Type

    Standard: Syncshuttle 9F/3R
    Optional: PowrReverser 12F/12R

  • Reverser

    SyncShuttle: No
    PowrReverser: Yes

  • Clutch; wet/dry

    SyncShuttle: Dry
    PowrReverser: Wet

  • Creeper

    Kit available for OOS SyncShuttle 9F/3R transmission
Hydraulic system

  • Type

    Open Center

  • Pump rated output

    Standard: 68.8 L/min
    18.2 gpm

  • Available flow at a single rear SCV

    43.1 L/min
    11.4 gpm

  • Number of rear selective control valves (SCVs)

    Standard: 1
    Optional: 2

  • Number of mid selective control valves (SCVs)

    Standard: 2
    Optional: up to 3

  • Joystick SCV control

    Mechanical
Rear hitch

  • Hitch draft control load sense type

    Mechanical

  • Remote control valves available

    Standard: 1
    Optional: 2

  • Hitch category (SAE designation)

    Category 2

  • Maximum lift capacity behind lift points

    Standard: 3192 lb
    1448 kg

  • Sensing type

    Top link
Drawbar
Rear power take-off (PTO)

  • Type

    SyncShuttle: Independent 540
    PowrReverser: Independent 540/540E

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1588 rpm

  • PTO actuation

    SyncShuttle: Mechanical (lever)
    PowrReverser: Electrohydraulic
Front hitch
Rear axle

  • Final drive type

    Planetary

  • Differential controls

    Mechanical (pedal)

  • Axle type

    Flanged

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Front

  • Rear

    2WD: 14.9-28, R1
    MFWD: 14.9-28, R1 Bias

  • Turning radius with brakes

    2WD: 3.5 m
    11.5 ft
    MFWD: 4.65 m
    15.3 ft

  • Turning radius without brakes

    2WD: 3.5 m
    11.5 ft
    MFWD: 4.65 m
    15.3 ft
Steering
Electrical system
Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Foldable, 2-Post
    Platform - flat/straddle
    Straddle
    Gearshift location - console/floor
    Floor, on the side

  • Seat

    Standard: Mechanical
    Premium Cab: Air Ride

  • Radio

Dimensions

  • Wheelbase

    2WD and MFWD: 2050 mm
    80.7 in.

  • Overall length

  • Approximate shipping weight, Open;Cab

    2WD OOS: 2470 kg
    5445 lb
    2WD Cab:2939 kg
    6480 lb
    MFWD Open: 2685 kg
    5919 lb
    MFWD Cab: 3040 kg
    6702 lb
Weight
Capacities

  • Fuel tank

    OOS: 72.5 L
    19 U.S. gal.
    Cab: 82 L
    21 U.S. gal.
Serviceability
Loaders
Precision AG
Miscellaneous

  • Country of manufacture

    Sub assembly in Pune, India, Final assembly in Augusta, GA
Back to Top
DetailsFeaturesSpecifications

Details:

5067E

Utility Tractor

  • 2WD or MFWD
  • 5-year Powertrain warranty
  • Available in premium cab, standard cab, or open operator station
  • No Regen required

Features:

  • Enjoy premium comfort and value of Premium Cab
  • Easy headland turns with electronic quick raise lower (EQRL) of rear hitch
  • Light the way as you Go-Home from your day
  • No regen required with final tier 4-compliant PowerTech™ engines on 5E 3-Cylinders
  • Economical and versatile selective control valve (SCV) options
  • Effective in demanding applications - PowrReverser™ 12Fx12R transmission
  • A durable, mechanical front-wheel drive (MFWD) axle increases traction in tough conditions
  • Excellent maneuverability, visibility, and comfort in one package with heavy-duty, two-wheel drive (2WD) front axle and cab
  • SyncShuttle™ 9F/3R transmission - An easy-to-use transmission which saves time and effort
  • Standard independent 540-rpm rear power take-off (PTO) performs well in normal or heavy applications

Specifications:

Key Specs

  • Engine description

    John Deere PowerTech™ 3029 EWR

  • Engine displacement

    3 cylinders: 2.9 L
    179 cu in.

  • Rated engine power

  • Rated PTO power (hp SAE)

    At 2100 rpm: OOS 39.6 kW (53 hp)
    Cab 36.6 kW (49 hp)

  • Maximum PTO power

  • Transmission type

    Standard:Syncshuttle 9F/3R
    Optional: PowrReverser 12F/12R

  • Hydraulic pump rated output

    68.8 L/min
    18.2 gpm

  • Rear hitch category (SAE designation)

    Category 2; convertible to 1
Engine specifications

  • Description

    John Deere PowerTech 3029 EWR

  • Aspiration

    Turbocharged

  • Cylinders liners

    Wet sleeved

  • Displacement

    3 cylinders: 2.9 L
    179 cu in.
Engine performance

  • Rated power

    At 2100 rpm: 50.4 kW
    67 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm: OOS 39.6 kW (53 hp)
    Cab 36.6 kW (49 PTO hp)

  • Maximum PTO power

Transmission

  • Type

    Standard: Syncshuttle 9F/3R
    Optional: PowrReverser 12F/12R

  • Reverser

    SyncShuttle: No
    PowrReverser: Yes

  • Clutch; wet/dry

    SyncShuttle: Dry
    PowrReverser: Wet

  • Creeper

    Kit available for OOS SyncShuttle 9F/3R transmission
Hydraulic system

  • Type

    Open Center

  • Pump rated output

    Standard: 68.8 L/min
    18.2 gpm

  • Available flow at a single rear SCV

    43.1 L/min
    11.4 gpm

  • Number of rear selective control valves (SCVs)

    Standard: 1
    Optional: 2

  • Number of mid selective control valves (SCVs)

    Standard: 2
    Optional: up to 3

  • Joystick SCV control

    Mechanical
Rear hitch

  • Hitch draft control load sense type

    Mechanical

  • Remote control valves available

    Standard: 1
    Optional: 2

  • Hitch category (SAE designation)

    Category 2

  • Maximum lift capacity behind lift points

    Standard: 3192 lb
    1448 kg

  • Sensing type

    Top link
Drawbar
Rear power take-off (PTO)

  • Type

    SyncShuttle: Independent 540
    PowrReverser: Independent 540/540E

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1588 rpm

  • PTO actuation

    SyncShuttle: Mechanical (lever)
    PowrReverser: Electrohydraulic
Front hitch
Rear axle

  • Final drive type

    Planetary

  • Differential controls

    Mechanical (pedal)

  • Axle type

    Flanged

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Front

  • Rear

    2WD: 16.9-28 R1 Bias
    MFWD: 16.9-28 R1 Bias

  • Turning radius with brakes

    2WD: 3.1 m
    10.2 ft
    MFWD: 3.94 m
    12.9 ft

  • Turning radius without brakes

    2WD: 3.5 m
    11.5 ft
    MFWD: 4.65 m
    15.3 ft
Steering
Electrical system
Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Foldable, 2-Post
    Platform - flat/straddle
    Straddle
    Gearshift location - console/floor
    Floor, on the side

  • Seat

    Standard: Mechanical
    Premium Cab: Air Ride

  • Radio

Dimensions

  • Wheelbase

    2WD and MFWD: 2050 mm
    80.7 in.

  • Overall length

  • Approximate shipping weight, Open;Cab

    2WD OOS: 2520 kg
    5555 lb
    2WD Cab:2989 kg
    6590 lb
    MFWD Open: 2735 kg
    6029 lb
    MFWD Cab: 3090 kg
    6812 lb
Weight
Capacities

  • Fuel tank

    OOS: 72.5 L
    19 U.S. gal.
    Cab: 82 L
    21 U.S. gal.
Serviceability
Loaders
Precision AG
Miscellaneous

  • Country of manufacture

    Sub assembly in Pune, India, Final assembly in Augusta, GA
Back to Top
DetailsFeaturesSpecifications

Details:

5075E

Utility Tractor

  • 2WD or MFWD
  • 5-year Powertrain warranty
  • Available in premium cab, standard cab, or open operator station
  • No Regen required

Features:

  • Enjoy premium comfort and value of Premium Cab
  • Easy headland turns with electronic quick raise lower (EQRL) of rear hitch
  • Light the way as you Go-Home from your day
  • No regen required with final tier 4-compliant PowerTech™ engines on 5E 3-Cylinders
  • Economical and versatile selective control valve (SCV) options
  • Effective in demanding applications - PowrReverser™ 12Fx12R transmission
  • A durable, mechanical front-wheel drive (MFWD) axle increases traction in tough conditions
  • Excellent maneuverability, visibility, and comfort in one package with heavy-duty, two-wheel drive (2WD) front axle and cab
  • SyncShuttle™ 9F/3R transmission - An easy-to-use transmission which saves time and effort
  • Standard independent 540-rpm rear power take-off (PTO) performs well in normal or heavy applications

Specifications:

Key Specs

  • Engine description

    John Deere PowerTech™ 3029 EWR

  • Engine displacement

    3 cylinders: 2.9 L
    179 cu in.

  • Rated engine power

  • Rated PTO power (hp SAE)

    At 2100 rpm: OOS 45 kW (60.3 hp)
    Cab 43 kW (57.6 hp)

  • Maximum PTO power

  • Transmission type

    Standard:Syncshuttle 9F/3R
    Optional: PowrReverser 12F/12R

  • Hydraulic pump rated output

    68.8 L/min
    18.2 gpm

  • Rear hitch category (SAE designation)

    Category 2; convertible to 1
Engine specifications

  • Description

    John Deere PowerTech 3029 EWR

  • Aspiration

    Turbocharged

  • Cylinders liners

    Wet sleeved

  • Displacement

    3 cylinders: 2.9 L
    179 cu in.
Engine performance

  • Rated power

    At 2100 rpm: 55 kW
    75 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm: OOS 45 kW (60.3 hp)
    Cab 43 kW (57.6 hp)

  • Maximum PTO power

Transmission

  • Type

    Standard: Syncshuttle 9F/3R
    Optional: PowrReverser 12F/12R

  • Reverser

    SyncShuttle: No
    PowrReverser: Yes

  • Clutch; wet/dry

    SyncShuttle: Dry
    PowrReverser: Wet

  • Creeper

    Kit available for OOS SyncShuttle 9F/3R transmission
Hydraulic system

  • Type

    Open Center

  • Pump rated output

    Standard: 68.8 L/min
    18.2 gpm

  • Available flow at a single rear SCV

    43.1 L/min
    11.4 gpm

  • Number of rear selective control valves (SCVs)

    Standard: 1
    Optional: 2

  • Number of mid selective control valves (SCVs)

    Standard: 2
    Optional: up to 3

  • Joystick SCV control

    Mechanical
Rear hitch

  • Hitch draft control load sense type

    Mechanical

  • Remote control valves available

    Standard: 1
    Optional: 2

  • Hitch category (SAE designation)

    Category 2

  • Maximum lift capacity behind lift points

    Standard: 3192 lb
    1448 kg

  • Sensing type

    Top link
Drawbar
Rear power take-off (PTO)

  • Type

    SyncShuttle: Independent 540
    PowrReverser: Independent 540/540E

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1588 rpm

  • PTO actuation

    SyncShuttle: Mechanical (lever)
    PowrReverser: Electrohydraulic
Front hitch
Rear axle

  • Final drive type

    Planetary

  • Differential controls

    Mechanical (pedal)

  • Axle type

    Flanged

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Front

  • Rear

    2WD: 16.9-28 R1 Bias
    MFWD: 16.9-28 R1 Bias

  • Turning radius with brakes

    2WD: 3.1 m
    10.2 ft
    MFWD: 3.94 m
    12.9 ft

  • Turning radius without brakes

    2WD: 3.5 m
    11.5 ft
    MFWD: 4.65 m
    15.3 ft
Steering
Electrical system
Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Foldable, 2-Post
    Platform - flat/straddle
    Straddle
    Gearshift location - console/floor
    Floor, on the side

  • Seat

    Standard: Mechanical
    Premium Cab: Air Ride

  • Radio

Dimensions

  • Wheelbase

    2WD and MFWD: 2050 mm
    80.7 in.

  • Overall length

  • Approximate shipping weight, Open;Cab

    2WD OOS: 2520 kg
    5555 lb
    2WD Cab:2989 kg
    6590 lb
    MFWD Open: 2735 kg
    6029 lb
    MFWD Cab: 3090 kg
    6812 lb
Weight
Capacities

  • Fuel tank

    OOS: 72.5 L
    19 U.S. gal.
    Cab: 82 L
    21 U.S. gal.
Serviceability
Loaders
Precision AG
Miscellaneous

  • Country of manufacture

    Sub assembly in Pune, India, Final assembly in Augusta, GA
Back to Top
DetailsFeaturesSpecifications

Details:

5090E

Utility Tractor

  • John Deere PowerTech Diesel Engine with FT4 emissions compliance
  • Standard 12F/12R PowrReverser Transmission and MFWD only
  • Premium cab, standard cab, or open operator station available
  • 1000 RPM PTO field-installed option available

Features:

  • Connected to what counts: 5 Series Tractors
  • Superior comfort and power: Premium cab
  • Rising to the task: Increased lift capacity

Specifications:

Key Specs

  • Engine description

    John Deere PowerTech™ 4045 PWL

  • Engine displacement

    4 cylinders: 4.5 L
    276 cu in.

  • Rated engine power

    At 2400 rpm: 67.1 kW
    90 hp

  • Rated PTO power (hp SAE)

    At 2400 rpm: 56 kW
    75 hp

  • Maximum PTO power

  • Transmission type

    Standard:PowrReverser 12F/12R
    Optional: PowrReverser Hi-Lo 24F/12R

  • Hydraulic pump rated output

    85.1 L/min
    22.5 gpm

  • Rear hitch category (SAE designation)

    Category 2
Engine specifications

  • Description

    John Deere PowerTech 4045 PWL

  • Aspiration

    Turbocharged and Aftercooled

  • Cylinders liners

    Wet sleeved

  • Displacement

    4 cylinders: 4.5 L
    276 cu in.
Engine performance

  • Rated power

    At 2400 rpm: 67.1 kW
    90 hp

  • Rated PTO power (hp SAE)

    At 2400 rpm: 56 kW
    75 hp

  • Maximum PTO power

Transmission

  • Type

    Standard:PowrReverser 12F/12R
    Optional: PowrReverser Hi-Lo 24F/12R

  • Reverser

    Yes

  • Clutch; wet/dry

    Wet

  • Creeper

    Not Available
Hydraulic system

  • Type

    Open Center

  • Pump rated output

    Standard: 85.1 L/min
    22.5 gpm

  • Available flow at a single rear SCV

    60.1 L/min
    15.9 gpm

  • Number of rear selective control valves (SCVs)

    Standard: 2
    Optional: 3

  • Number of mid selective control valves (SCVs)

    Standard: 2
    Optional: up to 3

  • Joystick SCV control

    Mechanical
Rear hitch

  • Hitch draft control load sense type

    Mechanical

  • Remote control valves available

    Standard: 2
    Optional: 3

  • Hitch category (SAE designation)

    Category 2

  • Maximum lift capacity behind lift points

    Standard: 4600 lb
    2100 kg

  • Sensing type

    Top link
Drawbar
Rear power take-off (PTO)

  • Type

    Standard:540/540E
    Optional: 540/1000

  • Engine rpm (at rated PTO speeds)

    540 at 2400 rpm
    540E at 1716 rpm
    1000 at 2400 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Final drive type

    Inboard Planetary

  • Differential controls

    Mechanical (pedal)

  • Axle type

    Flanged

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Front

  • Rear

    MFWD: 18.4-30 R1 Bias

  • Turning radius with brakes

    MFWD: 4.36 m
    14.3 ft

  • Turning radius without brakes

    MFWD: 3.54 m
    11.6 ft
Steering
Electrical system
Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Foldable, 2-Post
    Platform - flat/straddle
    Straddle
    Gearshift location - console/floor
    Floor

  • Seat

    Standard: Mechanical
    Optional for Cab: Air Ride

  • Radio

Dimensions

  • Wheelbase

    2350 mm
    92.5 in.

  • Overall length

    4042 mm
    159.13 in.

  • Approximate shipping weight, Open;Cab

    OOS: 3300 kg
    7275 lb
    Cab: 3700 kg
    8150 lb
Weight
Capacities

  • Fuel tank

    OOS: 94.6 L
    25 U.S. gal.
    Cab: 114 L
    30 U.S. gal.
Serviceability
Loaders
Precision AG
Miscellaneous

  • Country of manufacture

    Saltillo, Mexico
Back to Top
DetailsFeaturesSpecifications

Details:

5100E

Utility Tractor

  • John Deere PowerTech™ Diesel Engine with FT4 emissions compliance
  • Cab or open operator station available
  • Standard 12F/12R PowrReverser™ Transmission and MFWD
  • 540/540 Economy PTO

Features:

  • Environmental Protection Agency (EPA) Final Tier 4 (FT4) compliant engines with maximum fluid efficiency
  • Torque reserve for powering through tough spots
  • 24F/12R PowrReverser™ transmission for more speed selection variety
  • Cooling package design and serviceability
  • Liquid-crystal display (LCD) instrument cluster

Specifications:

Key Specs

  • Engine description

    John Deere PowerTech™ 4045

  • Engine displacement

    4 cylinders: 4.5 L
    276 cu in.

  • Rated engine power

    At 2400 per ISO 97/68/EC: 74.6 kW
    100 hp

  • Rated PTO power (hp SAE)

    At 2400 per SAE: 63.4 kW
    85 hp

  • Transmission type

    Standard: 12F/12R PowrReverser™
    Optional: 24F/12R PowrReverser

  • Hydraulic pump rated output

    85.1 L/min
    22.5 gpm

  • Rear hitch category (SAE designation)

    Category 2
Engine specifications

  • Description

    John Deere PowerTech 4045

  • Engine family

    LJDXL04.5315

  • Aspiration

    Turbocharged

  • Cylinders liners

    Wet sleeved

  • Displacement

    4 cylinders: 4.5 L
    276 cu in.
Engine performance

  • Rated power

    At 2400 per ISO 97/68/EC: 74.6 kW
    100 hp

  • Rated PTO power (hp SAE)

    At 2400 per SAE: 63.4 kW
    85 hp
Transmission

  • Type

    Standard: 12F/12R PowrReverser
    Optional: 24F/12R PowrReverser

  • Reverser

    Yes

  • Clutch; wet/dry

    Wet

  • Creeper

    Not available
Hydraulic system

  • Type

    Open center

  • Pump rated output

    Standard: 85.1 L/min
    22.5 gpm

  • Available flow at a single rear SCV

    60.1 L/min
    15.9 gpm

  • Number of rear selective control valves (SCVs)

    Two; up to three

  • Number of mid selective control valves (SCVs)

    Two; up to three

  • Joystick SCV control

    Optional
Rear hitch

  • Hitch draft control load sense type

    Mechanical

  • Remote control valves available

    Two; up to three

  • Hitch category (SAE designation)

    Category 2

  • Maximum lift capacity behind lift points

    Standard: 1457 kg
    3213 lb

  • Sensing type

    Top link
Drawbar
Rear power take-off (PTO)

  • Type

    Standard: 540/540E
    Optional: 540/1000

  • Engine rpm (at rated PTO speeds)

    540 at 2400 rpm
    540E at 1716 rpm
    1000 at 2400 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Type

    Inboard planetary

  • Differential controls

    Mechanical (pedal)

  • Axle type

    Flanged

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Rear

    MFWD: 18.4-30 R1

  • Wheel tread range

    MFWD: front: 1340-1904 mm
    52.8-75.0 in.

  • Turning radius with brakes

    MFWD: 3.54 m
    11.6 ft

  • Turning radius without brakes

    MFWD: 4.36 m
    14.3 ft
Tracks
Steering
Brakes
Electrical system
Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Foldable, two-post
    Platform - flat/straddle
    Straddle
    Gearshift location - console/floor
    Floor

  • dB(A) rating

    78 dBA
Dimensions

  • Wheelbase

    MFWD: 2350 mm
    92.5 in.

  • Approximate shipping weight, Open;Cab

    MFWD: Open: 3300 kg
    7275 lb
    Cab: 3700 kg
    8150 lb
Weight
Capacities

  • Fuel tank

    Standard: Open: 94.6 L
    25 U.S. gal.
    Cab: 114 L/min
    30 U.S. gal.
Serviceability
Loaders
Precision AG
Miscellaneous

  • Country of manufacture

    Mexico
Back to Top

Available models: 5075M PowrReverser™5095M5105M5120M5130M

DetailsFeaturesSpecifications

Details:

5075M PowrReverser™

Utility Tractor

  • PowrReverser 16F/16R and 32F/16R Hi-Lo transmission options
  • Choose climate-controlled cab or open station
  • Hitch lift capacity of 5,150 lbs. with an option of 5,950 lbs.

Features:

  • Premium cab for the ultimate operating experience
  • Automotive-style light-emitting diode (LED) instrument cluster
  • 16F/16R PowrReverser™ transmission
  • 32F/16R PowrReverser™ transmission for ultimate speed control
  • Heavy-duty 3-point hitch lift capacity for implement versatility
  • PowerTech™ diesel engine provides low-end torque
  • Torque reserve for powering through tough spots
  • Heavy base tractor weight for stability

Specifications:

Key Specs

  • Engine description

    John Deere Deere PowerTech™ 3029

  • Engine displacement

    3 cylinder: 2.9 L
    179 cu in.

  • Rated engine power

    At 2200 rpm per ISO 97/68/EC: 55.1 kW
    73.9 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm per SAE: 43 kW
    57.7 PTO hp

  • Transmission type

    Standard: PowrReverser™ 16F/16R
    Optional: PowrReverser Hi-Lo 32F/16R

  • Hydraulic pump rated output

    Standard: 94 L/min
    24.7 gpm

  • Rear hitch category (SAE designation)

    Category 2; convertible to 1
Engine specifications

  • Description

    John Deere PowerTech 3029

  • Engine family

    MJDXL02.9318

  • Aspiration

    Turbocharged and air-to-air aftercooled

  • Cylinders liners

    Wet sleeved

  • Emission level

    Final Tier 4

  • Displacement

    3 cylinder: 2.9 L
    179 cu in.
Engine performance

  • Rated power

    At 2200 rpm per ISO 97/68/EC: 55.1 kW
    73.9 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm per SAE: 43 kW
    57.7 PTO hp

  • Engine peak torque

    At 1600 rpm: 300 Nm
    221 lb-ft

  • PTO torque rise

    At 1400 rpm: 26 percent
Transmission

  • Type

    Standard: PowrReverser™ 16F/16R
    Optional: PowrReverser Hi-Lo 32F/16R

  • Reverser

    Left hand, electrohydraulic

  • Clutch; wet/dry

    Wet

  • Creeper

    Not available
Hydraulic system

  • Type

    Open center

  • Pump rated output

    94 L/min
    24.7 gpm

  • Available flow at a single rear SCV

    70 L/min
    18.4 gpm

  • Number of rear selective control valves (SCVs)

    Two, up to three total

  • Number of mid selective control valves (SCVs)

    Two, up to three total

  • Joystick SCV control

    Optional

  • SCV control

    Mechanical
Rear hitch

  • Hitch draft control load sense type

    Mechanical or electrohydraulic

  • Remote control valves available

    Standard: 2
    Optional: 3

  • Hitch category (SAE designation)

    Category 2; convertible to 1

  • Maximum lift capacity behind lift points

    Standard: 2336 kg
    5150 lb
    Optional: 2699 kg
    5950 lb

  • Sensing type

    Lower link

  • Rear axle differential lock

    Electrohydraulic
Drawbar

  • Maximum vertical load

    Road/field use (250-mm extended): 1450 kg
    3197 lb
    Field use (350-mm extended): 1200 kg
    2646 lb
    Field use (400-mm extended): 1200 kg
    2646 lb
Rear power take-off (PTO)

  • Type

    Independent, 34.9 mm (1.375 in)
    Standard: 540/540 Economy (6 spline)
    Optional: 540/540E (6 spline) and 1000 rpm
    (21 spline) reversible shaft

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1645 rpm
    1000 at 2100 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Final drive type

    Inboard planetary

  • Differential controls

    Electrohydraulic

  • Axle type

    Flanged

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Rear

    2WD: 460/85R30 (18.4R30) R1W Radial
    MFWD: 460/85R30 (18.4R30) R1W Radial

  • Wheel tread range

    2WD: front: 1520-2020 mm
    59.8-79.5 in.
    rear: 1349-2055 mm
    53.1-80.9 in.
    MFWD: front: 1299-1997 mm
    51.1-78.6 in.

  • Turning radius with brakes

    2WD: 3.67 m
    12.04 ft
    MFWD: 3.85 m
    12.6 ft

  • Turning radius without brakes

    2WD: 3.85 m
    12.6 ft
    MFWD: 4.0 m
    13.1 ft
Tracks
Steering
Brakes
Electrical system

  • Alternator size

    Standard: 90 amp
    Optional: 120 amp

  • Battery options

    12 V

  • Working lights

    Standard: Halogen
    Optional: LED

  • Type of bulb in headlight (Halogen, Zenon, LED)

    Standard: Halogen
    Optional: LED

  • Type of bulb in beacon (Halogen, Zenon, LED)

    Optional: LED
Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Foldable, two-post
    Platform - flat/straddle
    Flat
    Gearshift location - console/floor
    Floor

  • Seat

    Standard: Mechanical suspension
    Optional: air ride or premium air ride

  • Instructional seat

    Automotive-style light-emitting diode (LED) instrument cluster

  • Radio

    Optional

  • dB(A) rating

    78 dBA
Dimensions

  • Wheelbase

    2WD and MFWD: 2350 mm
    92.5 in.

  • Approximate shipping weight, Open;Cab

    2WD: Open: 3700 kg
    8140 lb
    Cab: 3900 kg
    8580 lb
    MFWD: Open: 3975 kg
    8765 lb
    Cab: 4175 kg
    9185 lb
Weight
Capacities

  • Fuel tank

    Standard: Open: 148.4 L
    39.2 U.S. gal.
    Cab: 165.4 L
    43.7 U.S. gal.
    Optional: open: 178.3 L
    47.1 U.S. gal.
    Cab: 196.8 L
    52 U.S. gal.

  • Diesel exhaust fluid (DEF) tank

    Not Applicable
Serviceability
Loaders
Precision AG

  • Telematic

    Standard: Less JDLink™ Hardware
    Optional: JDLink™ Modem
Miscellaneous

  • Country of manufacture

    Pune, India
Back to Top
DetailsFeaturesSpecifications

Details:

5095M

Utility Tractor

  • PowrReverser™, PowrQuad™ PLUS or Powr8™ transmission options
  • Choose climate-controlled cab or open station
  • Hitch lift capacity starting at 5,150 lb (2,336 kg) and optional up to 7,860 lb (3,565 kg)

Features:

  • Adjust to job with flexible wheel spacing
  • Premium cab for the ultimate operating experience
  • Heavy-duty 3-point hitch lift capacity for implement versatility
  • Focus on the job while AutoTrac™ guidance keeps on track
  • Take charge with PowrQuad™ PLUS and Powr8™ transmissions
  • Increase speed control with PowrReverser™ Hi-Lo 32F/16R transmission
  • PowrReverser™ 16F/16R transmission
  • Power bulge and torque reserve pull through the tough spots
  • Automotive-style light-emitting diode (LED) instrument cluster
  • Heavy base tractor weight for stability
  • EPA Final Tier 4 (FT4) compliant engines with maximum fluid efficiency

Specifications:

Key Specs

  • Engine description

    John Deere Deere PowerTech™ 4045 EWL

  • Engine displacement

    4 cylinder: 4.5 L
    276 cu in.

  • Rated engine power

    At 2200 rpm: 70 Kw
    95 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm: 58.8 kW
    80 hp

  • Transmission type

    Standard: PowrReverser™ 16F/16R
    Optional: PowrReverser Hi-Lo 32F/16R
    PowrQuad PLUS 16F/16R
    Powr8 32F/16R
    Powr8 32F/16R with creeper

  • Hydraulic pump rated output

    PowrReverser: 94 L/min
    24.7 gpm
    PowrQuad PLUS/Powr8: 97 L/min
    25.6 gpm

  • Rear hitch category (SAE designation)

    Category 2; convertible to 1
Engine specifications

  • Description

    John Deere PowerTech 4045 EWL

  • Engine family

    NJDXL04.5317

  • Aspiration

    Turbocharged and air-to-air aftercooled

  • Cylinders liners

    Wet sleeved

  • Emission level

    Final Tier 4

  • Displacement

    4 cylinder: 4.5 L
    276 cu in.
Engine performance

  • Rated power

    At 2200 rpm: 70 kW
    95 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm per SAE: 58.8 kW
    80 hp

  • Engine peak torque

    At 1600 rpm: 396 Nm
    292 lb-ft

  • PTO torque rise

    At 1600 rpm: 30 percent
Transmission

  • Type

    Standard: PowrReverser™ 16F/16R
    Optional: PowrReverser Hi-Lo 32F/16R
    PowrQuad PLUS 16F/16R
    Powr8 32F/16R
    Powr8 32F/16R with creeper

  • Reverser

    Left hand, electrohydraulic

  • Clutch; wet/dry

    Wet

  • Creeper

    Powr8 32F/16R with creeper
Hydraulic system

  • Type

    Open center

  • Pump rated output

    PowrReverser: 94 L/min
    24.7 gpm
    PowrQuad PLUS/Powr8: 97 L/min
    19.3 gpm

  • Available flow at a single rear SCV

    70 L/min
    18.4 gpm

  • Number of rear selective control valves (SCVs)

    Two, up to three total

  • Number of mid selective control valves (SCVs)

    Two, up to three total

  • Joystick SCV control

    Optional

  • SCV control

    Mechanical
Rear hitch

  • Hitch draft control load sense type

    Mechanical or electrohydraulic

  • Remote control valves available

    Standard: 2
    Optional: 3

  • Hitch category (SAE designation)

    Category 2; convertible to 1

  • Maximum lift capacity behind lift points

    Standard for PowrReverser: 2336 kg
    5150 lb
    Optional for PowrReverser: 2699 kg
    5950 lb
    Standard for PowrQuad PLUS/Powr8: 3161 kg
    6970 lb
    Optional for PowrQuad PLUS/Powr8: 3565 kg
    7860 lb

  • Sensing type

    Lower link

  • Rear axle differential lock

    Electrohydraulic
Drawbar

  • Maximum vertical load

    Road/field use (250-mm extended): 1450 kg
    3197 lb
    Field use (350-mm extended): 1200 kg
    2646 lb
    Field use (400-mm extended): 1200 kg
    2646 lb
Rear power take-off (PTO)

  • Type

    Independent, 34.9 mm (1.375 in)
    Standard: 540/540 Economy (6 spline)
    Optional: 540/540E (6 spline) and 1000 rpm
    (21 spline) reversible shaft

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1645 rpm
    1000 at 2100 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Final drive type

    Inboard planetary

  • Differential controls

    Electrohydraulic

  • Axle type

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Rear

    2WD: 460/85R30 (18.4R30) R1W Radial
    MFWD: 460/85R30 (18.4R30) R1W Radial

  • Wheel tread range

    2WD: front: 1520-2020 mm
    59.8-79.5 in.
    MFWD: front: 1299-1997 mm
    51.1-78.6 in.
    rear: 1350-2286 mm
    53.1-90 in.

  • Turning radius with brakes

    2WD: 3.67 m
    12.04 ft
    MFWD: 3.85 m
    12.6 ft

  • Turning radius without brakes

    2WD: 3.85 m
    12.6 ft
    MFWD: 4.0 m
    13.1 ft
Tracks
Steering
Brakes
Electrical system

  • Alternator size

    OOS: 90 amp
    Cab: 120 amp
    ISOBUS/GreenStar Ready: 200 amp

  • Battery options

    12 V

  • Working lights

    Standard: Halogen
    Optional: LED

  • Type of bulb in headlight (Halogen, Zenon, LED)

    Standard: Halogen
    Optional: LED

  • Type of bulb in beacon (Halogen, Zenon, LED)

    Optional: LED
Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Foldable, two-post
    Platform - flat/straddle
    Flat
    Gearshift location - console/floor
    Floor

  • Seat

    Standard: Mechanical suspension
    Optional: air ride or premium air ride

  • Instructional seat

    Automotive-style light-emitting diode (LED) instrument cluster

  • Radio

    Optional

  • dB(A) rating

    78 dBA
Dimensions

  • Wheelbase

    2WD and MFWD: 2350 mm
    92.5 in.

  • Approximate shipping weight, Open;Cab

    2WD: Open: 3700 kg
    8140 lb
    Cab: 3900 kg
    8580 lb
    MFWD: Open: 3975 kg
    8765 lb
    Cab: 4175 kg
    9185 lb
Weight
Capacities

  • Fuel tank

    Open: 142.7 L
    37.7 U.S. gal.
    165.4 L
    43.7 U.S. gal.

  • Diesel exhaust fluid (DEF) tank

    12 L
    3.17 U.S. gal.
Serviceability
Loaders
Precision AG

  • Telematic

    Standard: Less JDLink™ Hardware
    Optional: JDLink™ Modem
Miscellaneous

  • Country of manufacture

    Pune, India
Back to Top
DetailsFeaturesSpecifications

Details:

5105M

Utility Tractor

  • PowrReverser™, PowrQuad™ PLUS or Powr8™ transmission options
  • Choose climate-controlled cab or open station
  • Hitch lift capacity starting at 5,150 lb (2,336 kg) and optional up to 7,860 lb (3,565 kg)

Features:

  • Adjust to job with flexible wheel spacing
  • Premium cab for the ultimate operating experience
  • Heavy-duty 3-point hitch lift capacity for implement versatility
  • Focus on the job while AutoTrac™ guidance keeps on track
  • Take charge with PowrQuad™ PLUS and Powr8™ transmissions
  • Increase speed control with PowrReverser™ Hi-Lo 32F/16R transmission
  • PowrReverser™ 16F/16R transmission
  • Power bulge and torque reserve pull through the tough spots
  • Automotive-style light-emitting diode (LED) instrument cluster
  • Heavy base tractor weight for stability
  • EPA Final Tier 4 (FT4) compliant engines with maximum fluid efficiency

Specifications:

Key Specs

  • Engine description

    John Deere Deere PowerTech™ 4045 EWL

  • Engine displacement

    4 cylinder: 4.5 L
    276 cu in.

  • Rated engine power

    At 2200 rpm: 77.4 Kw
    105 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm: 66.2 kW
    90 hp

  • Transmission type

    Standard: PowrReverser™ 16F/16R
    Optional: PowrReverser Hi-Lo 32F/16R
    PowrQuad PLUS 16F/16R
    Powr8 32F/16R
    Powr8 32F/16R with creeper

  • Hydraulic pump rated output

    PowrReverser: 94 L/min
    24.7 gpm
    PowrQuad PLUS/Powr8: 97 L/min
    25.6 gpm

  • Rear hitch category (SAE designation)

    Category 2; convertible to 1
Engine specifications

  • Description

    John Deere PowerTech 4045 EWL

  • Engine family

    NJDXL04.5317

  • Aspiration

    Turbocharged and air-to-air aftercooled

  • Cylinders liners

    Wet sleeved

  • Emission level

    Final Tier 4

  • Displacement

    4 cylinder: 4.5 L
    276 cu in.
Engine performance

  • Rated power

    At 2200 rpm: 77.4 kW
    105 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm per SAE: 66.2 kW
    90 hp

  • Engine peak torque

    At 1600 rpm: 437 Nm
    322 lb-ft

  • PTO torque rise

    At 1600 rpm: 30 percent
Transmission

  • Type

    Standard: PowrReverser™ 16F/16R
    Optional: PowrReverser Hi-Lo 32F/16R
    PowrQuad PLUS 16F/16R
    Powr8 32F/16R
    Powr8 32F/16R with creeper

  • Reverser

    Left hand, electrohydraulic

  • Clutch; wet/dry

    Wet

  • Creeper

    Powr8 32F/16R with creeper
Hydraulic system

  • Type

    Open center

  • Pump rated output

    PowrReverser: 94 L/min
    24.7 gpm
    PowrQuad PLUS/Powr8: 97 L/min
    19.3 gpm

  • Available flow at a single rear SCV

    PowrReverser: 70 L/min
    18.4 gpm
    PowrQuad PLUS/Powr8: 73 L/min
    19.3 gpm

  • Number of rear selective control valves (SCVs)

    Two, up to three total

  • Number of mid selective control valves (SCVs)

    Two, up to three total

  • Joystick SCV control

    Optional

  • SCV control

    Mechanical
Rear hitch

  • Hitch draft control load sense type

    Mechanical or electrohydraulic

  • Remote control valves available

    Standard: 2
    Optional: 3

  • Hitch category (SAE designation)

    Category 2; convertible to 1

  • Maximum lift capacity behind lift points

    Standard for PowrReverser: 2336 kg
    5150 lb
    Optional for PowrReverser: 2699 kg
    5950 lb
    Standard for PowrQuad PLUS/Powr8: 3161 kg
    6970 lb
    Optional for PowrQuad PLUS/Powr8: 3565 kg
    7860 lb

  • Sensing type

    Lower link

  • Rear axle differential lock

    Electrohydraulic
Drawbar

  • Maximum vertical load

    Road/field use (250-mm extended): 1450 kg
    3197 lb
    Field use (350-mm extended): 1200 kg
    2646 lb
    Field use (400-mm extended): 1200 kg
    2646 lb
Rear power take-off (PTO)

  • Type

    Independent, 34.9 mm (1.375 in)
    Standard: 540/540 Economy (6 spline)
    Optional: 540/540E (6 spline) and 1000 rpm
    (21 spline) reversible shaft

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1645 rpm
    1000 at 2100 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Final drive type

    Inboard planetary

  • Differential controls

    Electrohydraulic

  • Axle type

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Rear

    2WD: 460/85R30 (18.4R30) R1W Radial
    MFWD: 460/85R30 (18.4R30) R1W Radial

  • Wheel tread range

    2WD: front: 1520-2020 mm
    59.8-79.5 in.
    MFWD: front: 1299-1997 mm
    51.1-78.6 in.
    rear: 1350-2286 mm
    53.1-90 in.

  • Turning radius with brakes

    2WD: 3.67 m
    12.04 ft
    MFWD: 3.85 m
    12.6 ft

  • Turning radius without brakes

    2WD: 3.85 m
    12.6 ft
    MFWD: 4.0 m
    13.1 ft
Tracks
Steering
Brakes
Electrical system

  • Alternator size

    OOS: 90 amp
    Cab: 120 amp
    ISOBUS/GreenStar Ready: 200 amp

  • Battery options

    12 V

  • Working lights

    Standard: Halogen
    Optional: LED

  • Type of bulb in headlight (Halogen, Zenon, LED)

    Standard: Halogen
    Optional: LED

  • Type of bulb in beacon (Halogen, Zenon, LED)

    Optional: LED
Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Foldable, two-post
    Platform - flat/straddle
    Flat
    Gearshift location - console/floor
    Floor

  • Seat

    Standard: Mechanical suspension
    Optional: air ride or premium air ride

  • Instructional seat

    Automotive-style light-emitting diode (LED) instrument cluster

  • Radio

    Optional

  • dB(A) rating

    78 dBA
Dimensions

  • Wheelbase

    2WD and MFWD: 2350 mm
    92.5 in.

  • Approximate shipping weight, Open;Cab

    2WD: Open: 3700 kg
    8140 lb
    Cab: 3900 kg
    8580 lb
    MFWD: Open: 3975 kg
    8765 lb
    Cab: 4175 kg
    9185 lb
Weight
Capacities

  • Fuel tank

    Open: 142.7 L
    37.7 U.S. gal.
    165.4 L
    43.7 U.S. gal.

  • Diesel exhaust fluid (DEF) tank

    12 L
    3.17 U.S. gal.
Serviceability
Loaders
Precision AG

  • Telematic

    Standard: Less JDLink™ Hardware
    Optional: JDLink™ Modem
Miscellaneous

  • Country of manufacture

    Pune, India
Back to Top
DetailsFeaturesSpecifications

Details:

5120M

Utility Tractor

  • PowrReverser™, PowrQuad™ PLUS or Powr8™ transmission options
  • Choose climate-controlled cab or open station
  • Hitch lift capacity starting at 5,150 lb (2,336 kg) and optional up to 7,860 lb (3,565 kg)

Features:

  • Adjust to job with flexible wheel spacing
  • Premium cab for the ultimate operating experience
  • Heavy-duty 3-point hitch lift capacity for implement versatility
  • Focus on the job while AutoTrac™ guidance keeps on track
  • Take charge with PowrQuad™ PLUS and Powr8™ transmissions
  • Increase speed control with PowrReverser™ Hi-Lo 32F/16R transmission
  • PowrReverser™ 16F/16R transmission
  • Power bulge and torque reserve pull through the tough spots
  • Automotive-style light-emitting diode (LED) instrument cluster
  • Heavy base tractor weight for stability
  • EPA Final Tier 4 (FT4) compliant engines with maximum fluid efficiency

Specifications:

Key Specs

  • Engine description

    John Deere Deere PowerTech™ 4045 EWL

  • Engine displacement

    4 cylinder: 4.5 L
    276 cu in.

  • Rated engine power

    At 2200 rpm: 88.5 Kw
    120 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm: 77.2 kW
    105 hp

  • Transmission type

    Standard: PowrReverser™ 16F/16R
    Optional: PowrReverser Hi-Lo 32F/16R
    PowrQuad PLUS 16F/16R
    Powr8 32F/16R
    Powr8 32F/16R with creeper

  • Hydraulic pump rated output

    PowrReverser: 94 L/min
    24.7 gpm
    PowrQuad PLUS/Powr8: 97 L/min
    25.6 gpm

  • Rear hitch category (SAE designation)

    Category 2; convertible to 1
Engine specifications

  • Description

    John Deere PowerTech 4045 EWL

  • Engine family

    NJDXL04.5317

  • Aspiration

    Turbocharged and air-to-air aftercooled

  • Cylinders liners

    Wet sleeved

  • Emission level

    Final Tier 4

  • Displacement

    4 cylinder: 4.5 L
    276 cu in.
Engine performance

  • Rated power

    At 2200 rpm: 88.5 kW
    120 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm per SAE: 77.2 kW
    105 hp

  • Engine peak torque

    At 1600 rpm: 500 Nm
    369 lb-ft

  • PTO torque rise

    At 1600 rpm: 30 percent
Transmission

  • Type

    Standard: PowrReverser™ 16F/16R
    Optional: PowrReverser Hi-Lo 32F/16R
    PowrQuad PLUS 16F/16R
    Powr8 32F/16R
    Powr8 32F/16R with creeper

  • Reverser

    Left hand, electrohydraulic

  • Clutch; wet/dry

    Wet

  • Creeper

    Powr8 32F/16R with creeper
Hydraulic system

  • Type

    Open center

  • Pump rated output

    PowrReverser: 94 L/min
    24.7 gpm
    PowrQuad PLUS/Powr8: 97 L/min
    19.3 gpm

  • Available flow at a single rear SCV

    PowrReverser: 70 L/min
    18.4 gpm
    PowrQuad PLUS/Powr8: 73 L/min
    19.3 gpm

  • Number of rear selective control valves (SCVs)

    Two, up to three total

  • Number of mid selective control valves (SCVs)

    Two, up to three total

  • Joystick SCV control

    Optional

  • SCV control

    Mechanical
Rear hitch

  • Hitch draft control load sense type

    Mechanical or electrohydraulic

  • Remote control valves available

    Standard: 2
    Optional: 3

  • Hitch category (SAE designation)

    Category 2; convertible to 1

  • Maximum lift capacity behind lift points

    Standard for PowrReverser: 2336 kg
    5150 lb
    Optional for PowrReverser: 2699 kg
    5950 lb
    Standard for PowrQuad PLUS/Powr8: 3161 kg
    6970 lb
    Optional for PowrQuad PLUS/Powr8: 3565 kg
    7860 lb

  • Sensing type

    Lower link

  • Rear axle differential lock

    Electrohydraulic
Drawbar

  • Maximum vertical load

    Road/field use (250-mm extended): 1450 kg
    3197 lb
    Field use (350-mm extended): 1200 kg
    2646 lb
    Field use (400-mm extended): 1200 kg
    2646 lb
Rear power take-off (PTO)

  • Type

    Independent, 34.9 mm (1.375 in)
    Standard: 540/540 Economy (6 spline)
    Optional: 540/540E (6 spline) and 1000 rpm
    (21 spline) reversible shaft

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1645 rpm
    1000 at 2100 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Final drive type

    Inboard planetary

  • Differential controls

    Electrohydraulic

  • Axle type

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Rear

    MFWD: 18.4R30 (460/85R30) R1W Radial

  • Wheel tread range

    MFWD: front: 1299-1997 mm
    51.1-78.6 in.
    rear: 1350-2286 mm
    53.1-90 in.

  • Turning radius with brakes

    MFWD: 3.85 m
    12.6 ft

  • Turning radius without brakes

    MFWD: 4.0 m
    13.1 ft
Tracks
Steering
Brakes
Electrical system

  • Alternator size

    OOS: 90 amp
    Cab: 120 amp
    ISOBUS/GreenStar Ready: 200 amp

  • Battery options

    12 V

  • Working lights

    Standard: Halogen
    Optional: LED

  • Type of bulb in headlight (Halogen, Zenon, LED)

    Standard: Halogen
    Optional: LED

  • Type of bulb in beacon (Halogen, Zenon, LED)

    Optional: LED
Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Foldable, two-post
    Platform - flat/straddle
    Flat
    Gearshift location - console/floor
    Floor

  • Seat

    Standard: Mechanical suspension
    Optional: air ride or premium air ride

  • Instructional seat

    Automotive-style light-emitting diode (LED) instrument cluster

  • Radio

    Optional

  • dB(A) rating

    78 dBA
Dimensions

  • Wheelbase

    2350 mm
    92.5 in.

  • Approximate shipping weight, Open;Cab

    OOS: 3975 kg
    8765 lb
    Cab: 4175 kg
    9185 lb
Weight
Capacities

  • Fuel tank

    Open: 142.7 L
    37.7 U.S. gal.
    165.4 L
    43.7 U.S. gal.

  • Diesel exhaust fluid (DEF) tank

    12 L
    3.17 U.S. gal.
Serviceability
Loaders
Precision AG

  • Telematic

    Standard: Less JDLink™ Hardware
    Optional: JDLink™ Modem
Miscellaneous

  • Country of manufacture

    Pune, India
Back to Top
DetailsFeaturesSpecifications

Details:

5130M

Utility Tractor

  • PowrQuad™ PLUS or Powr8™ transmission options
  • Choose climate-controlled cab or open station
  • Hitch lift capacity starting at 6,975 lb (3,164 kg) and optional up to 7,868 lb (3,569 kg)

Features:

  • Adjust to job with flexible wheel spacing
  • Premium cab for the ultimate operating experience
  • Heavy-duty 3-point hitch lift capacity for implement versatility
  • Focus on the job while AutoTrac™ guidance keeps on track
  • Take charge with PowrQuad™ PLUS and Powr8™ transmissions
  • Power bulge and torque reserve pull through the tough spots
  • Heavy base tractor weight for stability
  • EPA Final Tier 4 (FT4) compliant engines with maximum fluid efficiency

Specifications:

Key Specs

  • Engine description

    John Deere Deere PowerTech™ 4045 EWL

  • Engine displacement

    4 cylinder: 4.5 L
    276 cu in.

  • Rated engine power

    At 2200 rpm: 95.8 Kw
    130 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm: 84.5 kW
    115 hp

  • Transmission type

    Standard: PowrQuad™ PLUS 16F/16R
    Optional: Powr8™ 32F/16R
    Powr8™ 32F/16R with creeper

  • Hydraulic pump rated output

    97 L/min
    25.6 gpm

  • Rear hitch category (SAE designation)

    Category 2; convertible to 1
Engine specifications

  • Description

    John Deere PowerTech 4045 EWL

  • Engine family

    NJDXL04.5317

  • Aspiration

    Turbocharged and air-to-air aftercooled

  • Cylinders liners

    Wet sleeved

  • Emission level

    Final Tier 4

  • Displacement

    4 cylinder: 4.5 L
    276 cu in.
Engine performance

  • Rated power

    At 2200 rpm: 95.8 kW
    130 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm per SAE: 84.5 kW
    115 hp

  • Engine peak torque

    At 1600 rpm: 541 Nm
    399 lb-ft

  • PTO torque rise

    At 1600 rpm: 30 percent
Transmission

  • Type

    Standard: PowrQuad™ PLUS 16F/16R
    Optional: Powr8™ 32F/16R
    Powr8™ 32F/16R with creeper

  • Reverser

    Left hand, electrohydraulic

  • Clutch; wet/dry

    Wet

  • Creeper

    Powr8 32F/16R with creeper
Hydraulic system

  • Type

    Open center

  • Pump rated output

    97 L/min
    25.6 gpm

  • Available flow at a single rear SCV

    73 L/min
    PowrQuad PLUS/Powr8: 73 L/min
    19.3 gpm

  • Number of rear selective control valves (SCVs)

    Two, up to three total

  • Number of mid selective control valves (SCVs)

    Two, up to three total

  • Joystick SCV control

    Optional

  • SCV control

    Mechanical
Rear hitch

  • Hitch draft control load sense type

    Mechanical or electrohydraulic

  • Remote control valves available

    Standard: 2
    Optional: 3

  • Hitch category (SAE designation)

    Category 2; convertible to 1

  • Maximum lift capacity behind lift points

    Standard for PowrReverser: 2336 kg
    5150 lb
    Optional for PowrReverser: 2699 kg
    5950 lb
    Standard for PowrQuad PLUS/Powr8: 3161 kg
    6970 lb
    Optional for PowrQuad PLUS/Powr8: 3565 kg
    7860 lb

  • Sensing type

    Lower link

  • Rear axle differential lock

    Electrohydraulic
Drawbar

  • Maximum vertical load

    Road/field use (250-mm extended): 1450 kg
    3197 lb
    Field use (350-mm extended): 1200 kg
    2646 lb
    Field use (400-mm extended): 1200 kg
    2646 lb
Rear power take-off (PTO)

  • Type

    Independent, 34.9 mm (1.375 in)
    Standard: 540/540 Economy (6 spline)
    Optional: 540/540E (6 spline) and 1000 rpm
    (21 spline) reversible shaft

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1645 rpm
    1000 at 2100 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Final drive type

    Inboard planetary

  • Differential controls

    Electrohydraulic

  • Axle type

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Rear

    MFWD: 18.4R30 (460/85R30) R1W Radial

  • Wheel tread range

    MFWD: front: 1299-1997 mm
    51.1-78.6 in.
    rear: 1350-2286 mm
    53.1-90 in.

  • Turning radius with brakes

    MFWD: 3.85 m
    12.6 ft

  • Turning radius without brakes

    MFWD: 4.0 m
    13.1 ft
Tracks
Steering
Brakes
Electrical system

  • Alternator size

    Cab: 120 amp
    ISOBUS/GreenStar™ Ready: 200 amp

  • Battery options

    12 V

  • Working lights

    Standard: Halogen
    Optional: LED

  • Type of bulb in headlight (Halogen, Zenon, LED)

    Standard: Halogen
    Optional: LED

  • Type of bulb in beacon (Halogen, Zenon, LED)

    Optional: LED
Operator station

  • Rollover protective structure, OOS

  • Seat

    Standard: Mechanical suspension
    Optional: air ride or premium air ride

  • Instructional seat

    Optional

  • Radio

    Optional

  • dB(A) rating

    78 dBA
Dimensions

  • Wheelbase

    2350 mm
    92.5 in.

  • Approximate shipping weight, Open;Cab

    4175 kg
    9185 lb
Weight
Capacities

  • Fuel tank

    Open: 165.4 L
    43.7 U.S. gal.

  • Diesel exhaust fluid (DEF) tank

    12 L
    3.17 U.S. gal.
Serviceability
Loaders
Precision AG

  • Telematic

Miscellaneous

  • Country of manufacture

    Pune, India
Back to Top

Available models: 5090R5100R5115R5125R

DetailsFeaturesSpecifications

Details:

5090R

Tractor

  • Engine Power: 90 hp
  • Easy to use transmission
  • NEW integrated technologies (JDLink™, AutoTrac™)
  • NEW optional suspended front axle

Features:

  • Boost utility tractor productivity with AutoTrac™ guidance
  • Industry-leading maneuverability
  • CommandQuad™ Manual transmission provides fully electronic range and gear shifting
  • Command8™ transmission for premium ground speed and load management
  • Premium cab with high visibility panorama roof for the ultimate operating experience
  • Improve operator comfort with integrated loader joystick controls
  • Optional CommandARM™
  • Standard AutoClutch™ system for clutchless operation
  • Maximum fluid efficiency with Final Tier 4 (FT4) engines
  • Power bulge and torque reserve pull through the tough spots
  • Intuitive digital cornerpost display
  • Cab suspension provides premium comfort

Specifications:

Key Specs

  • Engine description

    John Deere 4045 PowerTech™ PWL

  • Engine displacement

    4 cylinders: 4.5 L
    276 cu in.

  • Rated engine power

    At 2200 per ISO 97/68/EC: 66 kW
    90 engine hp

  • Rated PTO power (hp SAE)

    At 2100 per SAE: 57.8 kW
    77.5 PTO hp

  • Transmission type

    Standard: 16F/16R CommandQuad™ manual
    Optional: 16F/16R CommandQuad manual with creeper
    32F/16R Command8™

  • Hydraulic pump rated output

    Standard: 96.6 L/min
    25.5 gpm
    Optional: 117.3 L/min
    31 gpm

  • Rear hitch category (SAE designation)

    Category 2/1
Engine specifications

  • Description

    John Deere 4045 PowerTech PWL

  • Engine family

    FJDXL04.5211

  • Aspiration

    Turbocharged/air-to-air aftercooled

  • Cylinders liners

    Wet sleeved

  • Displacement

    4 cylinders: 4.5 L
    276 cu in.
Engine performance

  • Rated power

    At 2200 per ISO 97/68/EC: 66 kW
    90 engine hp

  • Rated PTO power (hp SAE)

    At 2100 per SAE: 57.8 kW
    77.5 PTO hp

  • PTO torque rise

    At 1600 rpm: 36 rpm
Transmission

  • Type

    Standard: 16F/16R CommandQuad manual
    Optional: 16F/16R CommandQuad manual with creeper
    32F/16R Command8

  • Reverser

    Standard: Left hand, electronic
    Optional: Joystick reverser

  • Clutch; wet/dry

    Wet

  • Creeper

    16F/16R CommandQuad manual with creeper
Hydraulic system

  • Type

    Standard: Open Center
    Optional: Pressure-and-flow compensated (PFC) system

  • Pump rated output

    Standard: 96.6 L/min
    25.5 gpm
    Optional: 117.3 L/min
    31 gpm

  • Available flow at a single rear SCV

    Standard: 73 L/min
    19.3 gpm
    Optional: 100 L/min
    26.4 gpm

  • Joystick SCV control

    Optional
Rear hitch

  • Hitch draft control load sense type

    Electrohydraulic

  • Remote control valves available

    Two, up to four total

  • Hitch category (SAE designation)

    Category 2/1

  • Maximum lift capacity behind lift points

    Standard: 3038 kg
    6697 lb
    Optional: 3564 kg
    7857 lb

  • Sensing type

    Lower link
Drawbar
Rear power take-off (PTO)

  • Type

    Standard: 540/540E/1000

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1645 rpm
    1000 at 2103 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Final drive type

    Inboard planetary

  • Differential controls

    Electrohydraulic

  • Axle type

    Flanged

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Front

    MFWD: 12.4R24 (320/85R24) R1W Radial

  • Rear

    18.4R30 R1W Radial

  • Wheel tread range

    MFWD: 1148-2000 mm
    45.2-78.7 in.

  • Turning radius with brakes

    MFWD: 3.37 m
    11.1 ft

  • Turning radius without brakes

    MFWD: 3.7 m
    12.1 ft
Tracks
Steering
Electrical system

  • Type of bulb in headlight (Halogen, Zenon, LED)


  • Type of bulb in beacon (Halogen, Zenon, LED)


Operator station

  • Rollover protective structure, OOS



  • Seat


  • dB(A) rating

    73 dBA
Dimensions

  • Wheelbase

    MFWD: 2250 mm
    88.6 in.

  • Approximate shipping weight, Open;Cab

    MFWD: 4450 kg
    9811 lb
Weight

  • Base machine weight



Capacities

  • Fuel tank

    Standard: 144 L
    38 U.S. gal.

  • Cooling system


Serviceability
Loaders
Precision AG
Miscellaneous

  • Country of manufacture

    Augusta, GA
Back to Top
DetailsFeaturesSpecifications

Details:

5100R

Tractor

  • Engine Power: 100 hp
  • Easy to use transmission
  • NEW integrated technologies (JDLink™, AutoTrac™)
  • NEW optional suspended front axle

Features:

  • Boost utility tractor productivity with AutoTrac™ guidance
  • Industry-leading maneuverability
  • CommandQuad™ Manual transmission provides fully electronic range and gear shifting
  • Command8™ transmission for premium ground speed and load management
  • Premium cab with high visibility panorama roof for the ultimate operating experience
  • Improve operator comfort with integrated loader joystick controls
  • Optional CommandARM™
  • Standard AutoClutch™ system for clutchless operation
  • Maximum fluid efficiency with Final Tier 4 (FT4) engines
  • Power bulge and torque reserve pull through the tough spots
  • Intuitive digital cornerpost display
  • Cab suspension provides premium comfort

Specifications:

Key Specs

  • Engine description

    John Deere 4045 PowerTech PWL

  • Engine displacement

    4 cylinders: 4.5 L
    276 cu in.

  • Rated engine power

    At 2200 per ISO 97/68/EC: 74 kW
    100 engine hp

  • Rated PTO power (hp SAE)

    At 2100 per SAE: 65.3 kW
    87.6 PTO hp

  • Transmission type

    Standard: 16F/16R CommandQuad Manual
    Optional: 16F/16R CommandQuad Manual with creeper
    32F/16R Command8

  • Hydraulic pump rated output

    Standard: 96.6 L/min
    25.5 gpm
    Optional: 117.3 L/min
    31 gpm

  • Rear hitch category (SAE designation)

    Category 2/1
Engine specifications

  • Description

    John Deere 4045 PowerTech PWL

  • Engine family

    FJDXL04.5211

  • Aspiration

    Turbocharged/Air-to-Air Aftercooled

  • Cylinders liners

    Wet sleeved

  • Displacement

    4 cylinders: 4.5 L
    276 cu in.
Engine performance

  • Rated power

    At 2200 per ISO 97/68/EC: 74 kW
    100 engine hp

  • Rated PTO power (hp SAE)

    At 2100 per SAE: 65.3 kW
    87.6 PTO hp

  • PTO torque rise

    At 1600: 36 percent
Transmission

  • Type

    Standard: 16F/16R CommandQuad Manual
    Optional: 16F/16R CommandQuad Manual with creeper
    32F/16R Command8

  • Reverser

    Standard: Left hand, electronic
    Optional: Joystick reversal

  • Clutch; wet/dry

    Wet

  • Creeper

    16F/16R CommandQuad Manual with Creeper
Hydraulic system

  • Type

    Standard: Open Center
    Optional: Pressure-and-Flow Compensated (PFC) System

  • Pump rated output

    Standard: 96.6 L/min
    25.5 gpm
    Optional: 117.3 L/min
    31 gpm

  • Available flow at a single rear SCV

    Standard: 73 L/min
    19.3 gpm
    Optional: 100 L/min
    26.4 gpm

  • Joystick SCV control

    Optional
Rear hitch

  • Hitch draft control load sense type

    Electrohydraulic

  • Remote control valves available

    2, up to 4 total

  • Hitch category (SAE designation)

    Category 2/1

  • Maximum lift capacity behind lift points

    Standard: 3038 kg
    6698 lb
    Optional: 3564 kg
    7858 lb

  • Sensing type

    Lower link
Drawbar
Rear power take-off (PTO)

  • Type

    Standard: 540/540E/1000

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1645 rpm
    1000 at 2103 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Final drive type

    Inboard Planetary

  • Differential controls

    Electrohydraulic

  • Axle type

    Flanged

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Front

    MFWD: 12.4R24 (320/85R24) R1W Radial

  • Rear

    MFWD: 18.4R30 R1W Radial

  • Wheel tread range

    MFWD: 1148-2000 mm
    45.2-78.7 in.

  • Turning radius with brakes

    MFWD: 3.37 m
    11.1 ft

  • Turning radius without brakes

    MFWD: 3.7 m
    12.1 ft
Steering
Electrical system
Operator station

  • dB(A) rating

    75 dBA
Dimensions

  • Wheelbase

    MFWD: 2250 mm
    88.6 in.

  • Approximate shipping weight, Open;Cab

    MFWD: 4450 kg
    9811 lb
Weight
Capacities

  • Fuel tank

    Standard: 38 U.S. gal.
    144 L
Serviceability
Loaders
Precision AG
Miscellaneous

  • Country of manufacture

    Augusta, GA
Tracks
Back to Top
DetailsFeaturesSpecifications

Details:

5115R

Tractor

  • Engine Power: 115 hp
  • Easy to use transmission
  • NEW integrated technologies (JDLink™, AutoTrac™)
  • NEW optional suspended front axle

Features:

  • Boost utility tractor productivity with AutoTrac™ guidance
  • Industry-leading maneuverability
  • CommandQuad™ Manual transmission provides fully electronic range and gear shifting
  • Command8™ transmission for premium ground speed and load management
  • Premium cab with high visibility panorama roof for the ultimate operating experience
  • Improve operator comfort with integrated loader joystick controls
  • Optional CommandARM™
  • Standard AutoClutch™ system for clutchless operation
  • Maximum fluid efficiency with Final Tier 4 (FT4) engines
  • Power bulge and torque reserve pull through the tough spots
  • Intuitive digital cornerpost display
  • Cab suspension provides premium comfort

Specifications:

Key Specs

  • Engine description

    John Deere 4045 PowerTech PWL

  • Engine displacement

    4 cylinders: 4.5 L
    276 cu in.

  • Rated engine power

    At 2200 per ISO 97/68/EC: 86.2 kW
    115.6 engine hp

  • Rated PTO power (hp SAE)

    At 2200 per SAE: 76.5 kW
    102.6 PTO hp

  • Transmission type

    Standard: 16F/16R CommandQuad Manual
    Optional: 16F/16R CommandQuad Mandual with creeper
    32F/16R Command8

  • Hydraulic pump rated output

    Standard: 96.6 L/min
    25.5 gpm
    Optional: 117.3 L/min
    31 gpm

  • Rear hitch category (SAE designation)

    Category 2/1
Engine specifications

  • Description

    John Deere 4045 PowerTech PWL

  • Engine family

    FJDXL04.5211

  • Aspiration

    Turbocharged/Air-to-Air Aftercooled

  • Cylinders liners

    Wet sleeved

  • Displacement

    4 cylinders: 4.5 L
    276 cu in.
Engine performance

  • Rated power

    At 2200 per ISO 97/68/EC: 86.2 kW
    115.6 engine hp

  • Rated PTO power (hp SAE)

    At 2200 per SAE: 76.5 kW
    102.6 PTO hp

  • PTO torque rise

    At 1600 rpm: 36 percent
Transmission

  • Type

    Standrad: 16F/16R CommandQuad Manual
    Optional: 16F/16R CommandQuad Mandual with creeper
    32F/16R Command8

  • Reverser

    Standard: Left hand, electronic
    Optional: Joystick reverser

  • Clutch; wet/dry

    Wet

  • Creeper

    16F/16R CommandQuad Manual with creeper
Hydraulic system

  • Type

    Standard: Open Center
    Optional: Pressure-and-Flow Compensated (PFC) System

  • Pump rated output

    Standard: 96.6
    25.5 gpm
    Optional: 117.3 L/min
    31 gpm

  • Available flow at a single rear SCV

    Standard: 73 L/min
    19.3 gpm
    Optional: 100 L/min
    26.4 gpm

  • Joystick SCV control

    Optional
Rear hitch

  • Hitch draft control load sense type

    Electrohydraulic

  • Remote control valves available

    2/up to 4

  • Hitch category (SAE designation)

    Category 2/1

  • Maximum lift capacity behind lift points

    Standard: 3038 kg
    6699 lb
    Optional: 3564 kg
    7859 lb

  • Sensing type

    Lower link
Drawbar
Rear power take-off (PTO)

  • Type

    Standard: 540/540E/1000

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1645 rpm
    1000 at 2103 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Final drive type

    Inboard planetary

  • Differential controls

    Electrohydraulic

  • Axle type

    Flanged

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Front

    MFWD: 12.4R24 (320/85R24) R1W Radial

  • Rear

    MFWD: 18.4R30 R1W Radial

  • Wheel tread range

    MFWD: front: 1148-2000 mm
    45.2-78.7 in.

  • Turning radius with brakes

    MFWD: 3.37 m
    11.1 ft

  • Turning radius without brakes

    MFWD: 3.7 m
    12.1 ft
Steering
Electrical system
Operator station

  • dB(A) rating

    73 dBA
Dimensions

  • Wheelbase

    MFWD: 2250 mm
    88.6 in.

  • Approximate shipping weight, Open;Cab

    MFWD: 4450 kg
    9811 lb
Weight
Capacities

  • Fuel tank

    Standard: 144 L
    38 U.S. gal.
Serviceability
Loaders
Precision AG
Miscellaneous

  • Country of manufacture

    Augusta, GA
Tracks
Back to Top
DetailsFeaturesSpecifications

Details:

5125R

Tractor

  • Engine Power: 125 hp
  • Easy to use transmission
  • NEW integrated technologies (JDLink™, AutoTrac™)
  • NEW optional suspended front axle

Features:

  • Boost utility tractor productivity with AutoTrac™ guidance
  • Industry-leading maneuverability
  • CommandQuad™ Manual transmission provides fully electronic range and gear shifting
  • Command8™ transmission for premium ground speed and load management
  • Premium cab with high visibility panorama roof for the ultimate operating experience
  • Improve operator comfort with integrated loader joystick controls
  • Optional CommandARM™
  • Standard AutoClutch™ system for clutchless operation
  • Maximum fluid efficiency with Final Tier 4 (FT4) engines
  • Power bulge and torque reserve pull through the tough spots
  • Intuitive digital cornerpost display
  • Cab suspension provides premium comfort

Specifications:

Key Specs

  • Engine description

    John Deere 4045 PowerTech PWL

  • Engine displacement

    4 cylinders: 4.5 L
    276 cu in.

  • Rated engine power

    At 2200 per ISO 97/68/EC: 93.2 kW
    125 engine hp

  • Rated PTO power (hp SAE)

    At 2200 per SAE: 83.5 kW
    112 PTO hp

  • Transmission type

    Standard: 16F/16R CommandQuad Manual
    Optional: 16F/16R Command Quad Manual with creeper
    32F/16R Command8

  • Hydraulic pump rated output

    Standard: 96.6 L/min
    25.5 gpm
    Optional: 117.3 L/min
    31 gpm

  • Rear hitch category (SAE designation)

    Category 2/1
Engine specifications

  • Description

    John Deere 4045 PowerTech PWL

  • Engine family

    FJDXL04.5211

  • Aspiration

    Turbocharged/Air-to-Air Aftercooled

  • Cylinders liners

    Wet sleeved

  • Displacement

    4 cylinders: 4.5 L
    276 cu in.
Engine performance

  • Rated power

    At 2200 per ISO 97/68/EC: 93.2 kW
    125 engine hp

  • Rated PTO power (hp SAE)

    At 2200 per SAE: 83.5 kW
    112 PTO hp

  • PTO torque rise

    At 1600 rpm: 36 percent
Transmission

  • Type

    Standard: 16F/16R CommandQuad Manual
    Optional: 16F/16R Command Quad Manual with creeper
    32F/16R Command8

  • Reverser

    Standard: Left hand, electrohydraulic
    Optional: Joystick reverser

  • Clutch; wet/dry

    Wet

  • Creeper

    16F/16R CommandQuad Manual with creeper
Hydraulic system

  • Type

    Standard: Open Center
    Optional: Pressure-and-Flow Compensated (PFC) System

  • Pump rated output

    Standard: 96.6 L/min
    25.5 gpm
    Optional: 117.3 L/min
    31 gpm

  • Available flow at a single rear SCV

    Standard: 73 L/min
    19.3 gpm
    Optional: 100 L/min
    26.4 gpm

  • Joystick SCV control

    Optional
Rear hitch

  • Hitch draft control load sense type

    Electrohydraulic

  • Remote control valves available

    2/up to 4

  • Hitch category (SAE designation)

    Category 2/1

  • Maximum lift capacity behind lift points

    Standard: 3038 kg
    6700 lb
    Optional: 3564 kg
    7860 lb

  • Sensing type

    Lower link
Drawbar
Rear power take-off (PTO)

  • Type

    Standard: 540/540E/1000

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1645 rpm
    1000 at 2103 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Final drive type

    Inboard planetary

  • Differential controls

    Electrohydraulic

  • Axle type

    Flanged

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Front

    MFWD: 12.4R24 (320/85R24) R1W Radial

  • Rear

    MFWD: 18.4R30 R1W Radial

  • Wheel tread range

    MFWD: 2250 mm
    88.6 in.

  • Turning radius with brakes

    MFWD: 3.37 m
    11.1 ft

  • Turning radius without brakes

    MFWD: 3.7 m
    12.1 ft
Steering
Electrical system
Operator station

  • dB(A) rating

    73 dBA
Dimensions

  • Wheelbase

    MFWD: 2250 mm
    88.6 in.

  • Approximate shipping weight, Open;Cab

    MFWD: 4450 kg
    9811 lb
Weight
Capacities

  • Fuel tank

    Standard: 144 L
    38 U.S. gal.
Serviceability
Loaders
Precision AG
Miscellaneous

  • Country of manufacture

    Augusta, GA
Tracks
Back to Top
5G Series

5G Series

5ML Series

5ML Series

5090EL

5E Low Profile, Narrow & 5 Series High-Crop

Available models: 5075GN5090GN5100GN

DetailsFeaturesSpecifications

Details:

5075GN

Tractor

  • Perfect for the narrower rows producers are moving toward to conserve water
  • Working width of 49.5”
  • FT4 75 hp engines/61 hp PT
  • Two transmissions available: 12F/12R and 24F/12R

Features:

  • Tailored to fit: John Deere specialty solutions
  • Auxiliary fuel tank (5GN)
  • Powerful Final Tier 4 (FT4) engines
  • Heavy-duty weight
  • Excellent serviceability reduces operational costs and improves productivity
  • Outstanding hydraulic performance
  • Versatile rear hitch
  • Transmission

Specifications:

Key Specs

  • Engine description

    3.4L Fiat® Powertrain Technologies

  • Engine displacement

    4 cylinder: 3.4 L
    207 cu in.

  • Rated engine power

    54.4 kW
    73 hp

  • Rated PTO power (hp SAE)

    45.5 kW
    61 hp

  • Transmission type

    24F/12R PowrReverser, EH Hi-Lo

  • Hydraulic pump rated output

    Standard: 96.5 L/min
    25.5 gpm
    Optional: 126.4 L/min
    33.4 gpm

  • Rear hitch category (SAE designation)

    Category 1/Category 2

  • Base machine weight

    OOS: 2660 kg
    5864 lb
    Cab: 2975 kg
    6558 lb
Engine specifications

  • Description

    3.4L Fiat® Powertrain Technologies

  • Engine family

    FPTF34

  • Rated speed

    2300 rpm

  • Aspiration

    Wastegate Turbocharger with intercooler and eventually cooled Exhaust Gas

  • Cylinders liners

    Wet sleeved

  • Emission level

    Final Tier 4

  • After treatment type

    Diesel Oxidation Catalyst (DOC) and diesel Particulate Exhaust Filter (DPF)

  • Displacement

    4 cylinder: 3.4 L
    207 cu in.
Engine performance

  • Rated power

    54.4 kW
    73 hp

  • Rated PTO power (hp SAE)

    45.5 kW
    61 hp
Transmission

  • Type

    24F/12R PowrReverser, EH Hi-Lo

  • Reverser

    Yes

  • Clutch; wet/dry

    Wet

  • Creeper

    Yes
Hydraulic system

  • Type

    Open Center

  • Pump rated output

    Standard: 96.5 L/min
    25.5 gpm
    Optional: 126.4
    33.4 gpm

  • Available flow at a single rear SCV

    66.2 L/min
    17.6 gpm

  • Number of rear selective control valves (SCVs)

    Standard: 2
    Optional: 4

  • SCV control

    Mechanical
Rear hitch

  • Hitch draft control load sense type

    Mechanical

  • Hitch category (SAE designation)

    Category 1/Category 2

  • Maximum lift capacity behind lift points

    2549 kg
    5620 lb

  • Sensing type

    Top Link Draft Sensing
Drawbar

  • Drawbar category

    Extendable
Rear power take-off (PTO)

  • Type

    Standard: 540/540E

  • Engine rpm (at rated PTO speeds)

    540 at 1938 rpm
    540E at 1648 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Type

    Carraro Drivetech

  • Final drive type

    Three point inboard planetary drives

  • Differential controls

    Multi disk oil cooled design

  • Axle type

    Flanged

  • Brakes, type and control

    Multi-disc rear braking

  • Rear differential lock

    Electrohydraulic
Front axle

  • Type

    Carraro Drivetech

  • Front axle differential lock

    Self Locking Differential
Tires

  • Front

    7.50R16

  • Rear

    280/70 R18

  • Turning radius without brakes

    3627 mm
    11.9 ft
Steering

  • Type

    Dynamic Load Sensing, Hydrostatic, Flow Metering
Electrical system

  • Alternator size

    120 amp

  • Type of bulb in beacon (Halogen, Zenon, LED)


  • Type of bulb in headlight (Halogen, Zenon, LED)


Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Rigid, front folding
    Platform - flat/straddle
    Straddle
    Gearshift location - console/floor
    Floor
    Yes

  • Seat

    OOS: standard: COBO MT SC74 M200
    Optional: COBO MT SC74 M97
    Cab: standard: COBO MT SC74 M200
    Optional: GRAMMER MSG93/511

  • dB(A) rating

    82
Dimensions

  • Wheelbase

    2098 mm
    82.5 in.

  • Overall length

    4319 mm
    170 in.

  • Drawbar clearance

    Min. 254 mm
    10 in.
    Max. 289 mm
    11.3 in.

  • Front axle center

    Min. 254 mm
    10 in.
    Max. 289 mm
    11.3 in.
Weight

  • Base machine weight



    OOS: 2660 kg
    5864 lb
    Cab: 2975 kg
    6558 lb

  • Maximum permissible weight

    4200 kg
    9259.41 lb
Capacities

  • Fuel tank

    Standard: 85.9 L
    22.7 U.S. gal.
    Optional: 114.3 L
    30.2 U.S. gal.
Serviceability

  • Interval for engine oil change

    500

  • Interval for hydraulic/transmission oil change

    750
Loaders
Precision AG
Miscellaneous
Tracks
Back to Top
DetailsFeaturesSpecifications

Details:

5090GN

Tractor

  • Working widths down to 43 inches
  • Improved turning radius on the 5GN Series
  • FT4 90 hp engine/76 hp PTO
  • Two transmissions available: 12F/12R and 24F/12R

Features:

  • Tailored to fit: John Deere specialty solutions
  • Auxiliary fuel tank (5GN)
  • Powerful Final Tier 4 (FT4) engines
  • Heavy-duty weight
  • Excellent serviceability reduces operational costs and improves productivity
  • Outstanding hydraulic performance
  • Versatile rear hitch
  • Transmission

Specifications:

Key Specs

  • Engine description

    3.4L Fiat® Powertrain Technologies

  • Engine displacement

    4 cylinder: 3.4 L
    207 cu in.

  • Rated engine power

    67.1 kW
    90 hp

  • Rated PTO power (hp SAE)

    59 kW
    79 hp

  • Transmission type

    24F/12R PowrReverser, EH Hi-Lo

  • Hydraulic pump rated output

    Standard: 96.5 L/min
    25.5 gpm
    Optional: 126.4 L/min
    33.4 gpm

  • Rear hitch category (SAE designation)

    Category 1/Category 1N

  • Base machine weight

    OOS: 2529.7 kg
    5577 lb
    Cab: 2744.7 kg
    6051 lb
Engine specifications

  • Description

    3.4L Fiat® Powertrain Technologies

  • Engine family

    FPTF34

  • Rated speed

    2300 rpm

  • Aspiration

    Turbocharged

  • Cylinders liners

    Wet sleeved

  • Emission level

    Final Tier 4

  • After treatment type

    Diesel Oxidation Catalyst (DOC) and Selective Catalyst Reduction (SCR)

  • Displacement

    4 cylinder: 3.4 L
    207 cu in.
Engine performance

  • Rated power

    67.1 kW
    90 hp

  • Rated PTO power (hp SAE)

    59 kW
    79 hp
Transmission

  • Type

    24F/12R PowrReverser, EH Hi-Lo

  • Reverser

    Yes

  • Clutch; wet/dry

    Wet

  • Creeper

    Yes
Hydraulic system

  • Type

    Open Center

  • Pump rated output

    Standard: 96.5 L/min
    25.5 gpm
    Optional: 126.4
    33.4 gpm

  • Available flow at a single rear SCV

    41.6 L/min
    11 gpm

  • Number of rear selective control valves (SCVs)

    Standard: 2
    Optional: 4

  • SCV control

    Mechanical
Rear hitch

  • Hitch draft control load sense type

    Mechanical

  • Hitch category (SAE designation)

    Category 1/Category 1N

  • Maximum lift capacity behind lift points

    2549 kg
    5620 lb

  • Sensing type

    Top Link Draft Sensing
Drawbar

  • Drawbar category

    Extendable
Rear power take-off (PTO)

  • Type

    Standard: 540/540E

  • Engine rpm (at rated PTO speeds)

    540 at 1938 rpm
    540E at 1648 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Type

    Carraro Drivetech

  • Final drive type

    Three point inboard planetary drives

  • Differential controls

    Multi disk oil cooled design

  • Axle type

    Flanged

  • Brakes, type and control

    Multi-disc rear braking

  • Rear differential lock

    Electrohydraulic
Front axle

  • Type

    Carraro Drivetech

  • Front axle differential lock

    Self Locking Differential
Tires

  • Front

    6.50R16

  • Rear

    260/70 R16

  • Turning radius without brakes

    3627 mm
    11.9 ft
Steering

  • Type

    Dynamic Load Sensing, Hydrostatic, Flow Metering
Electrical system

  • Alternator size

    120 amp

  • Type of bulb in beacon (Halogen, Zenon, LED)


  • Type of bulb in headlight (Halogen, Zenon, LED)


Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Rigid, front folding
    Platform - flat/straddle
    Straddle
    Gearshift location - console/floor
    Floor
    Yes

  • Seat

    OOS: standard: COBO MT SC74 M200
    Optional: COBO MT SC74 M97
    Cab: standard: COBO MT SC74 M200

  • dB(A) rating

    82
Dimensions

  • Wheelbase

    2098 mm
    82.5 in.

  • Overall length

    4319 mm
    170 in.

  • Drawbar clearance

    Min. 226.1 mm
    8.9 in.
    Max. 266.7 mm
    10.5 in.

  • Front axle center

    Min. 226.1 mm
    8.9 in.
    Max. 266.7 mm
    10.5 in.
Weight

  • Base machine weight



    OOS: 2529.7 kg
    5577 lb
    Cab: 2744.7 kg
    6051 lb
Capacities

  • Fuel tank

    Standard: 73.1 L
    19.3 U.S. gal.
Serviceability

  • Interval for engine oil change

    500

  • Interval for hydraulic/transmission oil change

    750
Loaders
Precision AG
Miscellaneous
Tracks
Back to Top
DetailsFeaturesSpecifications

Details:

5100GN

Tractor

  • FT4 100 hp engine/86 hp PTO
  • Improved turning radius
  • Two transmissions available: 12F/12R and 24F/12R
  • Multiple operator station options

Features:

  • Tailored to fit: John Deere specialty solutions
  • Auxiliary fuel tank (5GN)
  • Powerful Final Tier 4 (FT4) engines
  • Heavy-duty weight
  • Excellent serviceability reduces operational costs and improves productivity
  • Outstanding hydraulic performance
  • Versatile rear hitch
  • Transmission

Specifications:

Key Specs

  • Engine description

    3.4L Fiat® Powertrain Technologies

  • Engine displacement

    4 cylinder: 3.4 L
    207 cu in.

  • Rated engine power

    74.6 kW
    100 hp

  • Rated PTO power (hp SAE)

    64.9 kW
    87 hp

  • Transmission type

    24F/12R PowrReverser, EH Hi-Lo

  • Hydraulic pump rated output

    Standard: 96.5 L/min
    25.5 gpm
    Optional: 126.4 L/min
    33.4 gpm

  • Rear hitch category (SAE designation)

    Category 1/Category 2

  • Base machine weight

    OOS: 2660 kg
    5864 lb
    Cab: 2975 kg
    6558 lb
Engine specifications

  • Description

    3.4L Fiat® Powertrain Technologies

  • Engine family

    FPTF34

  • Rated speed

    2300 rpm

  • Aspiration

    Turbocharged

  • Cylinders liners

    Wet sleeved

  • Emission level

    Final Tier 4

  • After treatment type

    Diesel Oxidation Catalyst (DOC) and Selective Catalyst Reduction (SCR)

  • Displacement

    4 cylinder: 3.4 L
    207 cu in.
Engine performance

  • Rated power

    74.6 kW
    100 hp

  • Rated PTO power (hp SAE)

    64.9 kW
    87 hp
Transmission

  • Type

    24F/12R PowrReverser, EH Hi-Lo

  • Reverser

    Yes

  • Clutch; wet/dry

    Wet

  • Creeper

    Yes
Hydraulic system

  • Type

    Open Center

  • Pump rated output

    Standard: 96.5 L/min
    25.5 gpm
    Optional: 126.4
    33.4 gpm

  • Available flow at a single rear SCV

    41.6 L/min
    11 gpm

  • Number of rear selective control valves (SCVs)

    Standard: 2
    Optional: 4

  • SCV control

    Mechanical
Rear hitch

  • Hitch draft control load sense type

    Mechanical

  • Hitch category (SAE designation)

    Category 1/Category 2

  • Maximum lift capacity behind lift points

    2549 kg
    5620 lb

  • Sensing type

    Top Link Draft Sensing
Drawbar

  • Drawbar category

    Extendable
Rear power take-off (PTO)

  • Type

    Standard: 540/540E

  • Engine rpm (at rated PTO speeds)

    540 at 1938 rpm
    540E at 1648 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Type

    Carraro Drivetech

  • Final drive type

    Three point inboard planetary drives

  • Differential controls

    Multi disk oil cooled design

  • Axle type

    Flanged

  • Brakes, type and control

    Multi-disc rear braking

  • Rear differential lock

    Electrohydraulic
Front axle

  • Type

    Carraro Drivetech

  • Front axle differential lock

    Self Locking Differential
Tires

  • Front

    7.50R16

  • Rear

    280/70 R18

  • Turning radius without brakes

    3627 mm
    11.9 ft
Steering

  • Type

    Dynamic Load Sensing, Hydrostatic, Flow Metering
Electrical system

  • Alternator size

    120 amp

  • Type of bulb in beacon (Halogen, Zenon, LED)


  • Type of bulb in headlight (Halogen, Zenon, LED)


Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Rigid, front folding
    Platform - flat/straddle
    Straddle
    Gearshift location - console/floor
    Floor
    Yes

  • Seat

    OOS: standard: COBO MT SC74 M200
    Optional: COBO MT SC74 M97
    Cab: standard: COBO MT SC74 M200
    Optional: GRAMMER MSG93/511

  • dB(A) rating

    82
Dimensions

  • Wheelbase

    2098 mm
    82.5 in.

  • Overall length

    4319 mm
    170 in.

  • Drawbar clearance

    Min. 254 mm
    10 in.
    Max. 289 mm
    11.3 in.

  • Front axle center

    Min. 254 mm
    10 in.
    Max. 289 mm
    11.3 in.
Weight

  • Base machine weight



    OOS: 2660 kg
    5864 lb
    Cab: 2975 kg
    6558 lb

  • Maximum permissible weight

    4200 kg
    9259.41 lb
Capacities

  • Fuel tank

    Standard: 73.1 L
    19.3 U.S. gal.
    Optional: 101.4 L
    26.8 U.S. gal.
Serviceability

  • Interval for engine oil change

    500

  • Interval for hydraulic/transmission oil change

    750
Loaders
Precision AG
Miscellaneous
Tracks
Back to Top

Available models: 5105ML5120ML5130ML

DetailsFeaturesSpecifications

Details:

5105ML

Low-Profile Utility Tractor

  • 103 hp John Deere PowerTech™ engine
  • Up to 3 Transmission Options
  • Connected with JDLink™
  • Open Operator’s Station or Cab Option
  • As narrow as 61 in. working width (5ML Narrow Cab)

Features:

  • Premium cab designed for orchards and vineyards
  • Fitting into the operation - Axle Configurations
  • Automating everyday tasks with next level technology
  • Find the right working speeds for the job - PowrQuad PLUS™ / Powr8™ transmissions
  • On-demand hydraulic performance - Closed Center Hydraulics
  • Maneuvering between the rows – Turning Radius
  • Low-profile standard open operator station (OOS)
  • PowrReverser™ 16F/16R transmission

Specifications:

Key Specs

  • Engine description

    OOS: John Deere PowerTech™ 4045 PWL
    Cab: John Deere PowerTech™ 4045 PWS

  • Engine displacement

    4 cylinders: 4.5 L
    276 cu in.

  • Rated engine power

    At 2200 rpm: 77.4 kW
    105 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm: 66.2 kW
    90 hp

  • Transmission type

    OOS: Standard: PowrReverser™ 16F/16R
    Optional: PowrQuad™ PLUS 16F/16R
    Powr8™ 32F/16R
    Cab: Standard: PowrQuad™ PLUS 16F/16R
    Optional: Powr8™ 32F/16R with creeper

  • Hydraulic pump rated output

    OOS: Standard: 94 L/min
    24.7 gpm
    Optional: 117 L/min
    31 gpm
    Cab: 117 L/min
    31 gpm

  • Rear hitch category (SAE designation)

    Category 2
Engine specifications

  • Description

    OOS: John Deere PowerTech™ 4045 PWL
    Cab: John Deere PowerTech™ 4045 PWS

  • Engine family

    NJDXL06.8309

  • Aspiration

    Turbocharged

  • Cylinders liners

    Wet sleeved

  • Displacement

    4 cylinders: 4.5 L
    276 cu in.
Engine performance

  • Rated power

    At 2200 rpm: 77.4 kW
    105 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm: 66.2 kW
    90 hp
Transmission

  • Type

    OOS: Standard: PowrReverser™ 16F/16R
    Optional: PowrQuad™ PLUS 16F/16R
    Powr8™ 32F/16R
    Cab: Standard: PowrQuad™ PLUS 16F/16R
    Optional: Powr8™ 32F/16R with creeper

  • Reverser

    Yes

  • Clutch; wet/dry

    Wet

  • Creeper

    Cab: Powr8™ 32F/16R with creeper
Hydraulic system

  • Type

    OOS: Standard: Open center
    Optional: Pressure-and-flow compensated (PFC) system
    Cab: Pressure-and-flow compensated (PFC) system

  • Pump rated output

    OOS: Standard: 94 L/min
    24.7 gpm
    Optional: 117 L/min
    31 gpm
    Cab: 117 L/min
    31 gpm

  • Available flow at a single rear SCV

    Standard: 70 L/min
    18.4 gpm
    Optional: 100 L/min
    26.4 gpm
    Cab: 100 L/min
    26.4 L/min

  • Number of rear selective control valves (SCVs)

    Three

  • Number of mid selective control valves (SCVs)

    Zero; up to three

  • Joystick SCV control

    OOS: Mechanical
    Cab: Rear SCVs: Mechanical
    Mid-SCVs: Electrohydraulic
Rear hitch

  • Hitch draft control load sense type

    Standard: Mechanical
    Optional: Electrohydraulic
    Cab: Electrohydraulic

  • Remote control valves available

    Standard: three

  • Hitch category (SAE designation)

    Category 2, convertible to 1

  • Maximum lift capacity behind lift points

    OOS: Standard for PowrReverser™: 2223 kg 4900 lb
    Optional for PowrReverser™: 2565 kg 5654 lb
    Optional for PowrQuad™ PLUS/Powr8™: 3164 kg 6975 lb
    Cab: Standard: 2720 kg 5996 lb
    Optional: 3122 kg 6883 lb

  • Sensing type

    Top link
Drawbar
Rear power take-off (PTO)

  • Type

    OOS: Standard: 540/540E
    Optional: 540/540E/1000
    Cab: Standard: 540/540E/1000

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1645 rpm
    1000 at 2100 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Type

    Flange

  • Differential controls

    Electrohydraulic

  • Axle type

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Front

  • Rear

    19.5L - 24 In 10PR R4 Bias

  • Wheel tread range

    Front: 1299-1997 mm
    51.1-78.6 in.

  • Turning radius with brakes

    3.34 m
    11 ft

  • Turning radius without brakes

    3.8 m
    12.5 ft
Tracks
Steering
Brakes
Electrical system
Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Foldable, two-post
    Platform - flat/straddle
    Flat
    Gearshift location - console/floor
    Floor
Dimensions

  • Wheelbase

    OOS: 2350 mm
    92.5 in.
    Cab: MFWD Standard: 2350 mm
    MFWD Narrow: 2300 mm
    90.5 in.

  • Approximate shipping weight, Open;Cab

    OOS: PowrReverser™ : 3964 kg 8740 lb
    OOS PowrQuad™ PLUS/Powr8™: 4209 kg 9280 lb
    Cab: 4826 kg 10640 lb
Weight
Capacities

  • Fuel tank

    Standard for PowrReverser™: 112 L
    29.6 U.S. gal.
    Standard for (PowrQuad™ PLUS/Powr8™ models):144 L
    38 U.S. gal.

  • Diesel exhaust fluid (DEF) tank

    12 L
    3.2 U.S. gal.
Serviceability
Loaders
Precision AG
Miscellaneous
Back to Top
DetailsFeaturesSpecifications

Details:

5120ML

Low Profile Utility Tractor

  • 118 hp John Deere PowerTech™ engine
  • Up to 3 Transmission Options
  • Connected with JDLink™
  • Open Operator’s Station or Cab Option
  • As narrow as 61 in. working width (5ML Narrow Cab)

Features:

  • Premium cab designed for orchards and vineyards
  • Fitting into the operation - Axle Configurations
  • Automating everyday tasks with next level technology
  • Find the right working speeds for the job - PowrQuad PLUS™ / Powr8™ transmissions
  • On-demand hydraulic performance - Closed Center Hydraulics
  • Maneuvering between the rows – Turning Radius
  • Low-profile standard open operator station (OOS)
  • PowrReverser™ 16F/16R transmission

Specifications:

Key Specs

  • Engine description

    OOS: John Deere PowerTech™ 4045 PWL
    Cab: John Deere PowerTech™ 4045 PWS

  • Engine displacement

    4 cylinders: 4.5 L
    276 cu in.

  • Rated engine power

    At 2200 rpm: 92 kW
    120 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm: 77.2 kW
    105 hp

  • Transmission type

    OOS: Standard: PowrReverser™ 16F/16R
    Optional: PowrQuad™ PLUS 16F/16R
    Powr8™ 32F/16R
    Cab: Standard: PowrQuad™ PLUS 16F/16R
    Optional: Powr8™ 32F/16R with creeper

  • Hydraulic pump rated output

    OOS: Standard: 94 L/min
    24.7 gpm
    Optional: 117 L/min
    31 gpm
    Cab: 117 L/min
    31 gpm

  • Rear hitch category (SAE designation)

    Category 2
Engine specifications

  • Description

    OOS: John Deere PowerTech™ 4045 PWL
    Cab: John Deere PowerTech™ 4045 PWS

  • Engine family

    NJDXL06.8309

  • Aspiration

    Turbocharged

  • Cylinders liners

    Wet sleeved

  • Displacement

    4 cylinders: 4.5 L
    276 cu in.
Engine performance

  • Rated power

    At 2200 rpm: 92 kW
    120 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm: 77.2 kW
    105 hp
Transmission

  • Type

    OOS: Standard: PowrReverser™ 16F/16R
    Optional: PowrQuad™ PLUS 16F/16R
    Powr8™ 32F/16R
    Cab: Standard: PowrQuad™ PLUS 16F/16R
    Optional: Powr8™ 32F/16R with creeper

  • Reverser

    Yes

  • Clutch; wet/dry

    Wet

  • Creeper

    Cab: Powr8™ 32F/16R with creeper
Hydraulic system

  • Type

    OOS: Standard: Open center
    Optional: Pressure-and-flow compensated (PFC) system
    Cab: Pressure-and-flow compensated (PFC) system

  • Pump rated output

    OOS: Standard: 94 L/min
    24.7 gpm
    Optional: 117 L/min
    31 gpm
    Cab: 117 L/min
    31 gpm

  • Available flow at a single rear SCV

    Standard: 70 L/min
    18.4 gpm
    Optional: 100 L/min
    26.4 gpm
    Cab: 100 L/min
    26.4 L/min

  • Number of rear selective control valves (SCVs)

    Three

  • Number of mid selective control valves (SCVs)

    Zero; up to three

  • Joystick SCV control

    OOS: Mechanical
    Cab: Rear SCVs: Mechanical
    Mid-SCVs: Electrohydraulic
Rear hitch

  • Hitch draft control load sense type

    Standard: Mechanical
    Optional: Electrohydraulic
    Cab: Electrohydraulic

  • Remote control valves available

    Standard: three

  • Hitch category (SAE designation)

    Category 2, convertible to 1

  • Maximum lift capacity behind lift points

    OOS: Standard for PowrReverser™: 2223 kg 4900 lb
    Optional for PowrReverser™: 2565 kg 5654 lb
    Optional for PowrQuad™ PLUS/Powr8™: 3164 kg 6975 lb
    Optional for PowrQuad™ PLUS/Powr8™: 3569 kg 7868 lb
    Cab: Standard: 2720 kg 5996 lb
    Optional: 3122 kg 6883 lb

  • Sensing type

    Top link
Drawbar
Rear power take-off (PTO)

  • Type

    OOS: Standard: 540/540E
    Optional: 540/540E/1000
    Cab: Standard: 540/540E/1000

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1645 rpm
    1000 at 2100 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Type

    Flange

  • Differential controls

    Electrohydraulic

  • Axle type

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Front

  • Rear

    19.5L - 24 In 10PR R4 Bias

  • Wheel tread range

    Front: 1299-1997 mm
    51.1-78.6 in.

  • Turning radius with brakes

    3.34 m
    11 ft

  • Turning radius without brakes

    3.8 m
    12.5 ft
Tracks
Steering
Brakes
Electrical system
Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Foldable, two-post
    Platform - flat/straddle
    Flat
    Gearshift location - console/floor
    Floor
Dimensions

  • Wheelbase

    OOS: 2350 mm
    92.5 in.
    Cab: MFWD Standard: 2350 mm
    MFWD Narrow: 2300 mm
    90.5 in.

  • Approximate shipping weight, Open;Cab

    OOS: PowrReverser™ : 3964 kg 8740 lb
    OOS PowrQuad™ PLUS/Powr8™: 4209 kg 9280 lb
    Cab: 4826 kg 10640 lb
Weight
Capacities

  • Fuel tank

    Standard for PowrReverser™: 112 L
    29.6 U.S. gal.
    Standard for (PowrQuad™ PLUS/Powr8™ models):144 L
    38 U.S. gal.

  • Diesel exhaust fluid (DEF) tank

    12 L
    3.2 U.S. gal.
Serviceability
Loaders
Precision AG
Miscellaneous
Back to Top
DetailsFeaturesSpecifications

Details:

5130ML

Low Profile Utility Tractor

  • 128 hp John Deere PowerTech™ engine
  • PowrQuad transmission offers push-button gear selection without the foot clutch
  • Optional high-capacity hitch option provides nearly four tons of lift
  • Open Operator’s Station or Cab Option

Features:

  • Premium cab designed for orchards and vineyards
  • Fitting into the operation - Axle Configurations
  • Automating everyday tasks with next level technology
  • Find the right working speeds for the job - PowrQuad PLUS™ / Powr8™ transmissions
  • On-demand hydraulic performance - Closed Center Hydraulics
  • Maneuvering between the rows – Turning Radius
  • Low-profile standard open operator station (OOS)

Specifications:

Key Specs

  • Engine description

    OOS: John Deere PowerTech™ 4045 PWL
    Cab: John Deere PowerTech™ 4045 PWS

  • Engine displacement

    4 cylinders: 4.5 L
    276 cu in.

  • Rated engine power

    At 2200 rpm: 99.7 kW
    130 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm: 84.5 kW
    115 hp

  • Transmission type

    OOS: Standard: PowrQuad™ PLUS 16F/16R
    Optional: Powr8™ 32F/16R
    Cab: Standard: PowrQuad™ PLUS 16F/16R
    Optional: Powr8™ 32F/16R with creeper

  • Hydraulic pump rated output

    117 L/min
    31 gpm

  • Rear hitch category (SAE designation)

    Category 2
Engine specifications

  • Description

    OOS: John Deere PowerTech™ 4045 PWL
    Cab: John Deere PowerTech™ 4045 PWS

  • Engine family

    NJDXL06.8309

  • Aspiration

    Turbocharged

  • Cylinders liners

    Wet sleeved

  • Displacement

    4 cylinders: 4.5 L
    276 cu in.
Engine performance

  • Rated power

    At 2200 rpm: 95.8 kW
    130 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm: 84.5 kW
    115 hp
Transmission

  • Type

    OOS: Standard: PowrReverser™ 16F/16R
    Optional: Powr8™ 32F/16R
    Cab: Standard: PowrQuad™ PLUS 16F/16R
    Optional: Powr8™ 32F/16R with creeper

  • Reverser

    Yes

  • Clutch; wet/dry

    Wet

  • Creeper

    Cab: Powr8™ 32F/16R with creeper
Hydraulic system

  • Type

    Pressure-and-flow compensated (PFC) system

  • Pump rated output

    117 L/min
    31 gpm

  • Available flow at a single rear SCV

    100 L/min
    26.4 gpm

  • Number of rear selective control valves (SCVs)

    Three

  • Number of mid selective control valves (SCVs)

    Zero; up to three

  • Joystick SCV control

    OOS: Mechanical
    Cab: Rear SCVs: Mechanical
    Mid-SCVs: Electrohydraulic
Rear hitch

  • Hitch draft control load sense type

    Electrohydraulic

  • Remote control valves available

    Standard: three

  • Hitch category (SAE designation)

    Category 2, convertible to 1

  • Maximum lift capacity behind lift points

    OOS: Standard: 3164 kg 6975 lb
    Optional: 3569 kg 7868 lb
    Cab: Standard: 2720 kg 5996 lb
    Optional: 3122 kg 6883 lb

  • Sensing type

    Top link
Drawbar
Rear power take-off (PTO)

  • Type

    Standard: 540/540E/1000

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1645 rpm
    1000 at 2100 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Type

    Flange

  • Differential controls

    Electrohydraulic

  • Axle type

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Front

  • Rear

    19.5L - 24 In 10PR R4 Bias

  • Wheel tread range

    Front: 1299-1997 mm
    51.1-78.6 in.

  • Turning radius with brakes

    3.34 m
    11 ft

  • Turning radius without brakes

    3.8 m
    12.5 ft
Tracks
Steering
Brakes
Electrical system
Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Foldable, two-post
    Platform - flat/straddle
    Flat
    Gearshift location - console/floor
    Floor
Dimensions

  • Wheelbase

    OOS: 2350 mm
    92.5 in.
    Cab: MFWD Standard: 2350 mm
    MFWD Narrow: 2300 mm
    90.5 in.

  • Approximate shipping weight, Open;Cab

    OOS: 4209 kg 9280 lb
    Cab: 4826 kg 10640 lb
Weight
Capacities

  • Fuel tank

    144 L
    38 U.S. gal.

  • Diesel exhaust fluid (DEF) tank

    12 L
    3.2 U.S. gal.
Serviceability
Loaders
Precision AG
Miscellaneous
Back to Top

Available models: 5090EL5075EN5105MH

DetailsFeaturesSpecifications

Details:

5090EL

Low-Profile Utility Tractor

  • Low clearance design allows for overall height of 69 inches
  • 90 hp John Deere PowerTech™ engine
  • Economy PTO allows engine RPM to run lower, saving fuel and reducing overall cost of operation
  • 2-year or 2,000-hour full comprehensive warranty and 5-year or 2,000-hour Powertrain warranty

Features:

  • Connected to what counts: 5 Series Tractors
  • Preferred product for poultry producers
  • Rising to the task: Increased lift capacity

Specifications:

Key Specs

  • Engine description

    John Deere PowerTech™ 4045 PWL

  • Engine displacement

    4 cylinders: 4.5 L
    276 cu in.

  • Rated engine power

    At 2400 rpm: 67.1 kW
    90 hp

  • Rated PTO power (hp SAE)

    At 2400 rpm: 56 kW
    75 hp

  • Transmission type

    Standard: PowrReverser™ 12F/12R
    Optional: PowrReverser™ Hi-Lo 24F/12R

  • Hydraulic pump rated output

    85.1 L/min
    22.5 gpm

  • Rear hitch category (SAE designation)

    Category 2
Engine specifications

  • Description

    John Deere PowerTech 4045 PWL

  • Engine family

    NJDXL04.5315

  • Aspiration

    Turbocharged and Aftercooled

  • Cylinders liners

    Wet sleeved

  • Displacement

    4 cylinders: 4.5 L
    276 cu in.
Engine performance

  • Rated power

    At 2400 rpm: 67.1 kW
    90 hp

  • Rated PTO power (hp SAE)

    At 2400 rpm: 56 kW
    75 hp
Transmission

  • Type

    Standard: PowrReverser™ 12F/12R
    Optional: PowrReverser™ Hi-Lo 24F/12R

  • Reverser

    Yes

  • Clutch; wet/dry

    Wet

  • Creeper

    Not available
Hydraulic system

  • Type

    Open center

  • Pump rated output

    85.1 L/min
    22.5 gpm

  • Available flow at a single rear SCV

    60.1 L/min
    15.9 gpm

  • Number of rear selective control valves (SCVs)

    Standard: Two
    Optional: Three

  • Number of mid selective control valves (SCVs)

    Zero; up to three

  • Joystick SCV control

    Mechanical
Rear hitch

  • Hitch draft control load sense type

    Mechanical

  • Remote control valves available

    Standard: Two
    Optional: Three

  • Hitch category (SAE designation)

    Category 2, convertible to 1

  • Maximum lift capacity behind lift points

    2100 kg
    4600 lb

  • Sensing type

    Top link
Drawbar
Rear power take-off (PTO)

  • Type

    Standard: 540/540E/1000

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1645 rpm
    1000 at 2100 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Type

    Flange

  • Differential controls

    Mechanical (pedal)

  • Axle type

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Front

  • Rear

    MFWD: 19.5L-24 in. 10PR R4 Bias

  • Wheel tread range

    Front: 1705-1834 mm, 67.1-72.2 in.

  • Turning radius with brakes

    4.2 m
    13.8 ft

  • Turning radius without brakes

    3.7 m
    12.1 ft
Tracks
Steering
Brakes
Electrical system
Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Foldable, two-post
    Platform - flat/straddle
    Straddle
    Gearshift location - console/floor
    Floor
Dimensions

  • Wheelbase

    OOS: 2350 mm
    92.5 in.

  • Approximate shipping weight, Open;Cab

    3200 kg
    7055 lb
Weight
Capacities

  • Fuel tank

    112.6 L
    29.7 U.S. gal.

  • Diesel exhaust fluid (DEF) tank

    12 L
    3.17 U.S. gal.
Serviceability
Loaders
Precision AG
Miscellaneous
Back to Top
DetailsFeaturesSpecifications

Details:

5075EN

Tractor

  • Working widths down to 51 inches
  • 75 hp engine/60 hp PTO
  • Front hitch option and Mid SVC's available
  • Two PowrReverser™ transmissions available: 12F/12R and 24F/12R
  • Creeper option available
  • Open Operator’s Station or Cab Option

Features:

Specifications:

Key Specs

  • Engine description

    John Deere PowerTech™ 3029 EWX

  • Engine displacement

    3 cylinders: 2.9 L
    179 cu in.

  • Rated engine power

    At 2100 rpm: 55 kW
    75 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm: OOS 45 kW (60.3 hp)
    Cab 43 kW (57.6 hp)

  • Transmission type

    Standard: PowrReverser™ 12F/12R
    Optional: PowrReverser™ 24F/12R

  • Hydraulic pump rated output

    68.8 L/min
    18.2 gpm

  • Rear hitch category (SAE designation)

    Category 2N; convertible to 2 & 1
Engine specifications

  • Description

    John Deere PowerTech™ 3029 EWX

  • Engine family

    NJDXL02.9339

  • Aspiration

    Turbocharged

  • Cylinders liners

    Wet sleeved

  • Displacement

    3 cylinders: 2.9 L
    179 cu in.
Engine performance

  • Rated power

    At 2100 rpm: 55 kW
    75 hp

  • Rated PTO power (hp SAE)

    At 2100 rpm: OOS 45 kW (60.3 hp)
    Cab 43 kW (57.6 hp)
Transmission

  • Type

    Standard: PowrReverser™ 12F/12R
    Optional: PowrReverser™ 24F/12R

  • Reverser

    Yes

  • Clutch; wet/dry

    Wet

  • Creeper

    Optional
Hydraulic system

  • Type

    Open center

  • Pump rated output

    68.8 L/min
    18.2 gpm

  • Available flow at a single rear SCV

    43.4 L/min
    11.5 gpm

  • Number of rear selective control valves (SCVs)

    Standard: Two
    Optional: Three

  • Number of mid selective control valves (SCVs)

    Zero; up to three

  • Joystick SCV control

    Mechanical
Rear hitch

  • Hitch draft control load sense type

    Electrohydraulic

  • Remote control valves available

    Standard: Two

  • Hitch category (SAE designation)

    Category 2N; convertible to 2 & 1

  • Maximum lift capacity behind lift points

    1390 kg
    3604 lb

  • Sensing type

    Top link
Drawbar
Rear power take-off (PTO)

  • Type

    Standard: 540/540E

  • Engine rpm (at rated PTO speeds)

    540 at 2100 rpm
    540E at 1645 rpm

  • PTO actuation

    Electrohydraulic
Front hitch
Rear axle

  • Type

    Flange

  • Differential controls

    Mechanical (pedal)

  • Axle type

  • Brakes, type and control

    Hydraulic wet disc
Front axle
Tires

  • Front

  • Rear

    14.9-24 In. 8PR R1 Bias

  • Wheel tread range

  • Turning radius with brakes

    3.2 m
    10.5 ft

  • Turning radius without brakes

    4.65 m
    15.3 ft
Tracks
Steering
Brakes
Electrical system
Operator station

  • Rollover protective structure, OOS

    Rigid - foldable - telescopic
    Foldable, two-post
    Platform - flat/straddle
    Straddle
    Gearshift location - console/floor
    Floor, on the side
Dimensions

  • Wheelbase

    1950 mm
    76.77 in.

  • Approximate shipping weight, Open;Cab

    OOS: 2735 kg
    6029 lb
    Cab: 3090 kg
    6812 lb
Weight
Capacities

  • Fuel tank

    66 L
    17.43 U.S. gal.

  • Diesel exhaust fluid (DEF) tank

    Not Applicable
Serviceability
Loaders
Precision AG
Miscellaneous
Back to Top
DetailsFeaturesSpecifications

Details:

5105MH

High-Crop Utility Tractor

  • Over 23 inches (594 mm) of front axle clearance
  • Enjoy all day comfort with open station and premium cab options
  • Cooling system handles harsh conditions, offers easy, tool-free cleaning and maximizes uptime
  • Low hood design for increased visibility and operational efficiency

Features:

Specifications:

Back to Top
Learn How To Get Any Job Done Around Your Property Visit The John Deere Tips Notebook


Visit Little’s To Explore Your Utility Tractor Options

Stop by one of our five locations for a close look at your John Deere utility tractor options. Then, take one out for a test drive. Your Little’s sales guide is ready to help you find the right utility tractor for your needs and will also provide information on our financing and leasing options.

FIND A STORE NEAR ME
Maximize Your Uptime With Expert Maintenance And Repair Schedule A Service Appointment Today
Grass
